📋 Basic Information
Model NO.:
SY-C038
Certification:
CE, EEC, ISO13485
Product Name:
Health Care Sleep Apnea Meter
Power Supply:
USB Recharge / Electric
Record:
12 Hours Data Record
Package Size:
20X15X10 Cm
🔍 Product Description

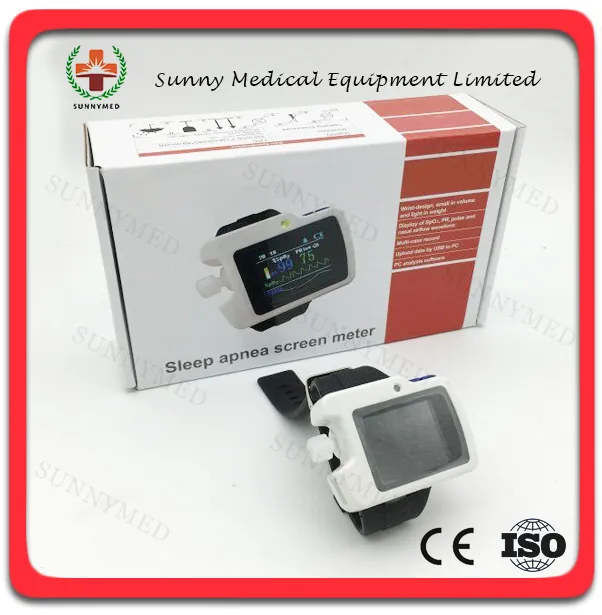

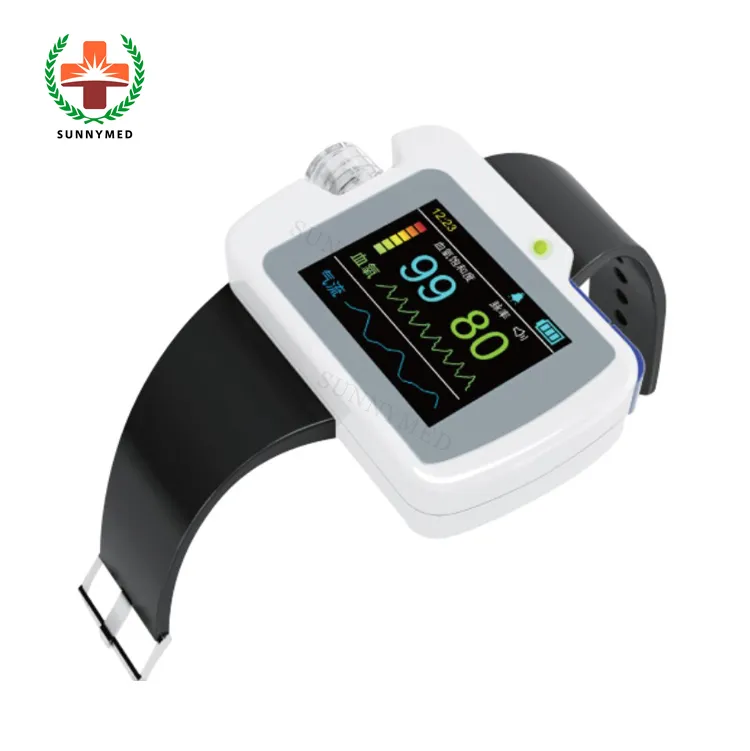

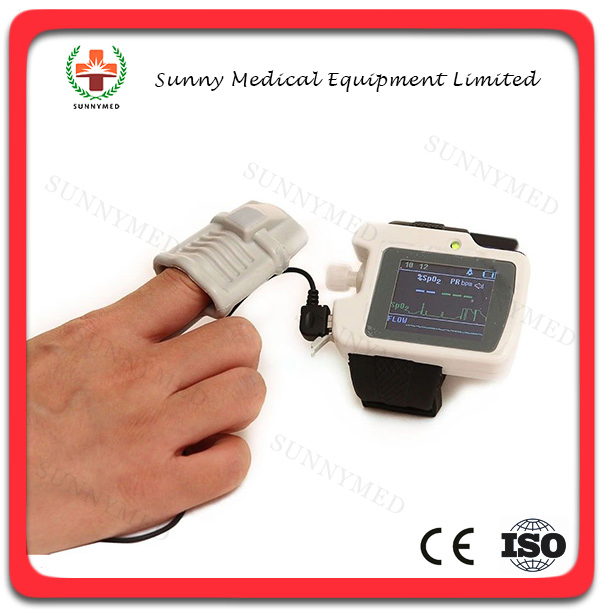

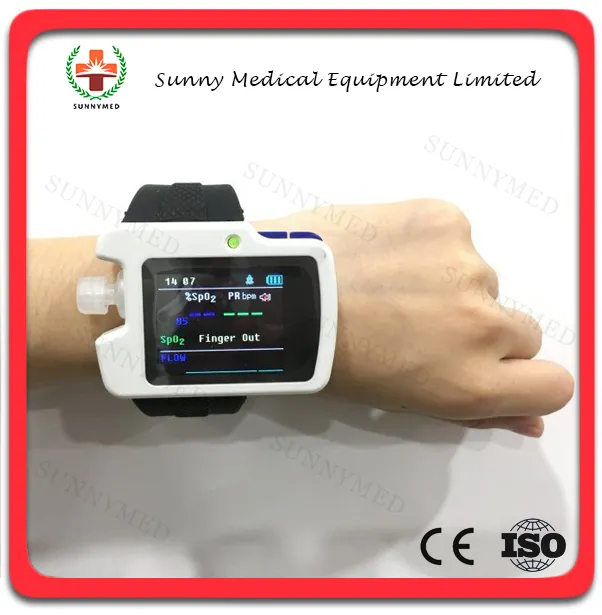

SY-C038 PR, SpO2, Nose air flow measurement Sleep Apnea Monitor
The device is suitable for individuals suffering from SAHS (sleep apnea-hypopnea syndrome). Its functions include patient's sleep apnea monitoring and SpO2 monitoring, applicable in hospitals or at home.
Performance Specifications
| Nose air flow |
0 rpm~40 rpm, accuracy: ±2 rpm |
| SpO2 Range |
0%~100% (resolution 1%), accuracy: 70%~100%, ±2 |
| PR Range |
30 bpm~250 bpm, accuracy: ±2 or ±2% |
| Power |
3.7 V rechargeable lithium battery, ≤100 mA |
| Safety Type |
Internally powered equipment, type BF applied part |

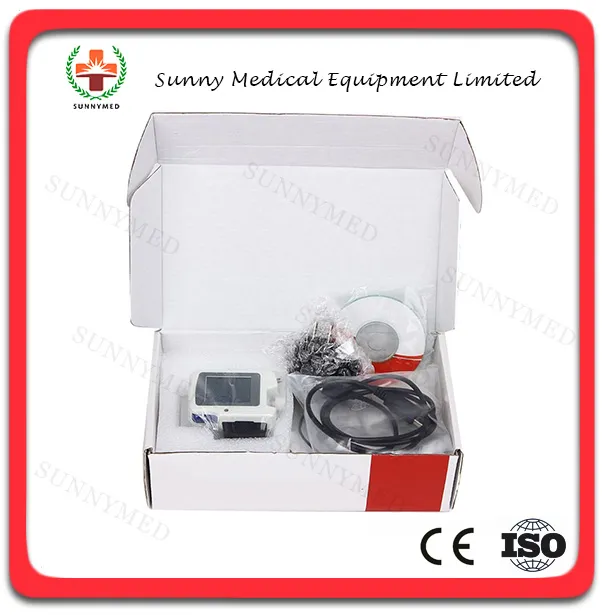

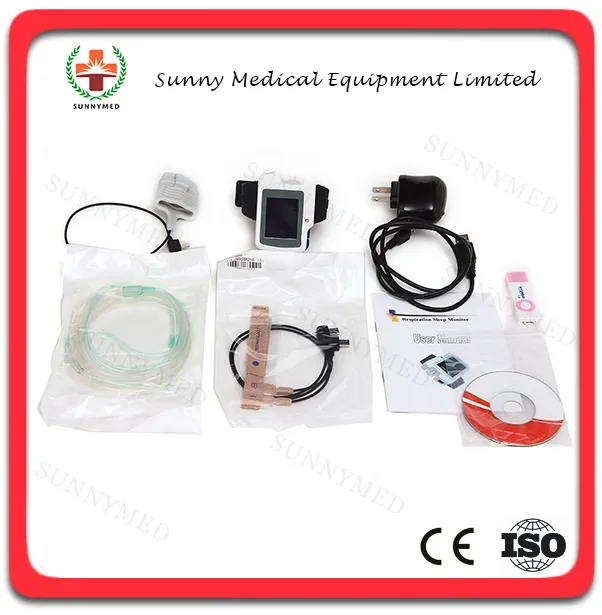

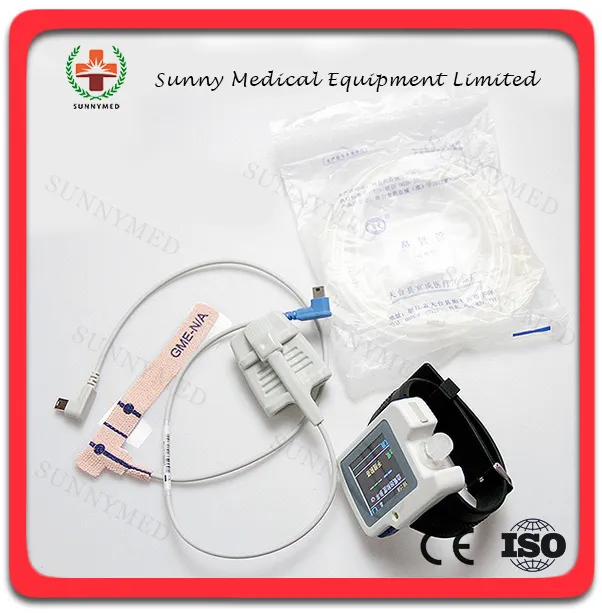

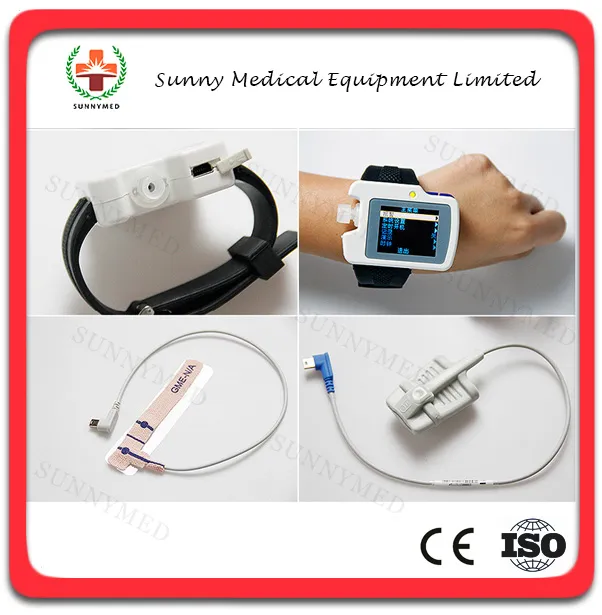

Accessories Included
✔ Power adapter & USB line

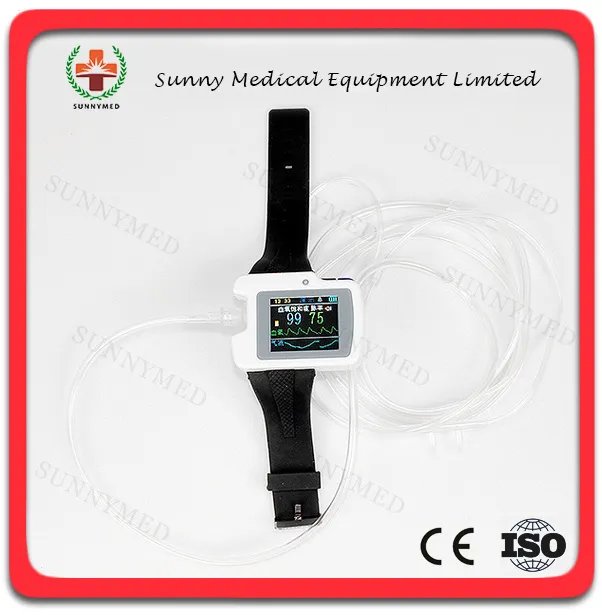

✔ Nasal cannula

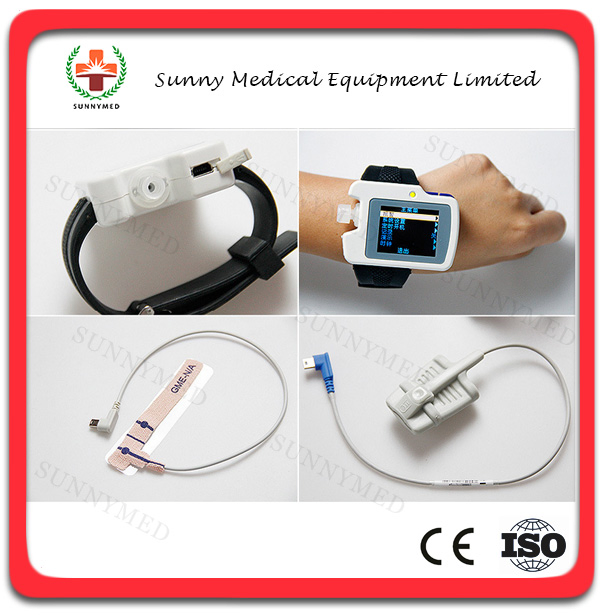

✔ Two kinds of SpO2 probes
✔ PC software (CD) & User Manual

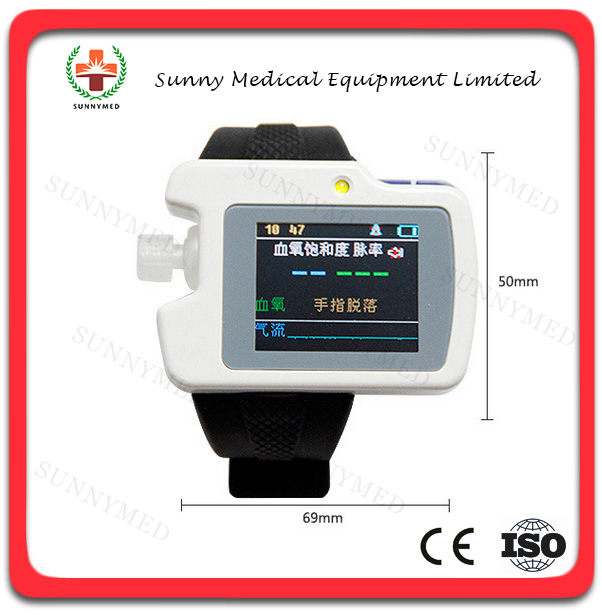

Physical Characteristics
| Dimension |
69 mm (L) × 50mm (W) × 17.3 mm (H) |
| Weight |
About 100g |
| Operating Temp |
10 ºC ~ 40 ºC |
❓ Frequently Asked Questions
What are the primary measurements this device provides?
The SY-C038 measures Nose Air Flow, Pulse Rate (PR), and Oxygen Saturation (SpO2), specifically designed for monitoring sleep apnea-hypopnea syndrome (SAHS).
How long can the device record data continuously?
The device supports up to 12 hours of continuous data recording, making it ideal for a full night's sleep study.
Is there software provided to analyze the sleep data?
Yes, a CD containing specialized PC software is included in the package for data management and analysis.
How is the device powered?
It uses a 3.7V rechargeable lithium battery and can be charged conveniently via a USB data line and power adapter.
Can this monitor be used at home?
Absolutely. Its compact design (weighing only 100g) and simple operation make it suitable for both professional hospital environments and home healthcare.
What payment methods are accepted for orders?
We accept Trade Assurance, Credit Cards, PayPal, T/T (Bank Transfer), Western Union, and L/C.
