Portable Sleep Meter Monitor for Screening Apnea

1 / 5

Portable Sleep Meter Monitor for Screening Apnea

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋 Basic Specifications

Model NO.

Certification

MSDS, ISO13485

Group

Middle-aged and Old

LED Display

2.8-Inch TFT

Function

Sleep Apnea Diagnosis

Feature

Compact, Light and Convenient

Weight

176g (Exclude Sensor)

Device Dimensions

125mm x 80mm x 24mm

HS Code

9018199000

Production Capacity

500 Set/ Month

🔍 Product Overview

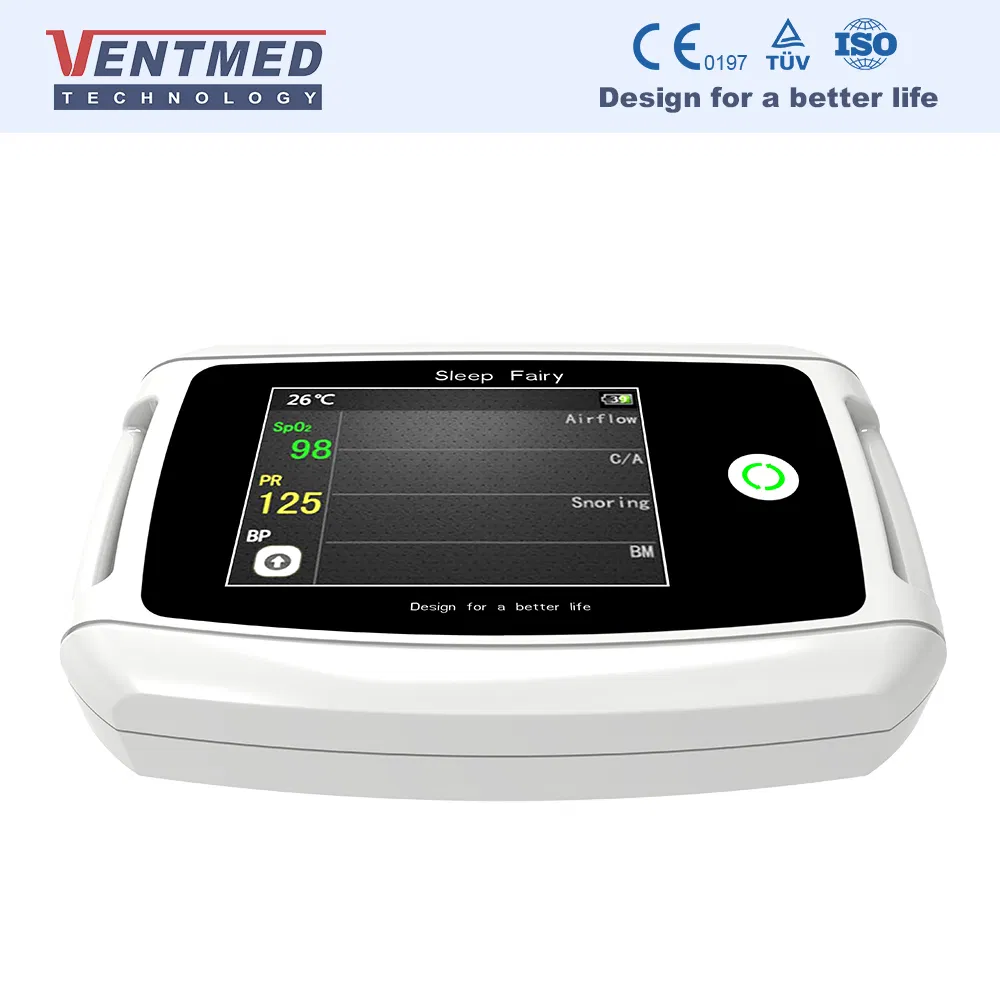

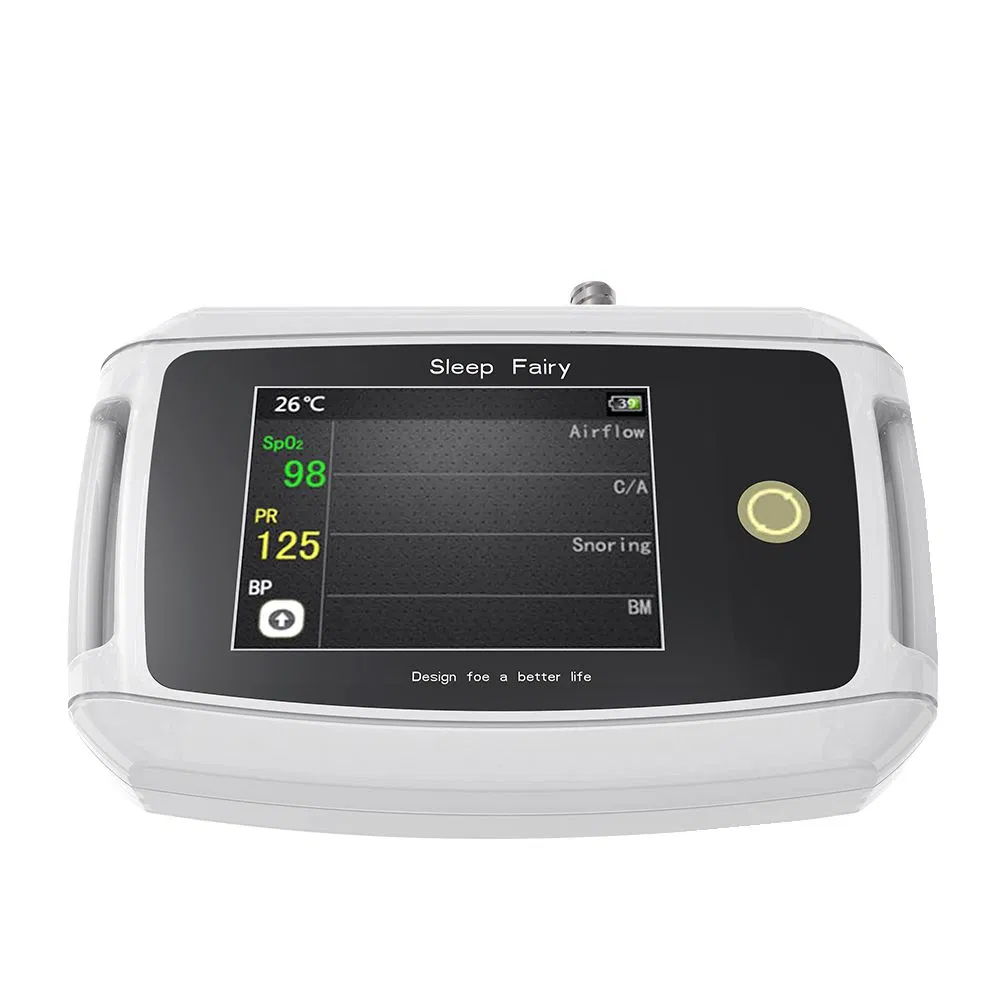

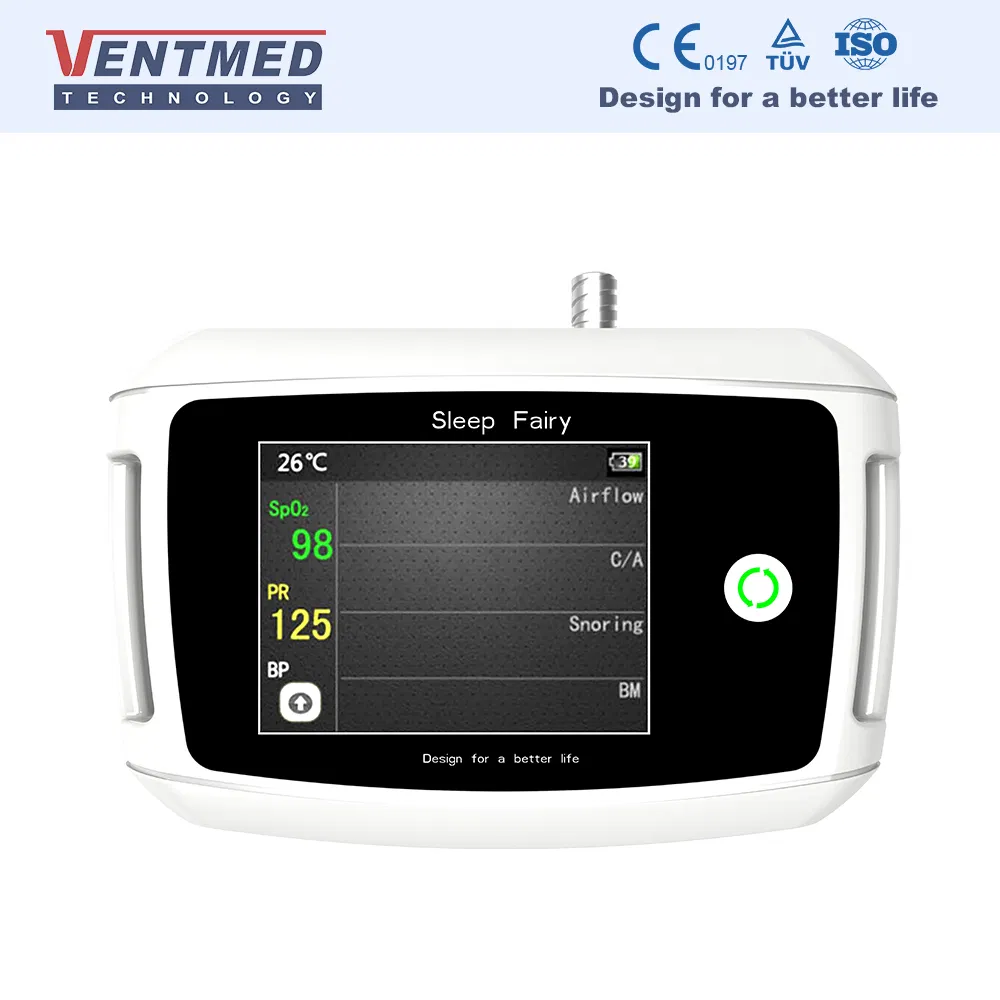

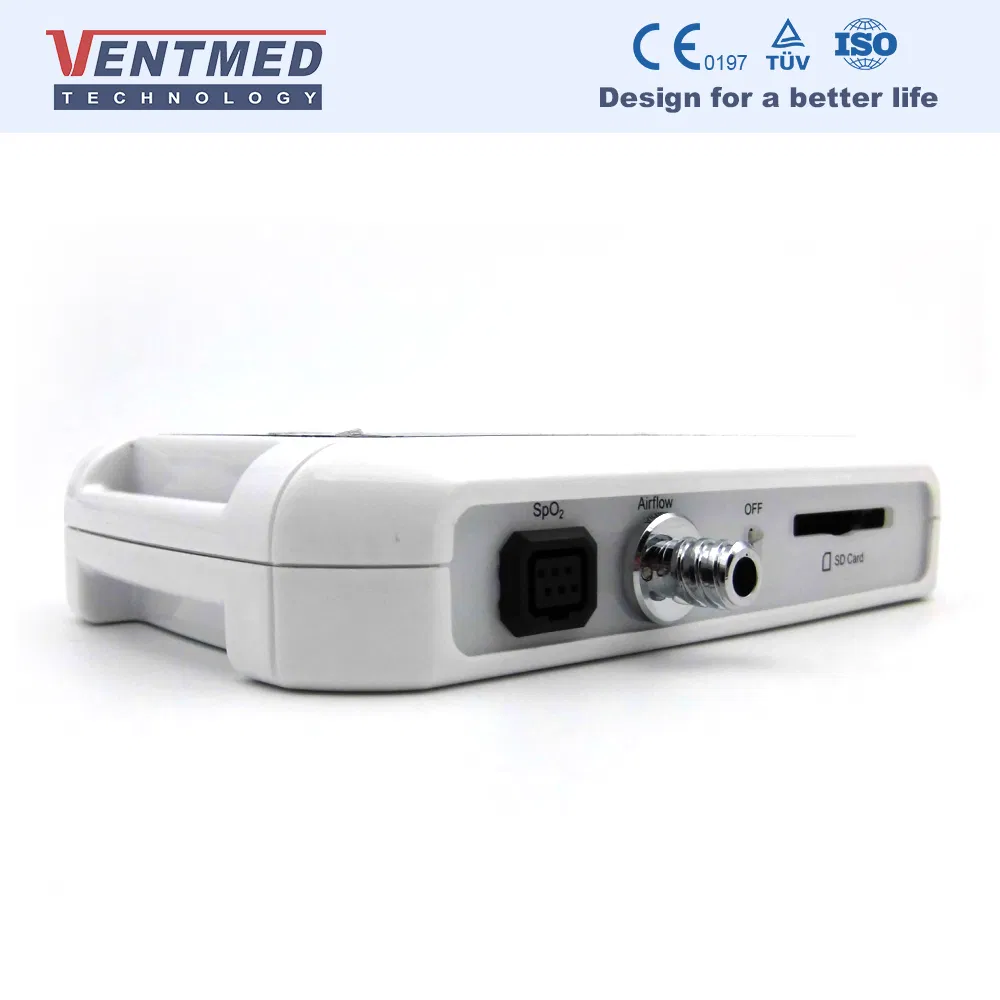

Portable Sleep Meter Monitor for Screening Apnea

This portable sleep monitor device is a brand new intelligent diagnosis system for sleep disorders and sleep apnea. It is suitable for clinical, hospital, sleep center, and home usage, specifically designed for screening Sleep Apnea Syndrome (SAS). It provides comprehensive monitor recordings and reports for physicians to determine professional treatment proposals and therapy pressure titration.

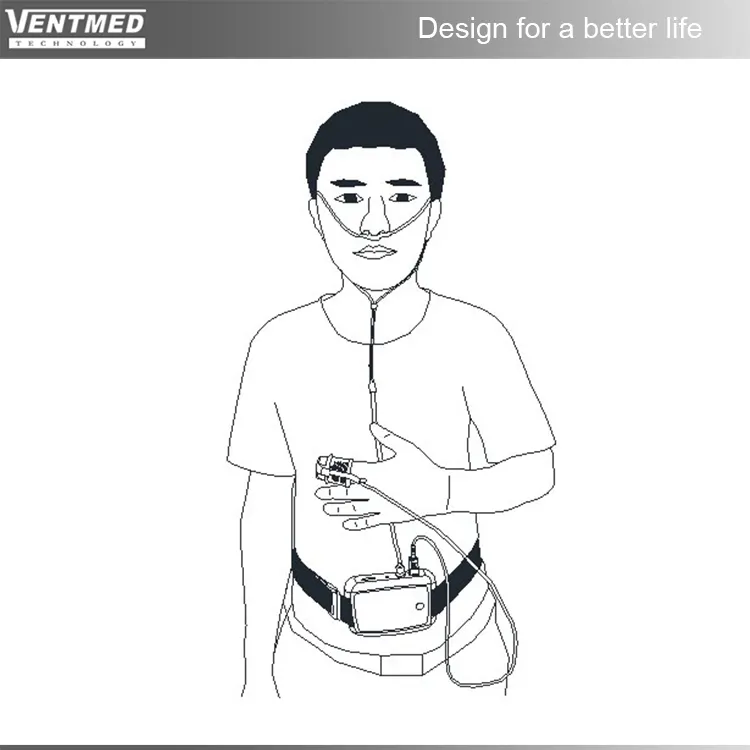

Patients can be tested in the comfort of their own homes without an observer and with fewer sensors attached to the body, reducing anxiety and improving test protocol acceptance.

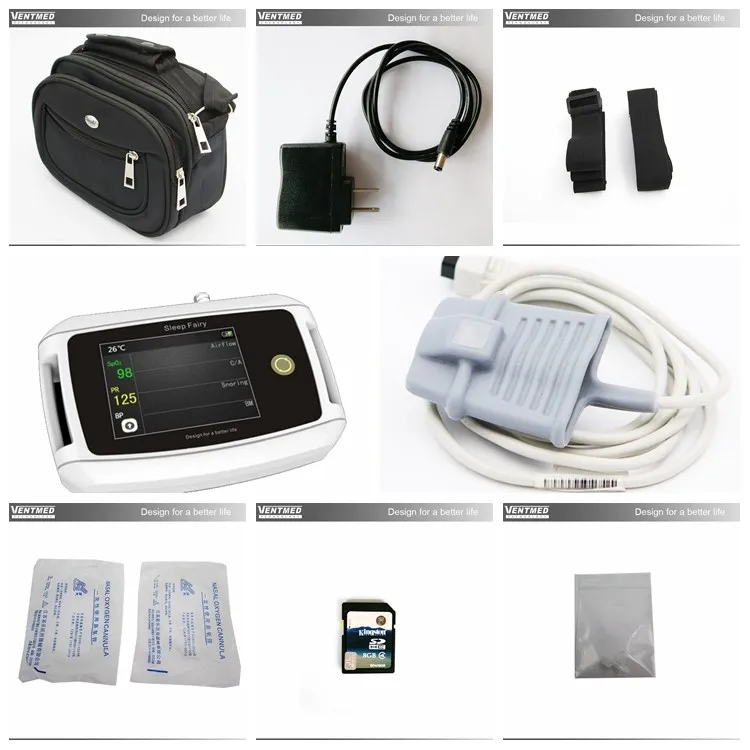

📦 Product Structure & Components

1 Host Device
2 Luer Connectors (Spare parts)
1 SpO2 sensor
2 Nasal Oxygen Cannulae
2 Fixing bands
1 SD card & SD card reader
1 Charger & Carrying bag

⚙️ Technical Specifications

Monitoring Channels	9 Channels: Airflow, Snore, SpO2, Pulse Rate, Pulse Wave, Body Position, Body Movement, Respiratory Effort, CPAP Pressure
Data Sampling Rate	50-200Hz / 12Bit Resolution
Storage Capacity	8G (Over 8000 hours of data)
SpO2 Range	70% - 100%
Pulse Rate	30 - 240 bpm
Battery	2500mAh Lithium Battery (30 hours continuous monitoring)
Screen	2.8 inch TFT, 320 x 240

🌟 Key Features

Compact, light, and convenient for travel or home use.
Innovative built-in 3D sensor: No need for extra sensors for body movement or respiratory effort.
Extremely easy one-switch operation.
Detailed and accurate sleep clinical data with sophisticated diagnostic software.
Compatible with CPAP devices for pressure titration.

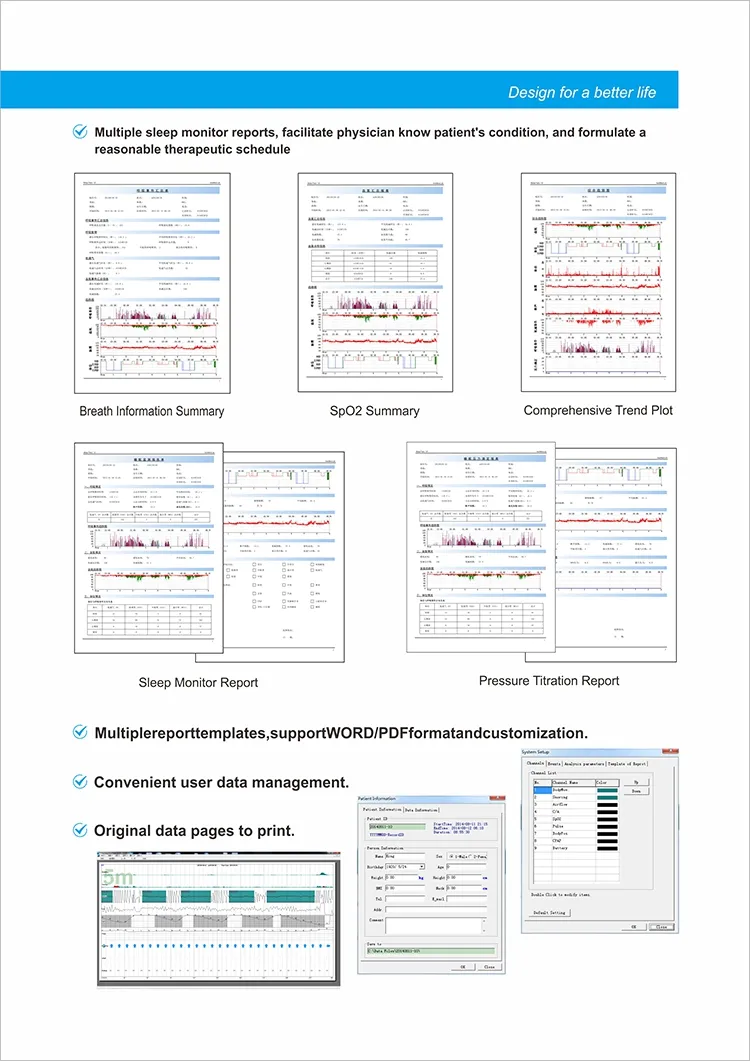

Easy data reading via SD card and dedicated analysis software.

🏆 Professional Recognition

🤝 Our Services

1-Year Warranty on all monitoring devices.
Professional OEM/ODM services for private branding.
Shortest possible delivery times.
Long-term maintenance support and competitive pricing.
24-hour inquiry response time.

❓ Frequently Asked Questions

Q1: Can I use this device for home sleep apnea testing?

Yes, the A9 is specifically designed for convenient home use, allowing patients to be monitored in a natural sleep environment without an observer.

Q2: How many parameters does the monitor track?

The device tracks 9 essential channels, including SpO2, pulse rate, airflow, snoring, body position, and respiratory effort.

Q3: Is it difficult to wear during sleep?

Not at all. The compact 176g design and integrated 3D sensor mean fewer wires and sensors are needed compared to traditional hospital PSG systems.

Q4: How long does the battery last?

The built-in 2500mAh lithium battery supports up to 30 hours of continuous monitoring, more than enough for multiple nights of testing.

Q5: How do I read the sleep report?

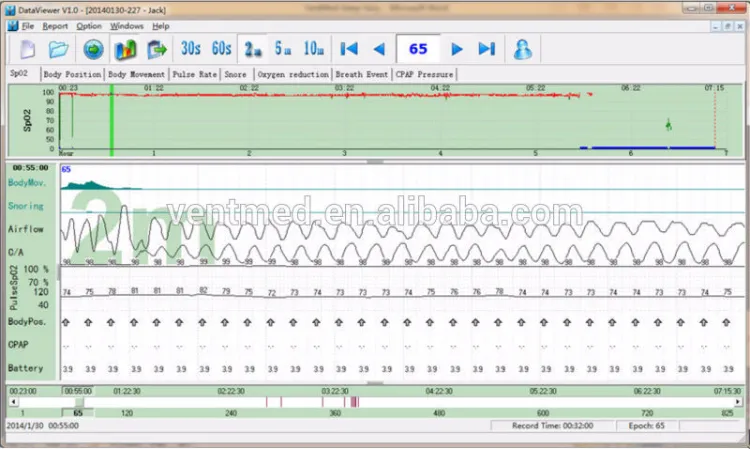

Data is stored on an SD card. You can use the included card reader and specialized analysis software to generate and print detailed clinical reports on your computer.

Q6: Does this device meet medical standards?

Yes, the device meets American Academy of Sleep Medicine (AASM) requirements and is ISO13485 certified.
