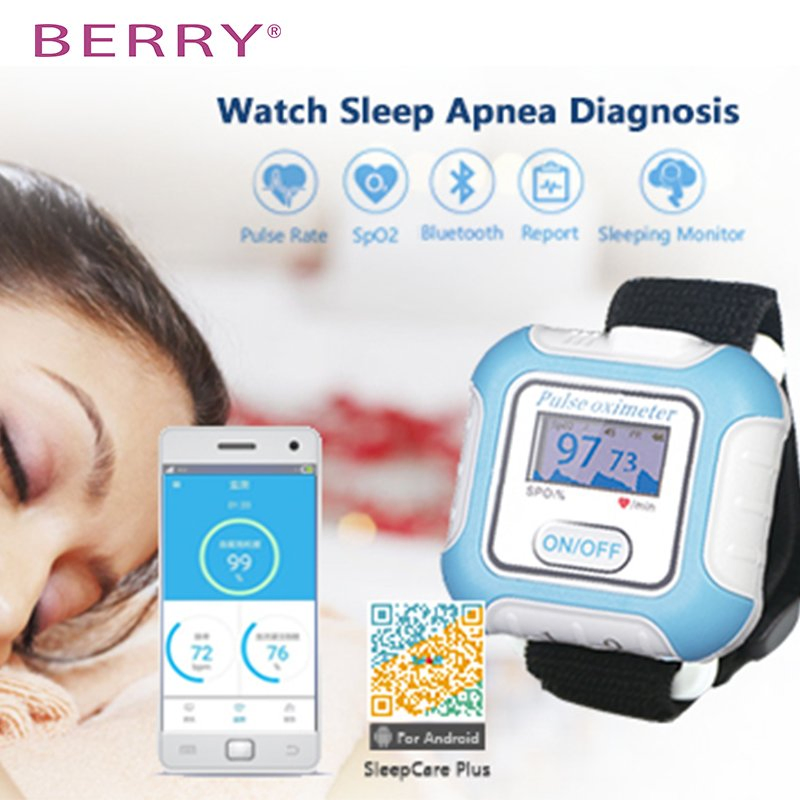

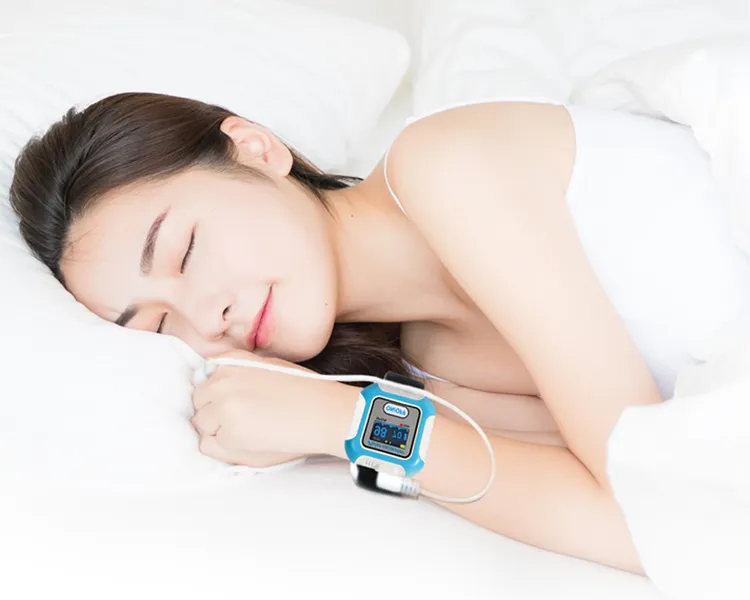

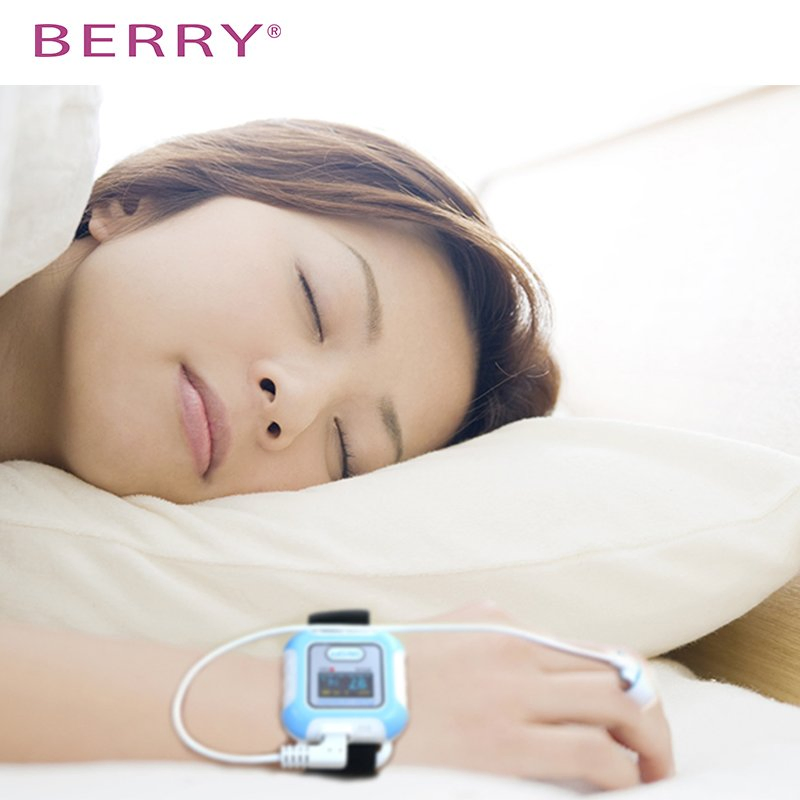

BM2000A Sleep Monitoring System
Suitable for sleep hypopnea syndrome monitoring. This system accurately captures pulse signals and has been validated in numerous clinical trials.
Instructions: Berry Sleep Apnea Screening Monitor has 510K, CE0123, ISO13485, FCC, RoHS certifications, meeting global standards for blood oxygen and pulse rate measurements.
Widely Used In Daily Life
BM2000A applies to Aviation, Snorers, Children, Asthma, and COPD patients.
Major Features
- Optimized Monitoring: Suitable for sleep or Apnea respiratory monitoring, especially hypopnea.
- Clinical Accuracy: Proven effective for clinical sleep apnea syndrome diagnosis through PSG contrast experiments.
- Low Power Consumption: 3.7V lithium battery lasts for more than 20 hours.
- International Certification: Approved with CE, 510K, and other essential medical certifications.
- Universal Design: Various sensors suitable for infants, children, and adults of different skin colors.
- App Connectivity: Bluetooth connection records data every second, generating comprehensive sleep reports.
Operation Process
1Download the BerrySmartHealth APP.
2Wear the equipment for at least 6 hours.
3Wrap foam SpO2 sensor around fingertip.
4Transfer data via Bluetooth.
5Display report on phone.
6Share reports as needed.
Technical Features
| Parameter |
Specifications |
| Display |
SpO2, PR |
| Battery Type |
3.7v (1000mAh) Rechargeable Lithium |
| Pulse Rate Range |
25 - 250bpm (Accuracy: ±2bpm) |
| SpO2 Range |
35% - 100% (Accuracy: ±2% for 80-100%) |
| Size & Weight |
68(L)x58(W)x20(D)mm / 50g |
| Software |
Free App: "BerrySmartHealth" |
Accuracy & Clinical Validation

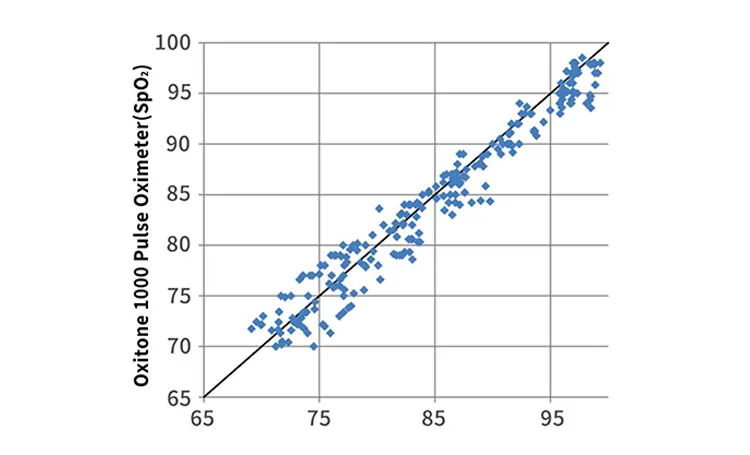

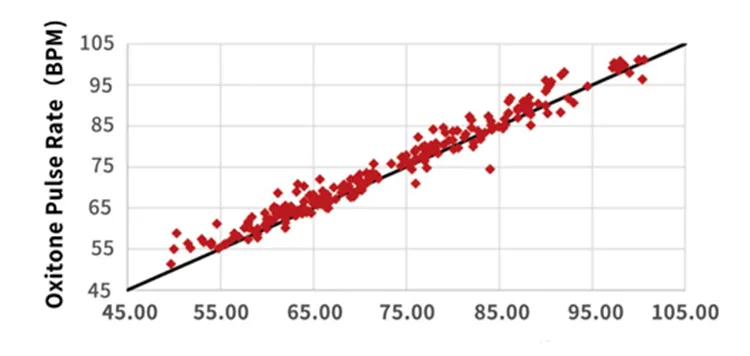

Accuracy Test: Blood Oxygen & Pulse Rate
| Comparison: Reference Pulse Oximeter |
| Range |
70 ~ 100 |
90 ~ 100 |
80 - < 90 |
67 - < 80 |
| Error |
-0.6 |
-1.1 |
-0.9 |
0.1 |
| RMS Error |
1.9 |
1.7 |
2.0 |
2.1 |
Products have passed rigorous accuracy tests: Blood oxygen concentration accuracy < 2%.
Parameter Comparison & Analysis
Apnea Trend
Hypopnea Trend
Software Diagnosis Results
| Clinical Trial Analysis |
|---|
| Diagnosis of Hypoxemia |
| Sensitivity: 89.29% |
Specificity: 77.78% |
Accuracy: 92.59% |
| OSAHS Judgment |
| Sensitivity: 94.17% |
Specificity: 61.21% |
Accuracy: 89.62% |
Standard Configuration
- 1. Adult probe
- 2. Child probe
- 3. Neonate probe
- 4. Gift box
- 5. User manual
Physical Identity
Dimension: 68(H) × 58(W) × 20(D) mm
Weight: About 50g (including batteries)
Frequently Asked Questions
Q1: What is the primary use of the BM2000A monitor?
A: It is specifically designed for monitoring sleep apnea and hypopnea syndrome, capturing blood oxygen and pulse rate data throughout the night.
Q2: How long does the battery last on a single charge?
A: The built-in 3.7V rechargeable lithium battery can last for more than 20 hours of continuous monitoring.
Q3: Is this device suitable for children or infants?
A: Yes, the standard configuration includes various sensors suitable for infants, children, and adults of different ages and skin tones.

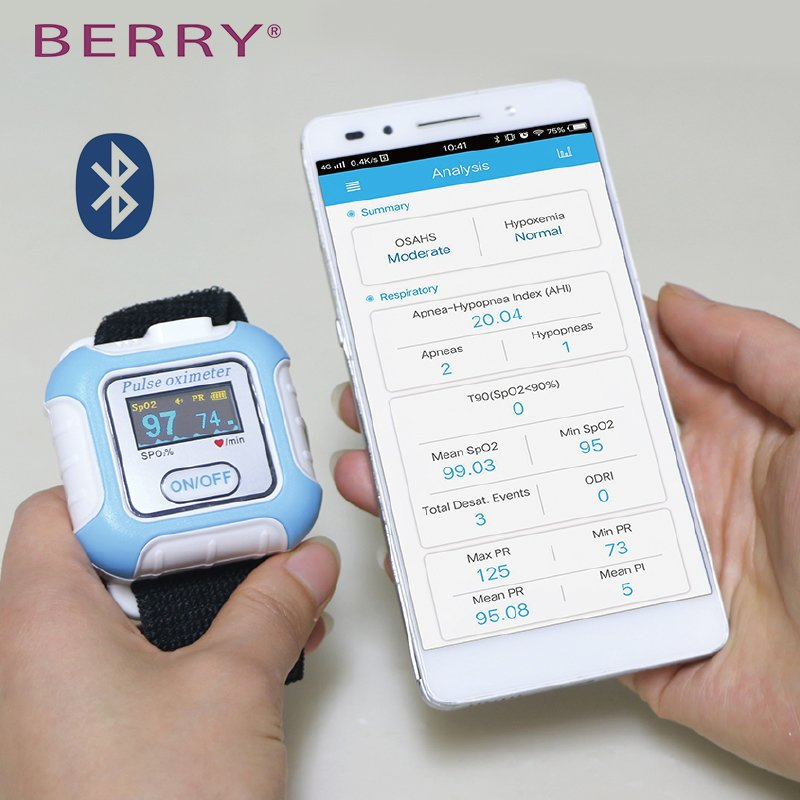

Q4: How can I access and view my sleep reports?
A: You can download the "BerrySmartHealth" app from Google Play or the Apple Store. The device connects via Bluetooth to sync data and generate reports on your smartphone.
Q5: Has the accuracy of the device been clinically validated?
A: Yes, the device has undergone PSG contrast experiments and accuracy tests, showing a 0.98 correlation with reference heart rate ECG and meeting 510K accuracy requirements.
Q6: What is included in the standard package?
A: The package includes the wrist monitor, adult probe, child probe, neonate probe, a gift box, and a detailed user manual.
