Product Description

Basic Specifications

Model NO.

Certification

MSDS, ISO13485

Group

Middle-aged and Old

LED Display

2.8-Inch TFT

Advantage

Suitable and High Accurate

Function

Sleep Apnea Diagnosis

Feature

Compact, Light and Convenient

Weight

176g (Exclude Sensor)

Device Dimensions

125mmL X 80mmW X 24mmH

Transport Package

Strong Carrying Case

HS Code

9018199000

Capacity

500 Set/ Month

Product Description

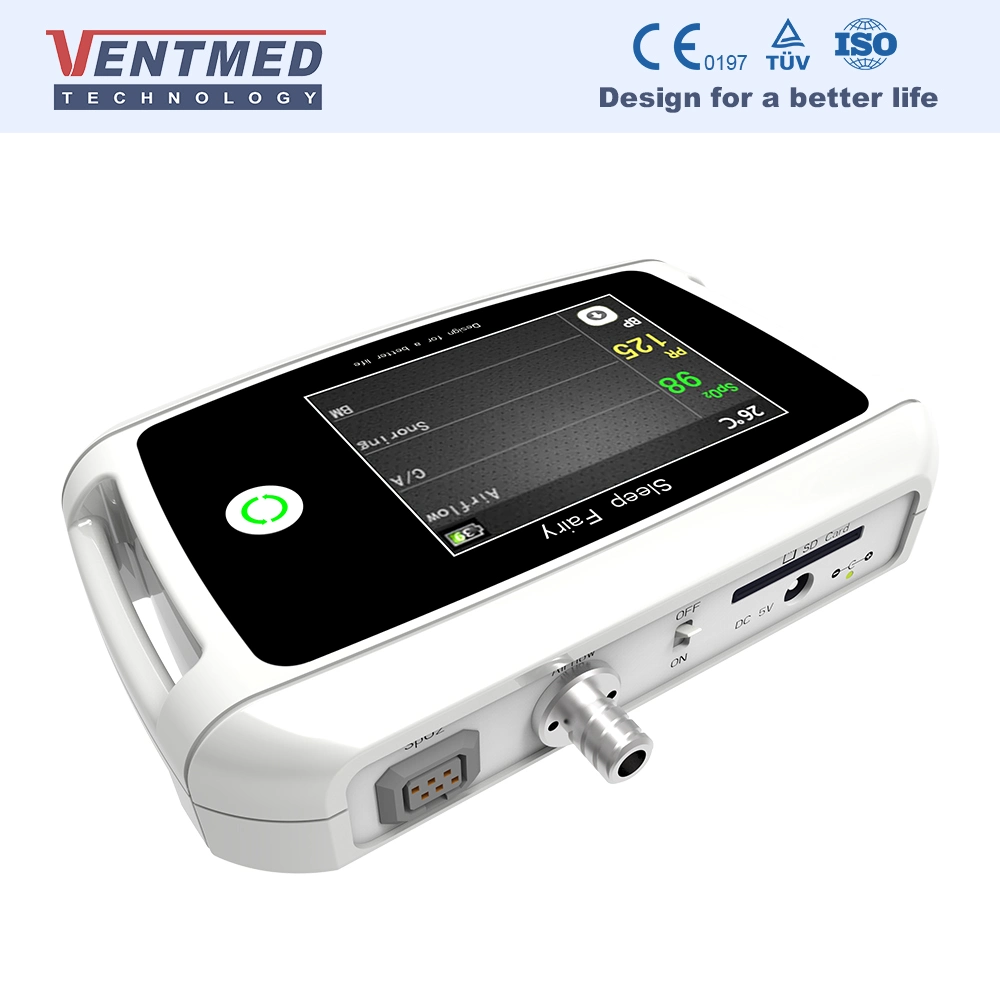

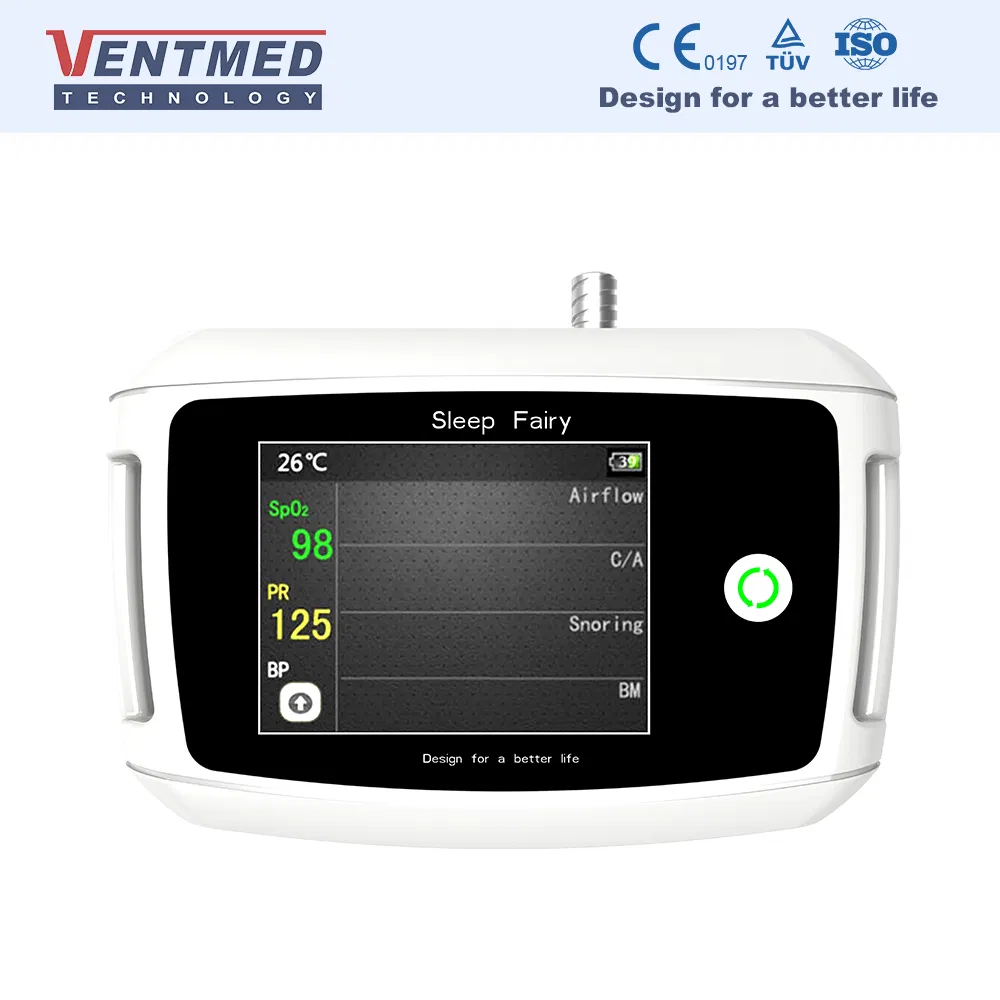

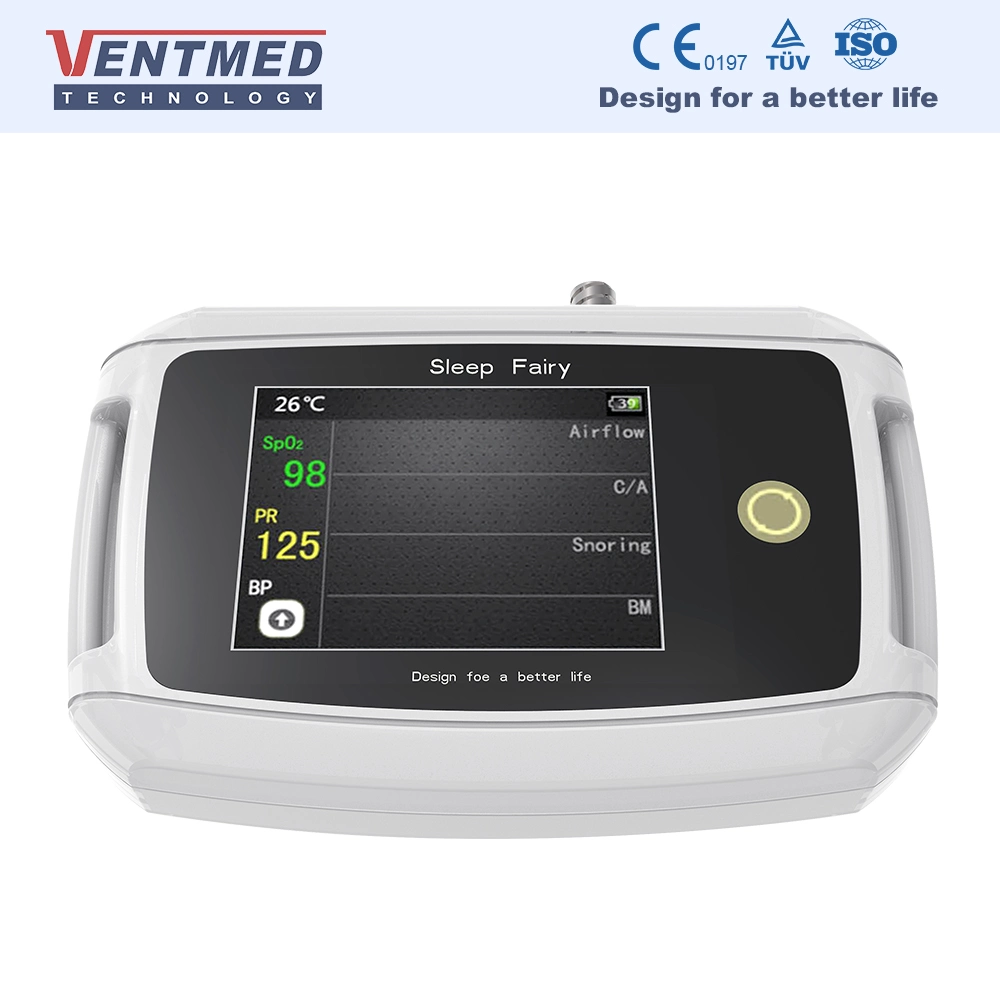

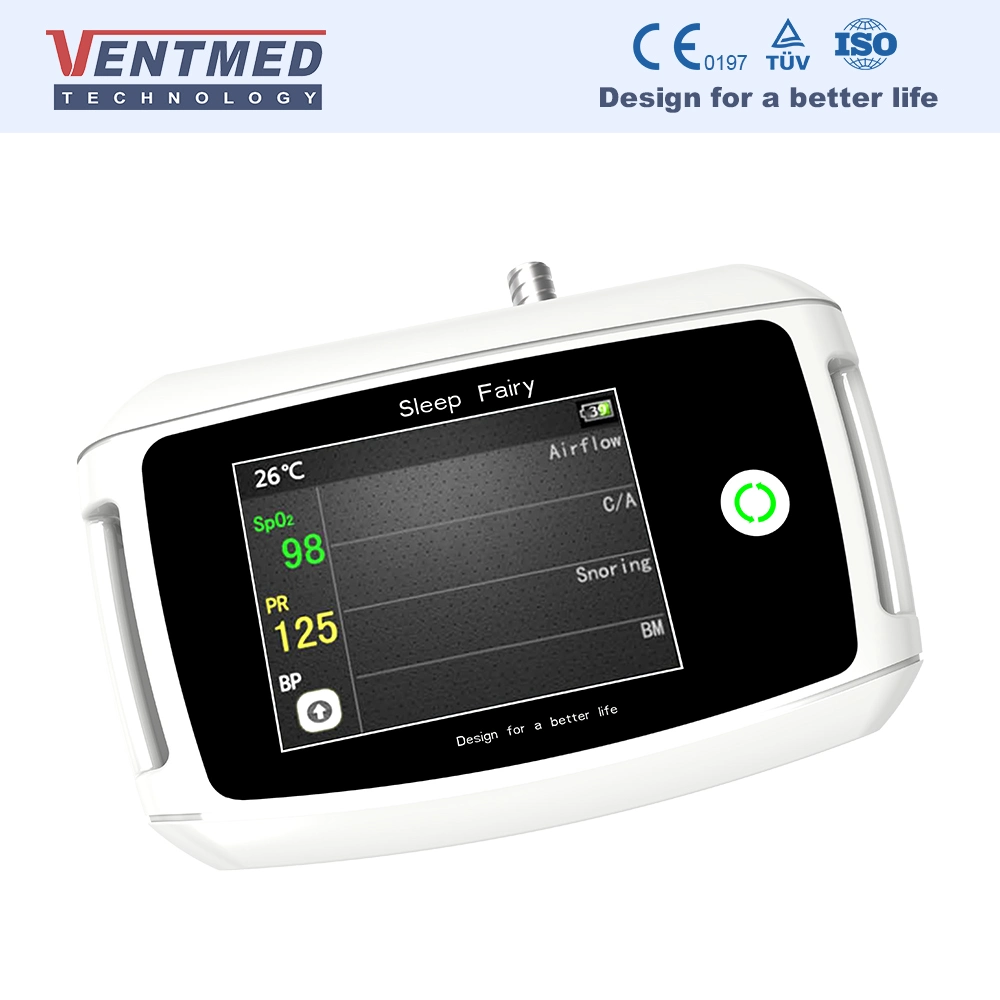

Portable Sleep Monitoring Device & Sleep Apnea Symptoms Monitor

1. Overview

This sleep monitor device is an intelligent diagnosis system for sleep disorders and sleep apnea. It is suitable for clinical, hospital, sleep center, and home usage, specifically designed for screening Sleep Apnea Syndrome (SAS). It provides multiple monitor recordings and detailed reports for physicians to propose professional treatment and therapy pressure titration.

Patients can be tested in the comfort of their own homes without an observer and with fewer sensors attached, reducing anxiety and improving the quality of the sleep study. This device meets all American Academy of Sleep Medicine (AASM) requirements.

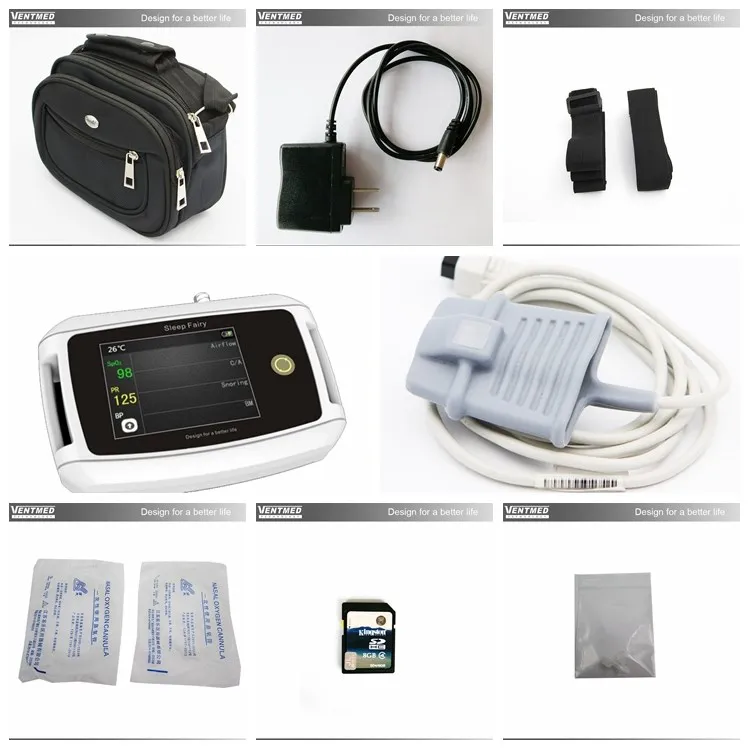

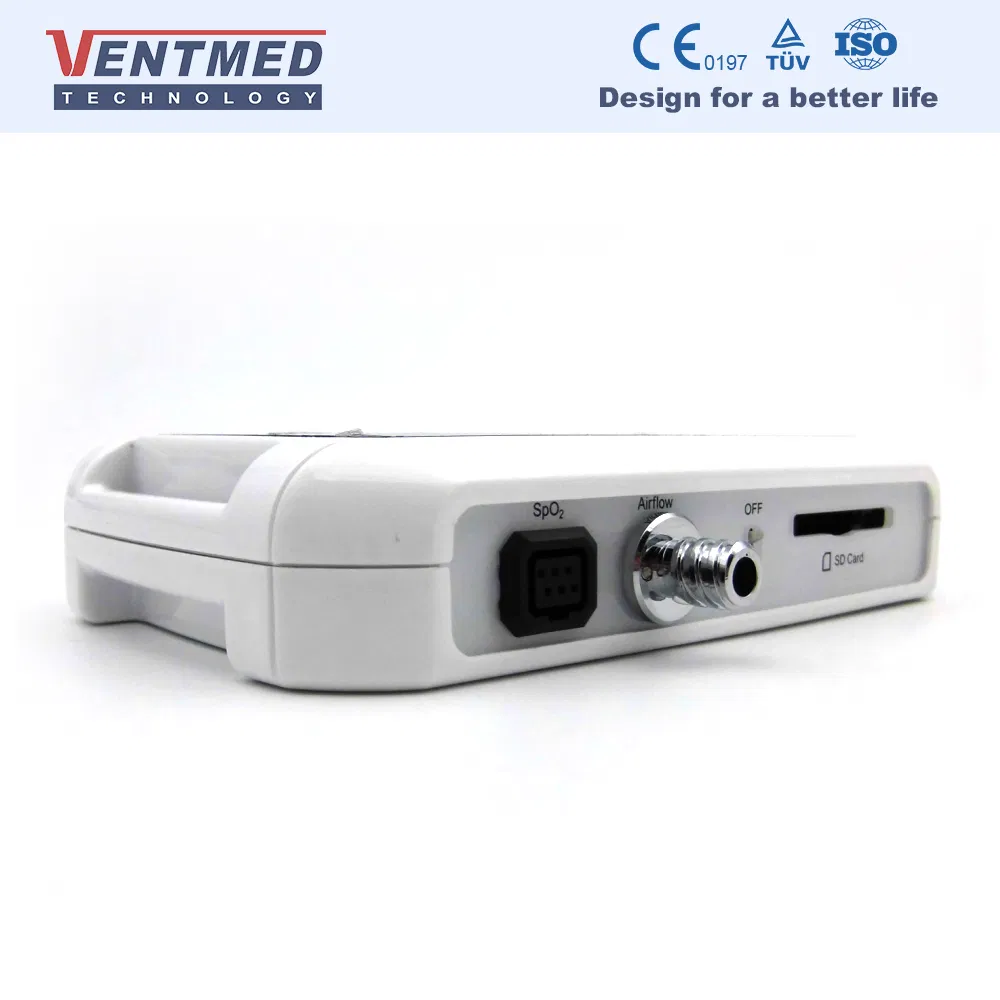

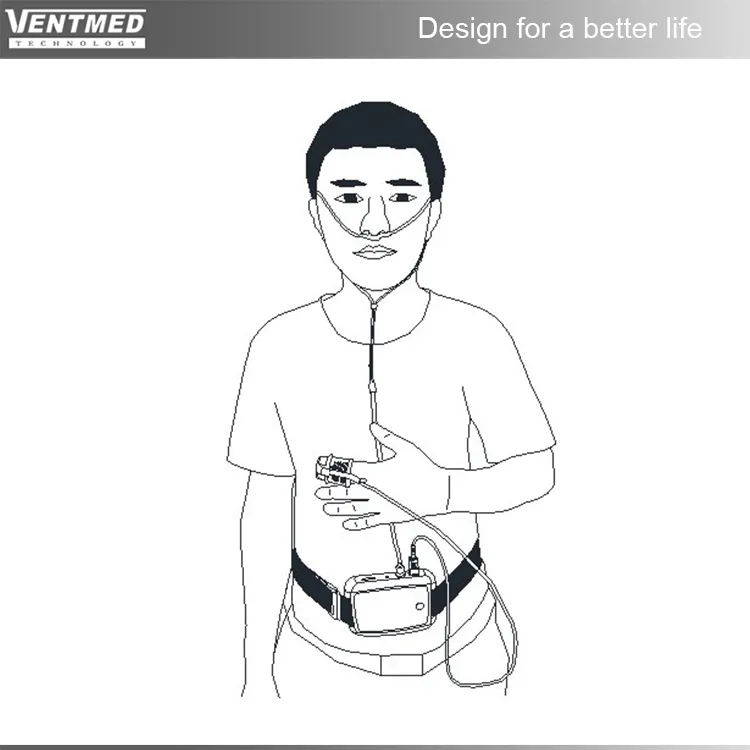

2. Product Structure & Accessories

1 pcs Host

1 pcs SpO2 sensor

2 pcs Nasal Oxygen Cannula

2 pcs Luer Connector (Spare parts)

2 pcs Fixing band

1 pcs SD card & Card reader

1 pcs Charger & Carrying bag

3. Technical Specifications

Channels (9)

Airflow, Snore, SpO2, Pulse Rate, Pulse Wave, Body Position, Body Movement, Respiratory Effort, CPAP Pressure

Sampling Rate

50-200Hz / 12Bit

Storage

8G SD Card (over 8000 hours)

SpO2 Range

70% - 100%

Pulse Rate

30 - 240 bpm

Battery

2500mAh Lithium (30 hours continuous)

Screen

2.8 inch TFT, 320 x 240

4. Key Features

Advanced Sensing: Built-in innovative 3D sensor for body movement and respiratory effort.

Simplified Operation: Extremely easy to operate with a single switch.

Data Accuracy: Provides extensive, detailed, and accurate clinical sleep data.

Pressure Titration: Can link to CPAP devices to titrate patient's required pressure.

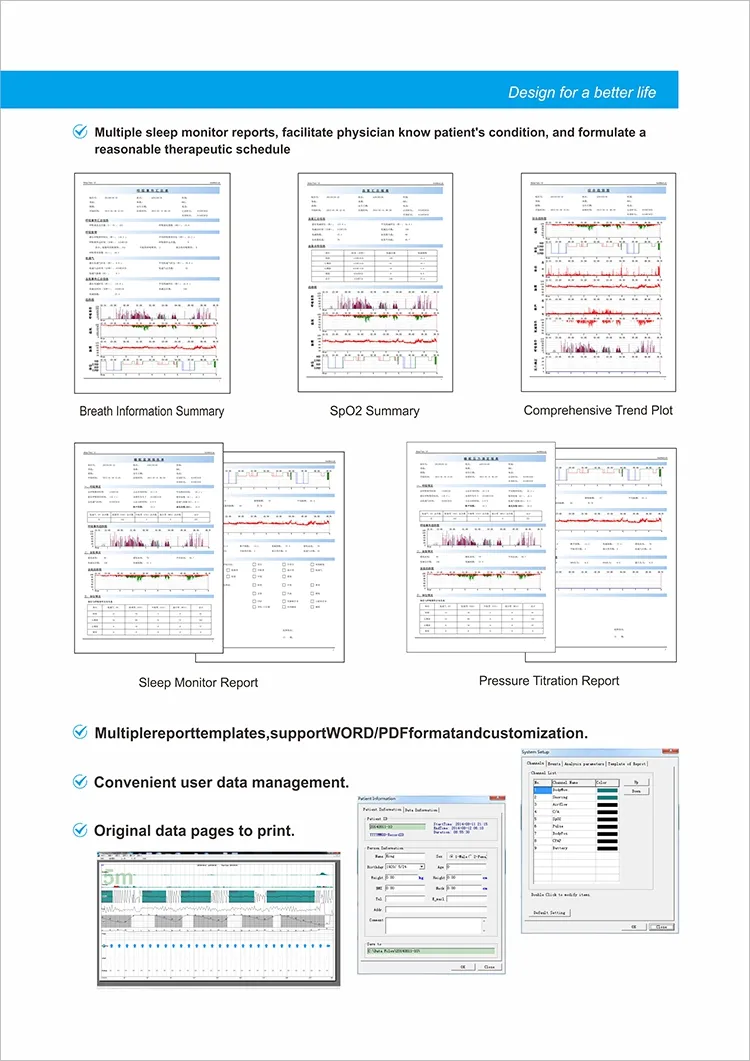

Professional Reporting: Includes sophisticated scoring and diagnostic software.

5. Our Services

1-year warranty coverage.

Fastest delivery times and minimum lead periods.

Long-term maintenance and support for all products.

Professional OEM/ODM services available for private branding.

24-hour response time for all inquiries.

Frequently Asked Questions

What is the primary use of this sleep monitoring device?

The device is specifically designed to diagnose sleep disorders and screen for Sleep Apnea Syndrome (SAS) in both clinical and home settings.

How many parameters does the device track?

It monitors 9 essential channels, including Airflow, Snore, SpO2, Pulse Rate, Pulse Wave, Body Position, Body Movement, Respiratory Effort, and CPAP Pressure.

Is the device easy to use for elderly patients at home?

Yes, it features a simple one-switch operation and a compact, lightweight design, making it very user-friendly for home testing without an observer.

How long can the battery support continuous monitoring?

The integrated 2500mAh rechargeable lithium battery supports up to 30 hours of continuous monitoring on a single charge.

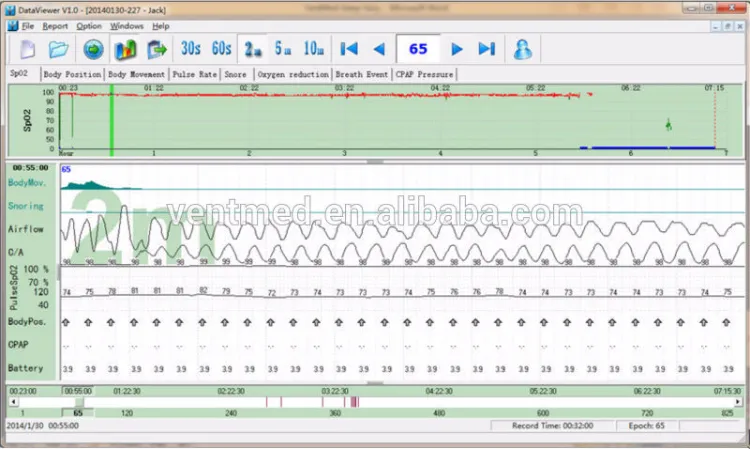

How can I view the sleep data and reports?

Data is stored on an included 8G SD card, which can be read via the provided card reader and specialized software on a computer to generate clinical reports.

Does the device require extra sensors for body movement?

No, it features an innovative built-in 3D sensor that handles body movement and position, reducing the number of external sensors needed.
