Product Description
1. What is Sleep monitor?
The sleep monitor device is a brand new intelligent diagnosis system for sleep disorders and sleep apnea, which is suitable for clinic/hospital/sleep centre/home usage, especially for screening of Sleep Apnea Syndrome (SAS). It provides multiple monitor recordings and reports of sleep, for sleep physician to provide professional treatment proposal and therapy pressure titration.

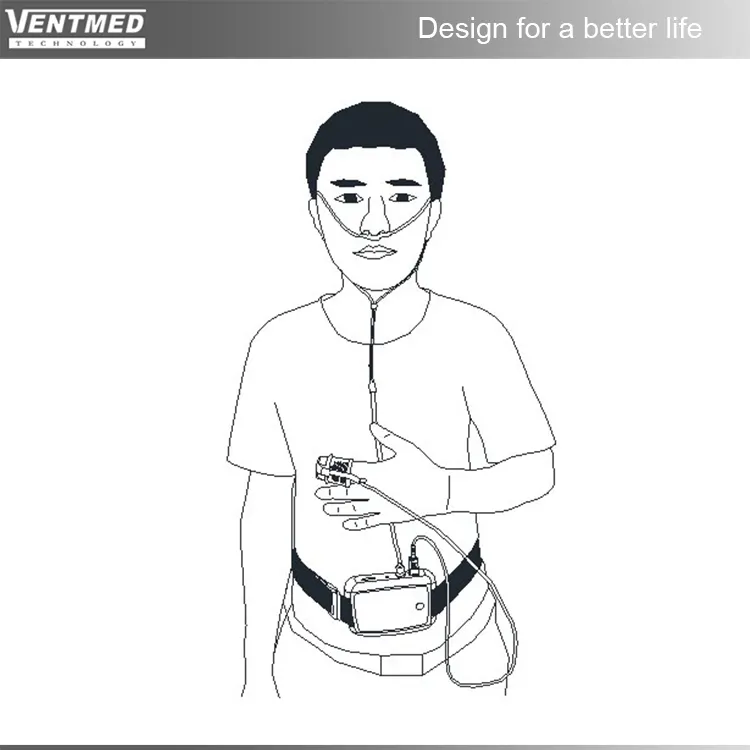

Patients can be tested in the comfort and convenience of their own homes without an observer and with fewer sensors attached to their body. This reduces anxiety, leads to a more natural night of sleep and improves patient acceptance of test protocol.
This device meets all American Academy of Sleep Medicine (AASM) requirements.
2. Product Structure

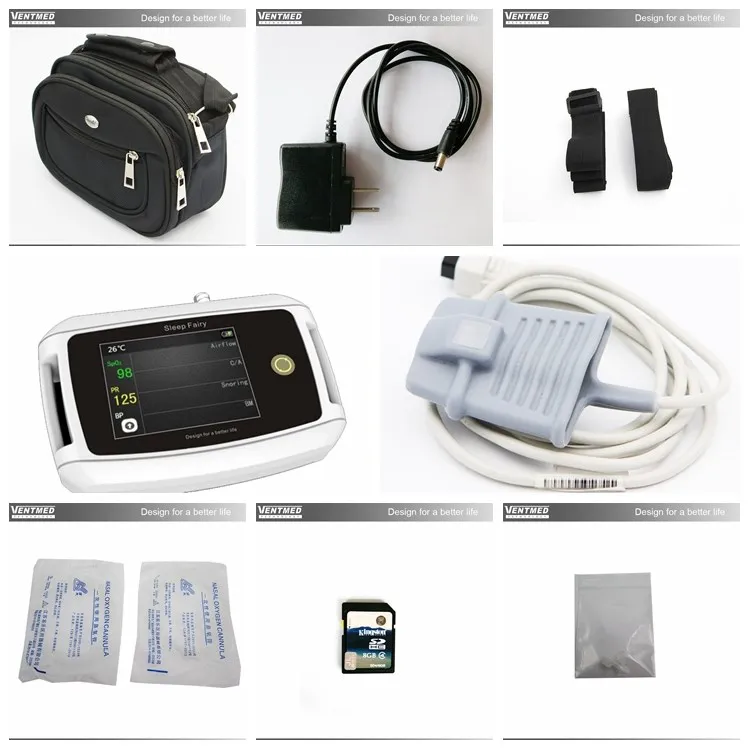

The delivery parts include:

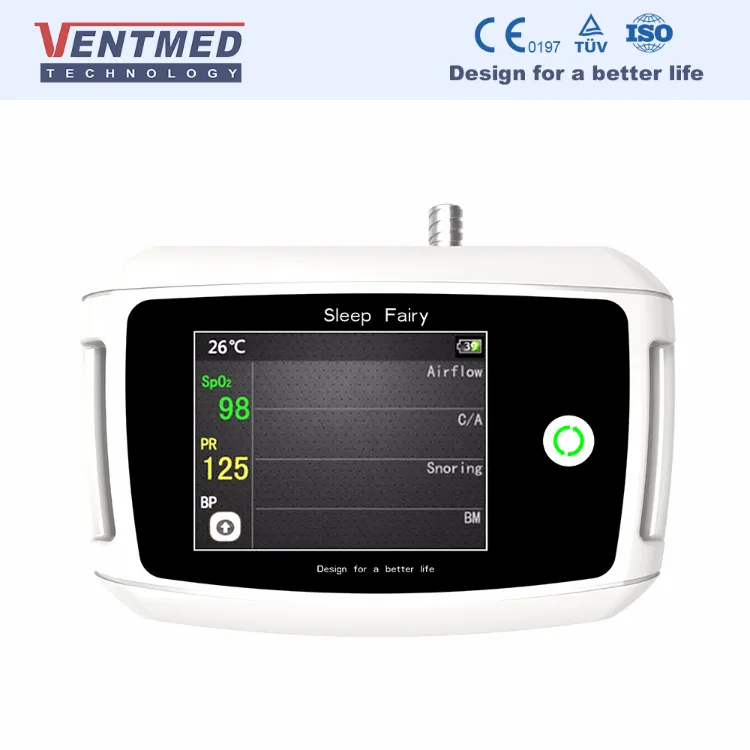

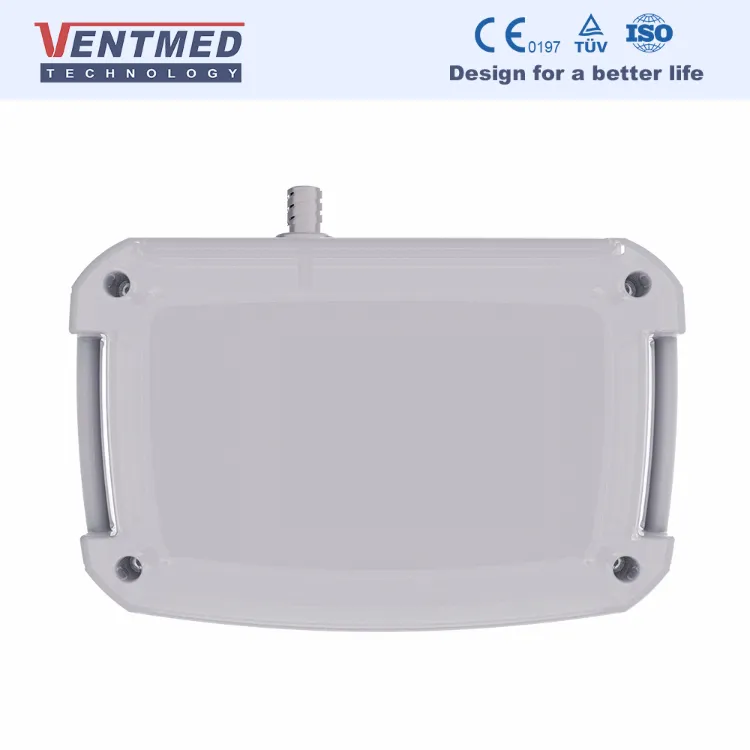

- (1) 1 pc sleep monitor device host
- (2) 2 pcs Luer Connector (Spare parts)
- (3) 1 pcs SpO2 sensor
- (4) 2 pcs Nasal Oxygen Cannula

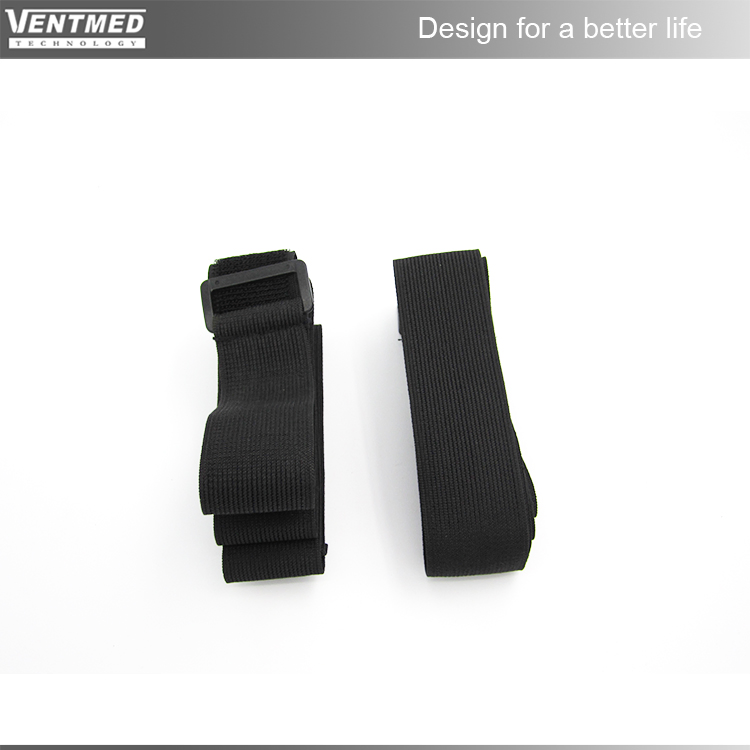

- (5) 2 pcs fixing band
- (6) 1 pcs SD card
- (7) 1 pcs SD card reader

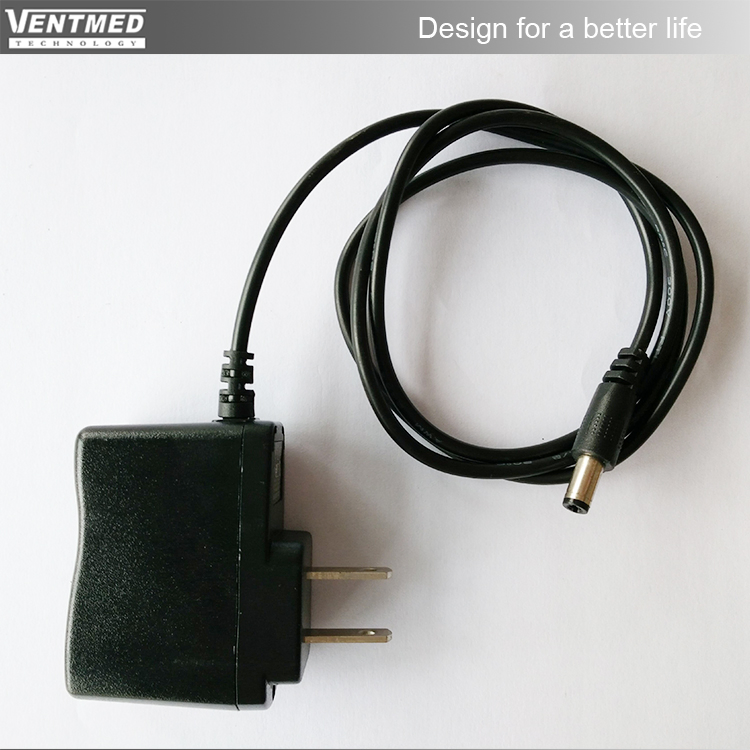

- (8) 1 pcs Charger

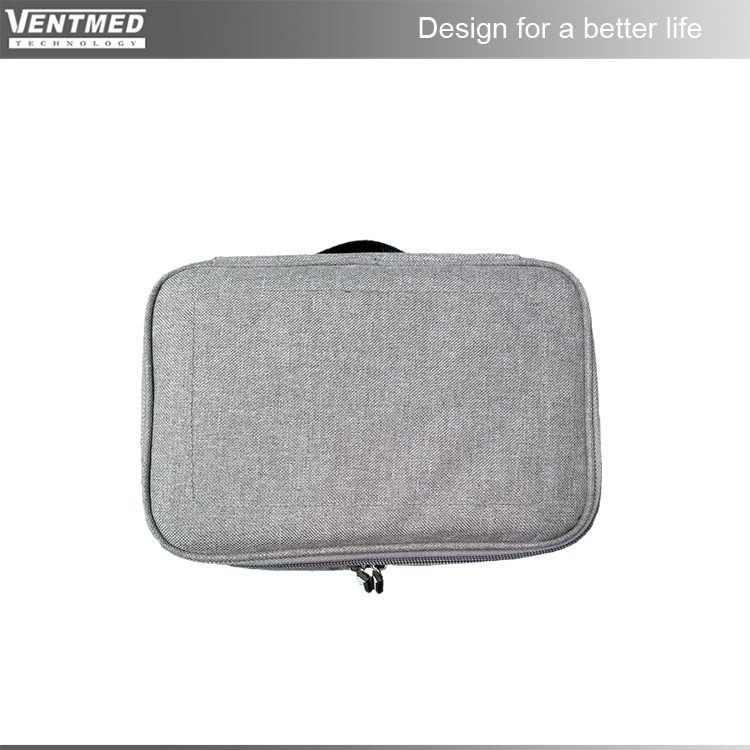

- (9) 1 pcs Carrying bag
3. Specification
9 Channels
Air flow, Snore, SpO2, Pulse Rate, Pulse Wave, Body Position, Body Movement, Respiratory Effort, CPAP Pressure
Data resolution
AD : 12Bit
Data Sampling Rate
50-200Hz
Storage Data
8G, over 8000 hours data
Communication
SD card
SpO2
70% - 100%
Pulse Rate
30 - 240 bpm
Battery
Integrated Rechargeable Lithium Battery, 2500mAh, support for 30 hours continuously monitoring

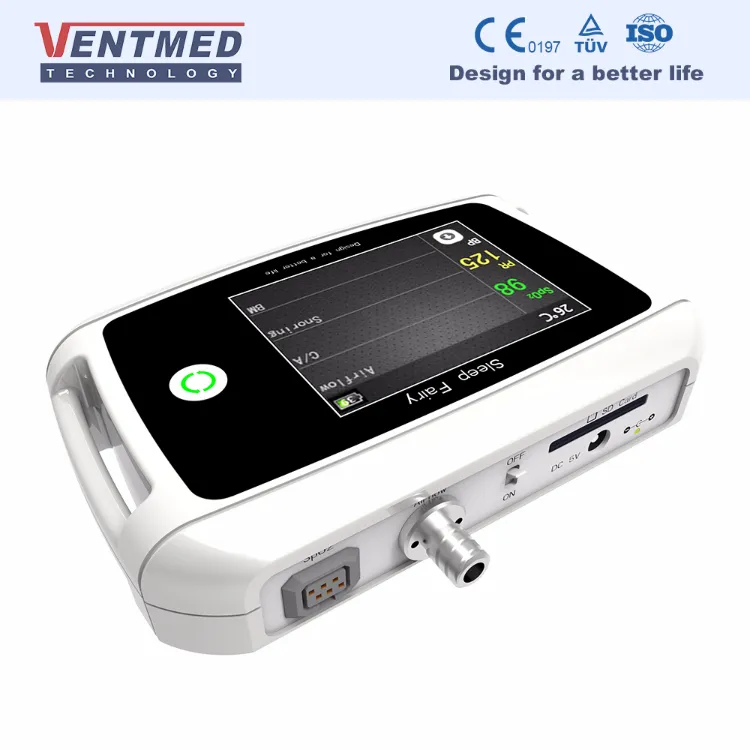

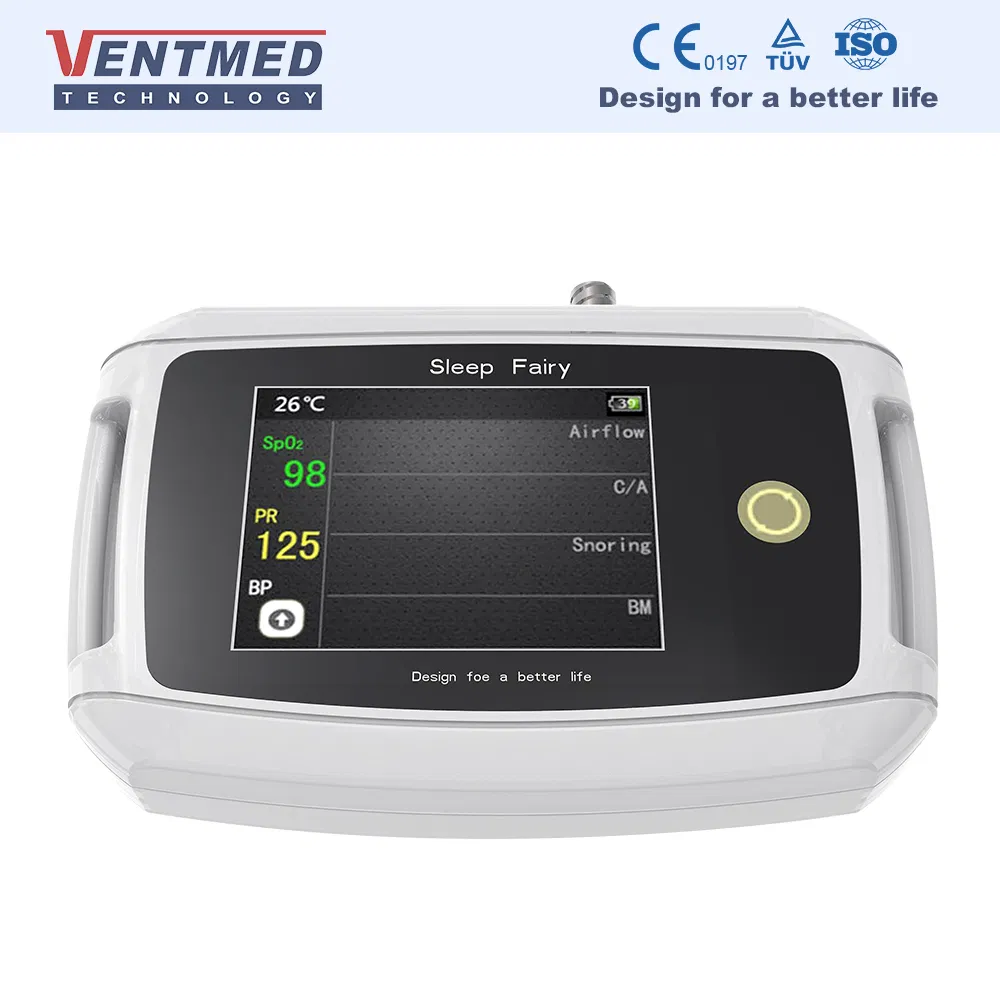

Screen
2.8 inch TFT, 320 x 240
Host Net Weight
176g with battery
Gross Weight
0.9KGS
Device Dimensions
125mmL x 80mmW x 24mmH
Carton Size
310mmL x 130mmW x 160mmH
4. Features
- 1. Compact, light and convenient;

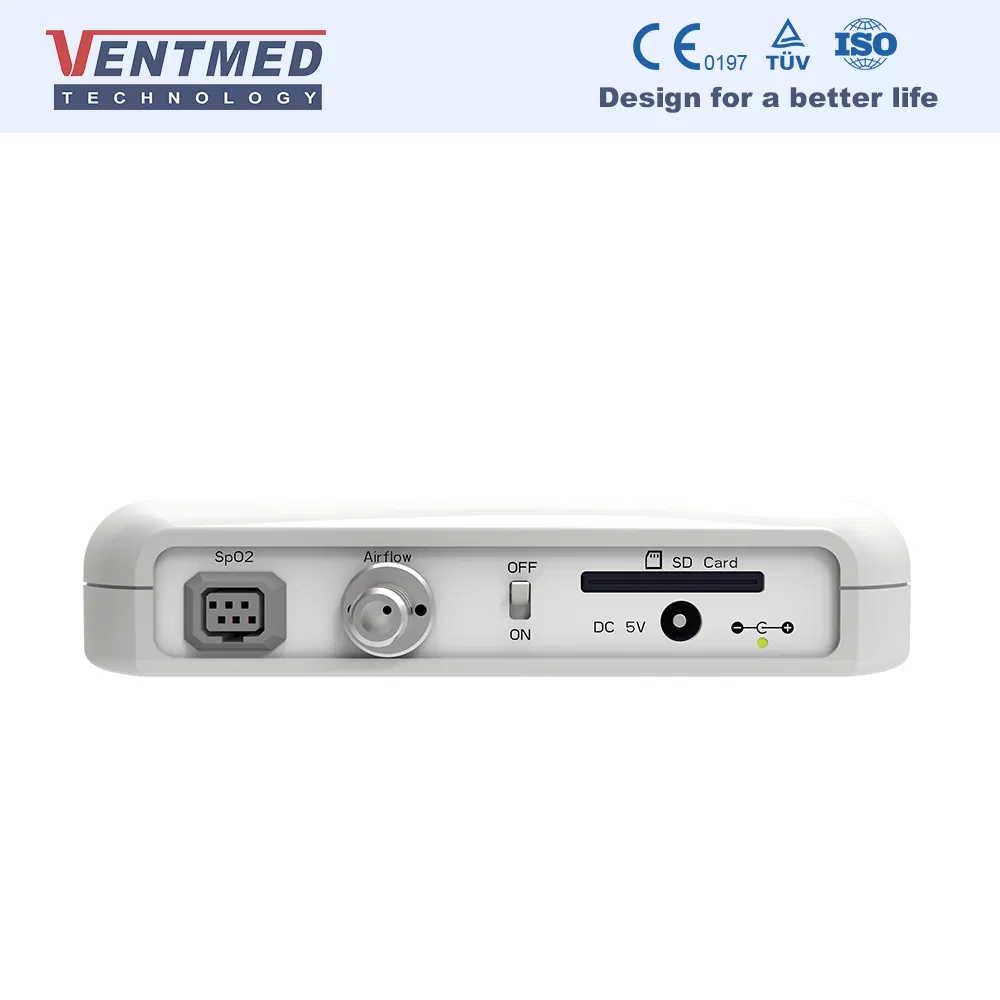

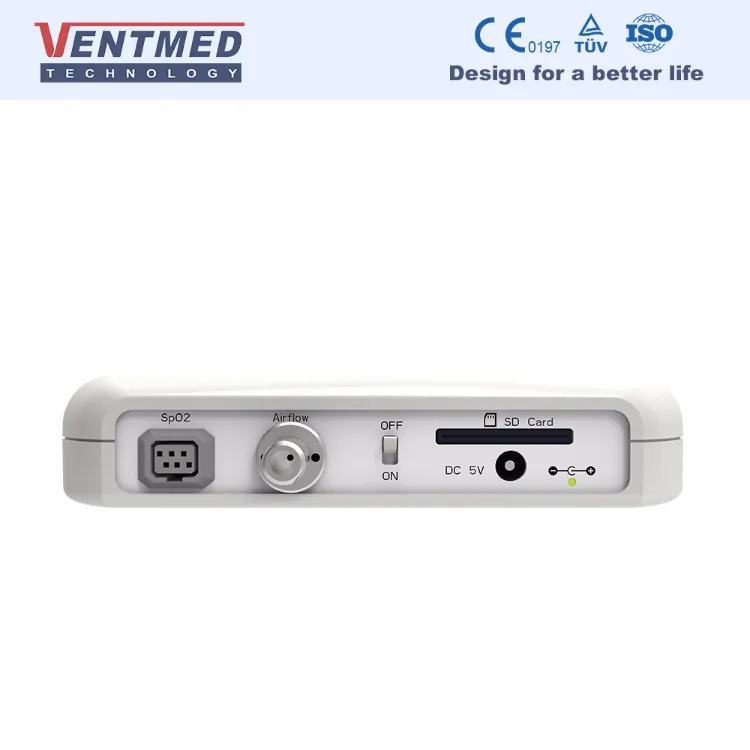

- 2. Innovative 3D sensor built in machine, need SpO2 sensor only, no need extra sensor for body movement/body position/respiratory effort;
- 3. Extremely easy to operate with one switch;
- 4. Reliably providing extensive, detailed and accurate sleep clinical data;
- 5. Sophisticated scoring and diagnostic report software;
- 6. Link to any CPAP device to titrate patient's pressure;

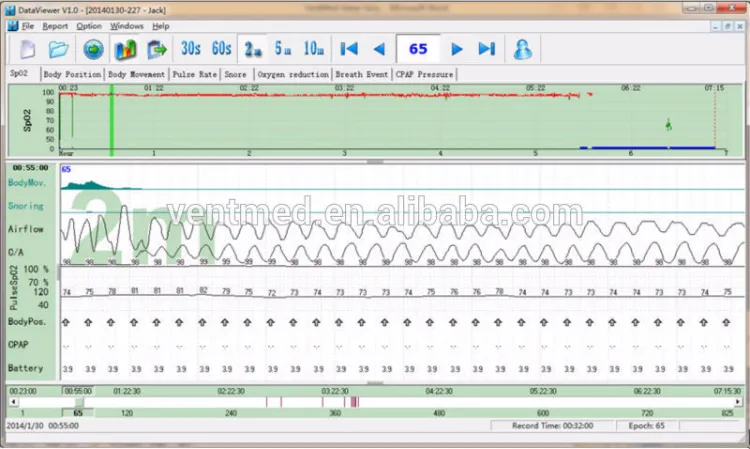

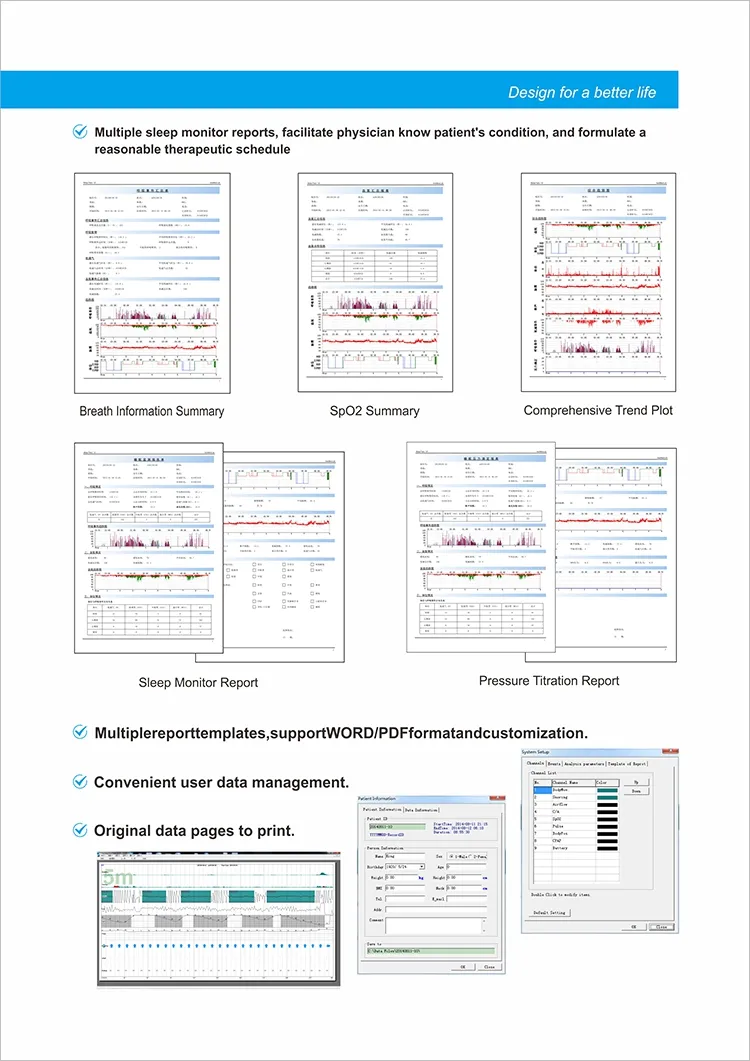

- 7. SD storage data is read by reader and Sleep Fairy software in computer, so that you can browse the record data by image display and can print the test report.
5. Why choose us?
- (1) Professional research & development team;

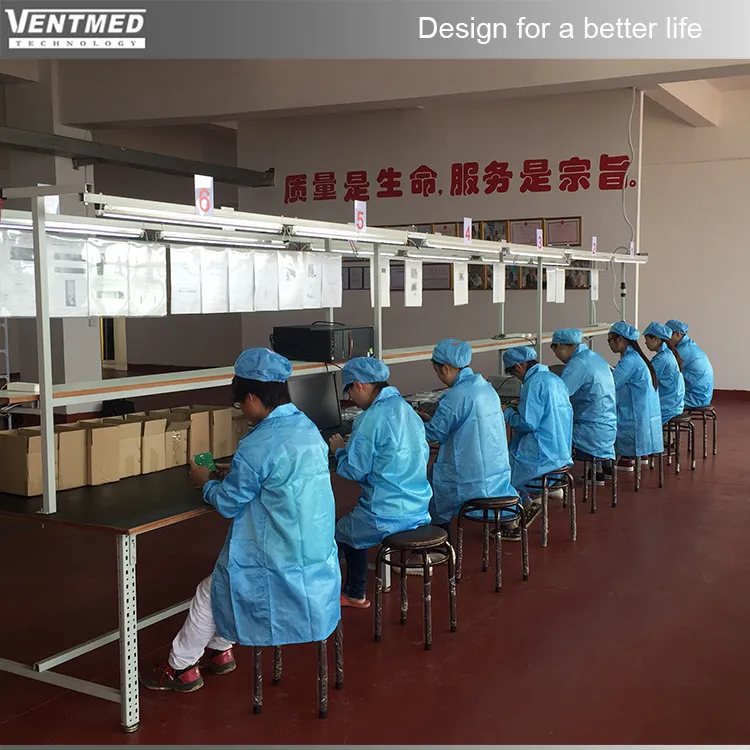

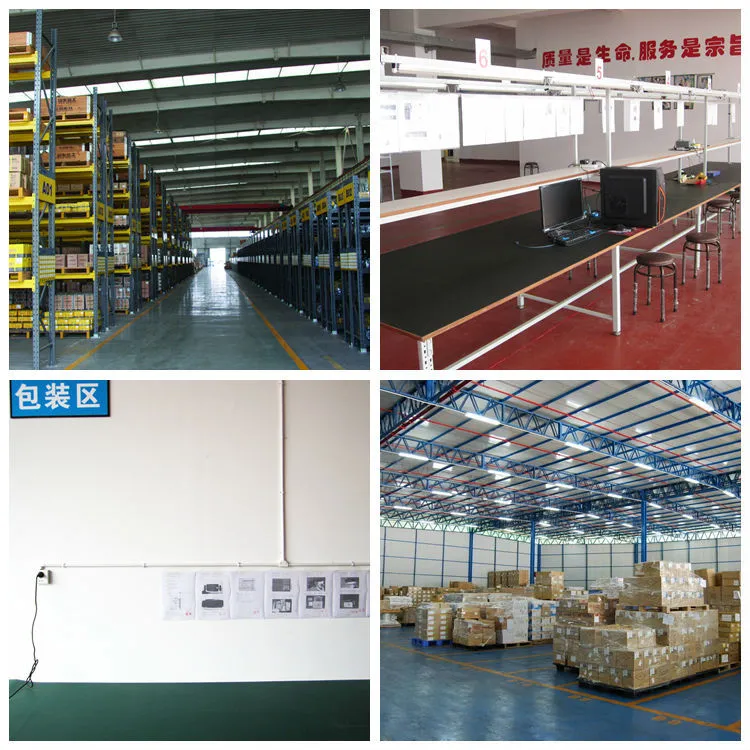

- (2) Experienced Manufacturer specializing in breathing & sleep therapy and monitor;
- (3) Responsible support offering comprehensive service: response to clients in 24 hours, quality warranty 2 years, regular delivery time short to 7 days, market protection for dealers;
- (4) Trustable supplier owing good reputation due to top quality & competitive price product.
Frequently Asked Questions
Q1
What is the primary function of this Sleep Monitor?
It is an intelligent diagnosis system designed for monitoring sleep disorders and screening Sleep Apnea Syndrome (SAS). It generates detailed sleep recordings and reports to assist physicians in clinical diagnosis and pressure titration.
Q2
How many monitoring channels does the device feature?
The device features 9 channels: Air flow, Snore, SpO2, Pulse Rate, Pulse Wave, Body Position, Body Movement, Respiratory Effort, and CPAP Pressure.
Q3
Does the device require extra sensors for tracking body movement?
No, it features an innovative built-in 3D sensor. You only need to wear the SpO2 sensor; no extra external sensors are required for tracking body movement, body position, or respiratory effort.
Q4
What is the battery life and data storage capacity?
It has an integrated 2500mAh rechargeable lithium battery that supports up to 30 hours of continuous monitoring. The device supports 8G SD card storage, allowing for over 8000 hours of recorded data.
Q5
Can the device be used for home testing?
Yes, patients can comfortably and conveniently conduct the test at home without an observer and with fewer sensors attached to the body, which helps ensure a more natural night of sleep.
Q6
How can I analyze and read the recorded sleep data?
The recorded data on the SD card is read using a card reader and specialized Sleep Fairy software on a computer, which displays the record via graphical analysis and allows you to print clinical test reports.
