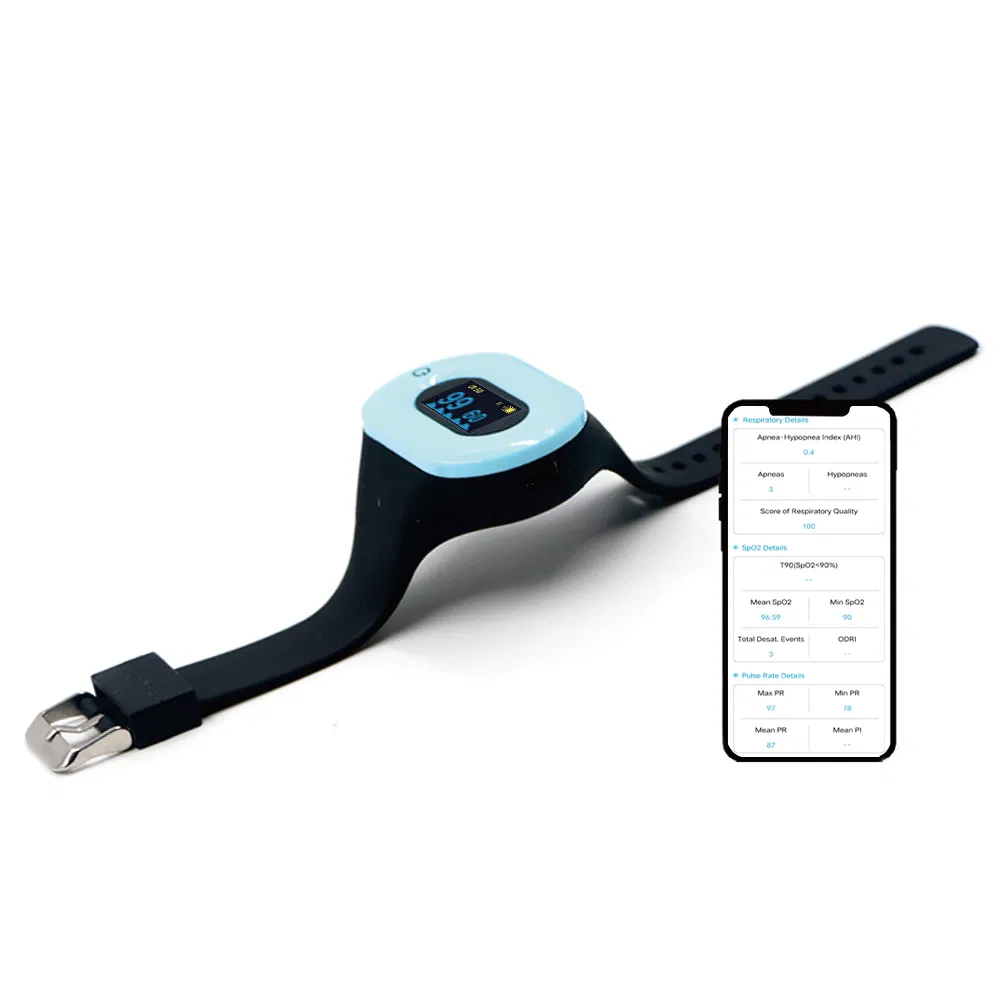

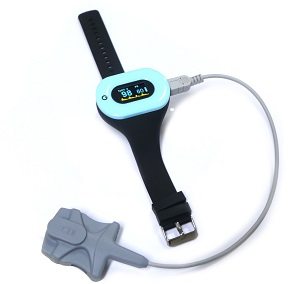

Sleep Apnea Monitor Blood Oxygen Monitor SpO2 Smartwatch

1 / 5

Sleep Apnea Monitor Blood Oxygen Monitor SpO2 Smartwatch

Customization:	Available
Classification:	Physiological Functions of Diagnosis and Monitoring Equipment
Type:	Patient Monitor

Send Inquiry

Product Description

Basic Specifications

Model NO.

BM2000D

Certification

CE, FDA, ISO13485

Target Group

All People (Aged, Adult, Child)

Bluetooth

3.0 and 4.0 Support

Software

PC, Android, iOS

Battery

3.7V Rechargeable Lithium

Display

OLED Screen

Weight

50g

Dimensions

60*58*20mm

Production

100PCS/Day

Product Overview

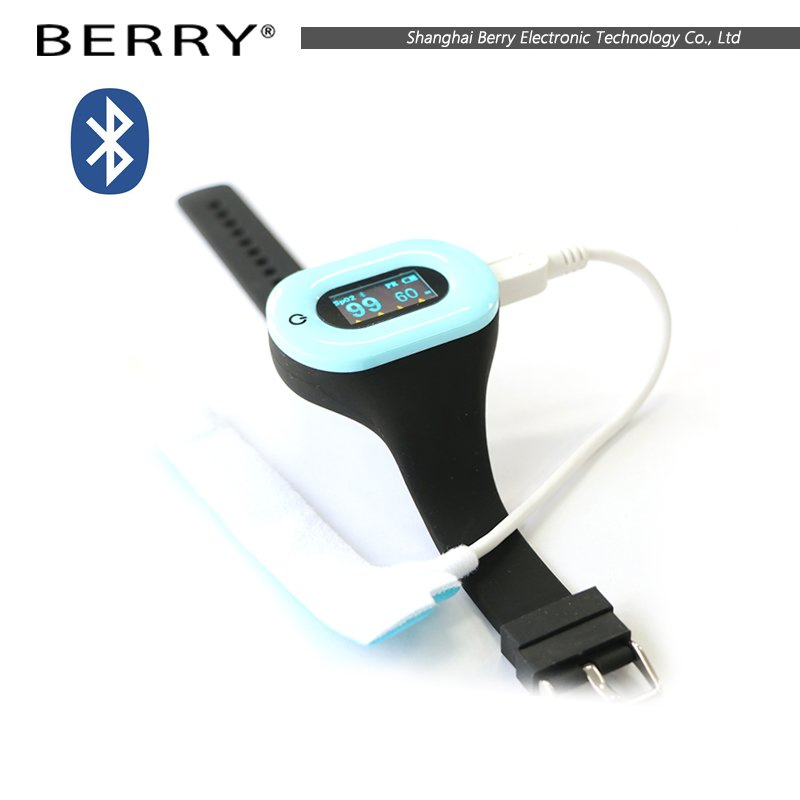

BM2000D Sleep Monitoring System

The BM2000D is a specialized sleep monitoring system designed for Hypopnea Syndrome monitoring. It provides accurate capturing of pulse signals and blood oxygen levels, validated through extensive clinical trials. It is widely used in aviation, for snorers, children, and patients with asthma or COPD.

Key Instructions

ⓘ

Equipped with CE0123, ISO13485, and NMPA certifications, this monitor meets international standards for measuring blood oxygen (SpO2) and pulse rate with clinical accuracy.

Major Features

Watch-style Design: Ultra-lightweight and comfortable for overnight wear.
One-Touch Operation: Simple interface to access all functions.

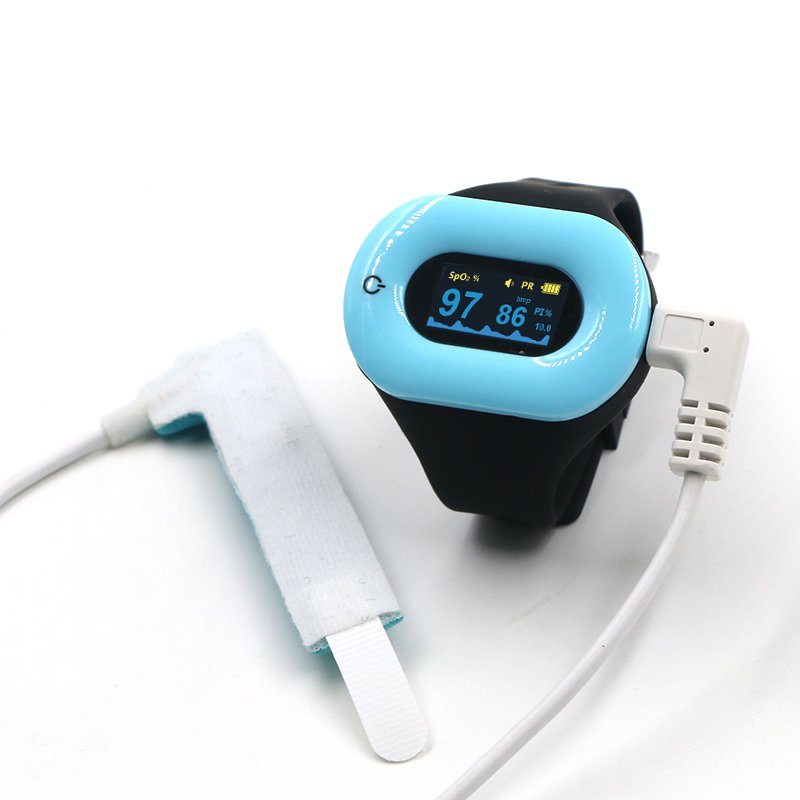

OLED Display: Clear visualization of SpO2, Pulse Rate, Plethysmogram, and battery status.
Long Endurance: Built-in 3.7V rechargeable lithium battery lasts up to 24 hours.
Smart Power Management: Automatically screens off after 30s and shuts down after 10 minutes of inactivity.
High Precision: Maintains accuracy even under conditions of low perfusion.

Operation Process

⚙

1. Download "BerrySmartHealth" APP from Google Play or Apple Store.

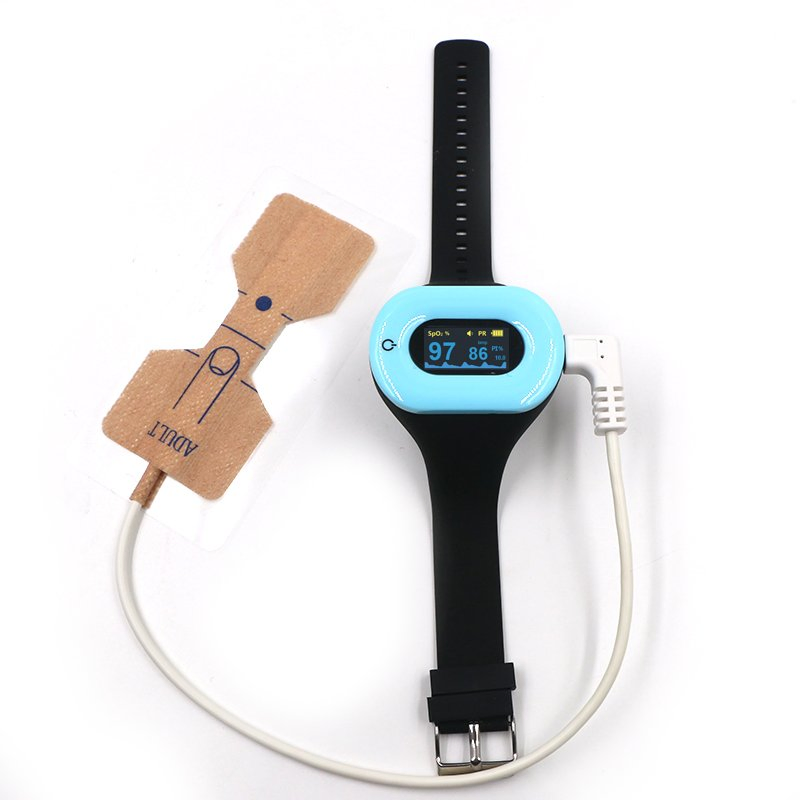

2. Put on the device and wrap the foam SpO2 sensor around your fingertip.
3. Wear for at least 6 hours of sleep monitoring.
4. Data syncs to the phone via Bluetooth automatically.
5. Review and share the generated health reports.

Technical Specifications

Parameter	Range / Accuracy
Pulse Rate (PR)	Range: 25 - 250bpm \| Accuracy: ±2bpm
SpO2	Range: 0% - 100% \| Accuracy: ±2% (70% - 100%)
Working Voltage	DC 3.4v ~ DC 4.3v
Battery Capacity	600mAh Lithium Battery
Size & Weight	55 x 37 x 18 mm \| 52g (without sensor)

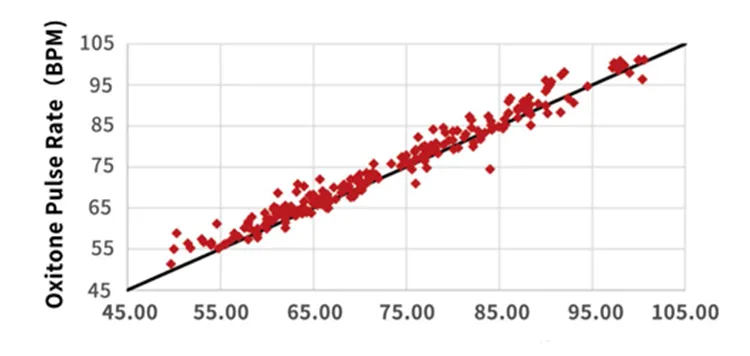

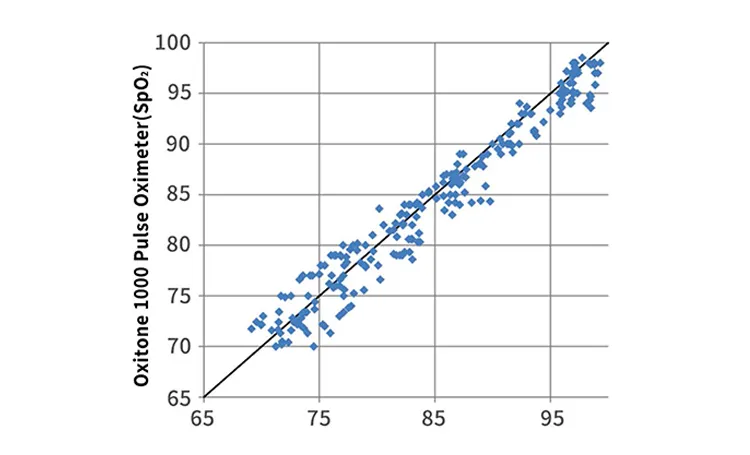

Accuracy & Clinical Testing

Correlation = 0.98, P-value < 0.0001
Clinical results demonstrate high correlation with reference ECG and hospital-grade oximeters.

Software Diagnosis Trend Charts

Clinical Trial Analysis

Measurement	Sensitivity	Specificity
Average Accuracy: 98.51%
Hypoxemia Diagnosis	89.29%	77.78%
OSAHS Judgment	94.17%	61.21%

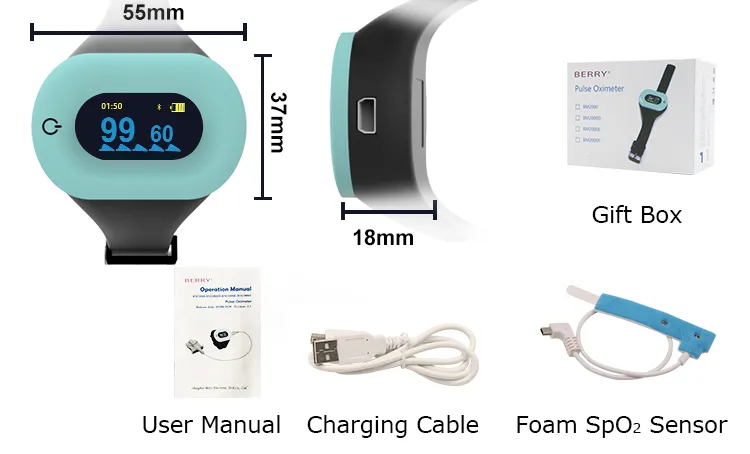

Standard Configuration

1 x Foam SpO2 Sensor
1 x Charging Cable
1 x Gift Box
1 x User Manual

Frequently Asked Questions

Q1: What is the BM2000D primarily used for?

It is designed for monitoring sleep hypopnea syndrome (Sleep Apnea) by tracking blood oxygen levels and pulse rates continuously throughout the night.

Q2: Can children use this sleep monitor?

Yes, the device is suitable for children, adults, and the elderly. It includes sensors that can be adapted for different users.

Q3: How do I view my sleep reports?

Data is transferred via Bluetooth to the "BerrySmartHealth" APP (available on Android and iOS). The app generates detailed reports that can be analyzed and shared.

Q4: How long does the battery last on a full charge?

The built-in 3.7V rechargeable lithium battery provides up to 24 hours of continuous monitoring, making it perfect for multi-night use.

Q5: Is the device accurate enough for medical screening?

Yes, it has passed clinical accuracy tests with a blood oxygen concentration accuracy of <2% and has been validated against PSG (Polysomnography) standards.

Q6: Does it shut down automatically?

The monitor features automatic shutdown after 10 minutes when the probe is removed or no finger is detected, helping to conserve battery life.
