Portable Veterinary Capnograph Etco2 SpO2 Monitor
Portable Veterinary Capnograph Etco2 SpO2 Monitor
Portable Veterinary Capnograph Etco2 SpO2 Monitor
Portable Veterinary Capnograph Etco2 SpO2 Monitor
Portable Veterinary Capnograph Etco2 SpO2 Monitor
1 / 5
Portable Veterinary Capnograph Etco2 SpO2 Monitor
Portable Veterinary Capnograph Etco2 SpO2 Monitor
Portable Veterinary Capnograph Etco2 SpO2 Monitor
Portable Veterinary Capnograph Etco2 SpO2 Monitor
Portable Veterinary Capnograph Etco2 SpO2 Monitor

Portable Veterinary Capnograph Etco2 SpO2 Monitor

Customization: Available
Type: Veterinary Monitor
Size: 20*10*5 0.001
Send Inquiry

Product Description

Basic Info
Model NO. Capno-S
Transport Package by Air or by Sea
Specification 20*10*5 0.001
Origin China
HS Code 9018193010
Package Size 1.00cm * 1.00cm * 1.00cm
Package Gross Weight 12.000kg
Product Description

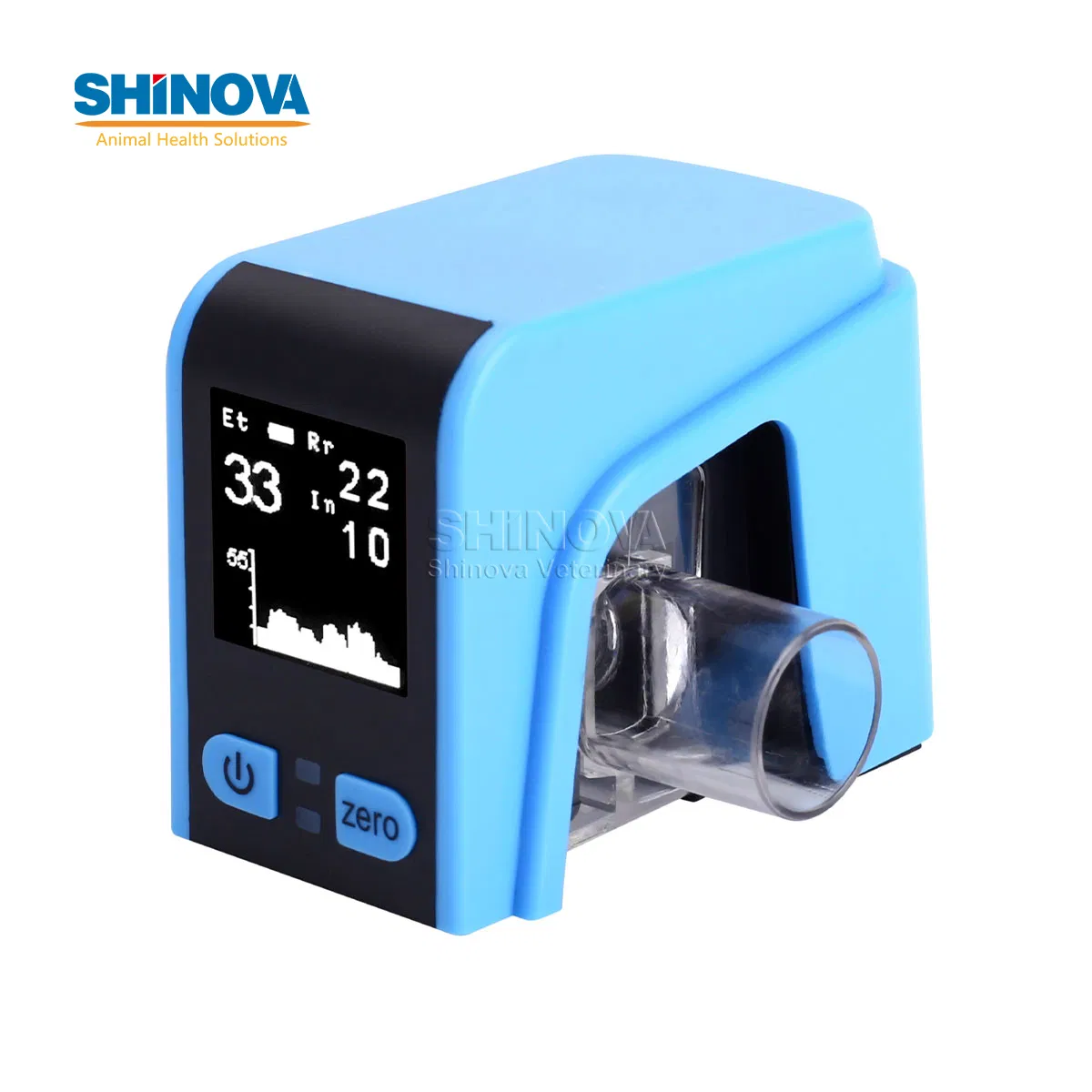

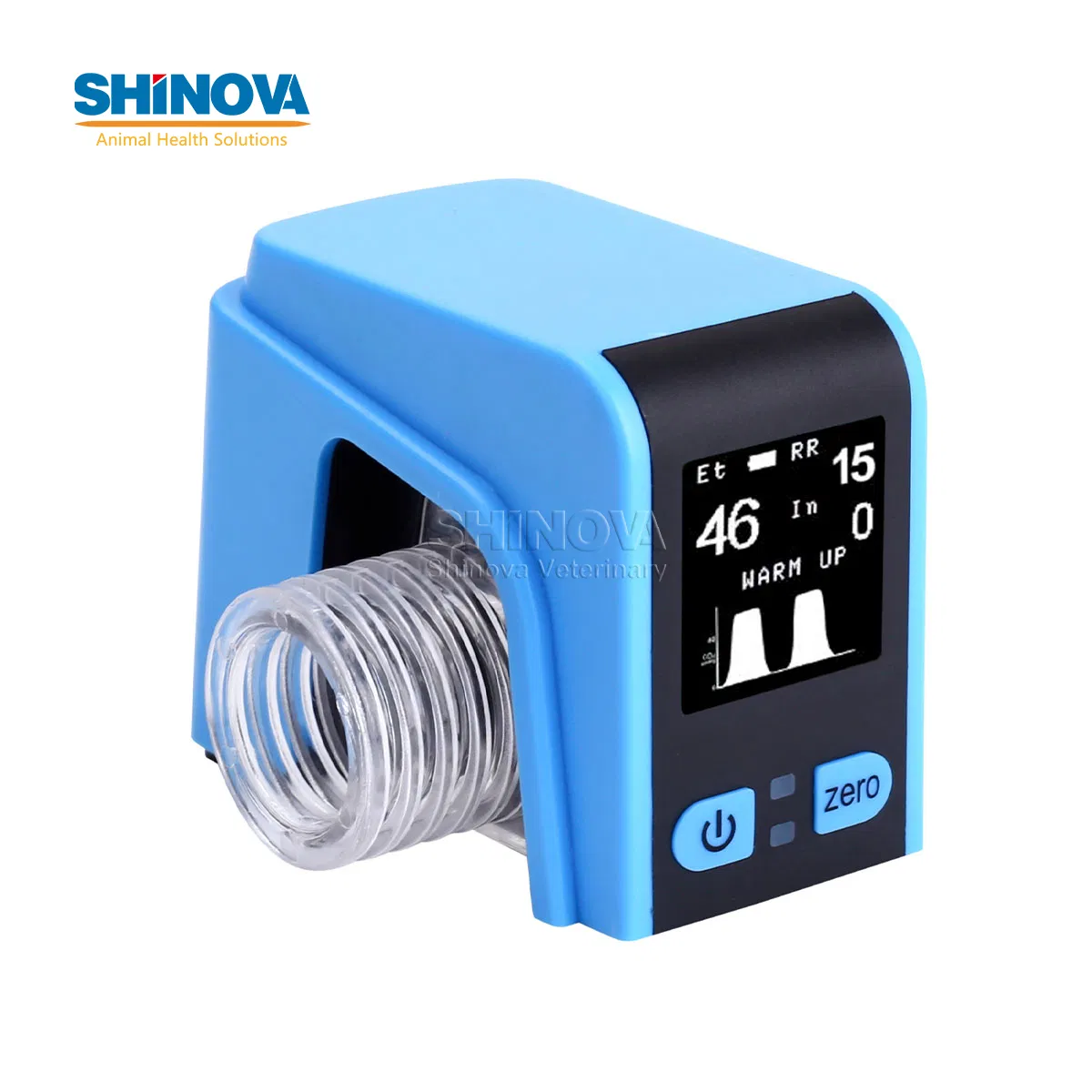

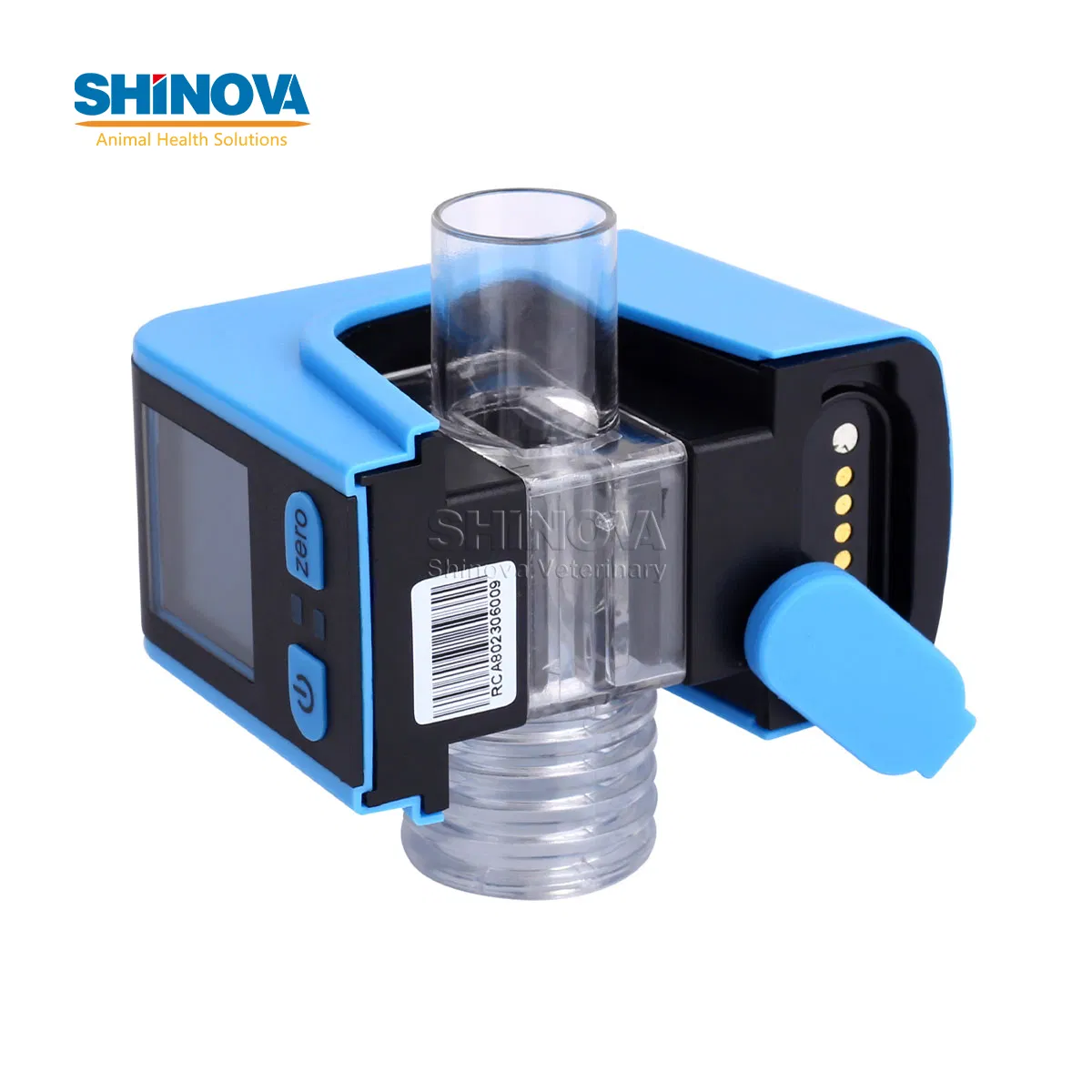

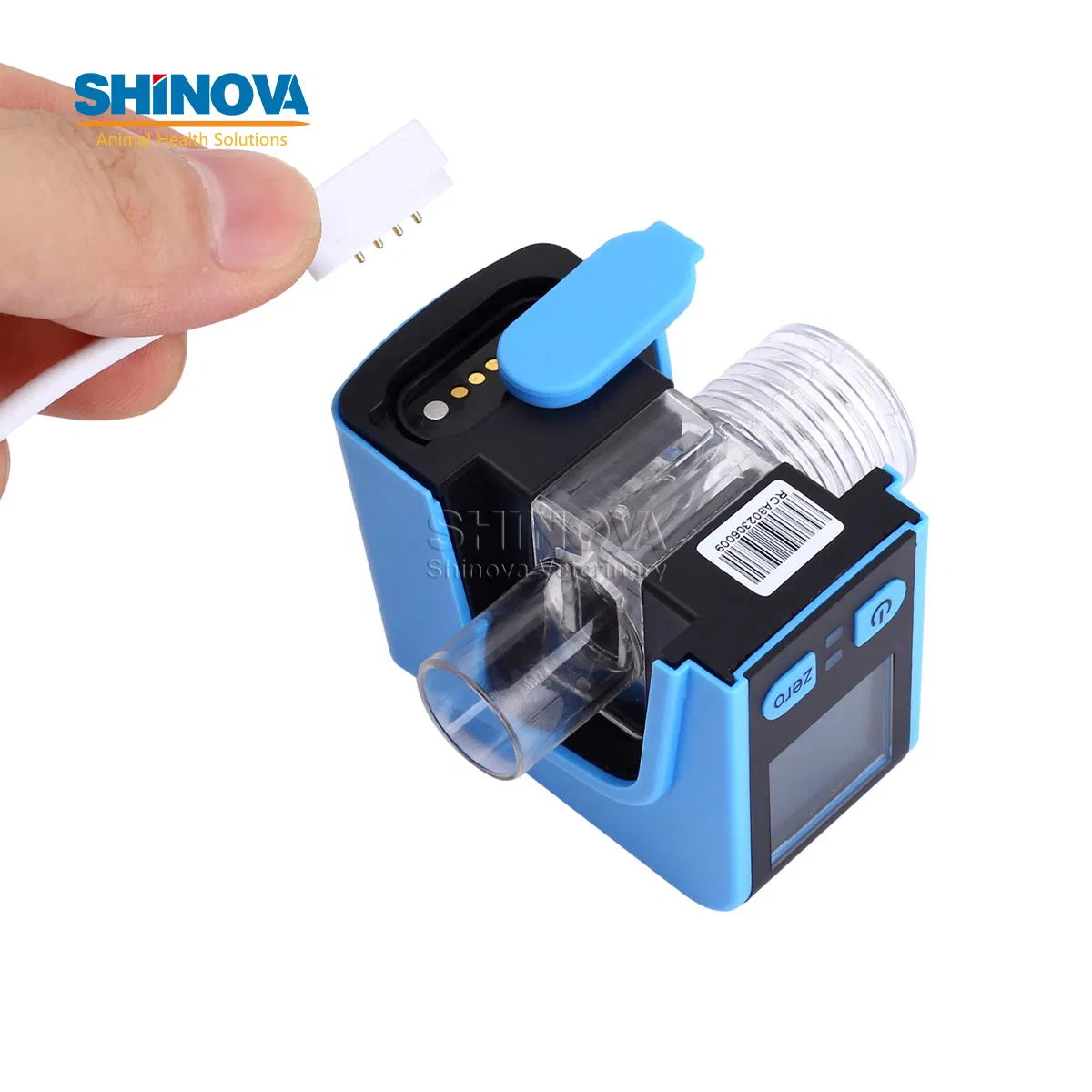

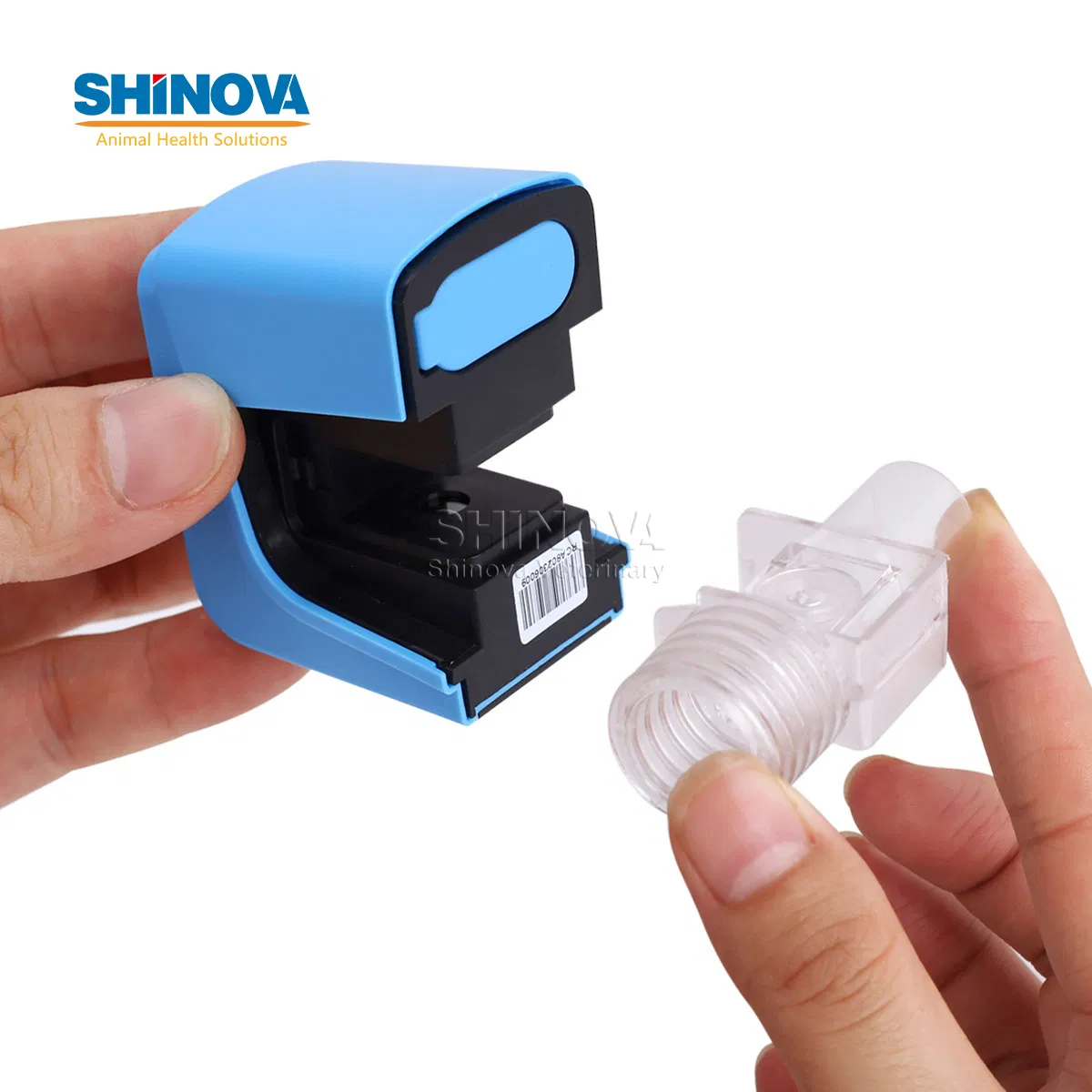

Pocket Veterinary Capnograph/Capnometer (Model: Capno-S)

Capno-S has becoming the smallest End-tidal CO2 Monitor in the world, Achieving the measuring of EtCO2 and Respiratory Rate in all Respiratory Conditions. Its small size, light in weight and low energy consumption, makes it flexibility and convenience obviously. Suitable for CPR and emergency transportation.

✓
One-key operation
✓
Only 50 grams lightweight
✓
Up to 3 working hours
✓
Waterproof IPX6
✓
Large font & waveform
✓
Built-in lithium battery
Technical Specifications
Transducer Type Capno-S MICRO MAINSTREAM CAPNOMETER
CO2 Accuracy 0-40 mmHg ±2 mmHg
41-70 mmHg ±5% of reading
71-100 mmHg ±8% of reading
Respiratory Rate Range 3-99 BPM (Accuracy ± 1 breath)
Alarm System Check adapter, No breath, Battery low, ETCO2 high/low, INCO2 high, RR high/low
Calibration No routine user calibration required; automatic zero when plugged in
Power Rechargeable Li-Battery; Input 5V, 1A
Dimensions Size: 32(H) mm; Weight: 50g (incl. battery)
Optional Accessories
  • • Adult airway adapter
  • • Neonatal airway adapter
  • • USB Cable
  • • USB Charger
Product Display
Veterinary Capnograph 1
Veterinary Capnograph 2
Veterinary Capnograph 3
Veterinary Capnograph 4
Veterinary Capnograph 5
Veterinary Capnograph 6
Veterinary Capnograph 7

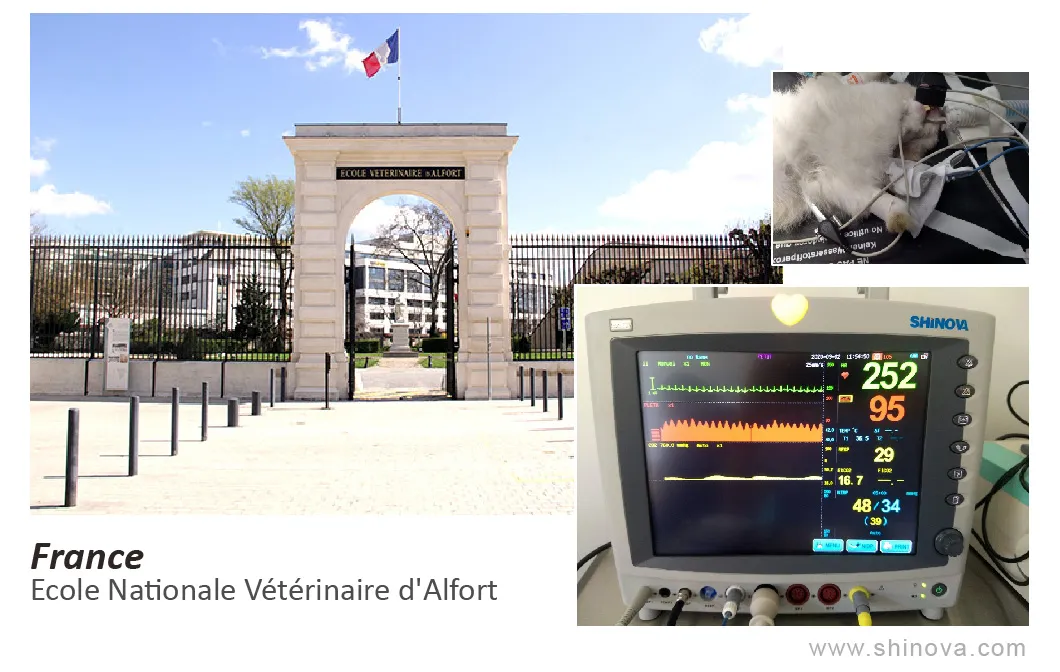

Veterinary Capnograph 8

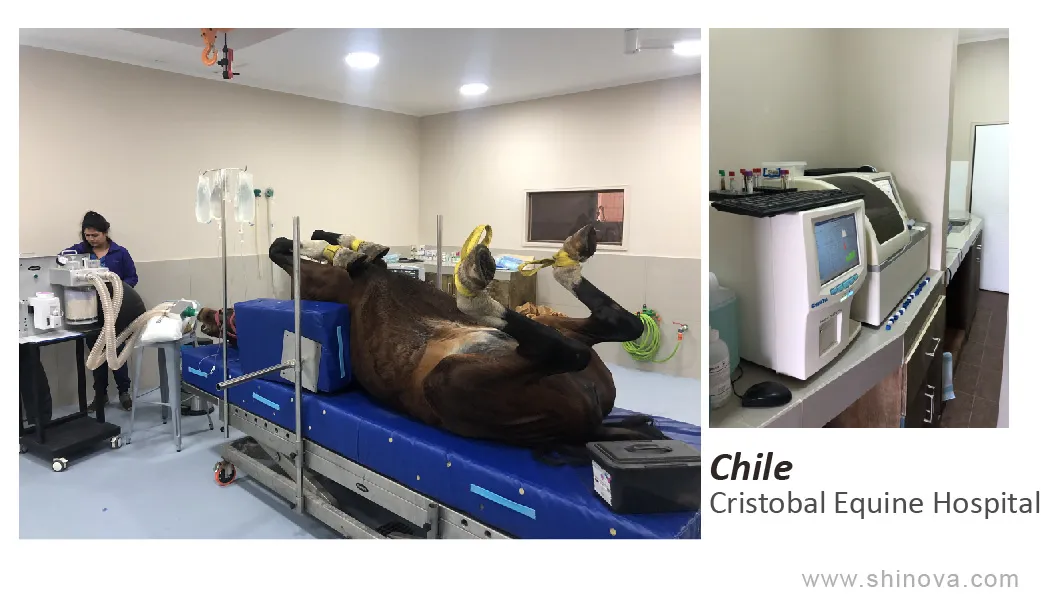

Veterinary Capnograph 9
Veterinary Capnograph 10

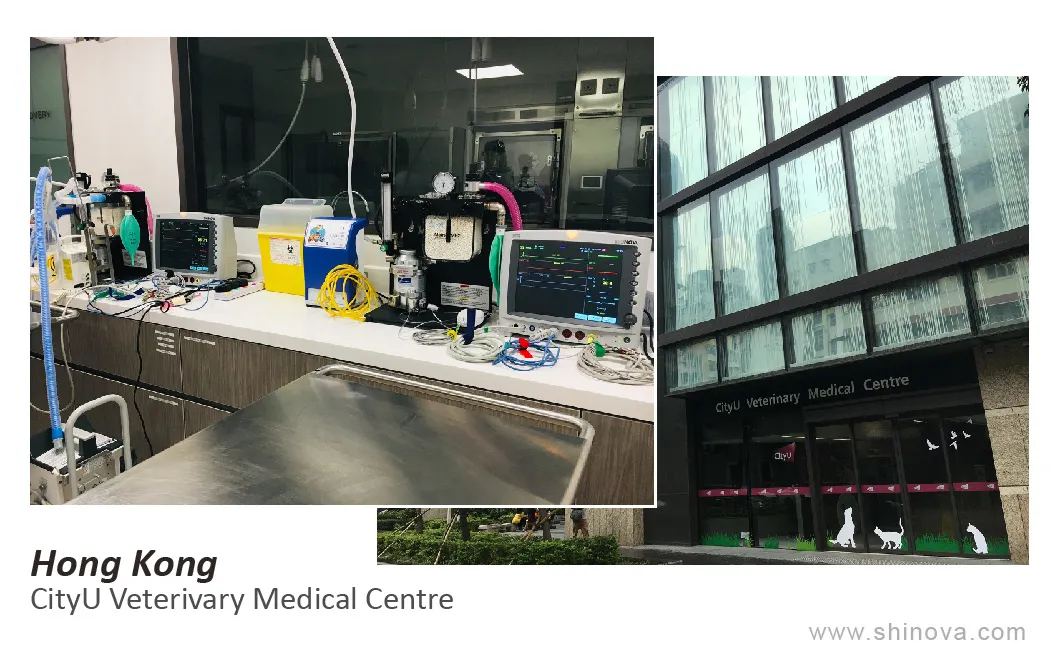

Veterinary Capnograph 11
Frequently Asked Questions
How portable is the Capno-S monitor?
The Capno-S is extremely portable, weighing only 50 grams including the battery and adapter, making it the smallest End-tidal CO2 monitor in the world.
Does the device require manual calibration?
No routine user calibration is required. The sensor performs an automatic zero calibration whenever the adapter is plugged in.
Is the device waterproof for emergency use?
Yes, the device has an IPX6 waterproof rating, which is ideal for emergency transportation and demanding clinical environments.
How long can I use the device on a single charge?
The built-in lithium battery provides up to 3 working hours of continuous monitoring on a full charge.
What kind of adapters are available for different animals?
Optional accessories include both Adult and Neonatal airway adapters to ensure compatibility with various patient sizes.
What parameters are displayed on the screen?
The Capno-S features a large font display and waveform interface that shows EtCO2 levels, Respiratory Rate (RR), and real-time CO2 waveforms.
