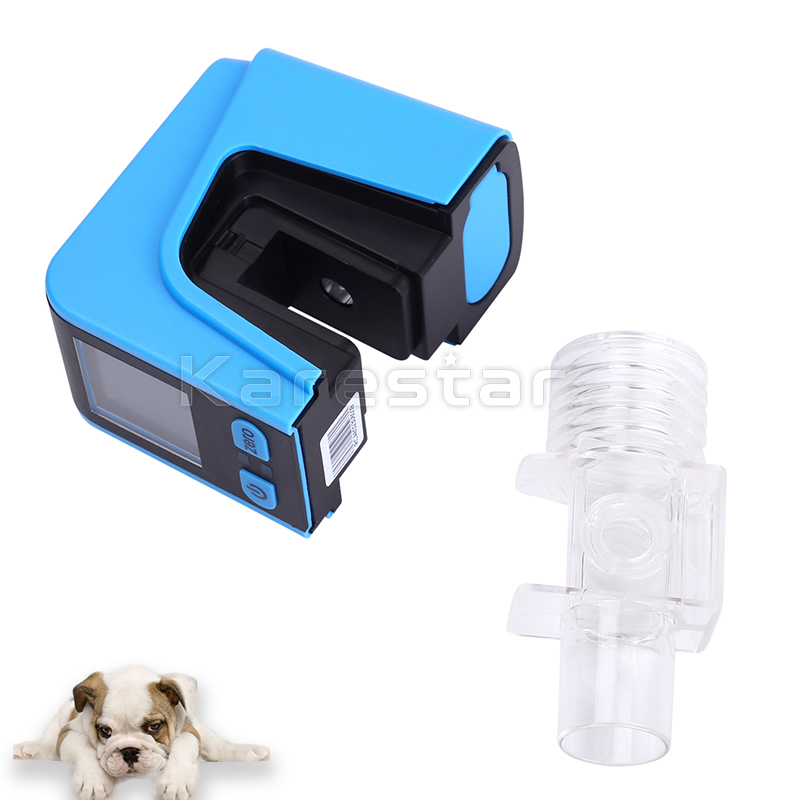

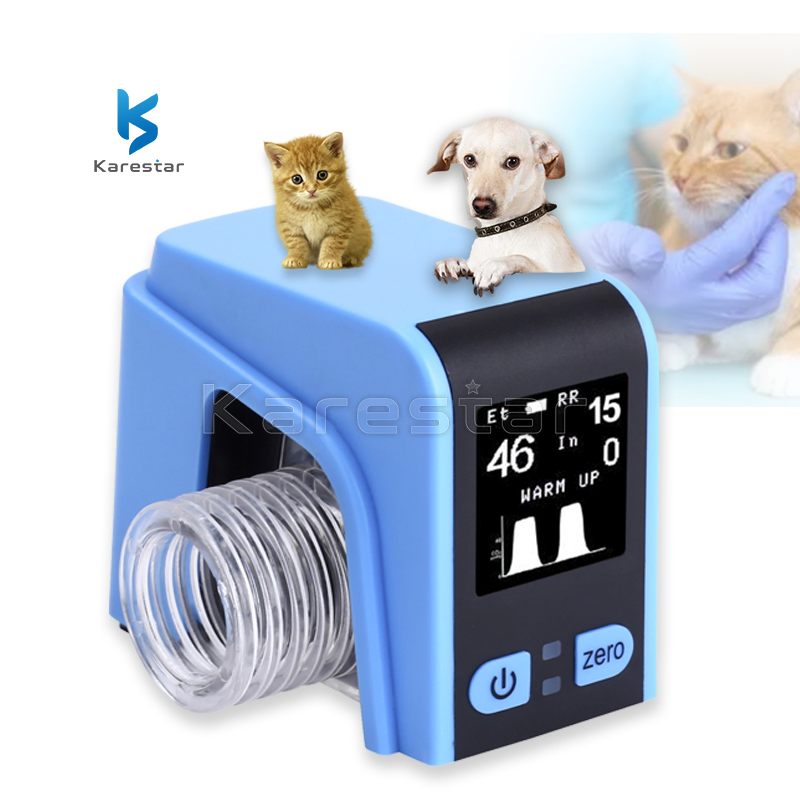

Handheld Etco2 Veterinary Clinic Instrument Mini Capnograph Monitor

1 / 5

Handheld Etco2 Veterinary Clinic Instrument Mini Capnograph Monitor

Customization:	Available
Classification:	Physiological Functions of Diagnosis and Monitoring Equipment
Type:	Patient Monitor

Send Inquiry

Product Description

Basic Information

Model NO.:K-PA02

Certification:CE, FDA, EEC, MSDS, ISO13485

Group:Animal

Respiratory Rate Range:3 - 99 Bpm

CO2 Accuracy:±5% of Reading (41-70 Mmhg)

Battery Life:6.5 Working Hours

Alarm Function:Support

Waterproof:IPX6

Weight:60g

Size:57*57*44mm

★

Product Description

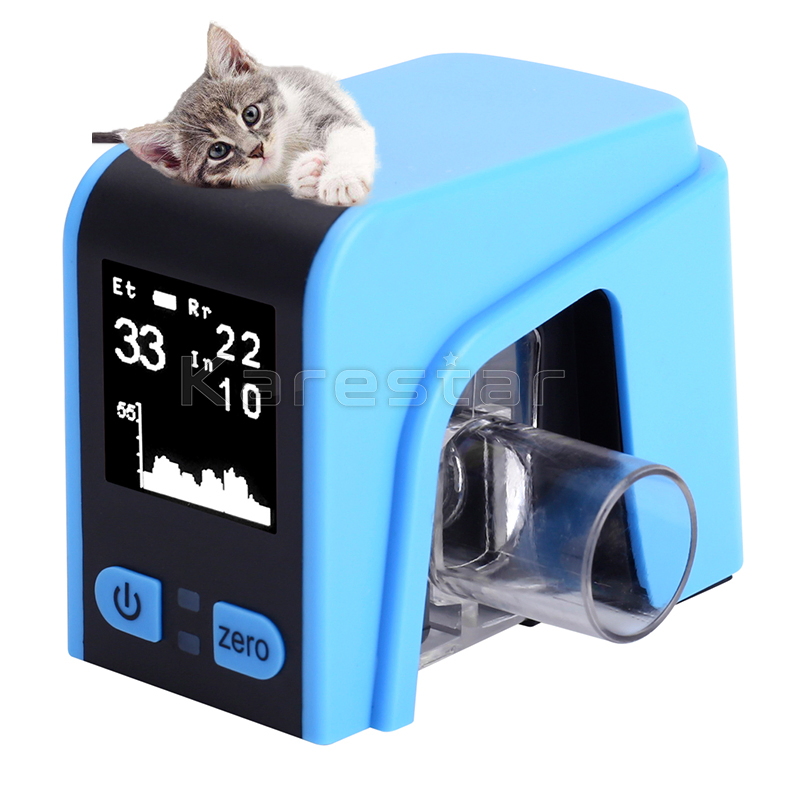

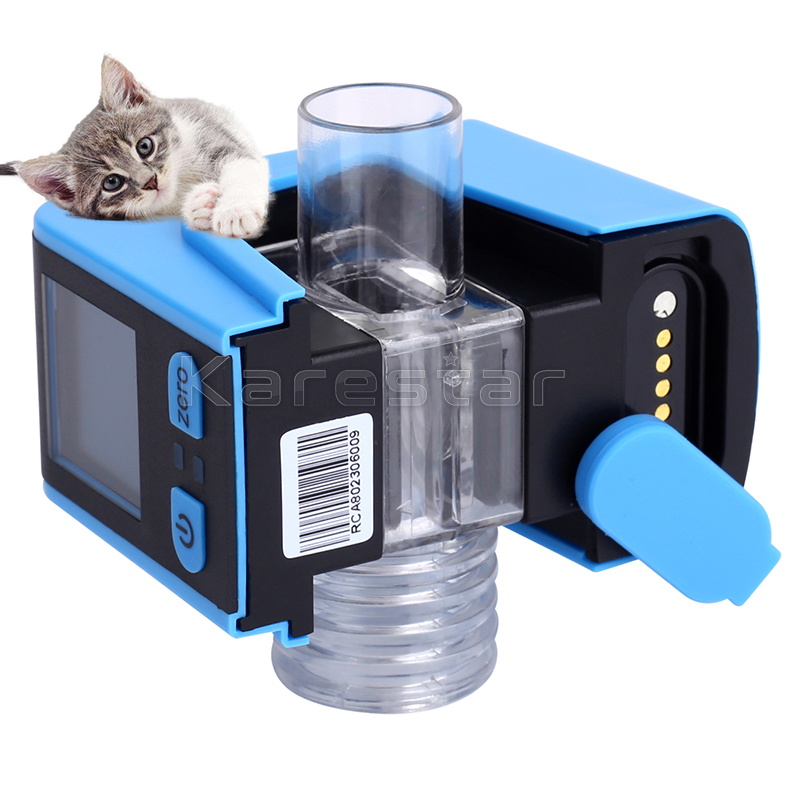

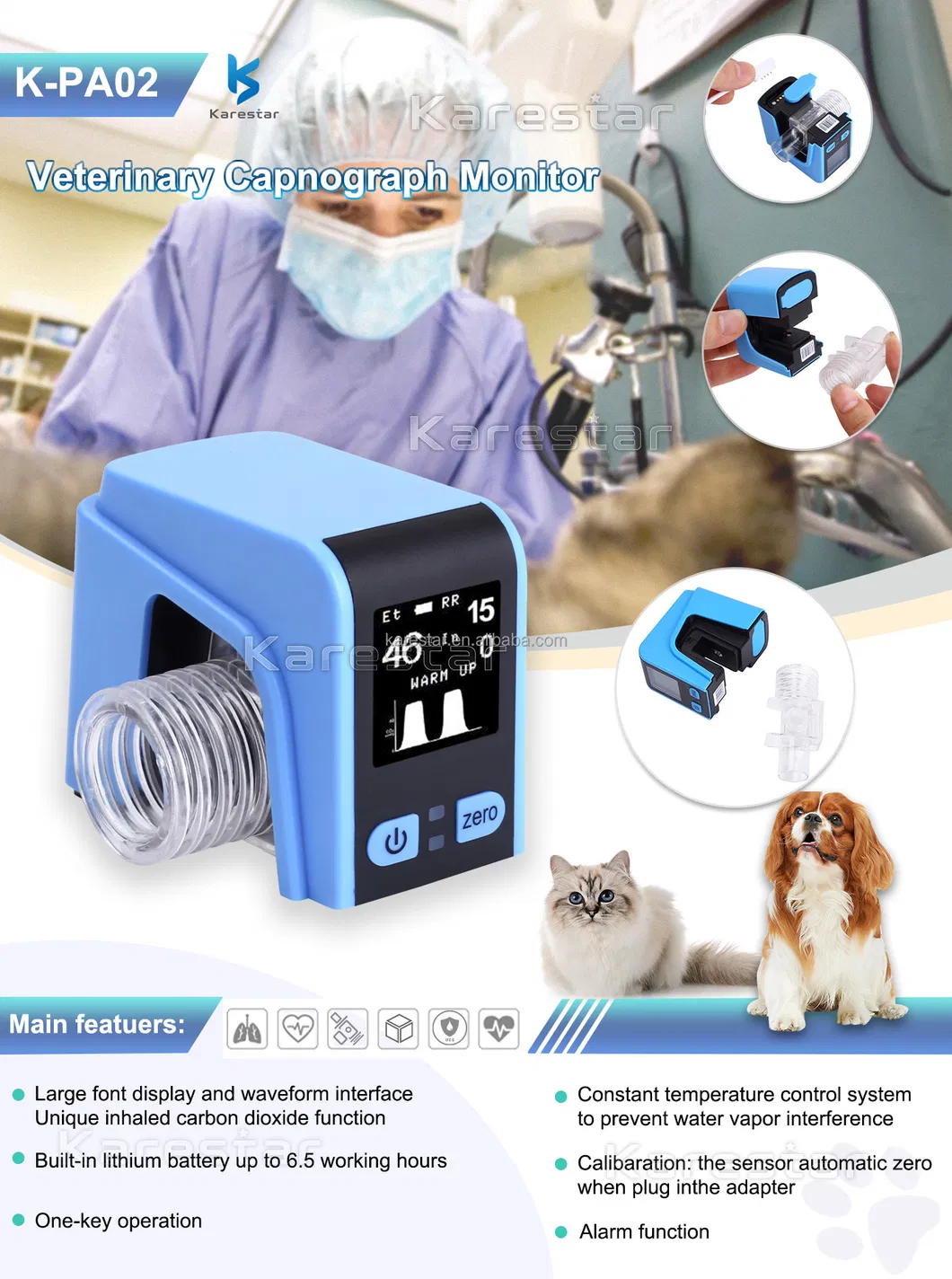

Handheld EtCO2 Veterinary Clinic Instrument Mini Capnograph Monitor

◈ One-key operation for simplicity

◈ Lithium battery (6.5 working hours)

◈ Intelligent Alarm Function

◈ Ultra-lightweight (Only 60 grams)

◈ No routine user calibration required

◈ Waterproof IPX6 Rating

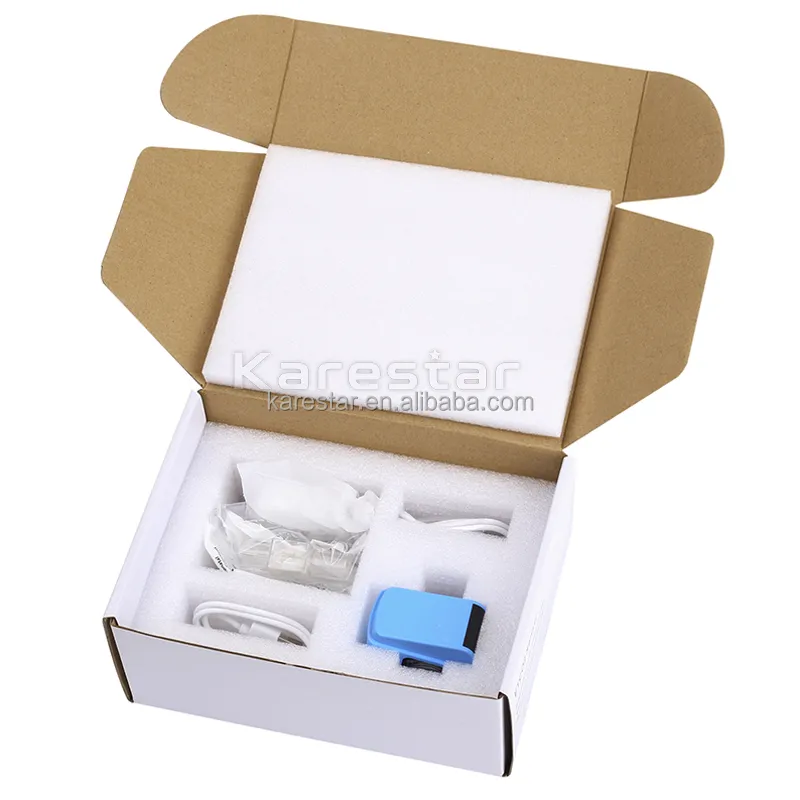

Standard Configuration
Main Machine	1 PC

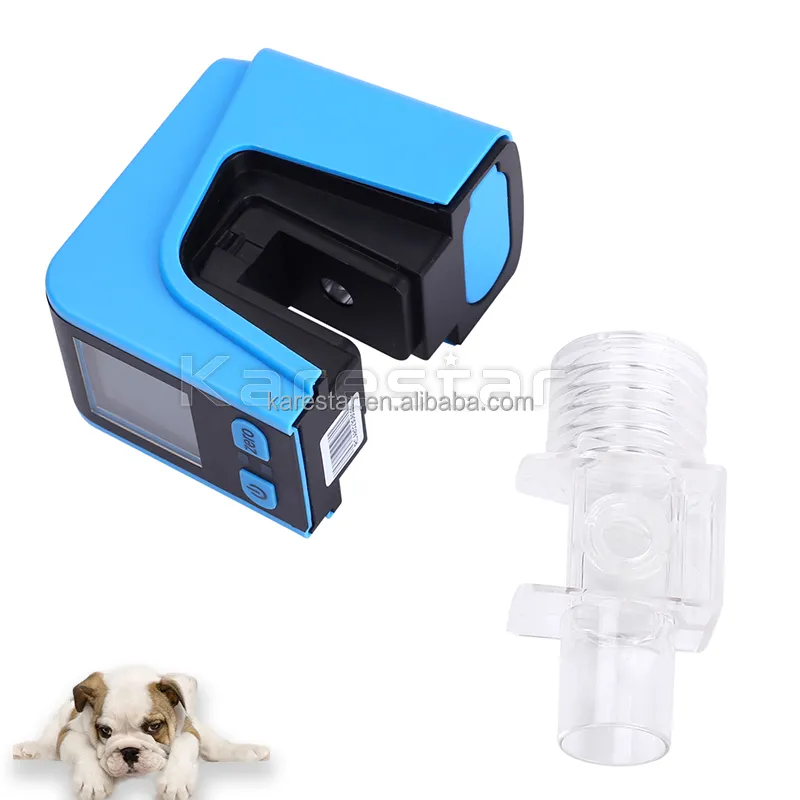

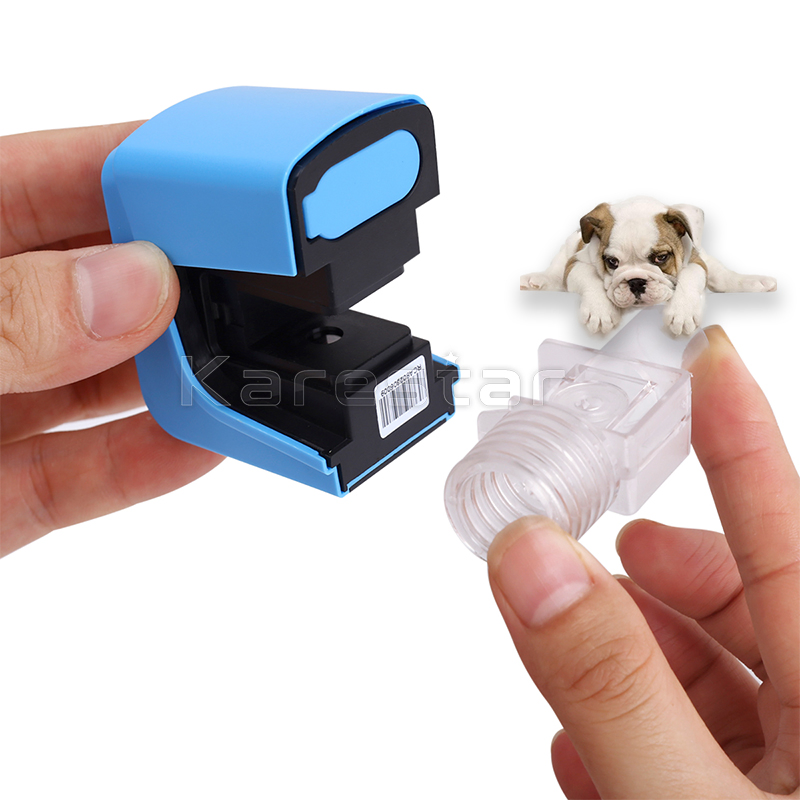

K-WK0 1 : Veterinary airway adapter	1 PC
K-WK0 2 : Veterinary airway adapter	1 PC

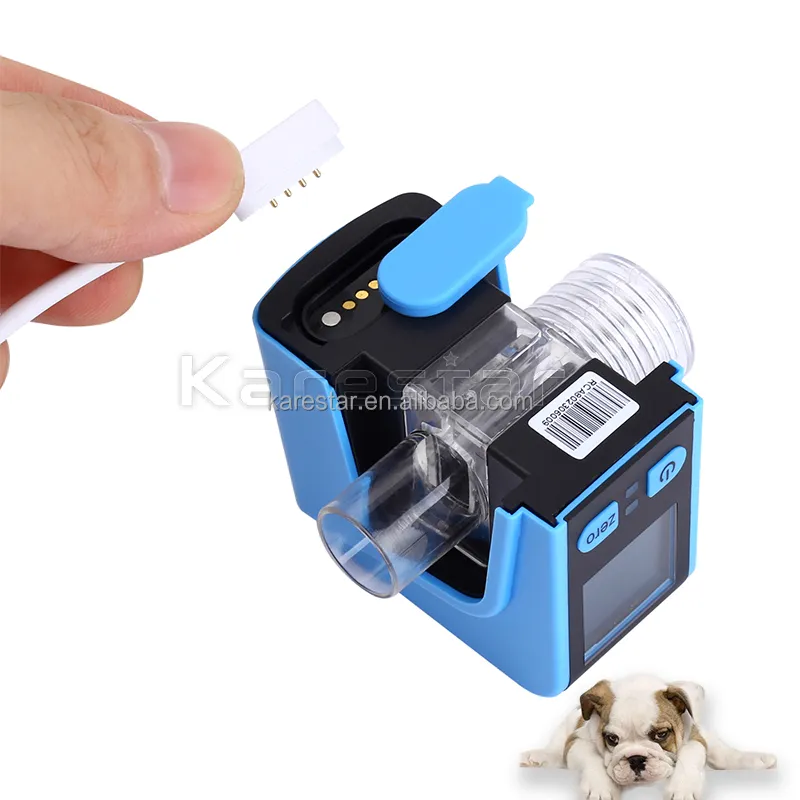

USB Cable	1 PC

📋

Specifications

Transducer Type	K-PA02 MICRO MAINSTREAM CAPNOMETER
CO2 Accuracy	0 - 40 mmHg: ±2 mmHg 41 - 70 mmHg: ±5% of reading 71 - 100 mmHg: ±8% of reading
Respiratory Rate	Range: 3 - 99 BPM (Accuracy: ±1 breath)
Alarm Types	Check adapter, No breath, Battery low, ETCO2 high/low, INCO2 high, RR high/low
Calibration	Auto-zero when adapter is plugged in
Power	Rechargeable Li-Battery (5V, 1A input)
Dimensions	57(L) x 57(W) x 44(H) mm; Weight: 60g

＋

Technical Details

Frequently Asked Questions

Q1: Does this device require frequent calibration? A: No routine user calibration is required. The sensor automatically performs a zero calibration when the adapter is plugged in.

Q2: What is the battery life for continuous use? A: The built-in rechargeable lithium battery provides up to 6.5 working hours on a single charge.

Q3: Is the monitor suitable for all animals? A: Yes, it is designed for veterinary use and comes with multiple airway adapters to suit different animal sizes.

Q4: Is the device durable for clinical environments? A: Yes, it features an IPX6 waterproof rating, making it resistant to splashes and suitable for busy clinical settings.

Q5: What parameters does the monitor track? A: It tracks End-tidal CO2 (EtCO2), Inspired CO2 (InCO2), and Respiratory Rate (RR) with high precision.

Q6: What is the minimum order quantity (MOQ)? A: The MOQ is 1 set. Samples are available for evaluation upon request.
