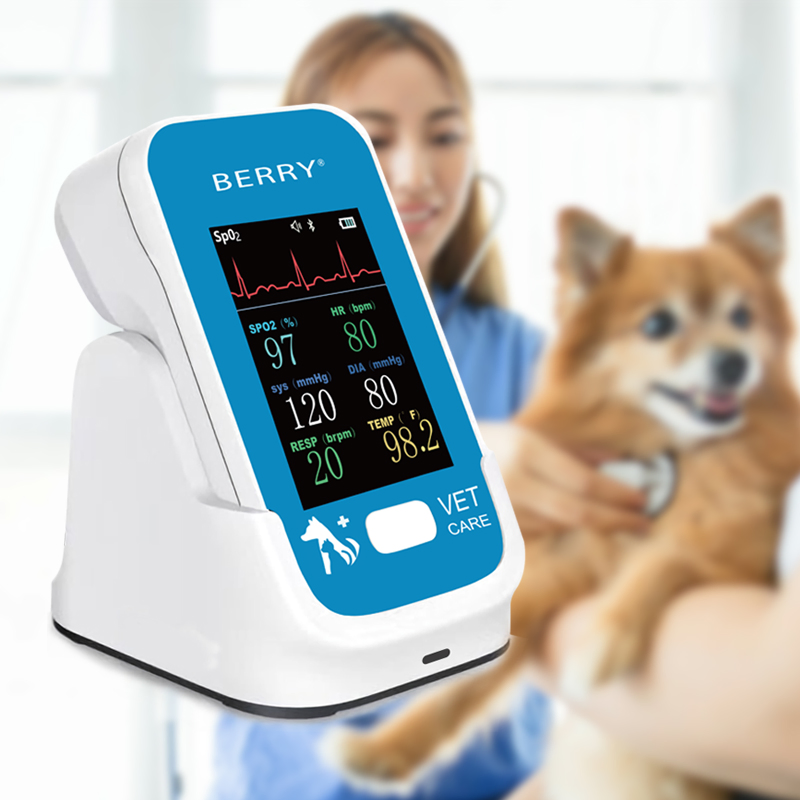

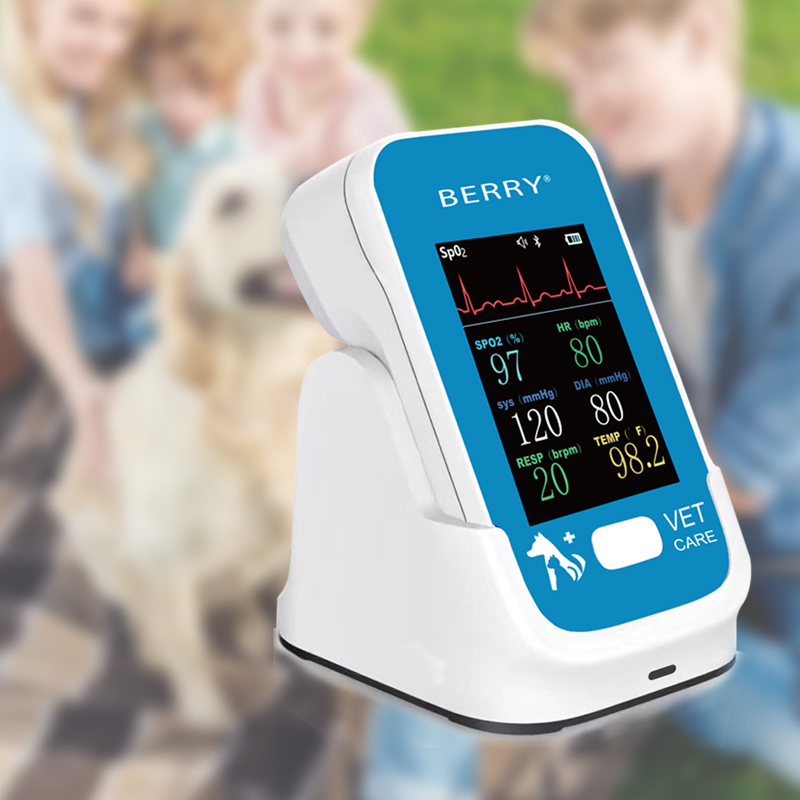

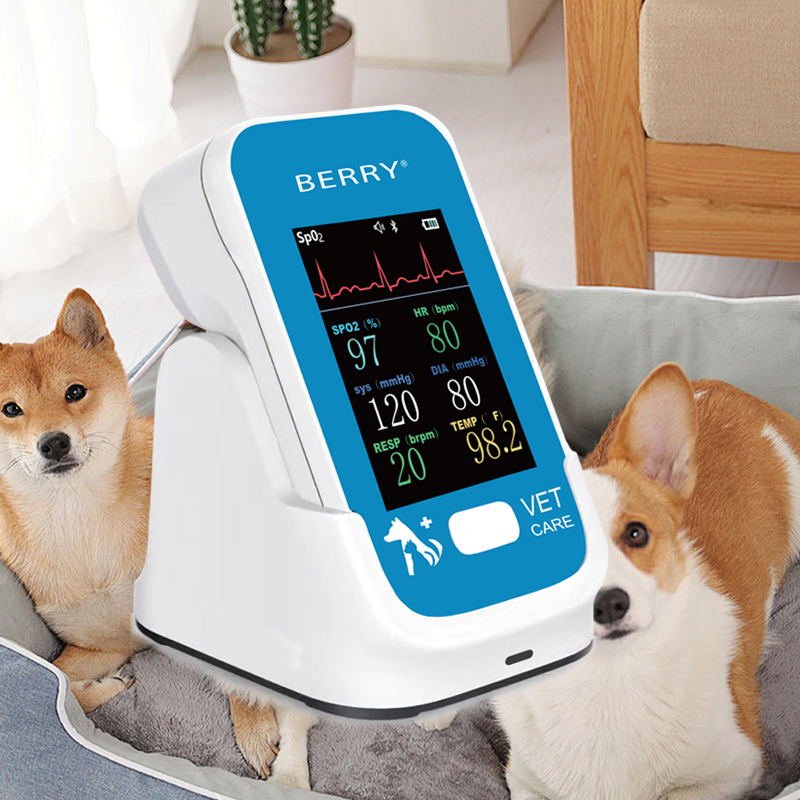

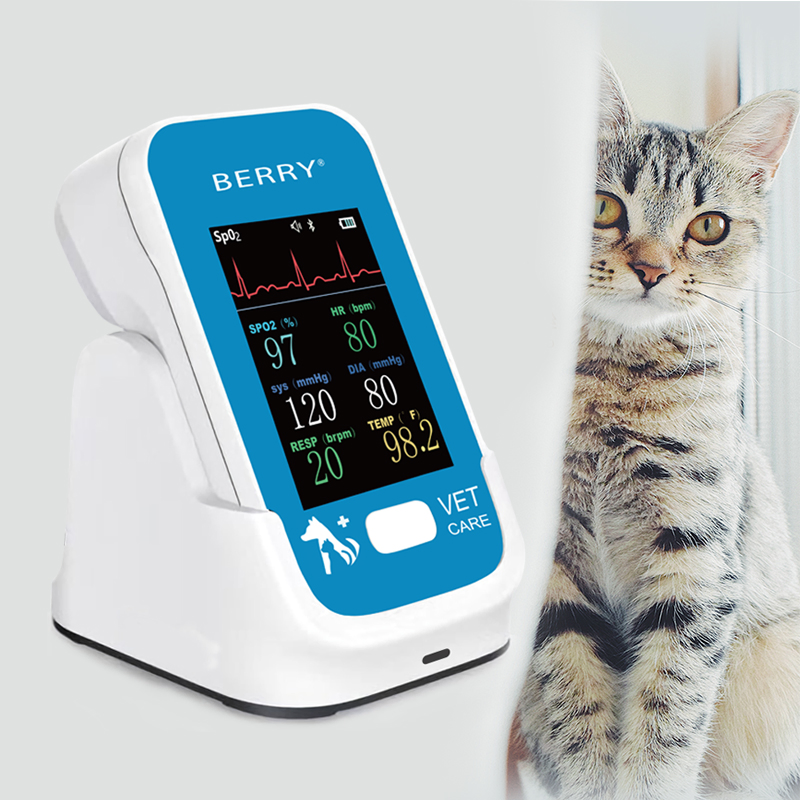

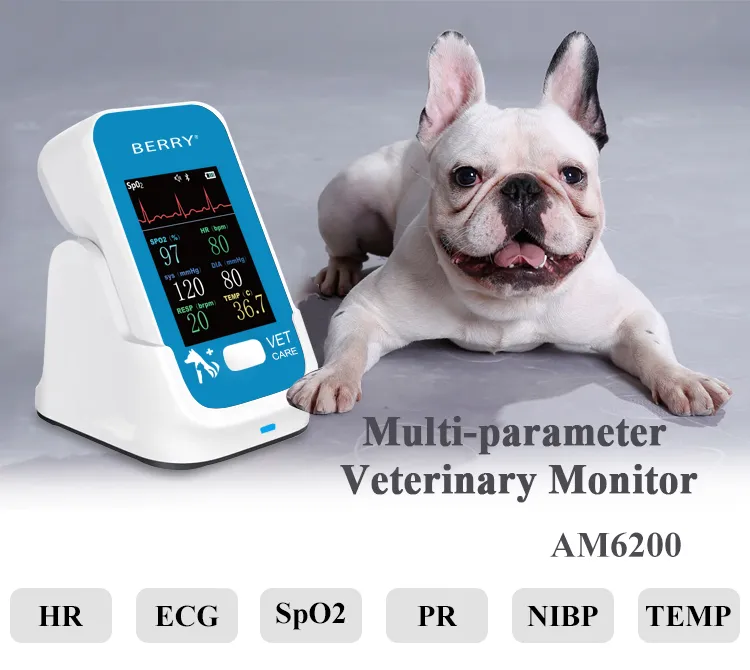

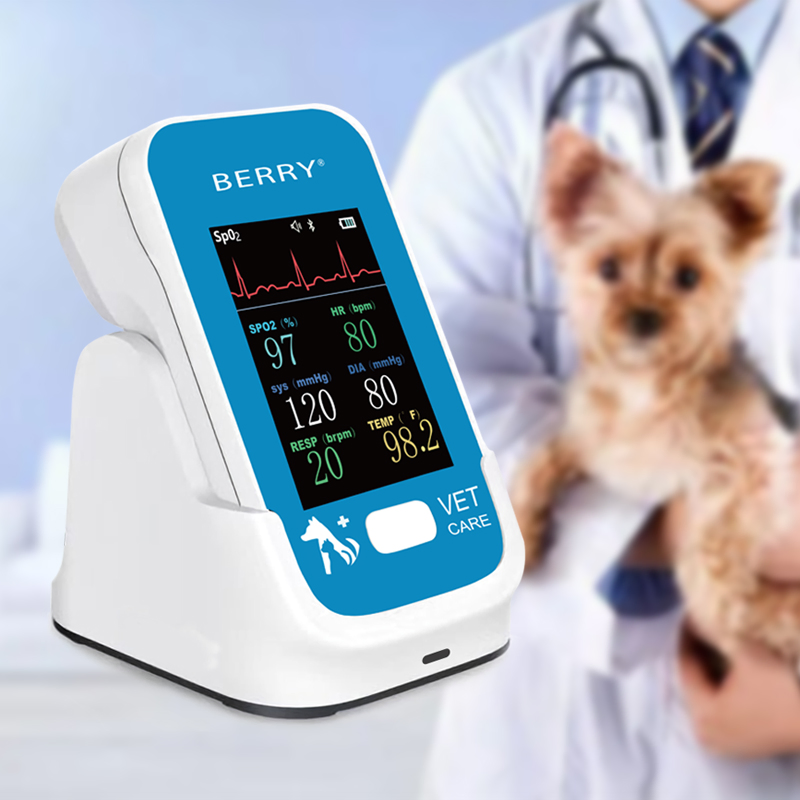

AM6200 Multi-parameter Veterinary Monitor
This monitor is capable of monitoring key parameters: ECG (Electrocardiograph), HR (heart rate), NIBP (non-invasive blood pressure), SpO2, PR (pulse rate), and TEMP (body temperature).
The One-Button-Design makes the monitor an easy-to-use system, allowing for convenient operation. Additionally, this monitor can be connected with other smart terminals such as PCs or Android phones. It integrates measurement and waveform monitoring functions, featuring a color TFT liquid crystal display to show animal parameters and waveforms clearly.
The AM6200 pet monitor is applicable for daily and surgical monitoring of various pets. It is widely used in pet hospitals, pet clinics, zoos, and for both indoor and outdoor home care.

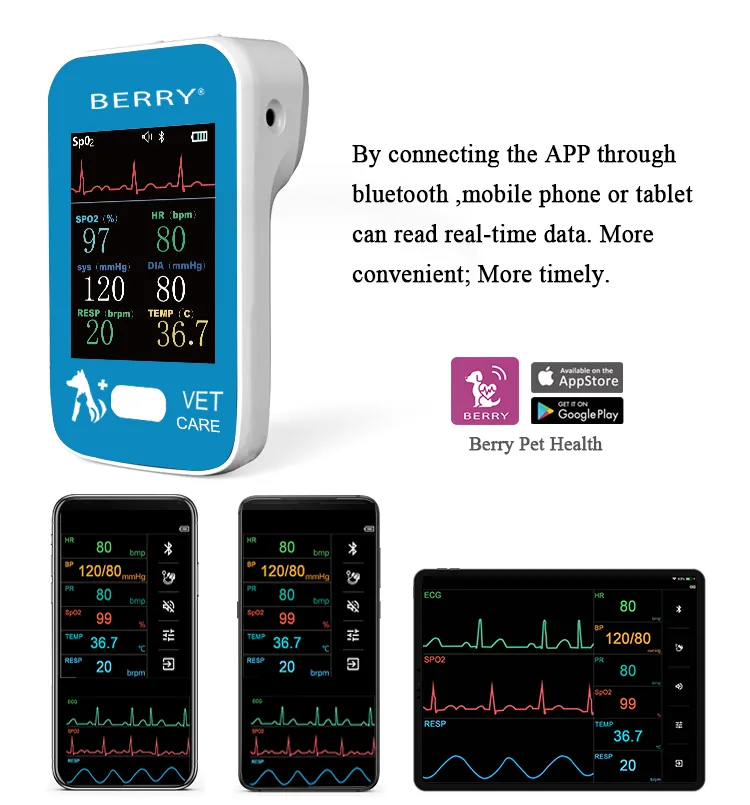

By connecting to the "Berry Pet Health" app via Bluetooth, mobile phones or tablets can read real-time data, providing a more timely and convenient monitoring experience. The app is available on the APP Store and Google Play.
Power Specifications:

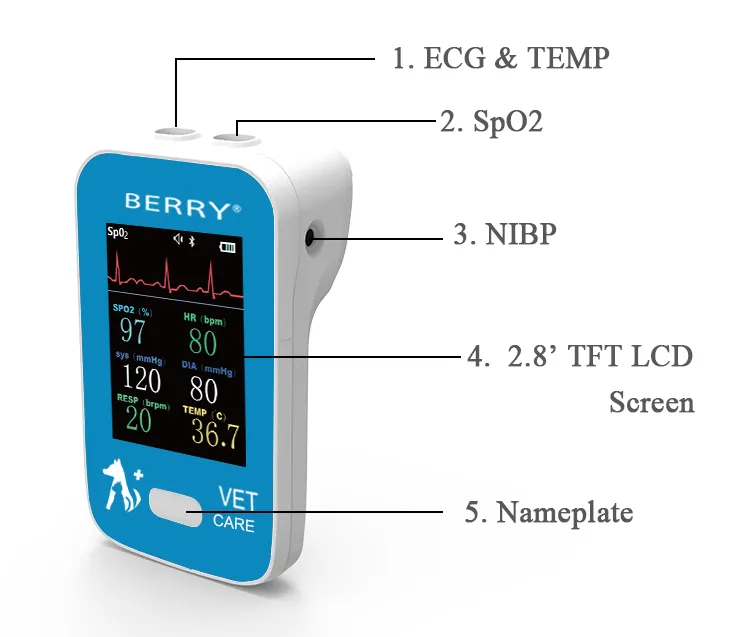

| Number | Name | Purpose |
|---|---|---|
| 1 | ECG & TEMP | ECG & TEMP cable connector, Charging Connector. |
| 2 | SpO2 | SpO2 sensor connector. |
| 3 | NIBP | NIBP cuff hose connector. |
| 4 | Screen | 2.8' TFT LCD. |
| 5 | Key | Power and functions key. |
| Parameters | ECG, HR, NIBP, SpO2, PR, TEMP |
|---|---|
| ECG Scope | Bandwidth: 0.05Hz~100Hz (Diagnose), 1~40Hz (Monitor), 0.1~25Hz (Operation) |
| Heart Rate | Scope: 15 bpm ~ 300 bpm; Accuracy: ±2bpm or 2% |
| NIBP Scope | Systolic: 4kPa~34kPa; Diastolic: 2kPa~29.3kPa; Mean: 2.7kPa~31.3kPa |
| SpO2 | Range: 35~100%; Accuracy: ±2% (80%~100%), ±3% (70%~79%) |
| TEMP | Range: 25ºC ~ 45ºC; Accuracy: ±0.2ºC |
| Weight | 256±10g (excluding accessories) |
