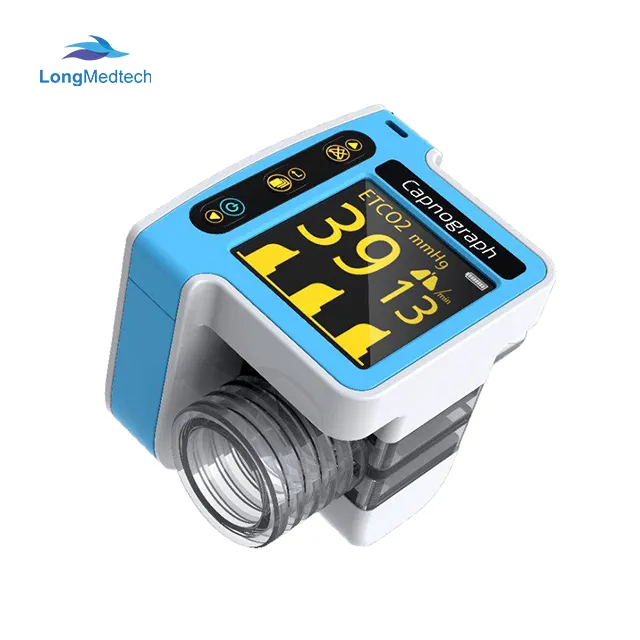

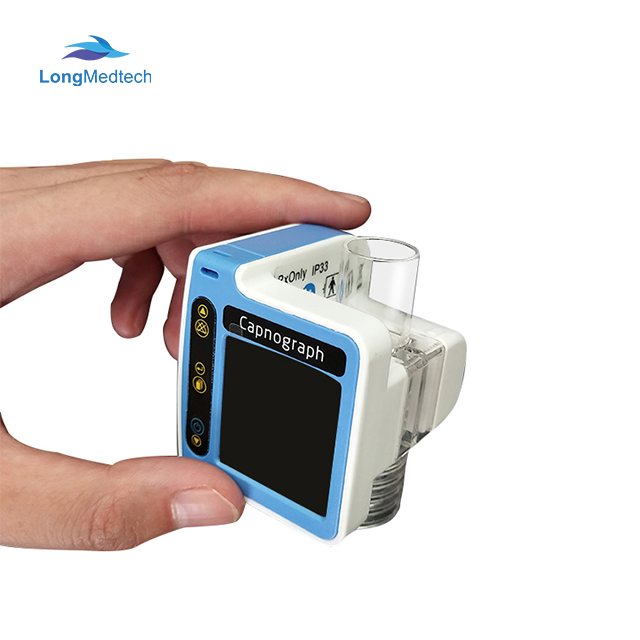

Medical Equipment Ca10m Capnograph Handheld Portable Cheap Etco2 Capnograph Monitor Etco2 Monitor

1 / 2

Medical Equipment Ca10m Capnograph Handheld Portable Cheap Etco2 Capnograph Monitor Etco2 Monitor

Send Inquiry

Product Description

◈ Key Features

⏱

Fast Response: Short warm up time and real-time EtCO2 waveform displayed in 15 seconds.

🛡

Full Solid Design: Long use life in challenging environments.

🔔

Audible & Visual Alarm: Systems for No Breath, Check adapter, Battery Low, EtCO2, and RR alarm.

🔋

Long Battery Life: Up to 10 hours of normal use with two AAA lithium batteries.

⚙

Easy Maintenance: No user routine calibration required.

📋 Product Specifications

Name	Etco2 Monitor Capnograph
Feature	Mainstream
Net weight	66g

Application

Emergency medicine, operating room (OR), intensive care unit (ICU), long-term acute care, monitoring of endotracheal tube placement, etc.

Environmental

Operating temperature: 0 to 40 ºC
Operating atmospheric pressure: 70 to 120 kPa
Operating humidity: 10-95%, non-condensing
Storage temperature: -20 to 70 ºC

Physical & Battery

Dimensions: 52×44×45 mm
Weight: 66g (Alkaline)
Battery Type: 2 AAA cell Alkaline or Lithium
Battery Life: 6 hours (Alkaline) / 10 hours (Lithium)

Display

Display: 1.4 inch Color TFT
Parameters: ETCO2, RR, Capnogram
Units: mmHg, kPa, % Selectable
Update: Displayed after 3 breaths, updated per breath

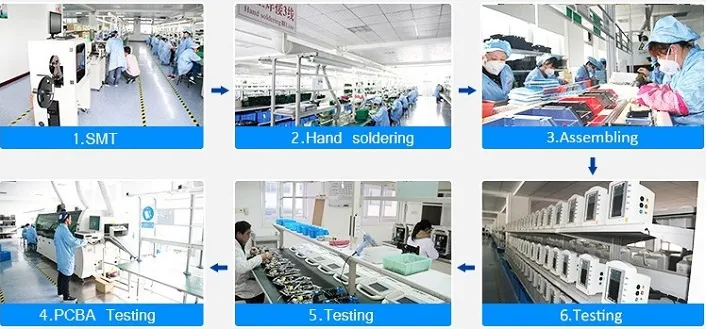

🔥 Hot Seller & Process

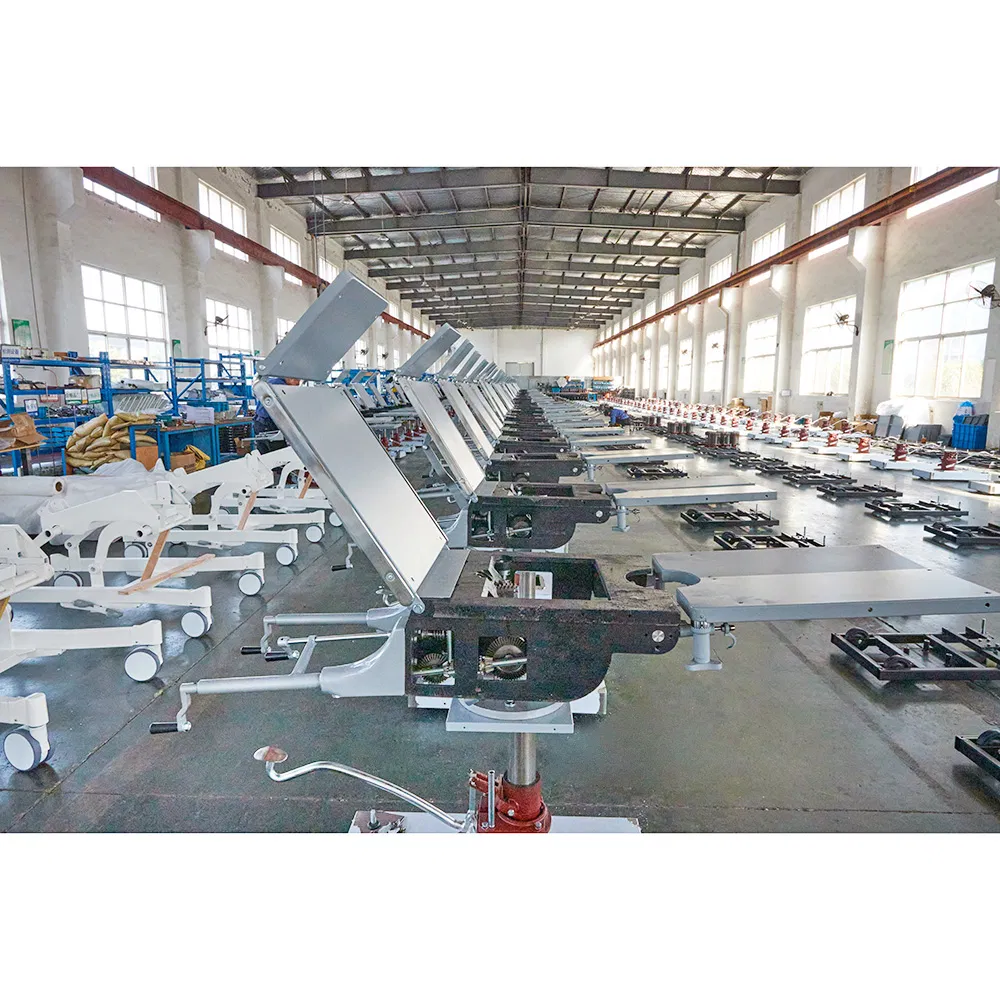

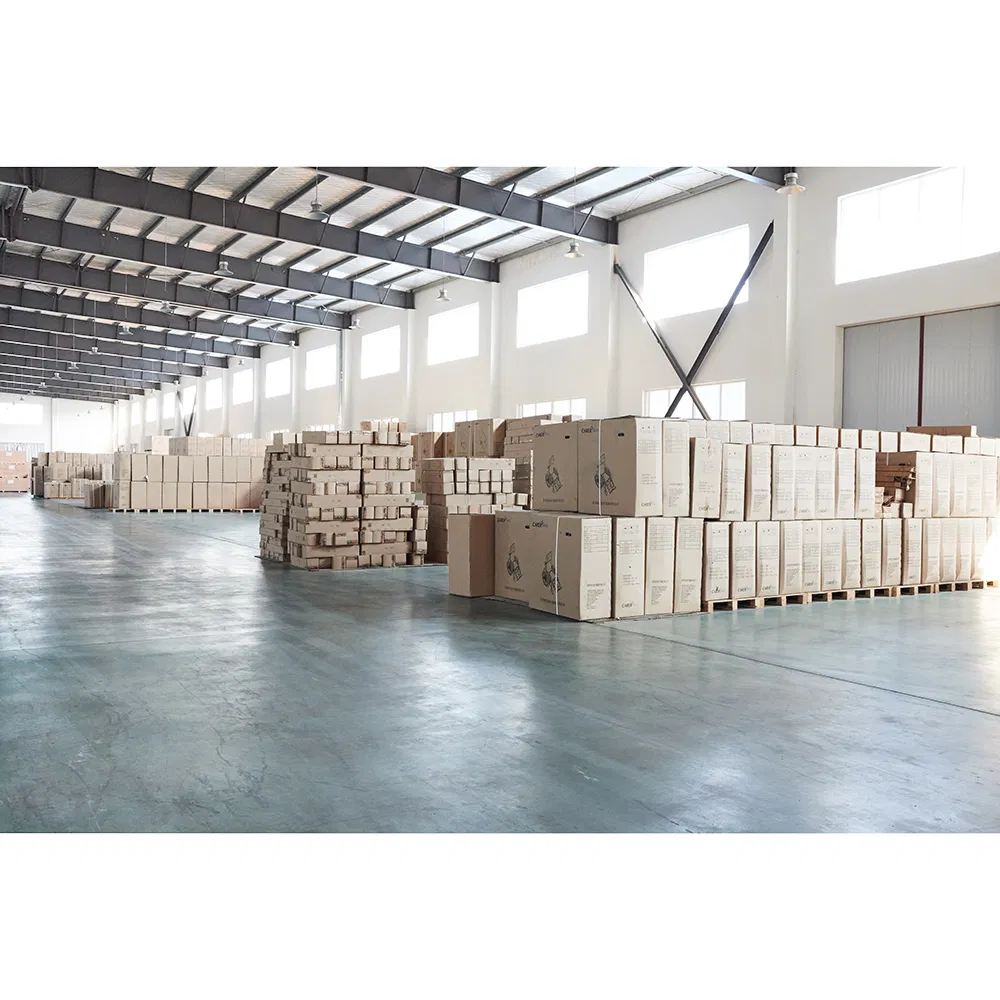

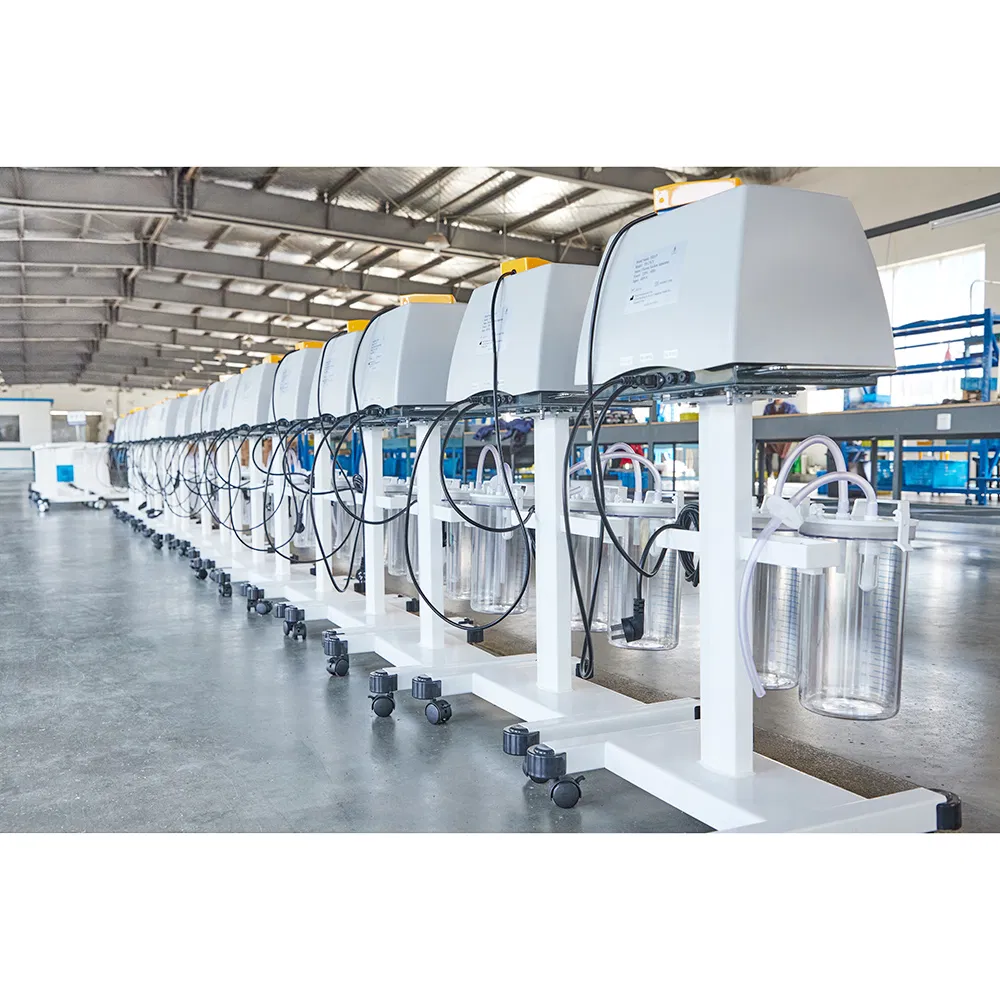

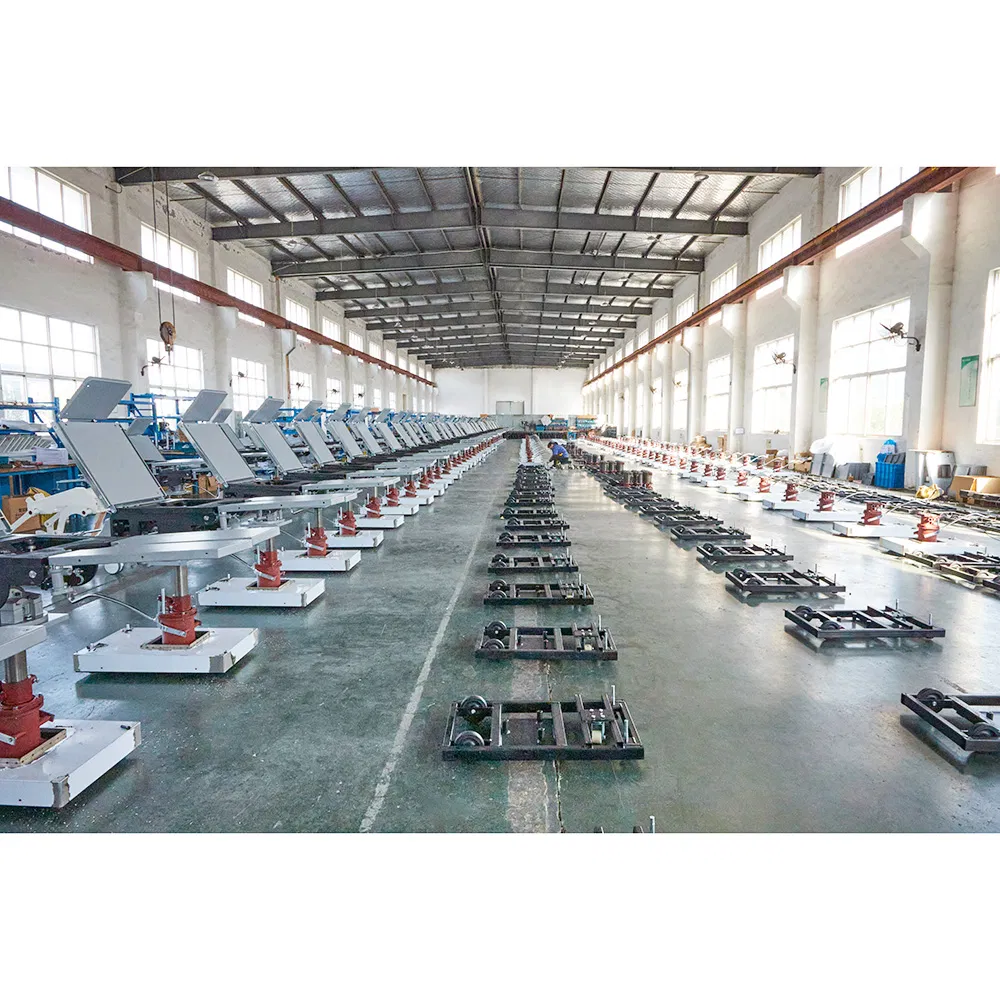

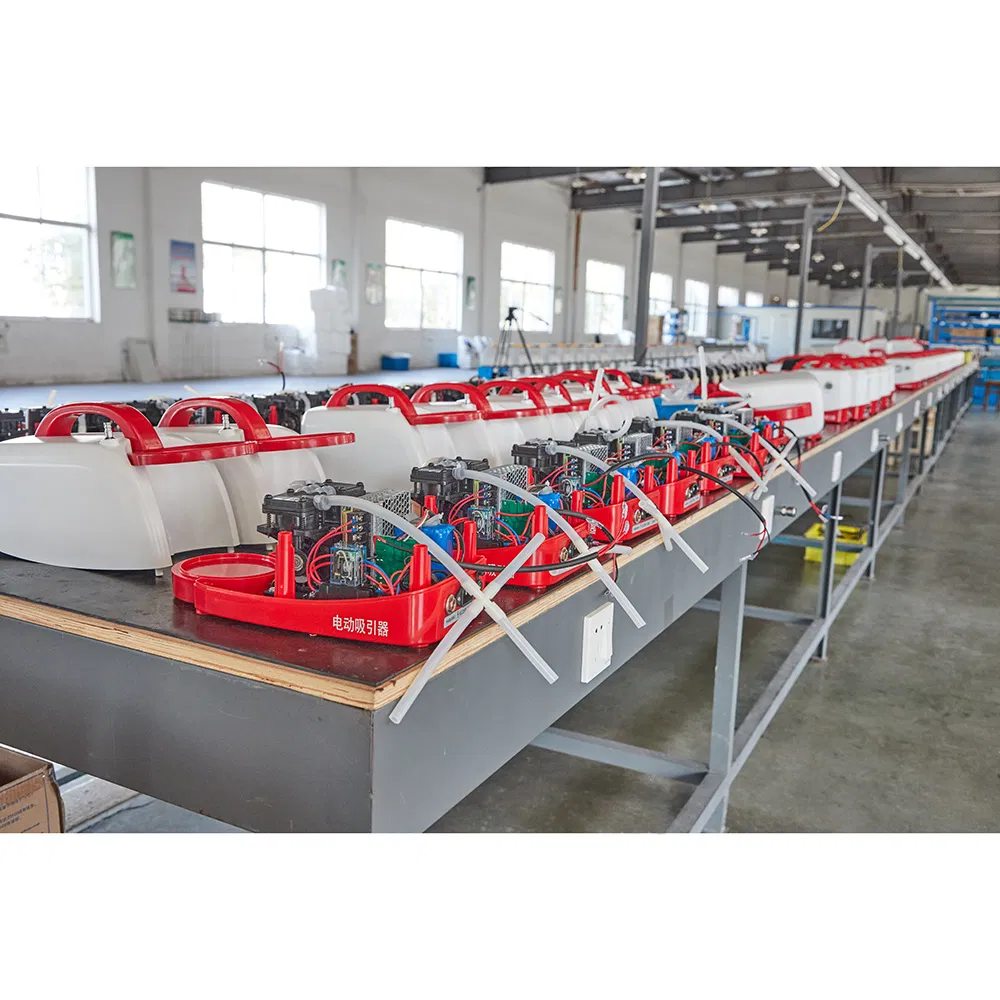

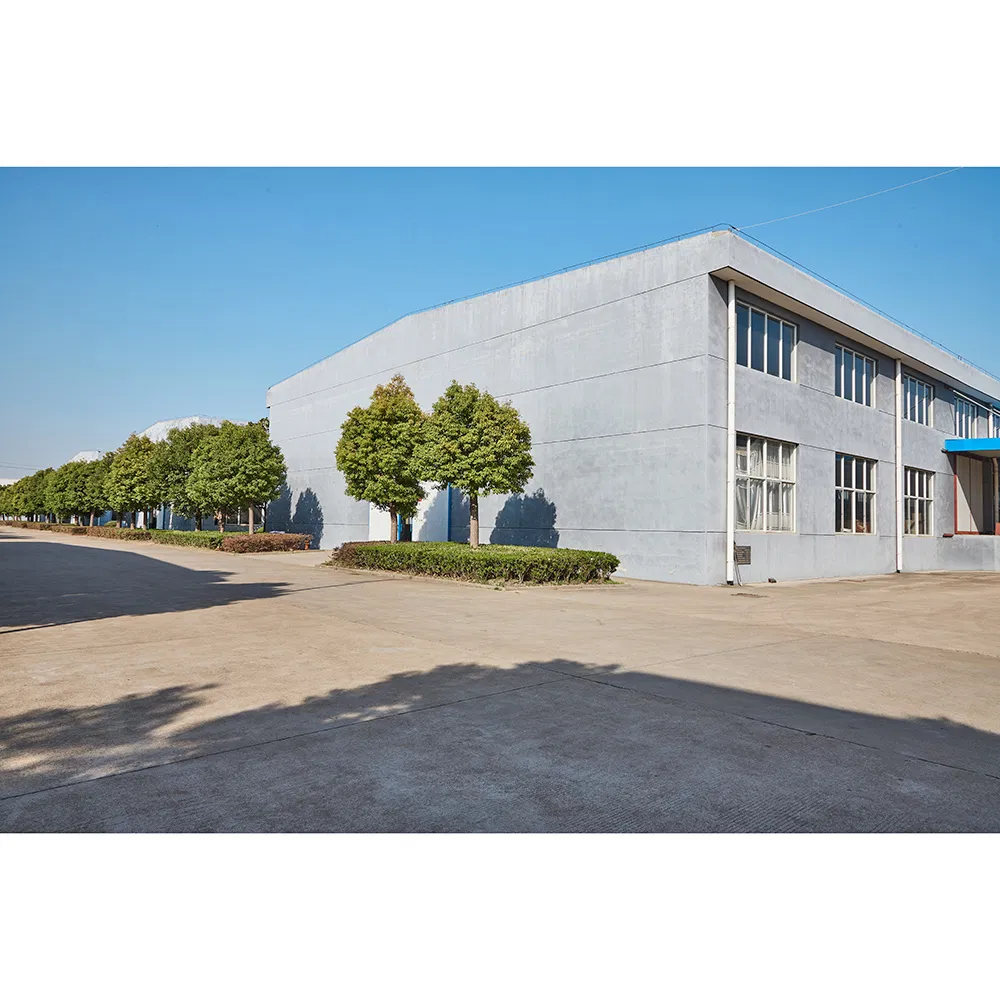

🏭 Factory Showcase

❓ FAQ

Q1: How long does the device take to show results? The device features a short warm-up time and displays real-time EtCO2 waveforms within 15 seconds.

Q2: What is the expected battery life? Using two AAA batteries, you can expect up to 6 hours with alkaline batteries and up to 10 hours with lithium batteries.

Q3: Does the monitor require regular calibration? No, the device is designed for ease of use and requires no routine user calibration.

Q4: What parameters are shown on the display? The 1.4-inch color TFT screen displays ETCO2, Respiratory Rate (RR), and the Capnogram.

Q5: Is it suitable for pediatric use? Yes, there are disposable airway adapters available for both adult and children.

Q6: What alarms are integrated into the system? The monitor includes audible and visual alarms for No Breath, Check Adapter, Low Battery, EtCO2 levels, and RR limits.
