Adult Pediatric Portable Capnograph Monitoring Etco2 Monitor Capnography

1 / 4

Adult Pediatric Portable Capnograph Monitoring Etco2 Monitor Capnography

Customization:	Available
Type:	Patient Monitor
Certification:	CE, ISO13485

Send Inquiry

Product Description

Overview

Model NO.

CA10M

Group

Infants and Young Children

Transport Package

Carton

HS Code

9018909090

Production Capacity

1000 Units Per Month

Product Description

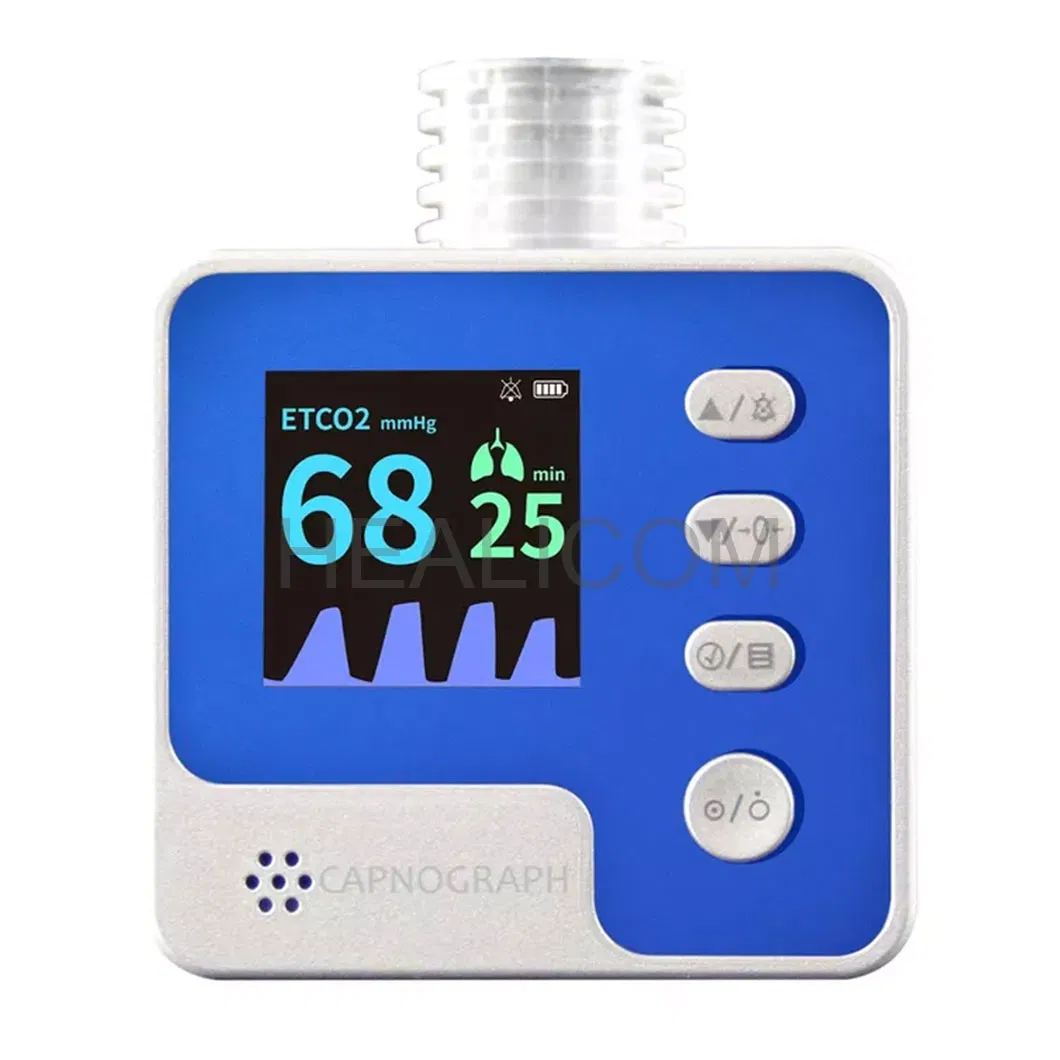

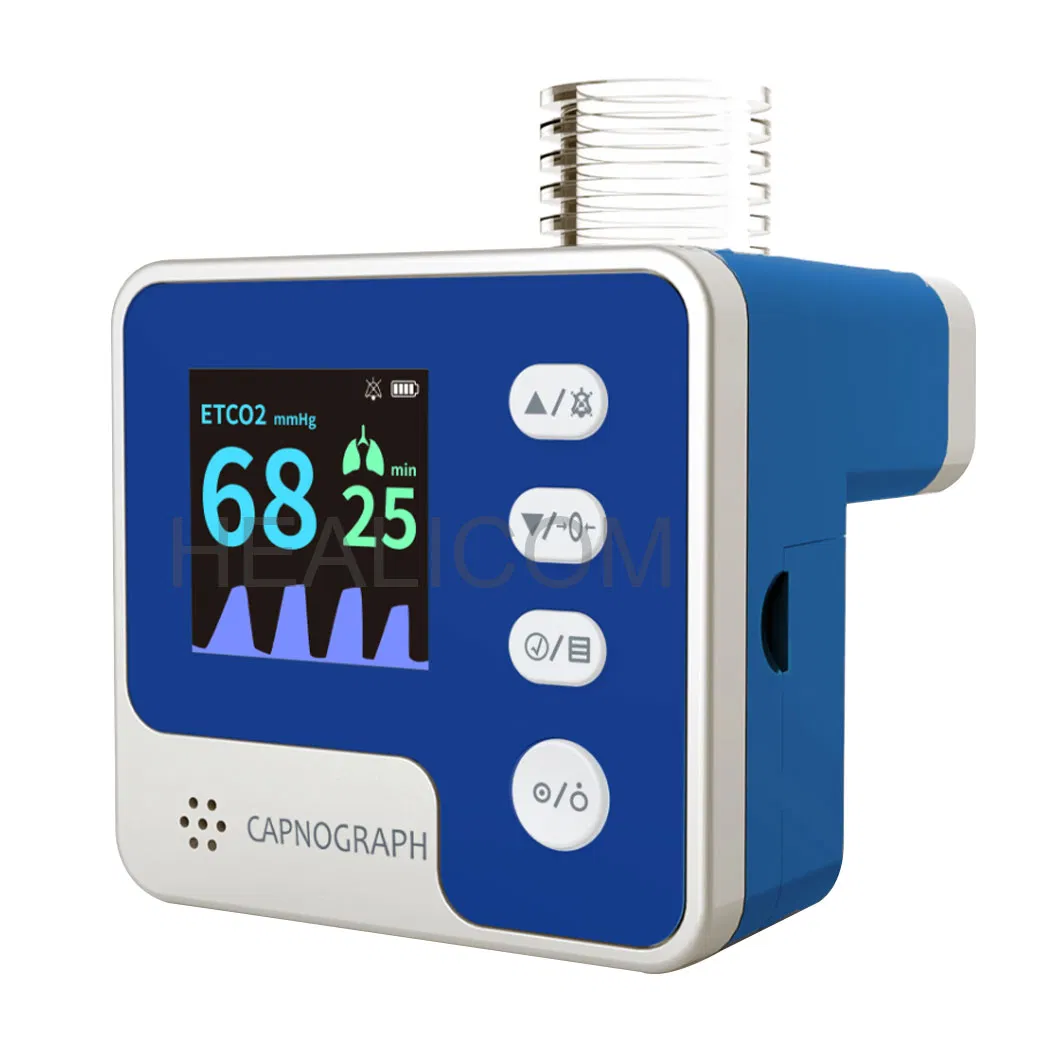

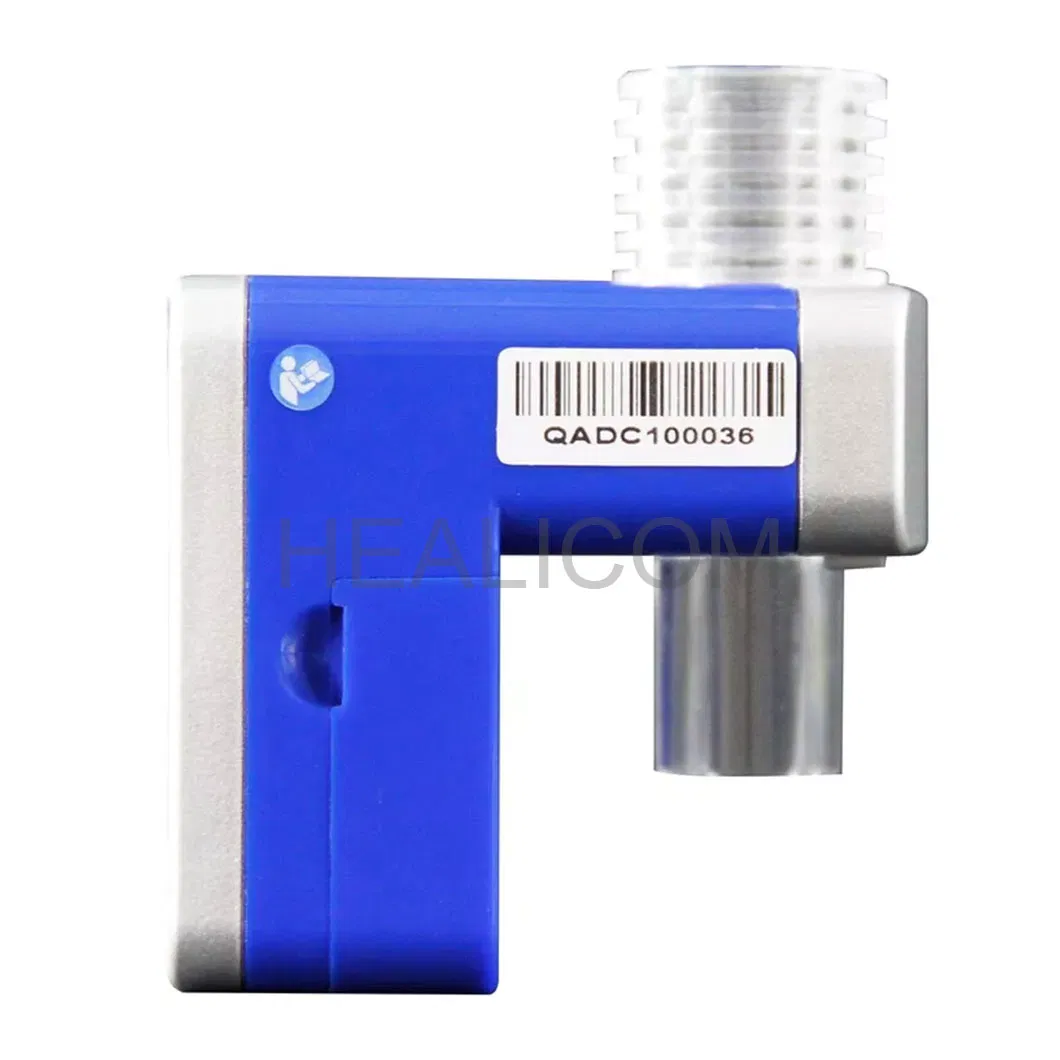

CA10M Medical ETCO2 Monitor Capnography

Capnograph adopts mainstream method to measure the end-tidal carbon dioxide, airway respiration rate and other parameters. It can detect pulmonary ventilation function and reflect the circulation and pulmonary blood flow condition, as well as indirectly reflect the alveolar ventilation, which is applicable for use in pre-hospital emergency transfer, emergency department, ICU, operating room, neonatology, respiratory department and other occasions. The application population is adult, pediatric and neonate patients.

Key Features

End-tidal CO2 measurement function
Respiration rate measurement function
Over-limit alarm function for End-tidal CO2 and RR
Low battery alarm function

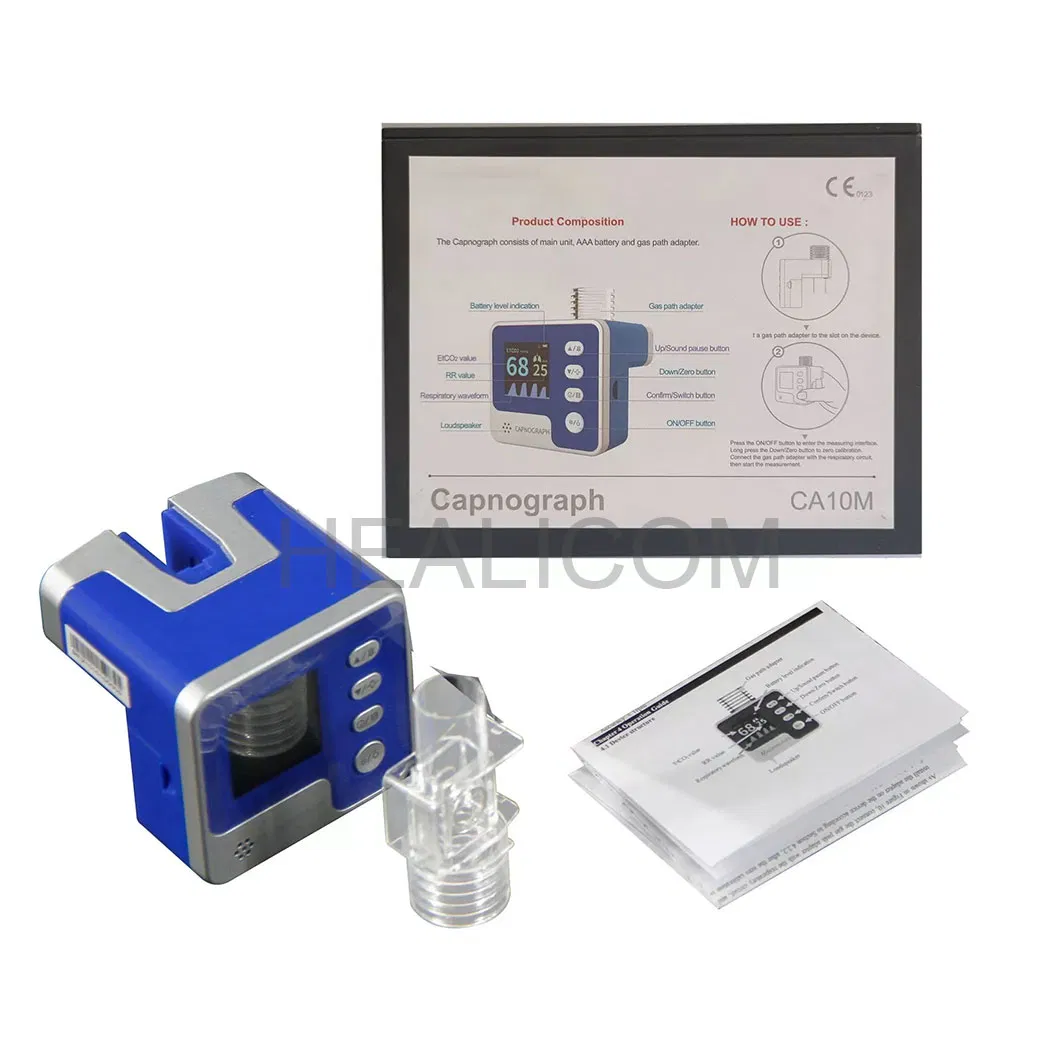

Accessories

User Manual
Adult gas path adapter
Neonate gas path adapter (optional)

Selling Points Analysis

• 1.3" color LCD screen, user-friendly interface
• Compact and portable design
• Visual and audible alarm system
• Alarm limits and unit can be set
• Automatic compensation of atmospheric pressure
• Suitable for medical transfer, emergency, and surgery

Technical Specifications

Performance Parameters
End-tidal CO2 Measurement
Measurement Range	0 ~ 150mmHg
Resolution	1mmHg
Accuracy	0 ~ 40 mmHg	±2mmHg
	41 ~ 70 mmHg	±5% of readings
	71 ~ 100 mmHg	±8% of readings
	101 ~ 150 mmHg	±10% of readings
Respiration Rate Measurement
Measurement Range	2rpm ~ 150rpm
Resolution / Accuracy	1rpm / ±1rpm
Physical & Safety
Device Type	Internally powered, Type BF applied part
Protection Rating	IPX2
Dimensions	55 x 52 x 59mm
Weight	97g (with batteries)
Power Supply	DC 3V (2 AAA dry batteries)

Product Gallery

Manufacturing & Quality

Frequently Asked Questions

What is the expected time of delivery?

Since products are produced according to specific orders, the delivery period is usually 15 days after confirmation. For small or sample orders, please check our ready stock for immediate delivery.

What quality assurance do you provide?

We offer a one-year warranty period starting from shipment. For minor issues, we provide free spare parts. For serious manufacturer defects, we provide free replacements. Damages from rough handling during transport are the buyer's responsibility via claims against the carrier.

How competitive is the pricing?

With over 20 years of experience in this field, we provide top-quality products at highly competitive prices. We have established a strong reputation globally across Africa, the Middle East, Europe, Asia, and South America.

Why do prices vary for similar-looking models?

Market copies often use cheaper materials and lack strict quality control. Our products focus on high-grade components and precision to ensure medical-grade accuracy and durability.

What are the available payment terms?

We typically accept T/T in advance and Western Union for processing orders.

Which shipping methods and carriers are used?

We work with major lines like MAERSK, COSCO, and DHL/UPS/TNT for courier services. We prioritize buyer options and provide suggestions based on the most efficient schedules and service levels.
