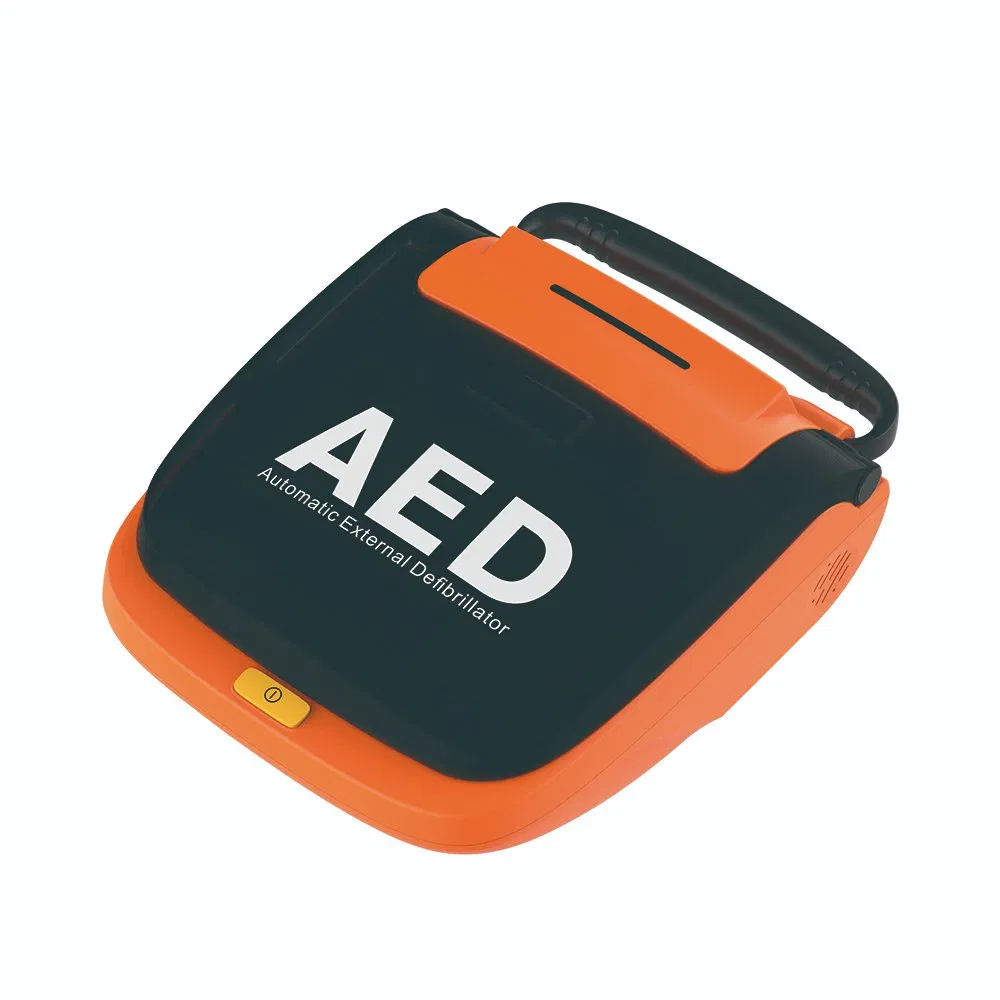

First Aid Portable Automated External Defibrillator Aed with Presinstalled Pads
First Aid Portable Automated External Defibrillator Aed with Presinstalled Pads
First Aid Portable Automated External Defibrillator Aed with Presinstalled Pads
First Aid Portable Automated External Defibrillator Aed with Presinstalled Pads
First Aid Portable Automated External Defibrillator Aed with Presinstalled Pads
1 / 5
First Aid Portable Automated External Defibrillator Aed with Presinstalled Pads
First Aid Portable Automated External Defibrillator Aed with Presinstalled Pads
First Aid Portable Automated External Defibrillator Aed with Presinstalled Pads
First Aid Portable Automated External Defibrillator Aed with Presinstalled Pads
First Aid Portable Automated External Defibrillator Aed with Presinstalled Pads

First Aid Portable Automated External Defibrillator Aed with Presinstalled Pads

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📋 Basic Information
Model NO.
Altai DH5
Certification
CE, ISO13485
Screen
7 Inch Color LCD
Electrode Pads
Adult/Child Compatible
Data Storage
90 Mins (ECG & Sounds)
Data Transfer
Bluetooth
Dimensions
202mm × 276mm × 92mm
HS Code
9018199090
🚑 First Aid Portable Automated External Defibrillator
AED (Automatic External Defibrillator) is a portable medical device that can save lives facing risk of sudden heart death in different environments. Based on precise & rapid analyzing, it recognizes ECG rhythm that needs defibrillation. Visual and audible operation guides are automatically provided throughout the life rescue process.

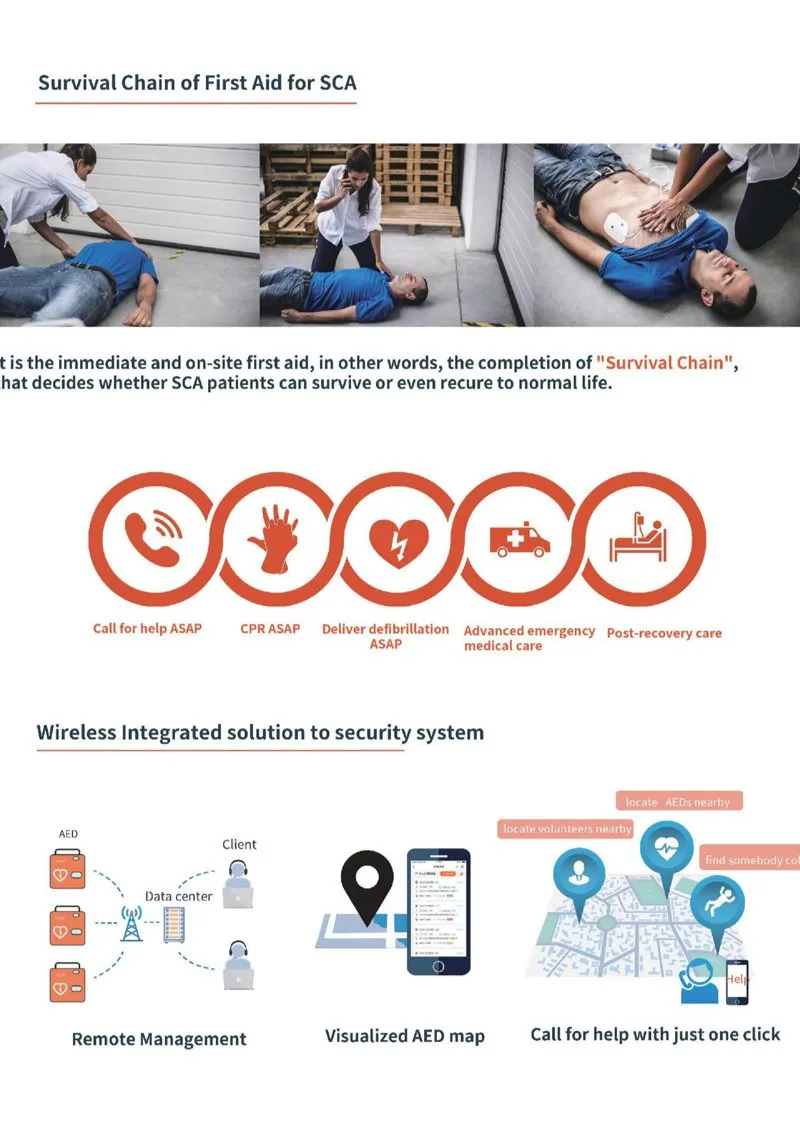

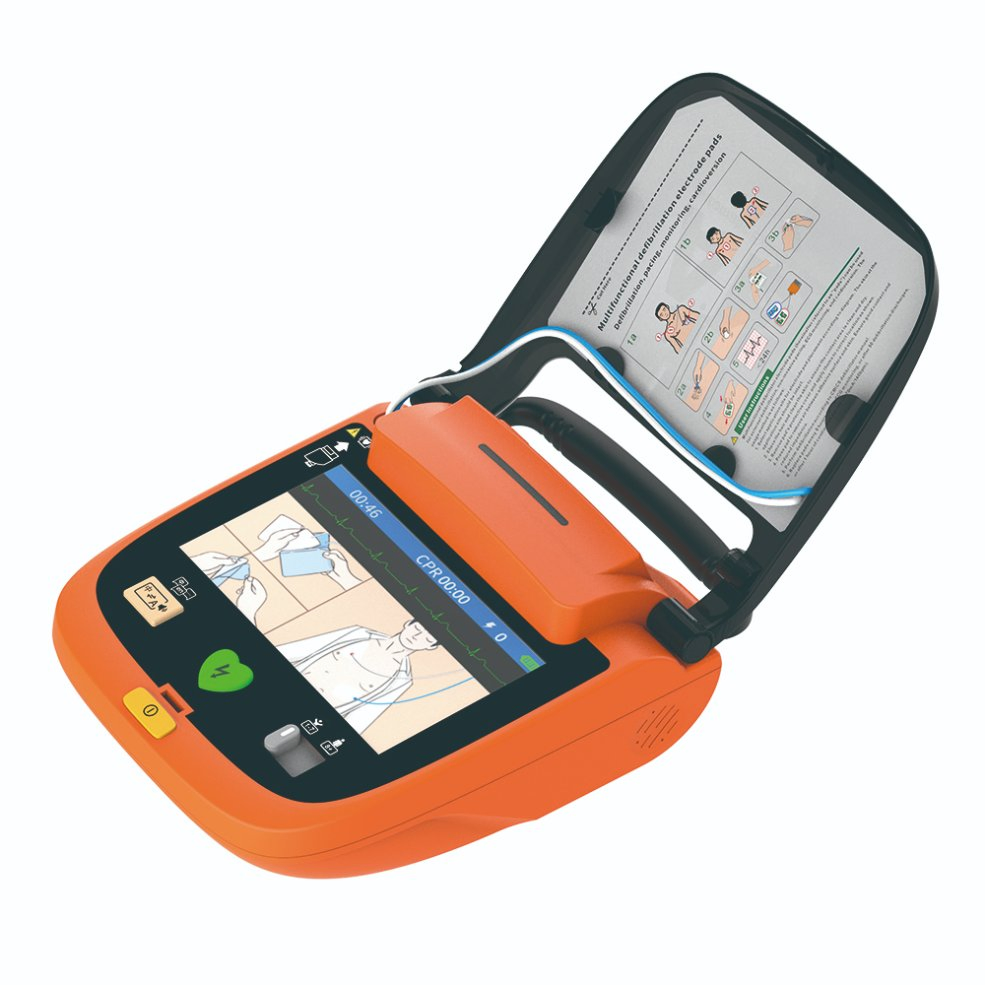

AED Portable Device Front View
AED Device Display
Key Features
✔Biphasic Truncated Exponential defibrillation with automatic compensation.
✔Large 7" color TFT LCD with animated rescue demonstrations.
✔One-step operation: Power on automatically when cover is opened.
✔Dual Mode: Switch easily between Adult and Child modes.
✔Intelligent: Adjustable LCD brightness and voice volume for environment.
✔Maintenance Free: Daily, weekly, monthly, and quarterly self-tests.
✔Compatibility: Preinstalled electrode pads compatible with both adults & children.
⚙ Technical Specifications

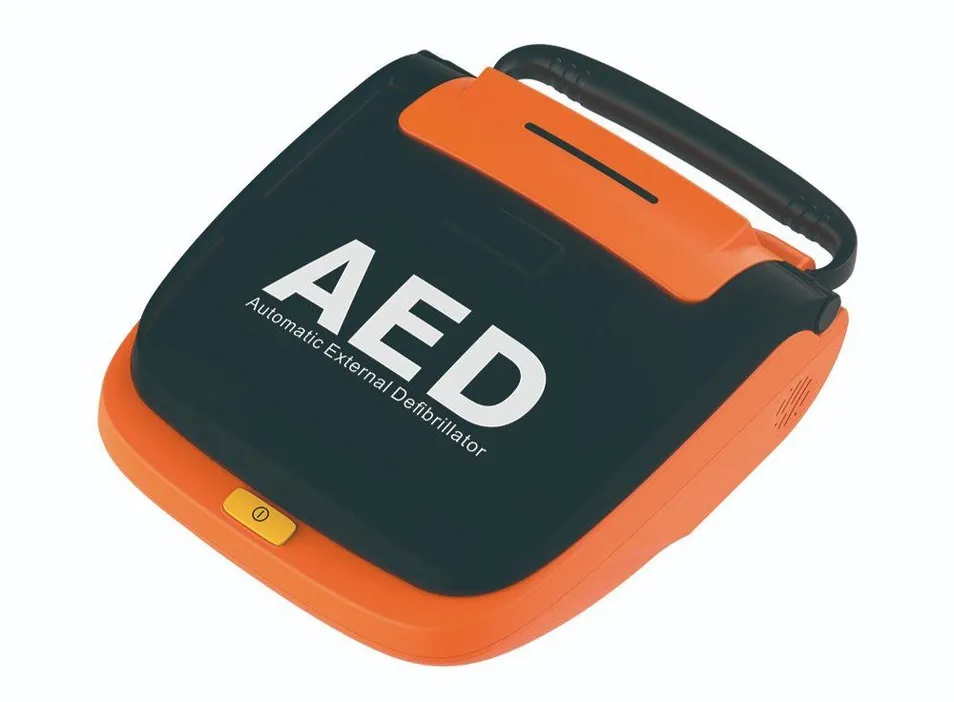

Product Specification Visual
Parameter Specification
LCD Display7 inch TFT LCD, 800 x 480
ECG Analysis Time≤ 2.5 seconds
Patient Impedance Range25 ~ 200Ω ±5%
Energy Output (Adult)100/150/170/200/300/360J
Energy Output (Child)10/15/20/30/50/70/100J
Battery PackLiMnO2 battery, DC 12V, 4800 mA
Voice Volume65 ~ 78 dB
Time to Shock (from power on)< 7s (200J)
🔍 Detailed Components
Handle Detail

Ergonomic Handle

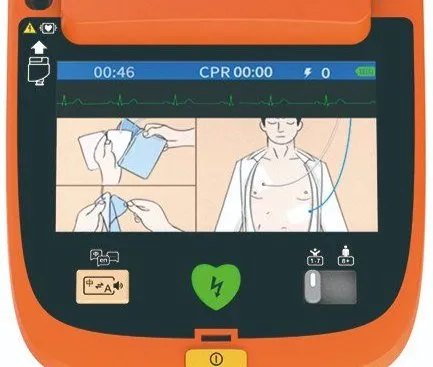

Screen and Button

Intuitive Interface

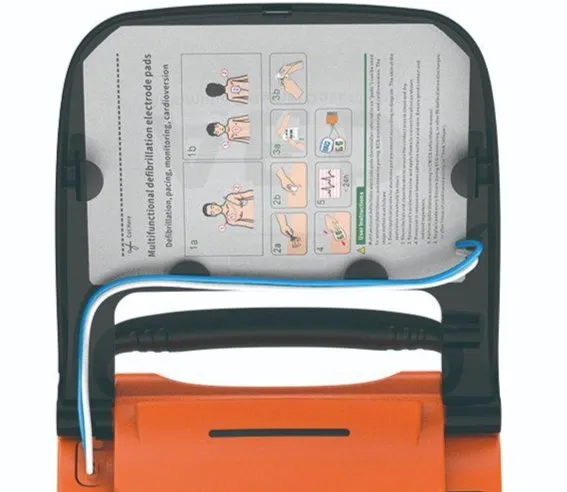

Electrode Pad Connector

Quick Connector

📦 Accessories & Packaging

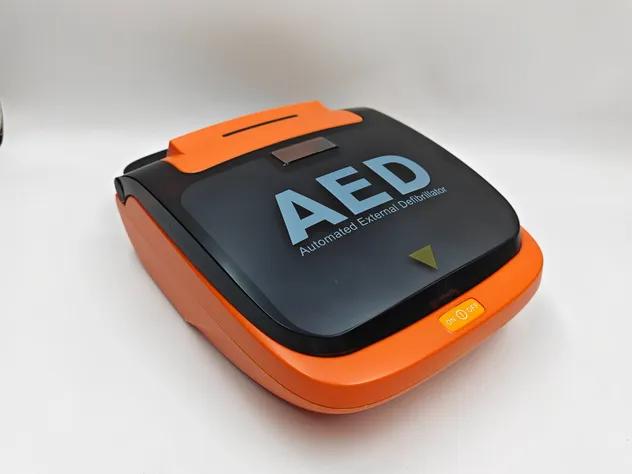

Shipping Carton

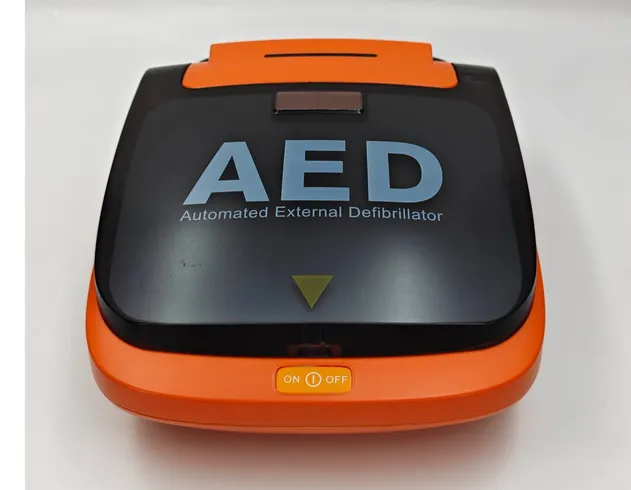

Internal Protection

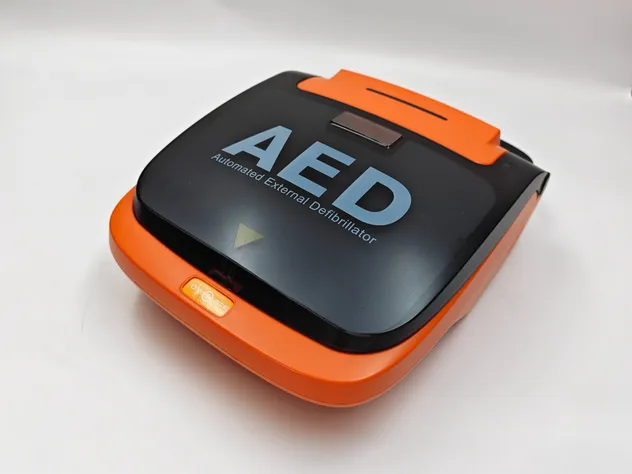

Final Packaging

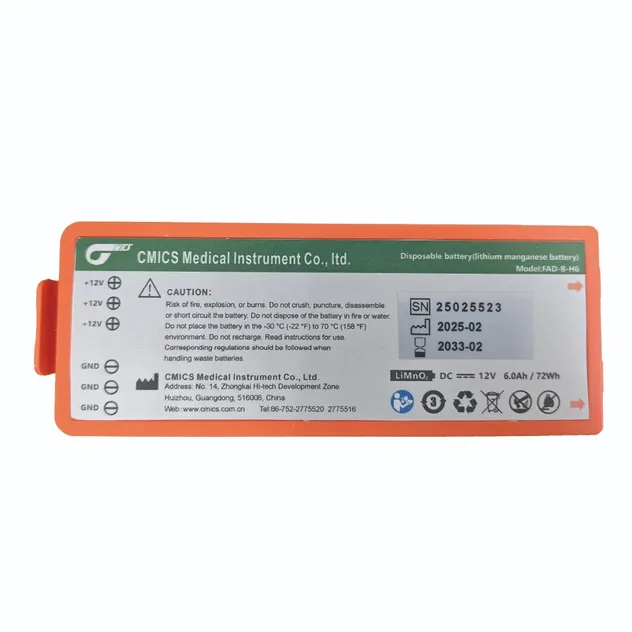

Battery Unit

High Capacity Battery

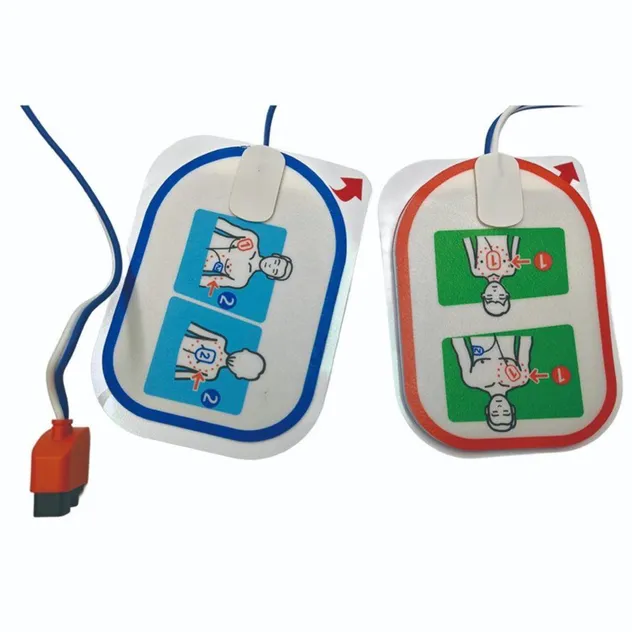

Electrode Pad

Universal Electrode Pad

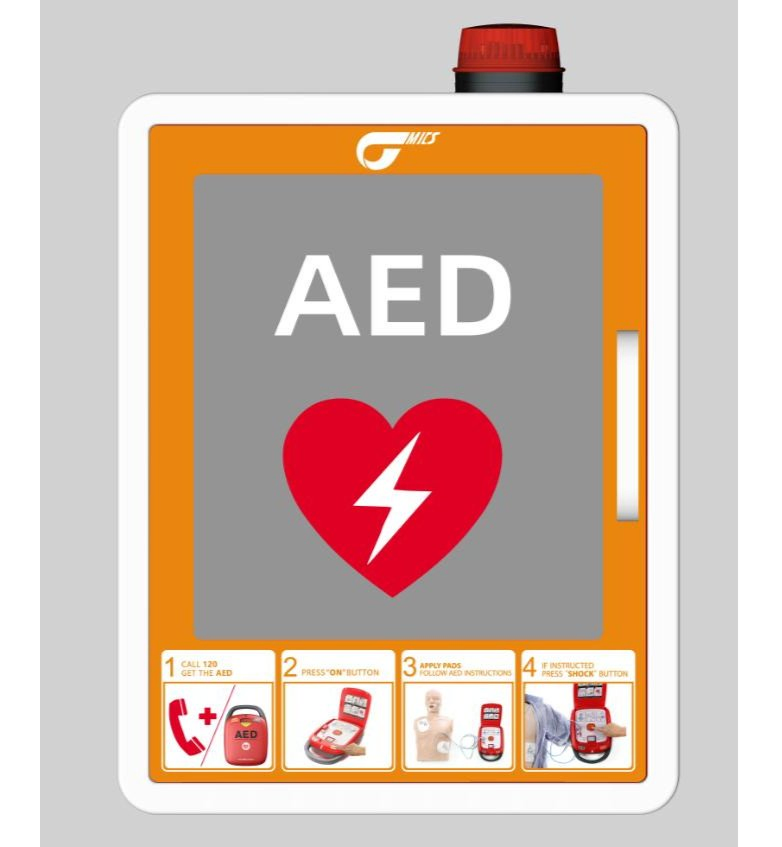

Wall Cabinet

Wall Mount (Optional)

🏭 Manufacturing Facility
Factory Facility 1

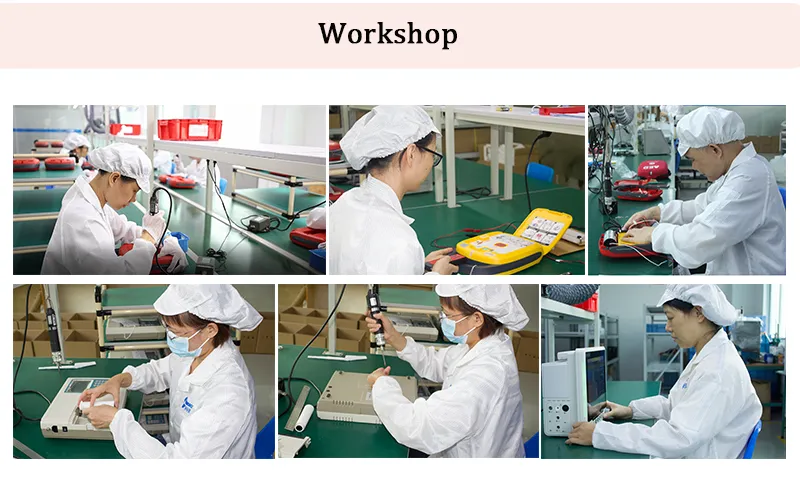

Factory Facility 2

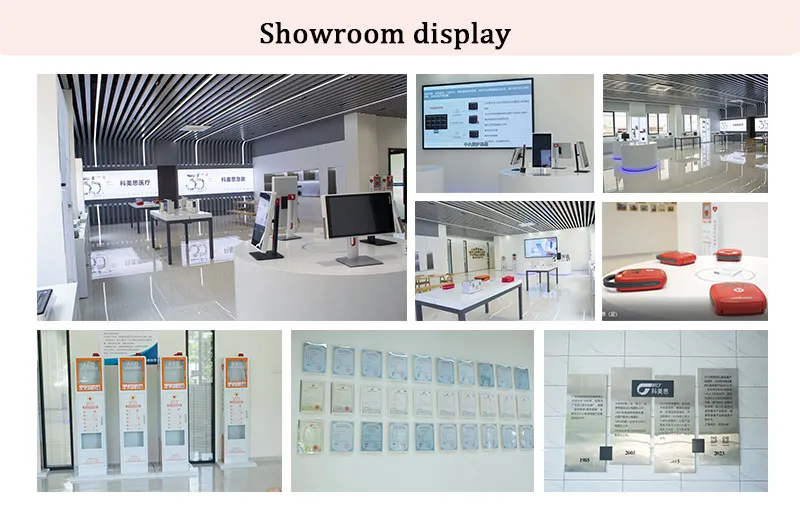

Production Line
Testing Lab
Frequently Asked Questions
➤ Can this AED be used on children?
Yes, the device features a dedicated child mode and is compatible with preinstalled electrode pads that work for both adults and children.
➤ How does the device guide the user during an emergency?
The device provides both visual animated demonstrations on the 7-inch LCD screen and audible voice instructions to guide the rescuer through the entire process.
➤ Does the device require manual maintenance checks?
No, the AED performs automatic daily, weekly, monthly, and quarterly self-tests to ensure it is always ready for use. It will alarm if the battery is low.
➤ How fast can it analyze and deliver a shock?
ECG analysis takes less than 2.5 seconds, and it can deliver a 200J shock in less than 7 seconds from the time the power is turned on.
➤ How is the data stored and transferred?
The device stores up to 90 minutes of ECG data and ambient sounds. This data can be transferred wirelessly via Bluetooth for medical review.
➤ Is the screen visible in different lighting conditions?
Yes, the 7-inch color TFT LCD brightness is adjustable to ensure clear visibility in compliance with ambient lighting conditions.
