Customization: Available
Classification: Automatic External Defibrillator
Type: Incubator, High Quality Platelet
Send Inquiry

Product Description

📋 Basic Information
Model NO.
YJ-AED100
Certification
CE, ISO13485, ISO
Application Group
Middle-aged and Old / Adult / Child
Product Name
Automatic External Defibrillator
Power Supply
220V/50Hz
Warranty
One Year
Condition
New
⚡ Product Description
YJ-AED100 Automatic External Defibrillator

YJ-AED100 is a compact, durable, and lightweight defibrillator specifically designed for both adult and pediatric use. As a professional biphasic defibrillator, it is ideally suited for hospitals, clinics, and emergency response scenarios.

Key Features:
  • Rapid readiness: Maximum time from rhythm analysis to discharge readiness is less than 10 seconds.
  • Continuous performance: Readiness for discharge after 6 shocks is achieved in less than 10 seconds.
  • Fast Startup: Power-on to discharge readiness in less than 18 seconds.
  • User-friendly interface with LED prompts and automatic self-testing.
⚙️ Technical Specifications
Parameter Specification
Output WaveformBiphasic Truncated exponential
Energy Sequence (Adult)150J, 200J, 200J
Energy Sequence (Child)50J, 50J, 50J
Analysis Time6 seconds
Dimensions280 * 209 * 80 mm
Weight2.5 kg
Battery Capacity2.8 Ah (120 discharges at 200 Joules)
Battery Shelf Life5 years standby (after installation)
ControlsFour buttons: On/Off, Shock, Adult/child, CPR
Operating Temp0°C to 40°C
Impedance Limits20Ω to 200Ω
📸 Detailed Photos

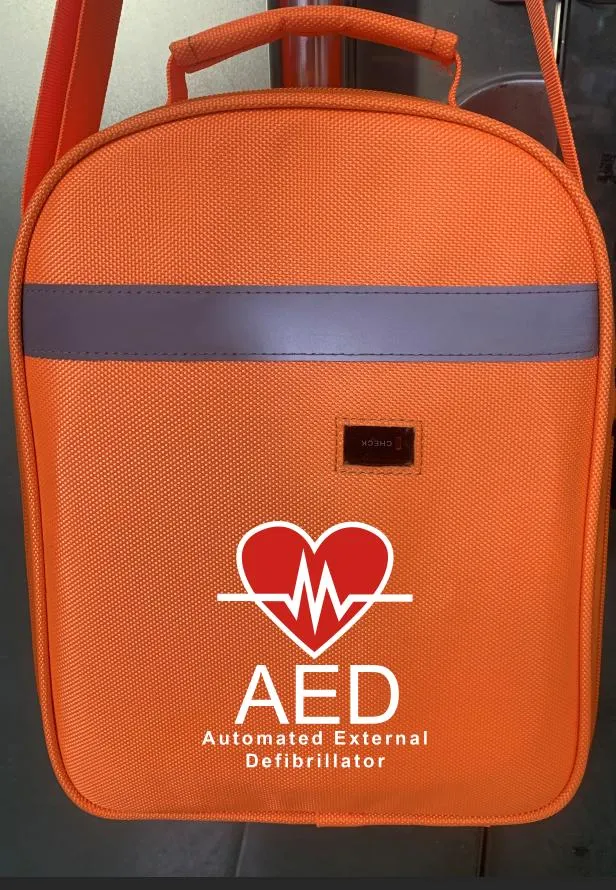

AED Detail 1
AED Detail 2
AED Detail 3
AED Detail 4
AED Detail 5
AED Detail 6
Frequently Asked Questions
How long does it take for the YJ-AED100 to analyze and prepare for a shock?
The rhythm analysis takes approximately 6 seconds, and the device is ready for discharge in less than 10 seconds.
Can this AED be used on pediatric patients?
Yes, the device features a dedicated Adult/Child switch with a specific energy sequence of 50J-50J-50J for children.
What is the expected life of the battery?
The non-rechargeable battery provides a 5-year standby life after installation and is capable of up to 120 discharges at 200 Joules.
Does the device perform self-tests?
Yes, the YJ-AED100 includes an automatic self-test feature to ensure the device is functional and ready for emergency use.
Is the device portable for outdoor use?
Absolutely. It weighs only 2.5kg and has a compact design (280*209*80mm), making it highly portable for various environments.
What kind of prompts does the AED provide during operation?
The device provides clear LED prompts to guide the user through the defibrillation and CPR process.
