Factory Defibrillator Price for Sale Aed Medical Automated External Defibrillator

1 / 5

Factory Defibrillator Price for Sale Aed Medical Automated External Defibrillator

Customization:	Available
Customized:	Customized
Certification:	CE, ISO13485

Send Inquiry

Product Description

Basic Information

Model NO.

K-AD20

Operating Temp.

0~40℃

Charge Time

6-8 Sec.

Battery Capacity

2.8 Ah, 120 Discharges

Analysis Time

6 Sec.

Power Source

Electricity (Non-Rechargeable)

Energy Sequence

Adult: 150J, 200J, 200J

Classification

Class II First-Aid Device

Dimensions

280 x 209 x 80 mm

Output Type

Biphasic Truncated Exponential

Product Description

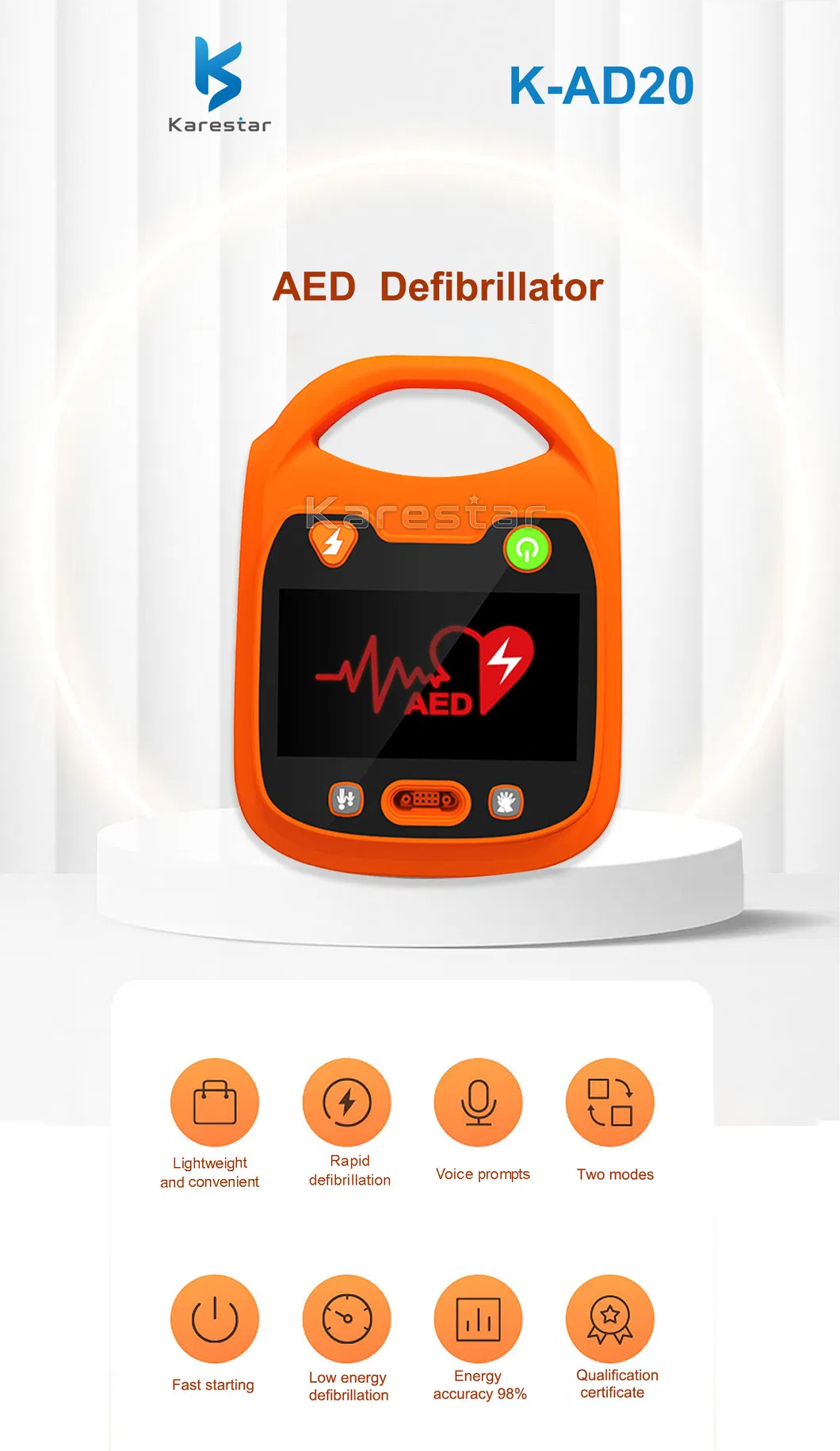

Automated External Defibrillator (AED) Medical Equipment

Quick Technical Features:

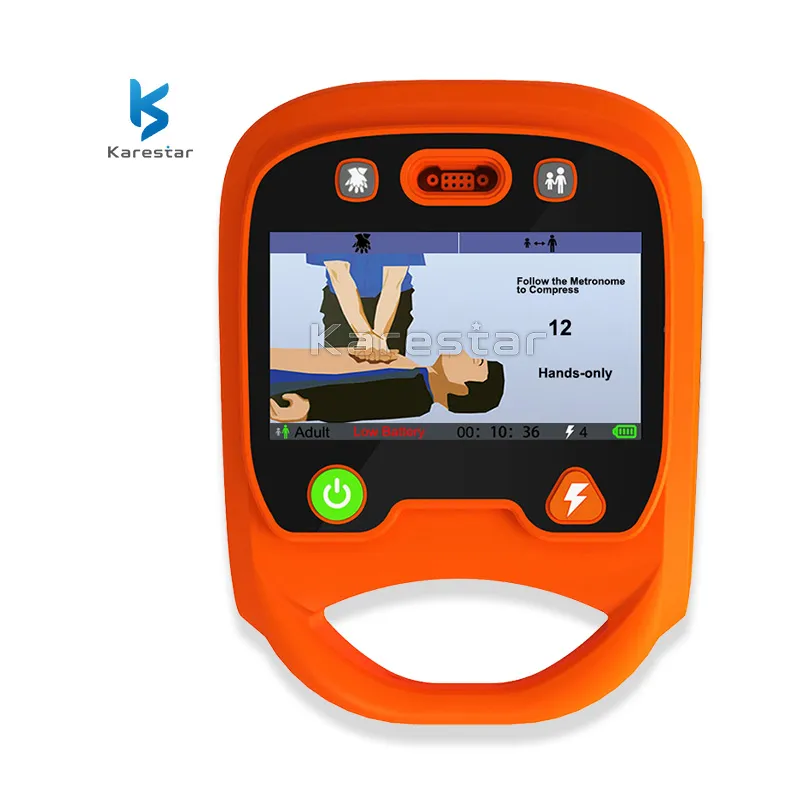

✔ Standard Four buttons: On/Off, Shock, Adult/Child CPR mode selection.

✔ Visual LED prompts and Automatic Self-test functionality.

✔ Built-in non-rechargeable 2.8 Ah battery.

✔ Maximum Voltage: 1400±50V with impedance limits (20Ω to 200Ω).

✔ Capacity for 120 discharges at 200 Joules.

✔ Long standby shelf life: 3 years after installation.

Technical Specifications

Defibrillator Output	Biphasic Truncated Exponential
Energy Sequence (Child)	50J, 50J, 50J
Energy Sequence (Adult)	150J, 200J, 200J
Charge Time	6 sec to 150J; 8 sec to 200J
Analysis Time	6 seconds
Readiness Time	Less than 10 seconds from initiation
Controls Output Accuracy	±10% into any impedance from 25 to 175Ω
Battery Part No.	CR123A-4x2
Weight & Dimensions	2.5 kg \| 280 x 209 x 80 mm
Operating Environment	0°C to 40°C; 30% to 95% Humidity

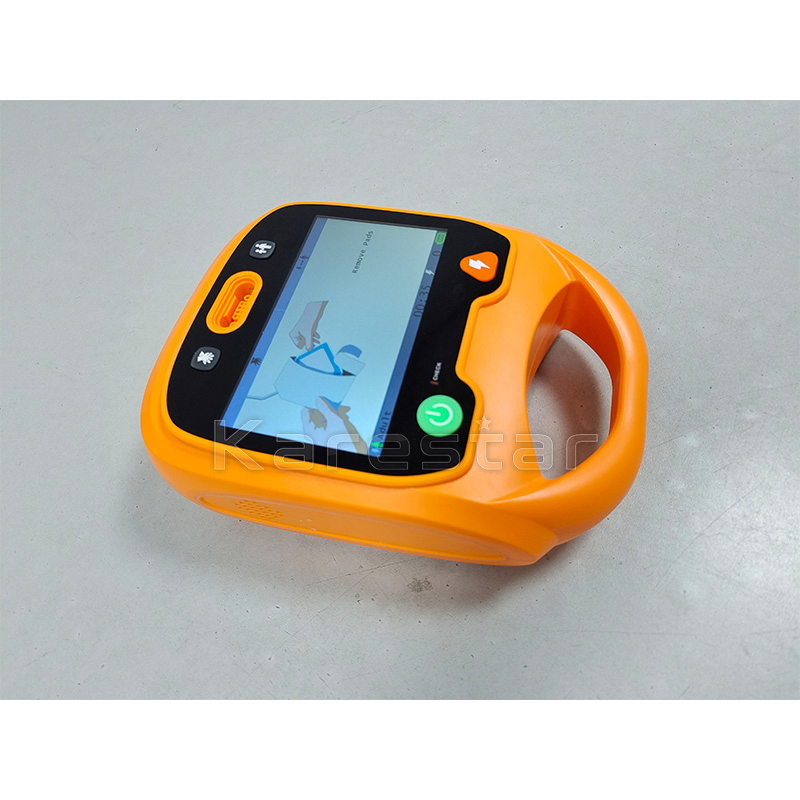

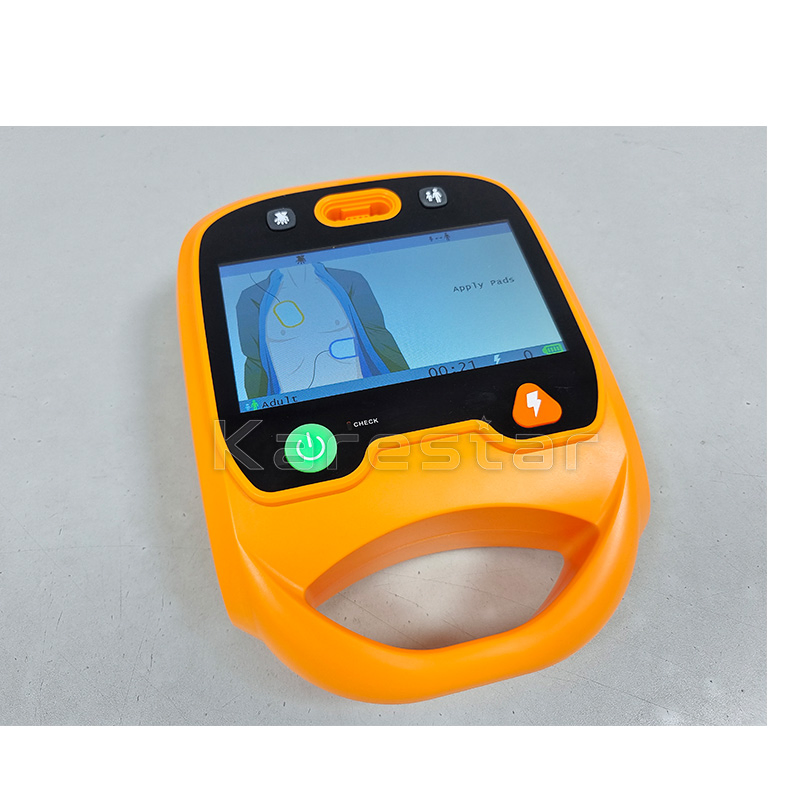

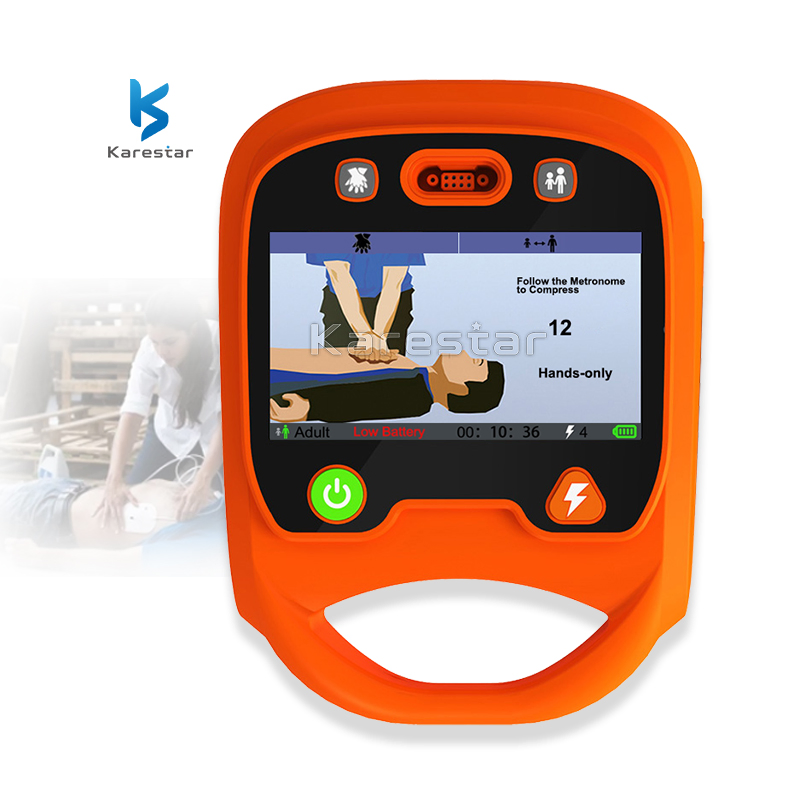

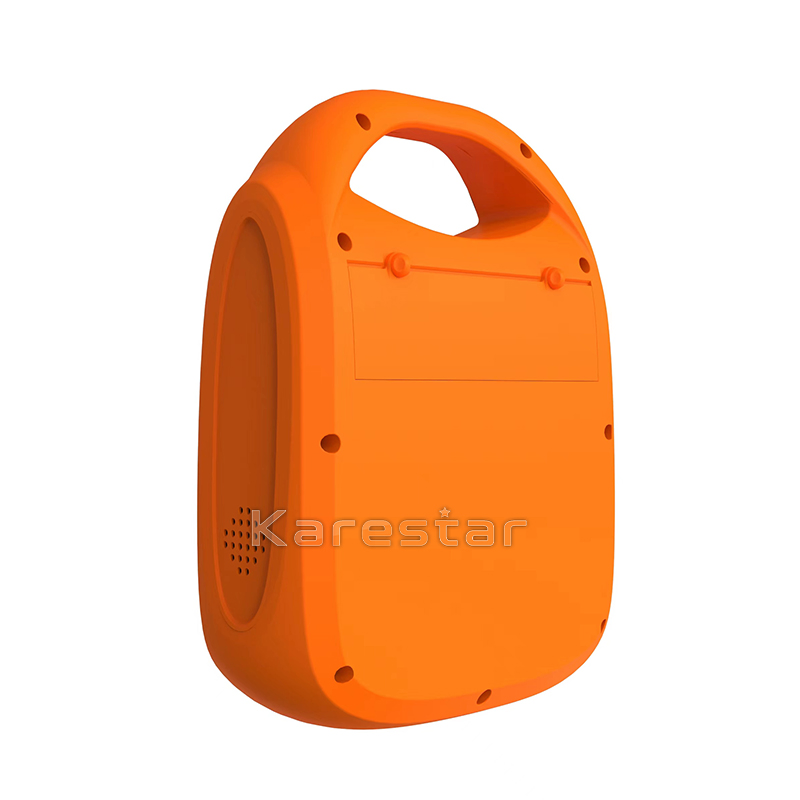

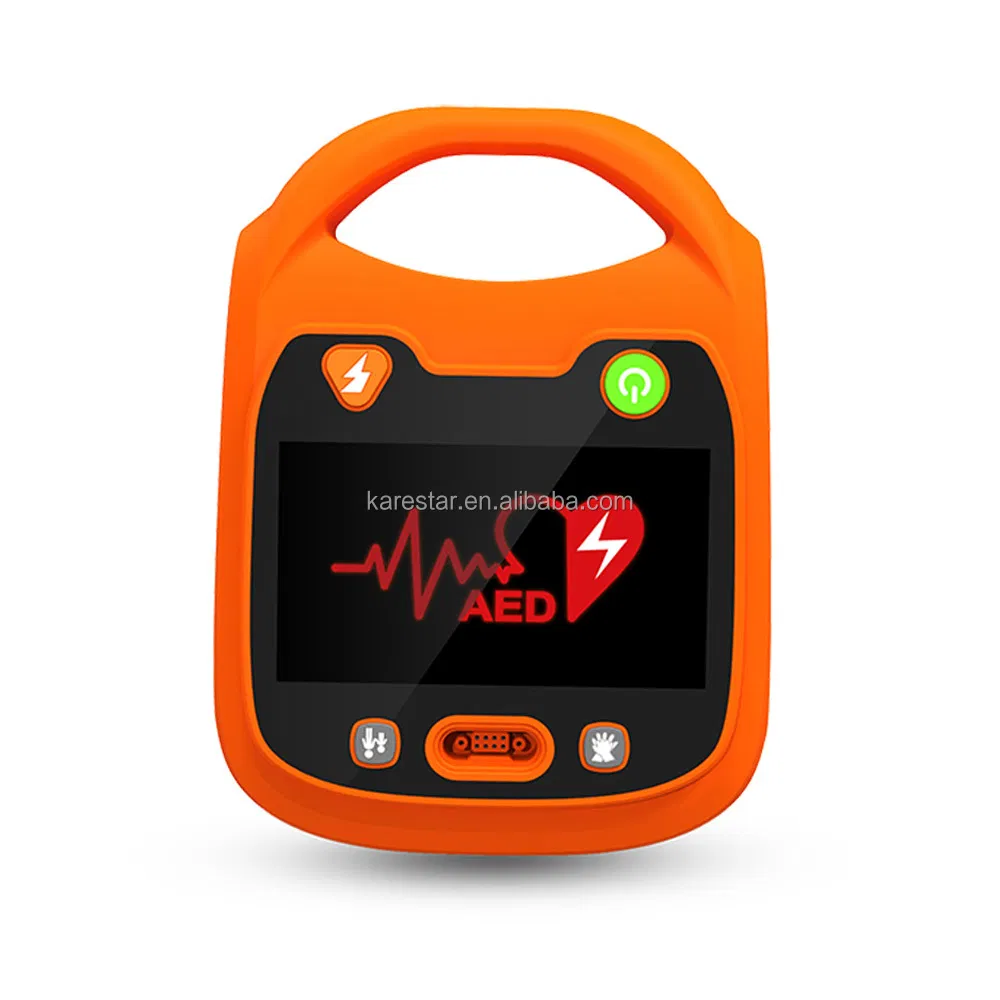

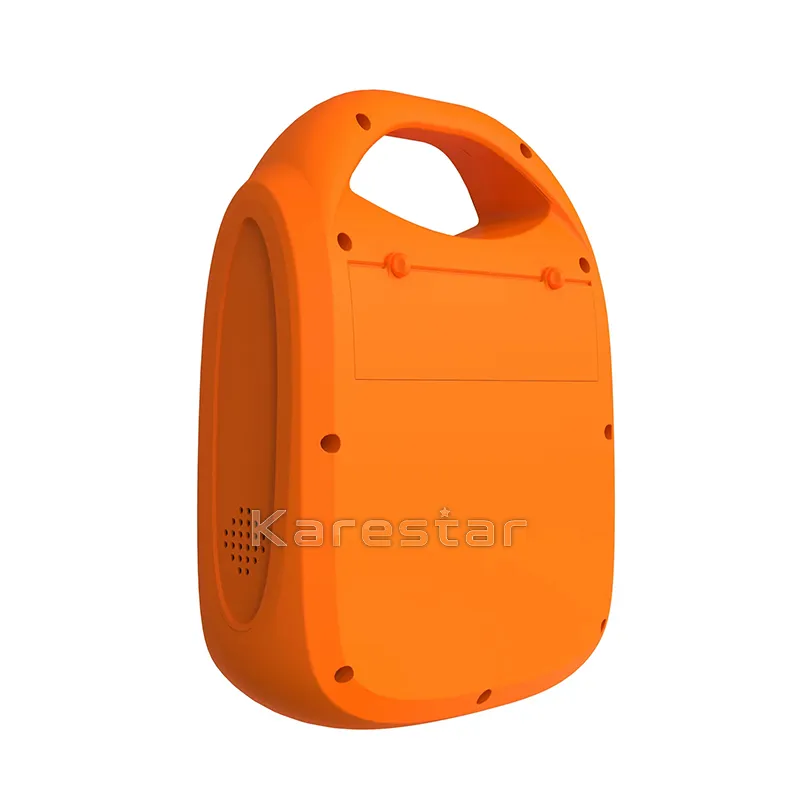

Product Visuals

Frequently Asked Questions

Are you a manufacturer?

We are a factory with over 7 years of professional manufacturing experience in medical devices.

What is the Minimum Order Quantity (MOQ)?

The MOQ is 1 Set. Samples can be provided for your quality evaluation.

How long is the delivery time?

Usually 3-30 days after order confirmation, depending on the specific item and quantity requested.

Can you provide OEM or private labeling services?

Yes, we offer complete OEM/private logo/label services supported by our in-house R&D team and facilities.

What are the available payment terms?

We accept T/T, Trade Assurance orders, L/C, Western Union, and Paypal.

How is product quality tested?

We conduct 100% testing on all goods before delivery to ensure they meet our strict quality standards.
