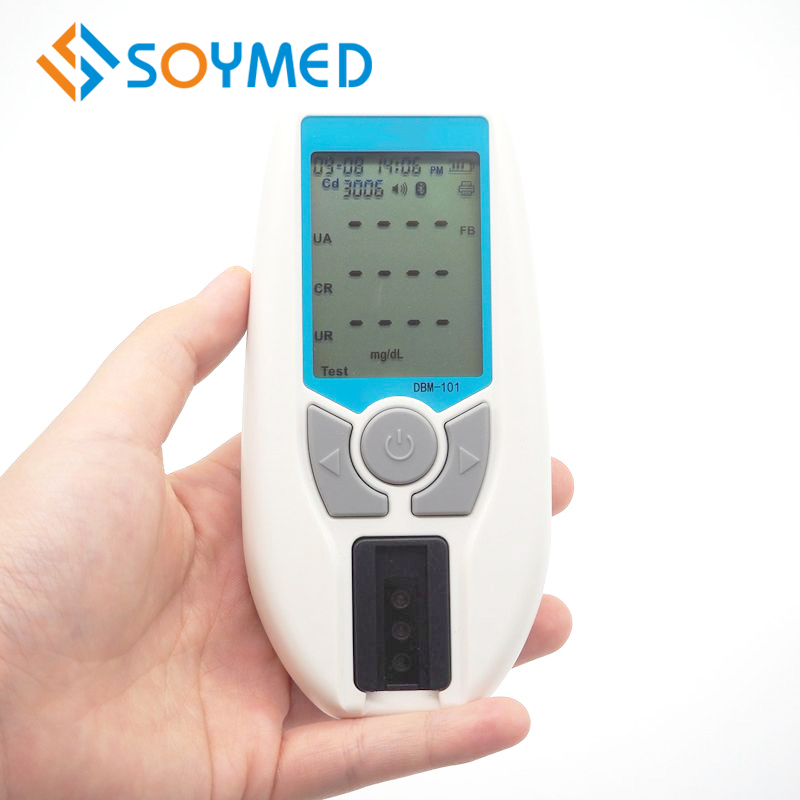

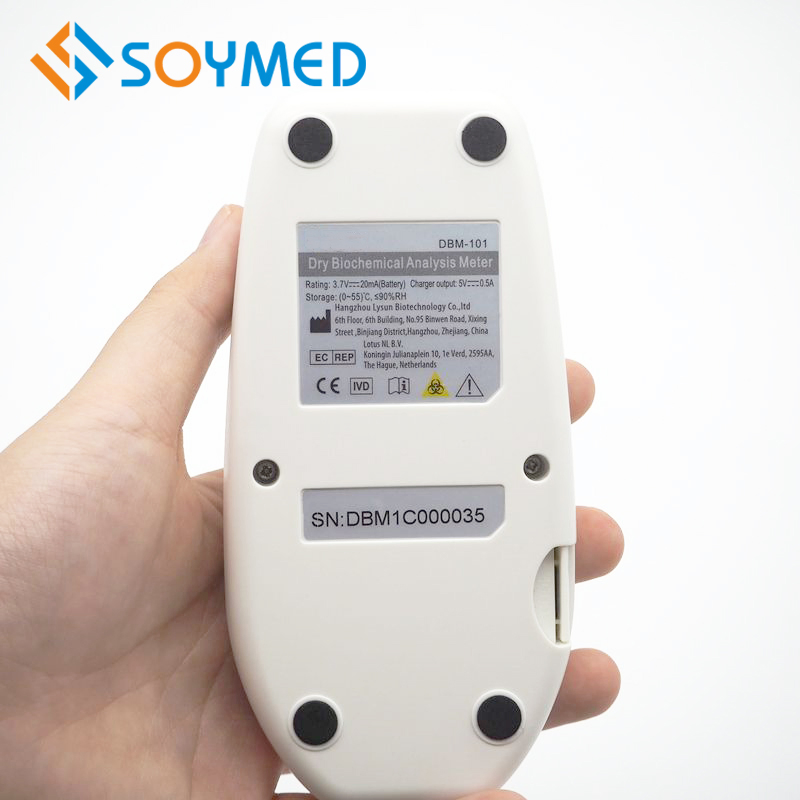

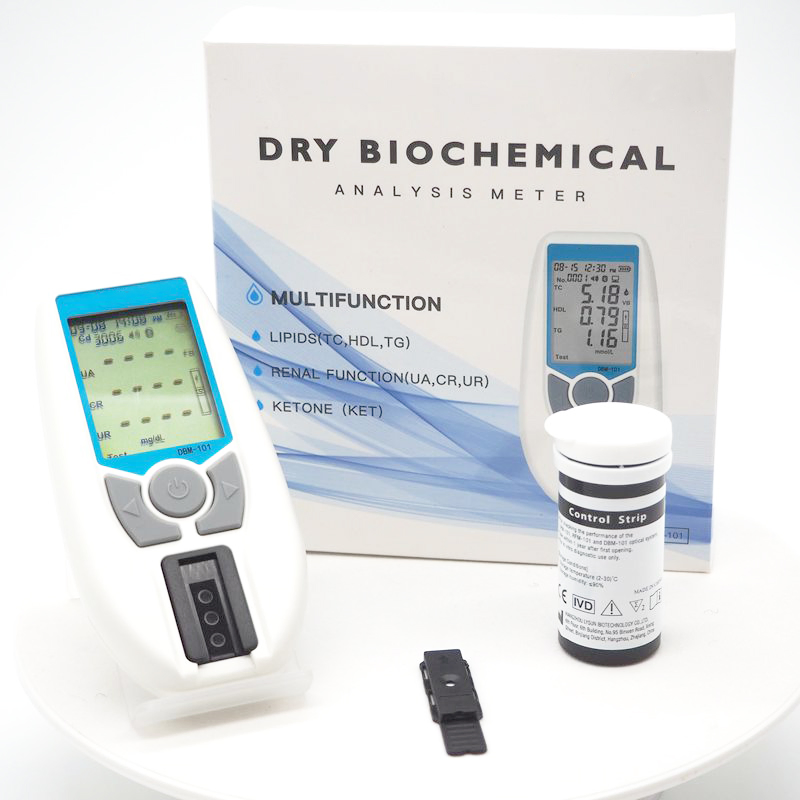

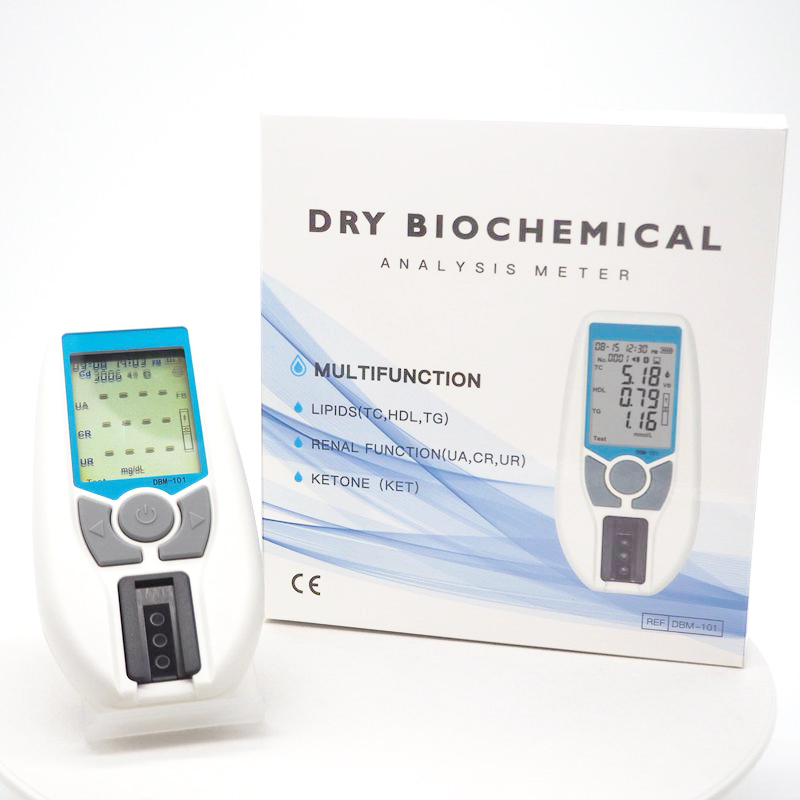

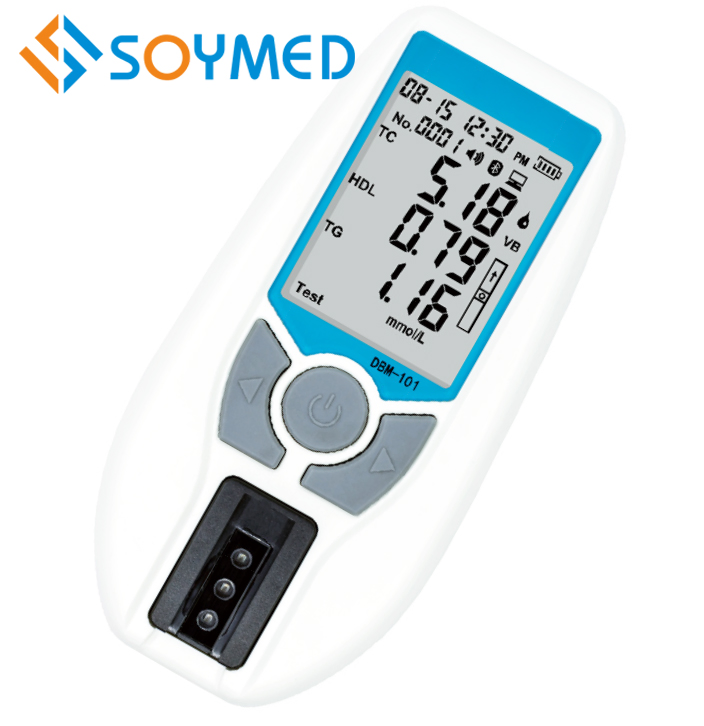

Multifunctional Accurate Meter Total Cholesterol Dry Biochemical Analysis Meter

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information
Model NO.
DBM-101
Certification
CE, ISO13485
Target Group
Middle-aged and Old
Methodology
Reflectance Photometer
Specimen
Whole Blood (Capillary and Venous)
Power Source
1200mAh Built-in Lithium Battery
Battery Endurance
300+ Cycles (Long Endurance)
Measurement Units
mmol/L, mg/dL
Memory Capacity
500 Records
Dimensions
135*66*19mm
Product Features
⏱️ Rapid Test

Blood lipid items in 120s; Renal function in 5 mins.

📊 Wide Range

Maximum measurement range in same function POCT meters.

🔋 Rechargeable

Built-in 1200mAh Li-ion battery for long-term use.

🛠️ Multi-function

7-in-1 functions in one portable meter.

Technical Specifications
Parameter Measurement Range
UA (Uric Acid)0.090 mmol/L ~ 1.200 mmol/L
CR (Creatinine)0.044 mmol/L ~ 1.320 mmol/L
UR (Urea)0.90 mmol/L ~ 40.00 mmol/L
TC (Total Cholesterol)2.59 mmol/L ~ 12.93 mmol/L
HDL (High-Density Lipoprotein)0.39 mmol/L ~ 2.59 mmol/L
TG (Triglycerides)0.51 mmol/L ~ 7.34 mmol/L
KET (Ketone)0.02 mmol/L ~ 6.00 mmol/L
Product Visuals

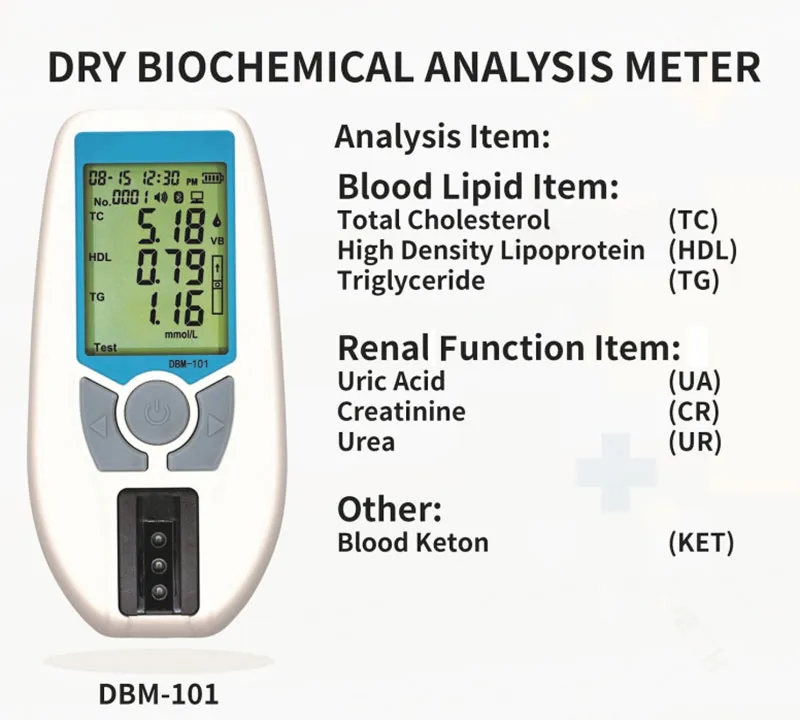

Dry Biochemical Analysis Meter Overview

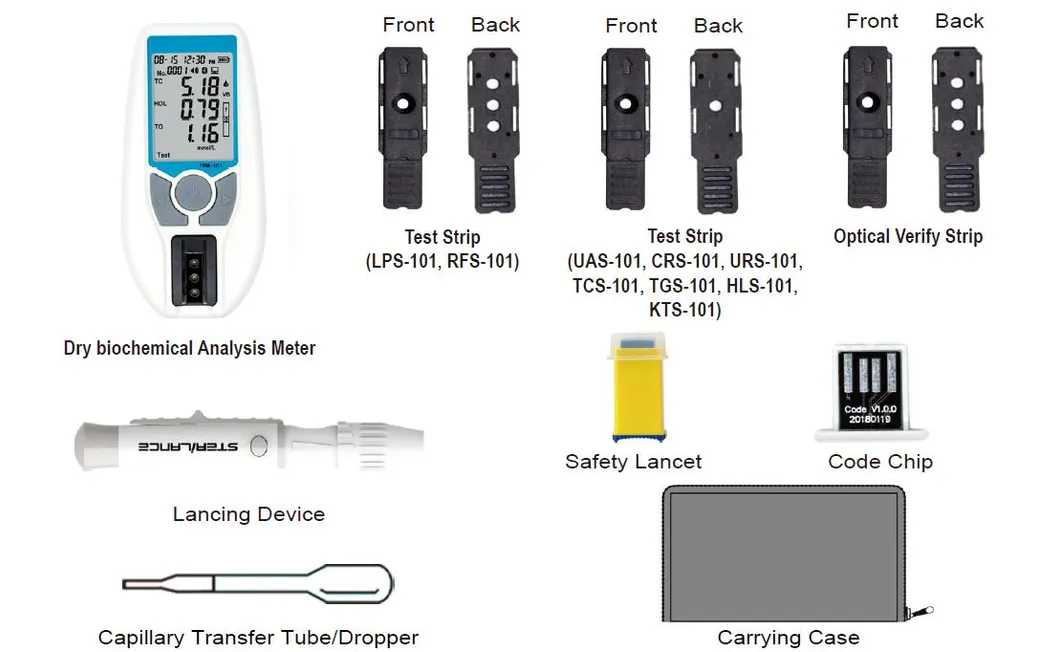

Product Display
Meter Diagram

Comprehensive Analysis: The Dry Biochemical Analysis Meter reads the test strips and displays concentrations for:

  • Total Cholesterol (TC)
  • High Density Lipoprotein Cholesterol (HDL)
  • Triglycerides (TG)
  • Uric Acid (UA)
  • Creatinine (CR) & Urea (UR)
Testing Process

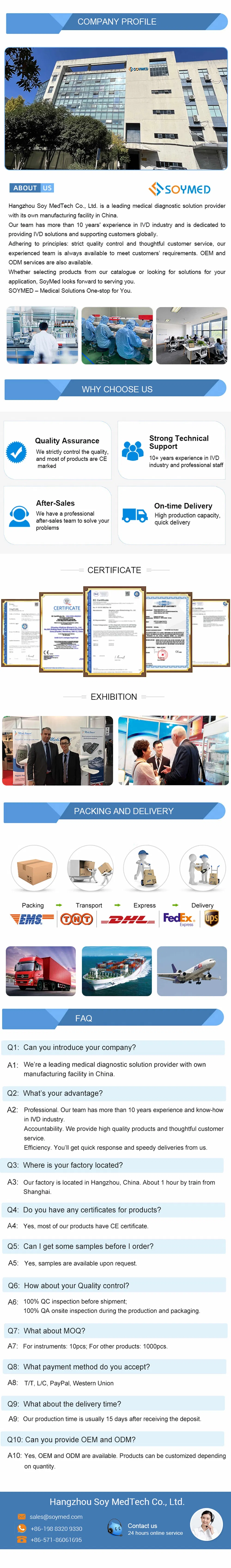

Full Details View
Frequently Asked Questions
How long does it take to get test results?
Blood lipid items can be tested within 120 seconds, while renal function items provide results in approximately 5 minutes.
What types of specimens can be used with this meter?
The device supports micro specimens (35ul) of whole blood (both capillary and venous), as well as plasma and serum.
What is the battery life and power source?
The meter is equipped with a built-in 1200mAh Lithium-ion battery. It is rechargeable and designed for long endurance, retaining 70% capacity even after 300 charge cycles.
How many test records can the device store?
The DBM-101 model can store up to 500 individual records in its internal memory for easy tracking.

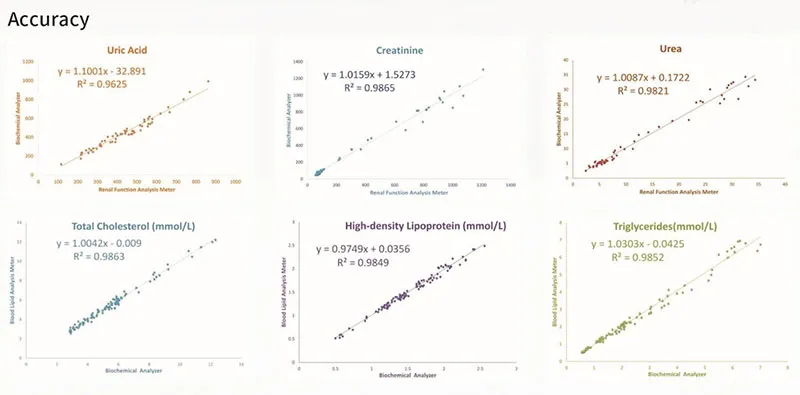

Is the accuracy comparable to laboratory equipment?
Yes, the results from this Dry Biochemical Analysis Meter coincide with results obtained from professional Biochemical Analyzers.
Does the device have an auto-off feature?
Yes, the device automatically shuts off 5 minutes after the last use to preserve battery life.
