Product Description

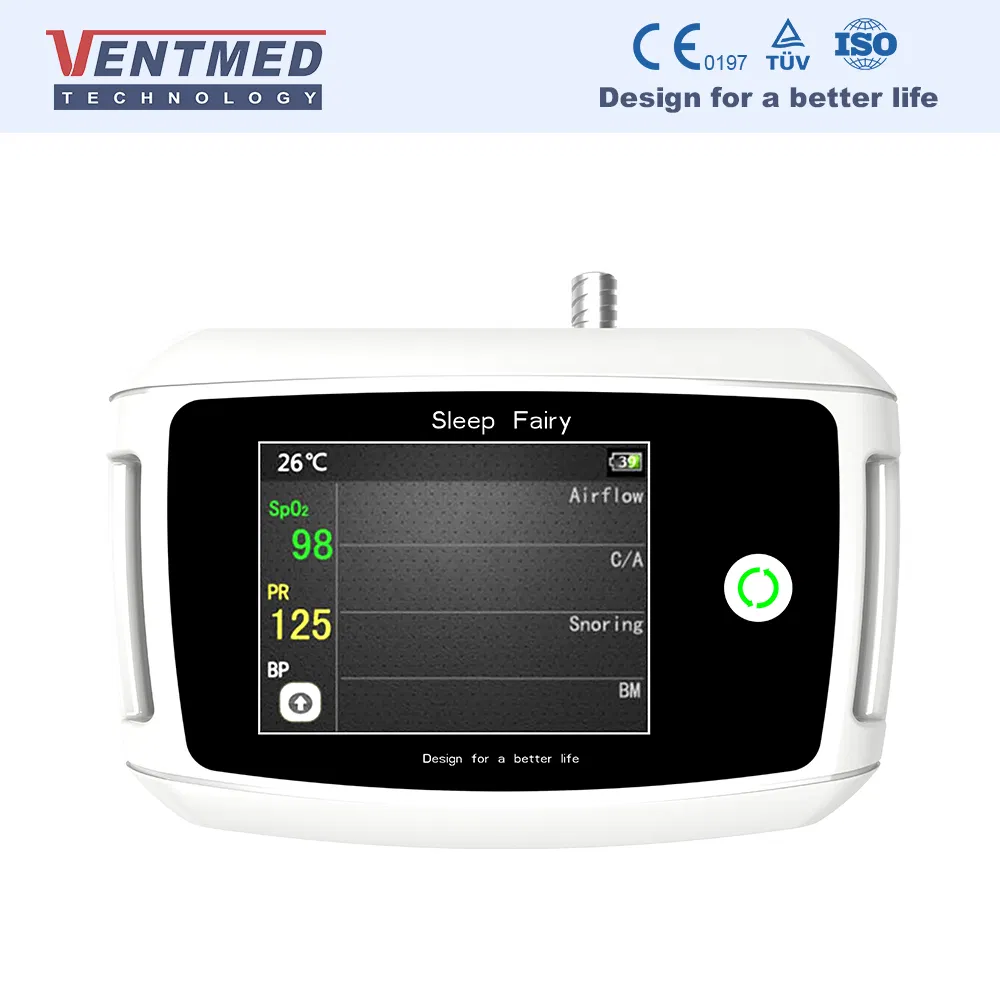

Cheap Mini Patient Monitor Sleep Apnea Monitoring Manufacturer
1. What is Sleep monitor?
This sleep monitor device is a brand new intelligent diagnosis system for sleep disorders and sleep apnea, which is suitable for clinic/hospital/sleep center/home usage, especially for the screening of Sleep Apnea Syndrome (SAS). It provides multiple monitor recordings and reports of sleep, for sleep physician to provide professional treatment proposal and therapy pressure titration.

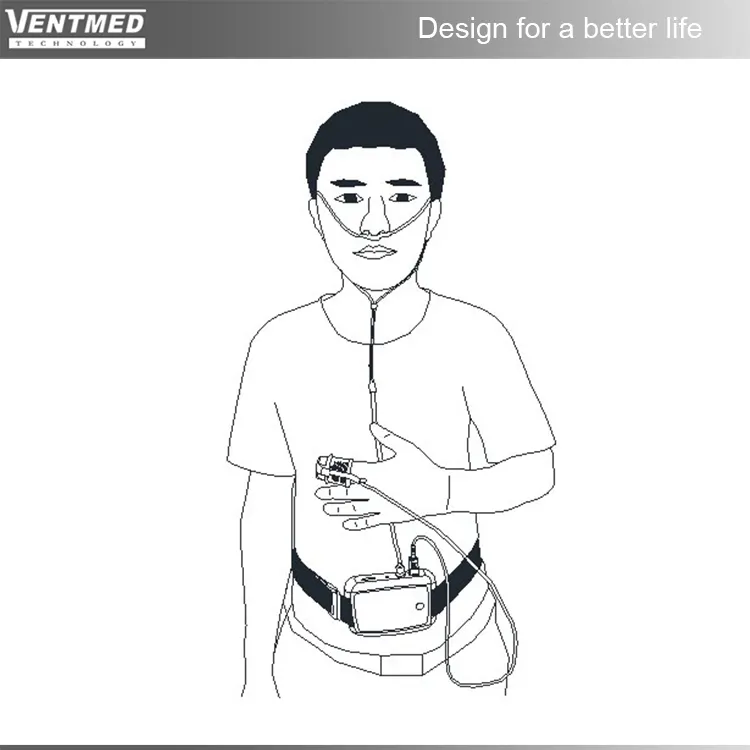

Patients can be tested in the comfort and convenience of their own homes without an observer and with fewer sensors attached to their body. This reduces anxiety, leads to a more natural night of sleep and improves patient acceptance of test protocol.
This device meets all American Academy of Sleep Medicine (AASM) requirements.

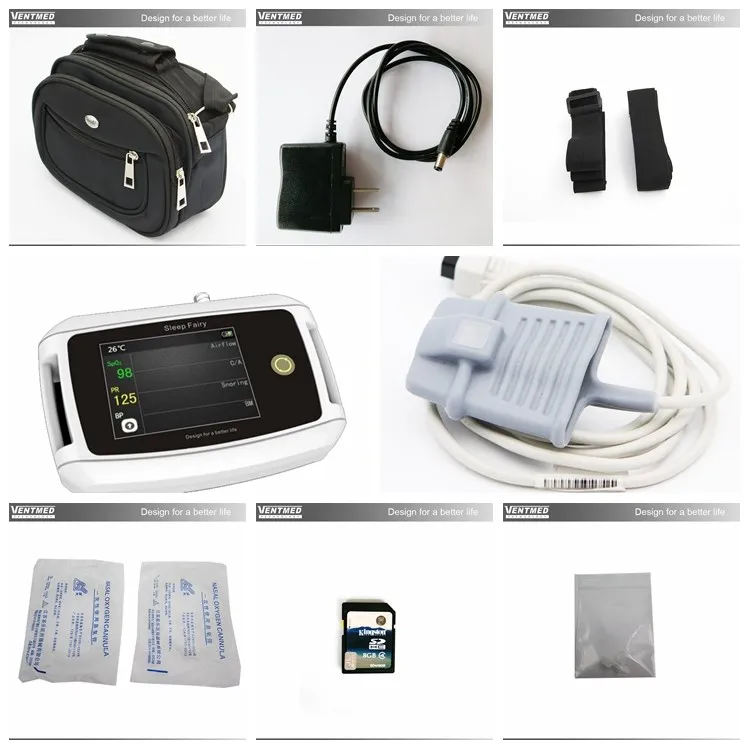

2. Product Structure
- 1 pcs Host
- 2 pcs Luer Connector (Spare parts)
- 1 pcs SpO2 sensor
- 2 pcs Nasal Oxygen Cannula
- 2 pcs fixing band
- 1 pcs SD card
- 1 pcs SD card reader
- 1 pcs Charger
- 1 pcs Carrying bag
3. Specification
9 Channels:
Airflow, Snore, SpO2, Pulse Rate, Pulse Wave, Body Position, Body Movement, Respiratory Effort, CPAP Pressure
Data resolution:
AD : 12Bit
Data Sampling Rate:
50-200Hz
Storage Data:
8G, over 8000 hours data
Communication:
SD card
SpO2:
70% - 100%
Pulse Rate:
30 - 240 bpm
Battery:
Integrated rechargeable Lithium Battery, 2500mAh, support for 30 hours continuously monitoring
Screen:
2.8 inch TFT, 320 x 240
Host Net Weight:
176g with battery
Gross Weight:
0.9KGS
Device Dimensions:
125mmL x 80mmW x 24mmH
Carton Size:
310mmL x 130mmW x 160mmH
4. Features
- Compact, light and convenient;
- An innovative 3D sensor built-in the machine, need SpO2 sensor only, no need an extra sensor for body movement/body position/respiratory effort;
- Extremely easy to operate with one switch;
- Reliably providing extensive, detailed and accurate sleep clinical data;

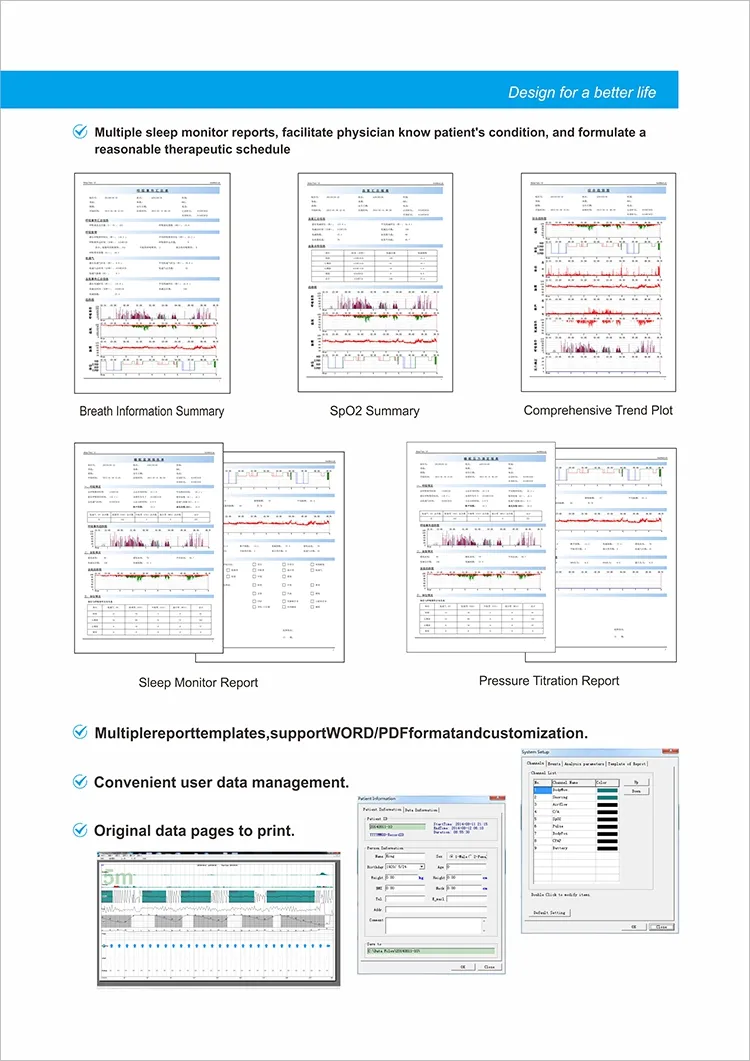

- Sophisticated scoring and diagnostic report software;
- Link to any CPAP device to titrate patient's pressure;

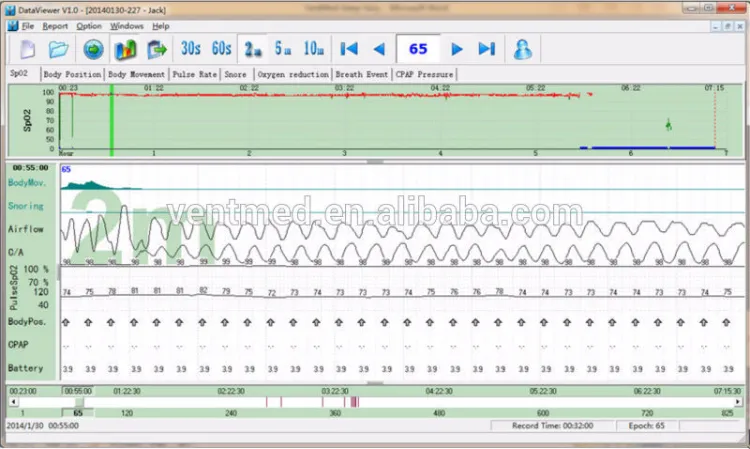

- SD storage data is read by the reader and Sleep Fairy software in the computer, so that you can browse the record data by image display and can print the test report.
Our Services
With years of product development and manufacturing experience, we specialize in the sleep and breathing field, providing robust sleep and breathing device options including CPAP, Auto CPAP, and BiPAP alongside our sleep study devices. OEM and ODM customization services are available to develop your private brand products according to specific requirements.
1-Year Warranty Protection
Minimum and Shortest Delivery Time
Long-time Product Maintenance Support
Competitive Pricing with Premium Quality
Inquiries Answered within 24 Hours
Frequently Asked Questions
Q: What is the main application of this sleep monitor?
A: It is an intelligent diagnosis system designed for monitoring and screening sleep disorders and Sleep Apnea Syndrome (SAS), suitable for clinic, hospital, sleep center, or home use.
Q: How many data channels does the device record?
A: The device monitors 9 essential channels: Airflow, Snore, SpO2, Pulse Rate, Pulse Wave, Body Position, Body Movement, Respiratory Effort, and CPAP Pressure.
Q: Does the patient require professional supervision during the test?
A: No. Patients can easily complete the sleep test in the comfort of their own home without an observer, using fewer body-attached sensors to reduce anxiety and ensure a natural night's sleep.
Q: What is the battery capacity and operating runtime?
A: The monitor contains an integrated rechargeable 2500mAh Lithium Battery that supports up to 30 hours of continuous sleep monitoring.
Q: How does the built-in 3D sensor improve diagnostic setup?
A: The innovative built-in 3D sensor tracks body movement, position, and respiratory effort internally, meaning only a SpO2 sensor is required externally, simplifying the patient setup process.
Q: How is the recorded sleep data analyzed and presented?
A: All data is saved on the included SD card, which is read by a PC card reader and dedicated analysis software. This allows you to generate visual data graphs and print out complete diagnostic reports.
