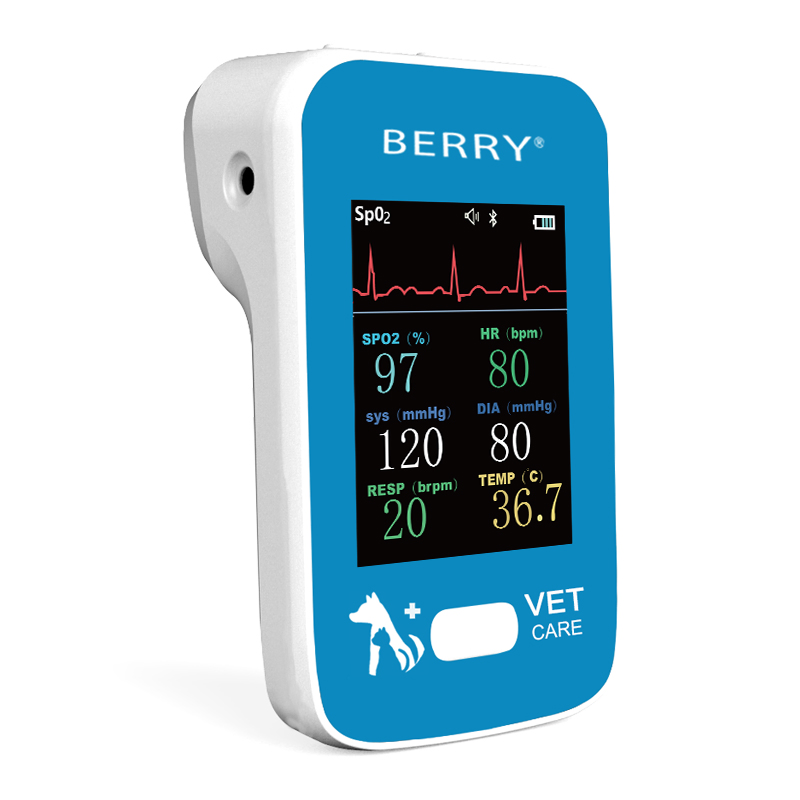

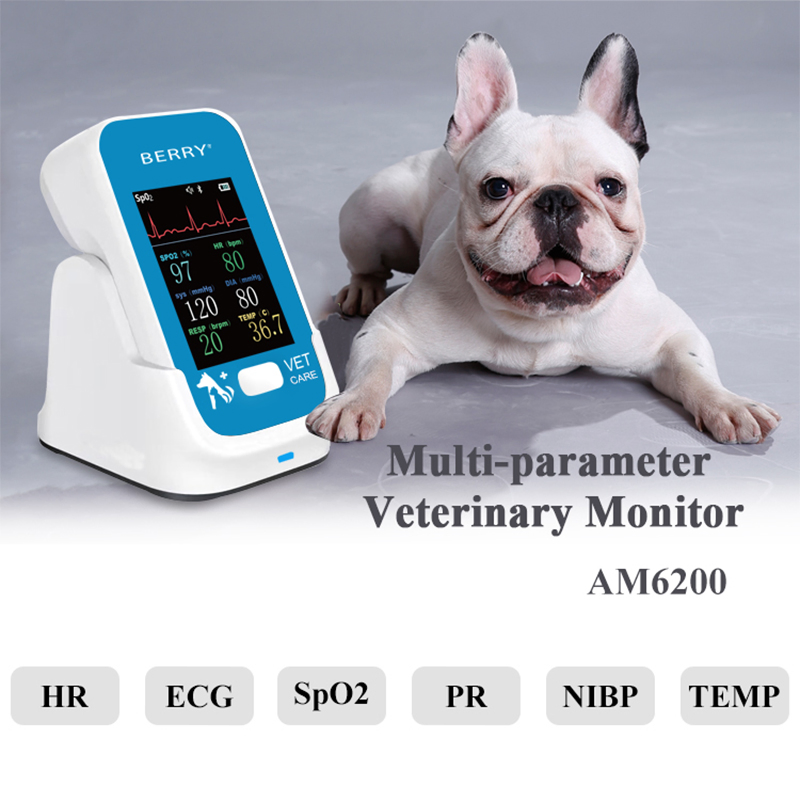

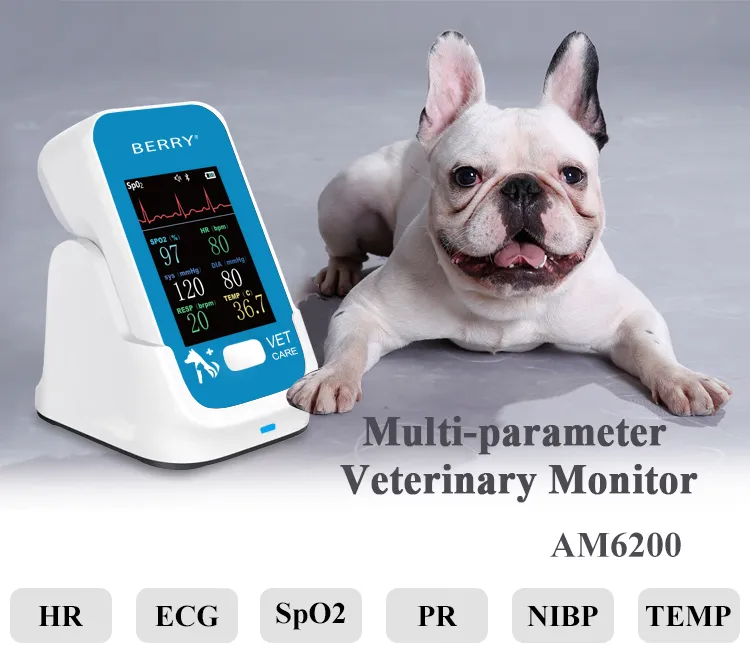

Instructions: This Multi-parameter veterinary monitor AM6200 is capable of monitoring parameters: ECG (Electrocardiograph), HR (heart rate), NIBP (non-invasive blood pressure), SpO2, PR(pulse rate), TEMP(body temperature).
The One-Button-Design makes the monitor an easy-to-use system, allowing for convenient operation. Additionally, it can connect with smart terminals such as PCs or Android/iOS phones via Bluetooth.

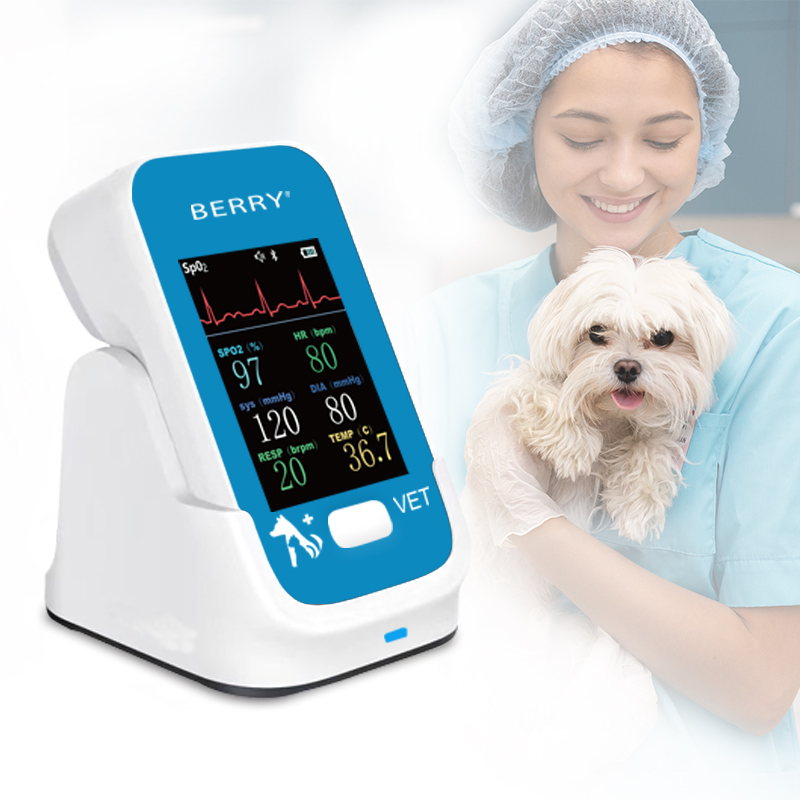

Application scenarios: Applicable to daily and surgical monitoring of various pets, widely used in pet hospitals, clinics, zoos, and for home care.

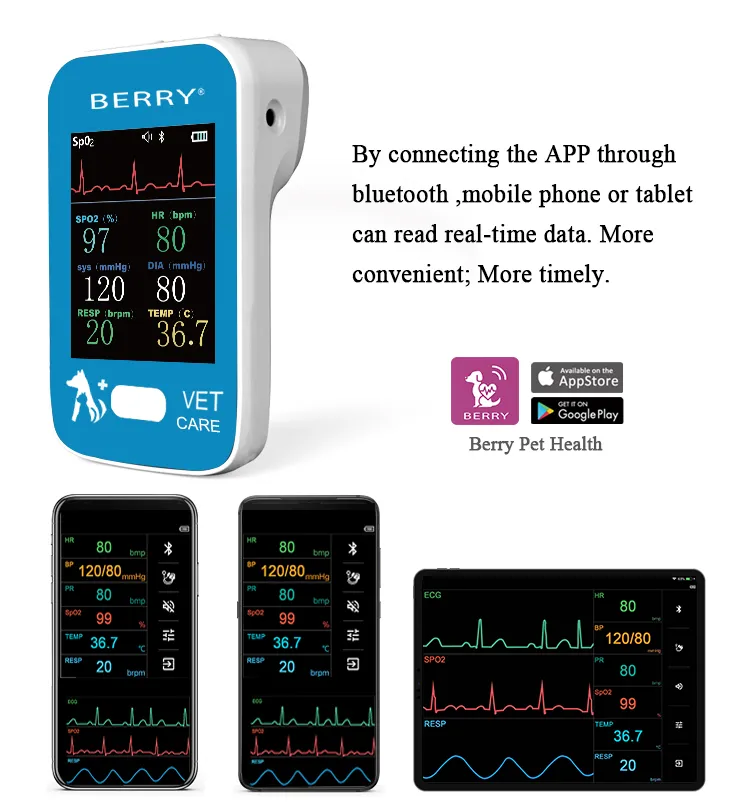

Mobile App Support: Download "Pet Health" app at APP Store and Google Play to read real-time data on mobile phones or tablets via Bluetooth.

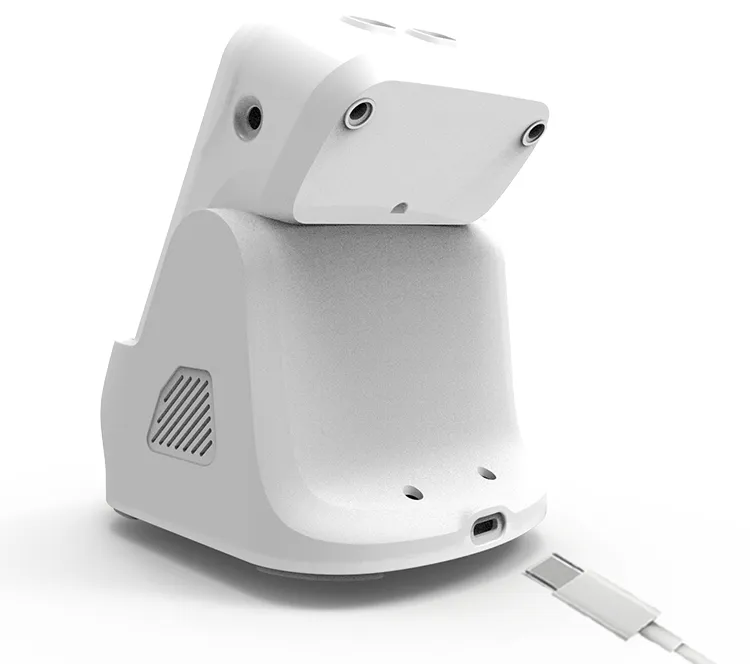

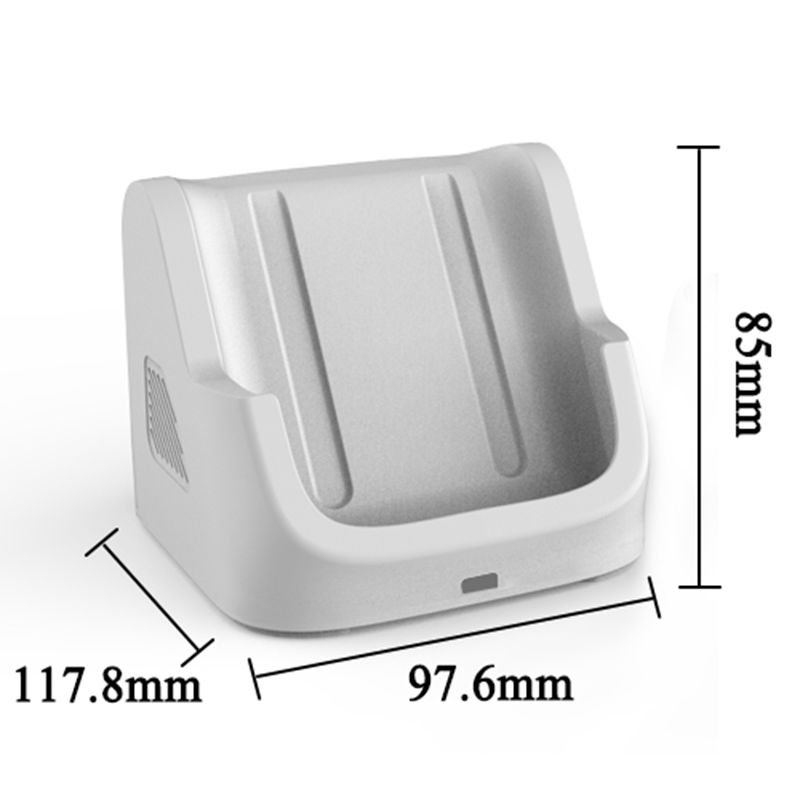

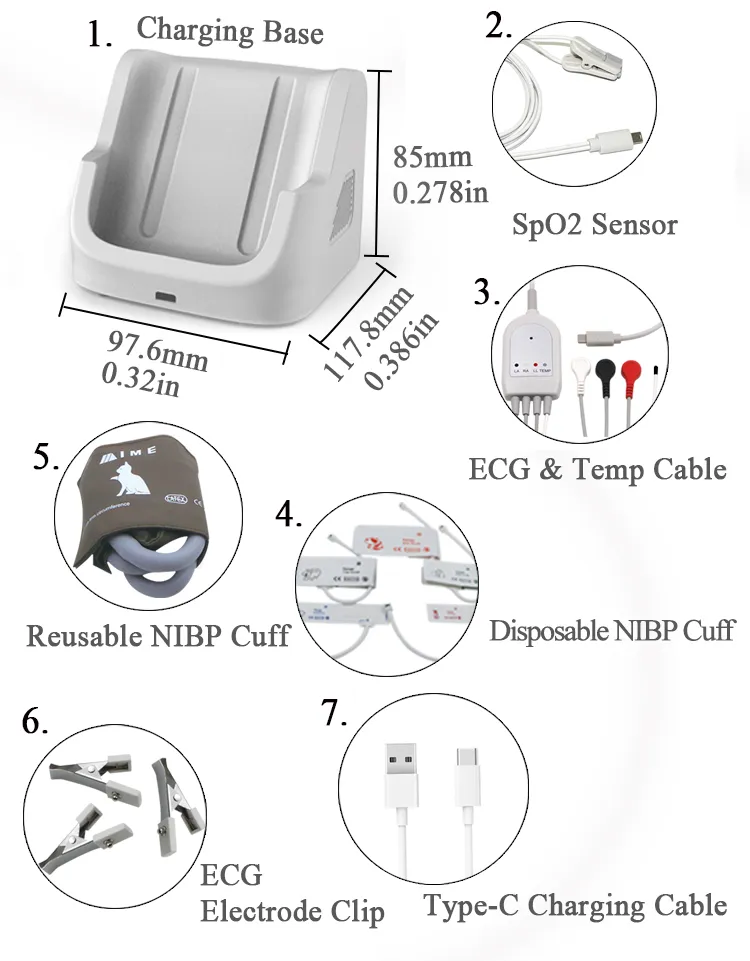

Dual Charging Modes: Supports both Type-C interface wired charging and wireless charging base functionality. Can be used while charging.

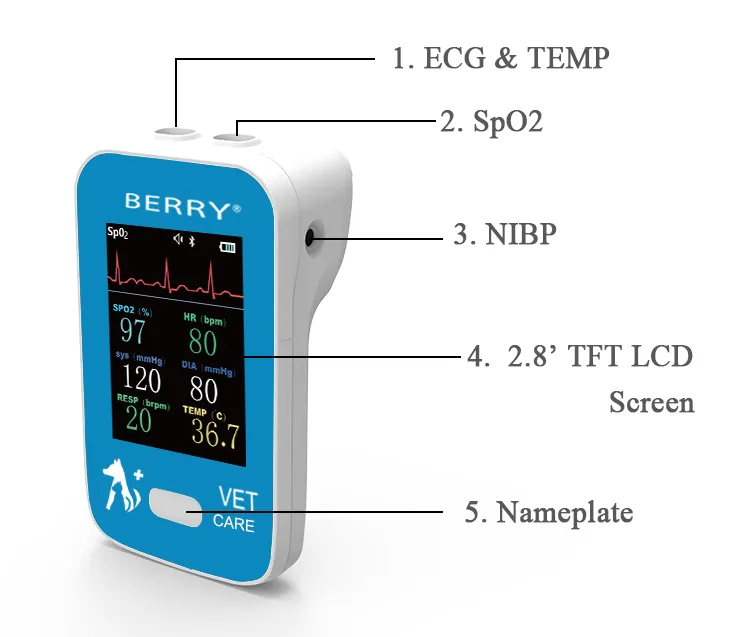

| No. | Name | Purpose |
|---|---|---|
| 1 | ECG & TEMP | ECG & TEMP cable connector, Charging Connector |
| 2 | SpO2 | SpO2 sensor connector |
| 3 | NIBP | NIBP cuff hose connector |
| 4 | Screen | 2.8' TFT LCD |
| 5 | Key | Power and functions key |
Power: Built-in 3.7V, 1800mAh lithium battery. Wired: 5V-1A. Wireless: 5W.
| ECG Waveform Lead I, Bandwidth: 0.05Hz~100Hz (Diagnose), 1~40Hz (Monitor), 0.1~25Hz (Operation) |
Heart Rate Range: 15 bpm ~ 300 bpm Accuracy: ±2bpm or 2% |
| NIBP Scope Systolic: 4kPa ~ 34kPa (30~255mmHg) Diastolic: 2kPa ~ 29.3kPa (15~220mmHg) Mean: 2.7kPa ~ 31.3kPa (20~235mmHg) |
Temperature Type: Vascular/Surface Range: 25ºC ~ 45ºC Accuracy: ±0.2ºC |
| SpO2 Range: 35~100% Accuracy: ±2% (80%-100%), ±3% (35%-79%) |
PR (Pulse Rate) Range: 25~250bpm Accuracy: ±2bpm or 2% |
