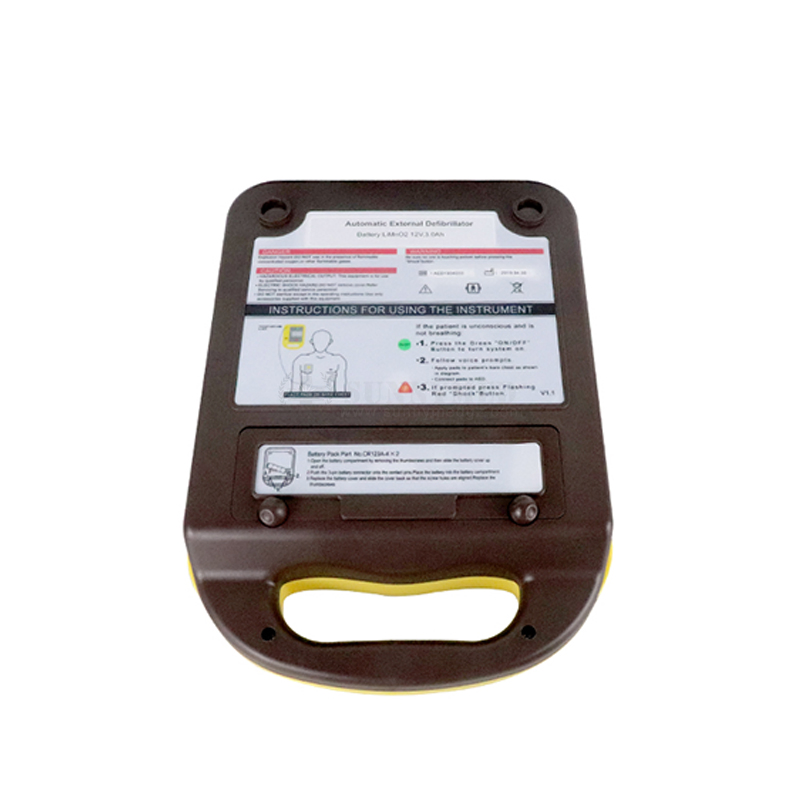

Sy-C025 First Aid Automated External Defibrillator Medical Machine Aed
Sy-C025 First Aid Automated External Defibrillator Medical Machine Aed
Sy-C025 First Aid Automated External Defibrillator Medical Machine Aed
Sy-C025 First Aid Automated External Defibrillator Medical Machine Aed
Sy-C025 First Aid Automated External Defibrillator Medical Machine Aed
1 / 5
Sy-C025 First Aid Automated External Defibrillator Medical Machine Aed
Sy-C025 First Aid Automated External Defibrillator Medical Machine Aed
Sy-C025 First Aid Automated External Defibrillator Medical Machine Aed
Sy-C025 First Aid Automated External Defibrillator Medical Machine Aed
Sy-C025 First Aid Automated External Defibrillator Medical Machine Aed

Sy-C025 First Aid Automated External Defibrillator Medical Machine Aed

Customization: Available
Application: Hospital, Factory, Office
Size: Medium
Send Inquiry

Product Description

Basic Specifications
Model NO.
SY-C025
Certification
CE
Hardness
Medium
Style
Simple
Warranty
1 Year
Material
Plastic
Color
Yellow
Operation Temp
0-50 Degree
Product Name
AED Defibrillator Monitor
Analysis Time
9 Second
Audible Prompts
22 Audible Prompts
Origin
China
SY-C025 First Aid Automated External Defibrillator Medical Machine AED

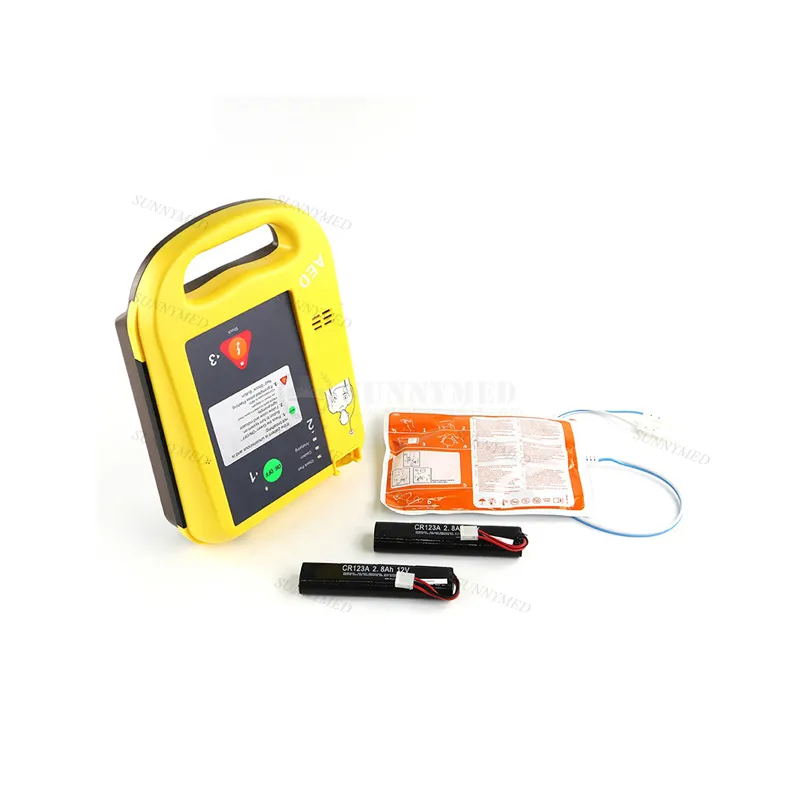

SY-C025 AED Medical Machine
Technical Parameters
Output Biphasic Truncated Exponential
Energy Sequence 150, 150, 200J
Charge Time 8 sec. to 150J; 10 sec. to 200J (New Battery)
Analysis Time 9 sec.
Max time to readiness (New Battery) Less than 30 seconds
Max time to readiness (After 6 shocks) Less than 35 seconds
Power on to readiness Less than 25 seconds
Audible Prompts 22 audible prompts
Visual Prompts LED prompts
Controls Two buttons-ON/Off, Shock
Output Energy Accuracy ±15% into any impedance from 25 to 175Ω
The Maximum Voltage 1200±50V
Patient Impedance Limits 20Ω to 200Ω

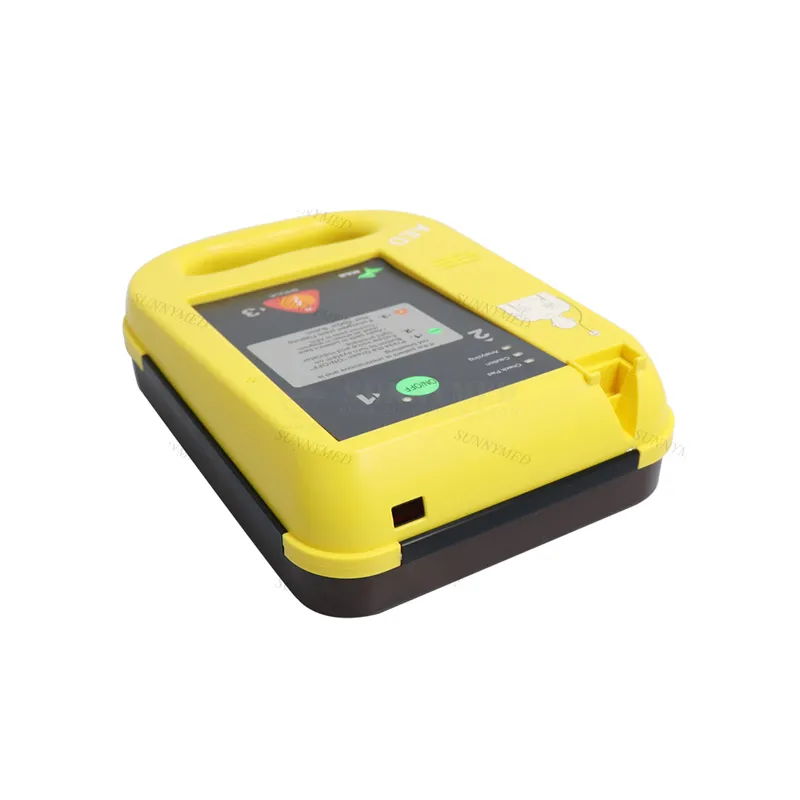

AED Detail View 1

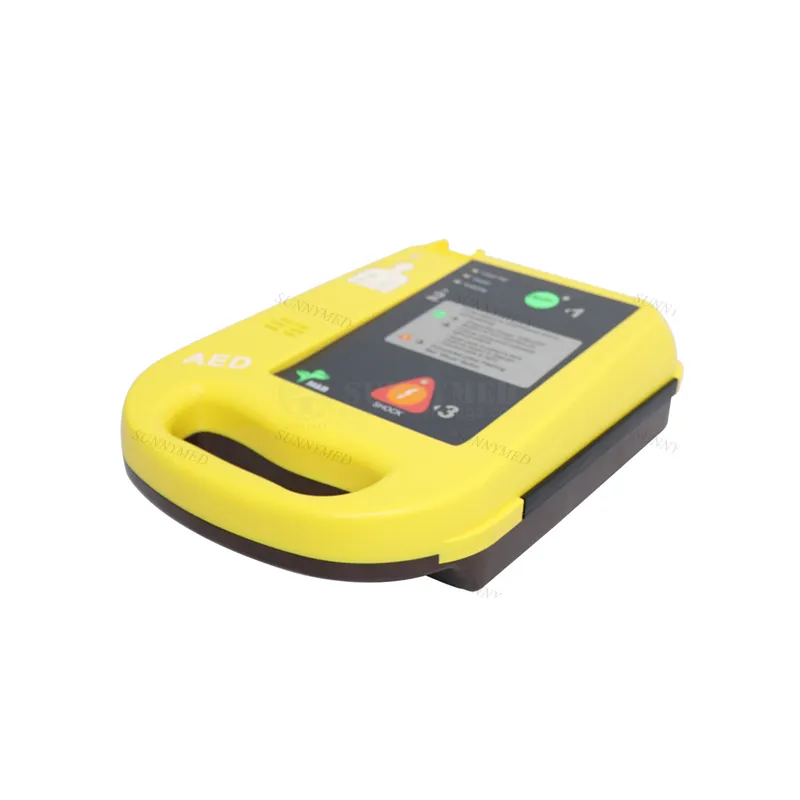

AED Detail View 2
AED Detail View 3

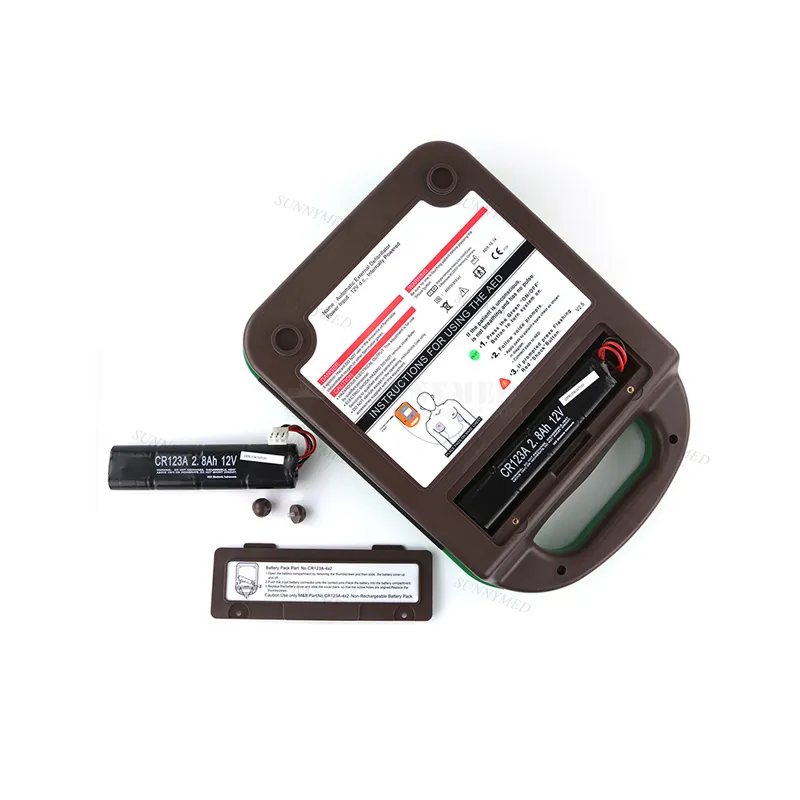

AED Detail View 4

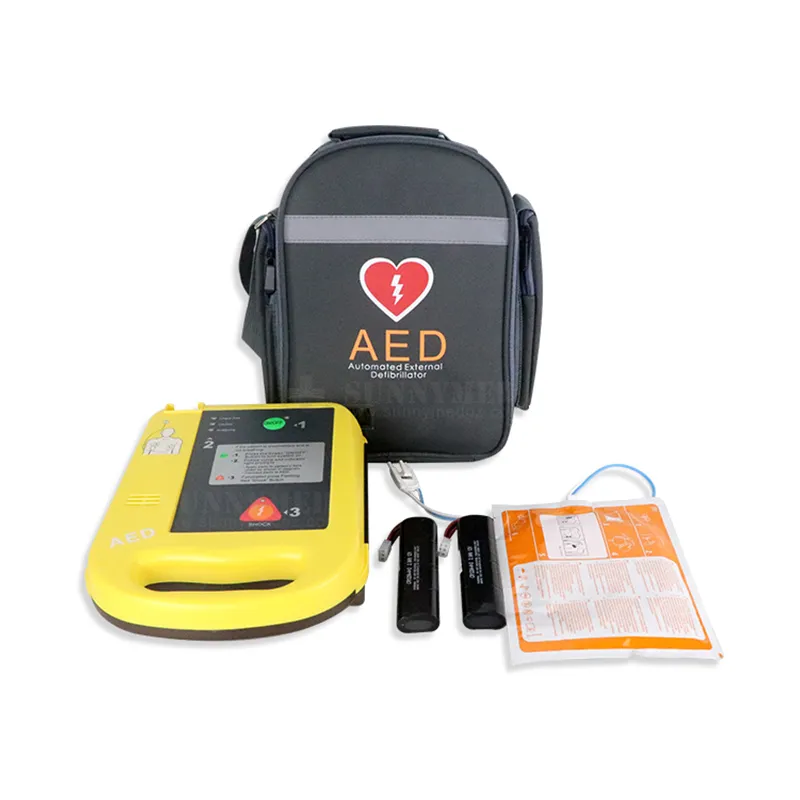

AED Detail View 5
AED Usage Instruction
AED Interface
AED Display Screen
AED Feature 1
AED Feature 2
Frequently Asked Questions
How long does the SY-C025 AED take to analyze heart rhythm?
The analysis process is highly efficient, taking only 9 seconds to determine if a shock is required.
What is the energy sequence for the shocks?
The device follows a standard medical sequence of 150J, 150J, and 200J using a Biphasic Truncated Exponential waveform.
Is the device easy to use for non-professionals?
Yes, it features a simple two-button operation (On/Off and Shock) and provides 22 clear audible prompts and LED visual cues to guide the user.
What are the charging times for the defibrillator?
With a new battery, the device charges to 150J in 8 seconds and to 200J in approximately 10 seconds.
Can this AED operate in various environments?
The SY-C025 is designed to operate in temperatures ranging from 0 to 50 degrees Celsius and is built with durable plastic material.
What safety measures are in place regarding patient impedance?
The output is automatically disabled if the patient impedance is outside the safe range of 20Ω to 200Ω.
