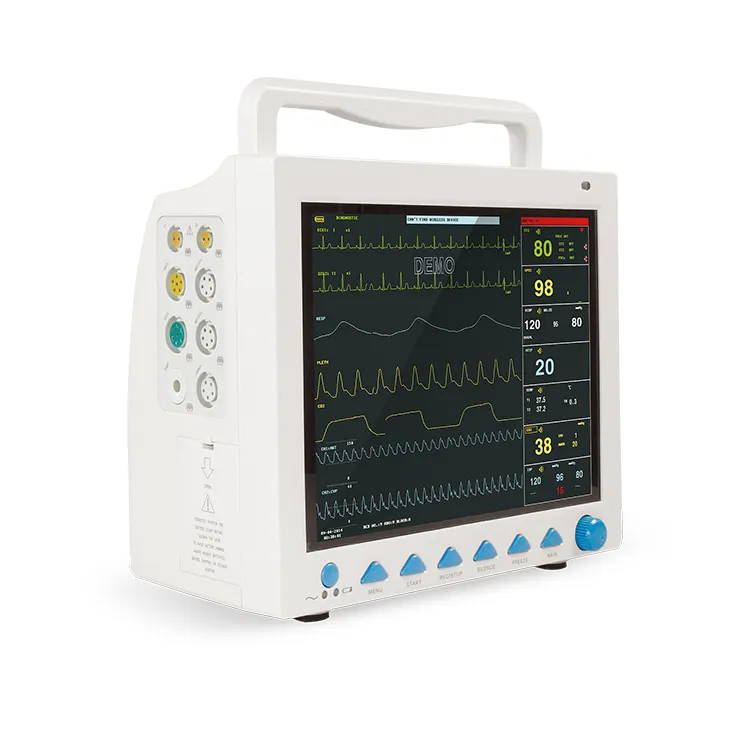

The CMS8000VET Veterinary Monitor is designed for comprehensive monitoring of cats, dogs, and other animals. Featuring a 12.1'' TFT color LCD, it displays real-time data and up to 8-channel waveforms simultaneously. This compact, portable device integrates parameter measurement, display, and recording with a built-in replaceable battery for mobile use.
Standard Parameters
ECG (Heart Rate, Arrhythmia, ST-segment analysis)
RESP (Respiration Rate & Waveform)
SpO2 (Oxygen Saturation, Pulse Rate, Plethysmogram)
NIBP (Systolic, Diastolic, Mean Pressure)
TEMP (Dual-channel T1, T2, TD)
Key Features
12.1'' TFT color LCD with multi-language interface
Fanless design for quiet and clean operation
Digital SpO2 technology (anti-motion/ambient light interference)
Storage for 4800-group NIBP data
Drug concentration calculation and titration table
AC/DC power with built-in rechargeable lithium battery
Performance Specifications
ECG: 3-lead or 5-lead; HR Range: 15~350bpm; Accuracy: ±1%.
NIBP: Oscillometry method; Modes: Manual/AUTO/STAT; Dog mode protection: 240±3 mmHg; Cat mode: 147±3 mmHg.
SpO2: Range: 0 ~ 100%; Accuracy: 70%~100%: ±2%.
TEMP: Dual-channel; Range: 0 ~ 50℃; Accuracy: ±0.1℃.
Respiration: R-F Impedance; Range: 0~150rpm.
Frequently Asked Questions
1. What types of animals can be monitored with the CMS8000VET?
The device is specifically designed for veterinary use and can monitor cats, dogs, and other animals with adjustable settings for different sizes.
2. What parameters does the device measure simultaneously?
It measures ECG, Respiration (RESP), Oxygen Saturation (SpO2), Pulse Rate (PR), Non-invasive Blood Pressure (NIBP), and dual-channel Temperature (TEMP).
3. Is the monitor suitable for mobile or emergency use?
Yes, it features a compact, portable design and includes a built-in rechargeable lithium battery for uninterrupted monitoring during movement.
4. Does the system support data review and storage?
Yes, it can store up to 4800 groups of NIBP data and allows for the review of 71 alarm events and 60 arrhythmia alarm events.
5. Can this monitor be connected to a network?
Yes, it can be connected to a Central Monitoring System via 3G, WiFi, or wired network modes.
6. How large is the display screen?
The device features a high-resolution 12.1-inch TFT color LCD screen that can display up to 8 channels of waveforms.
