Product Description

Portable Diagnostic Tool

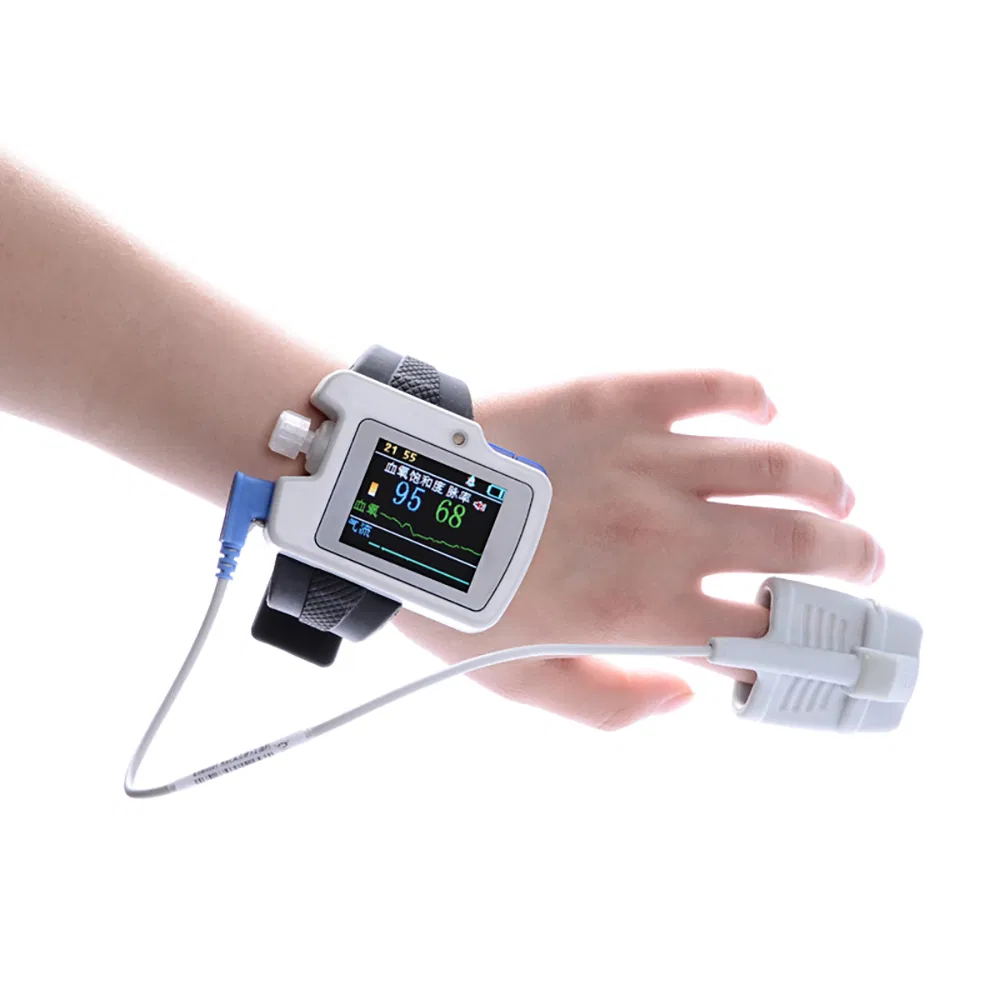

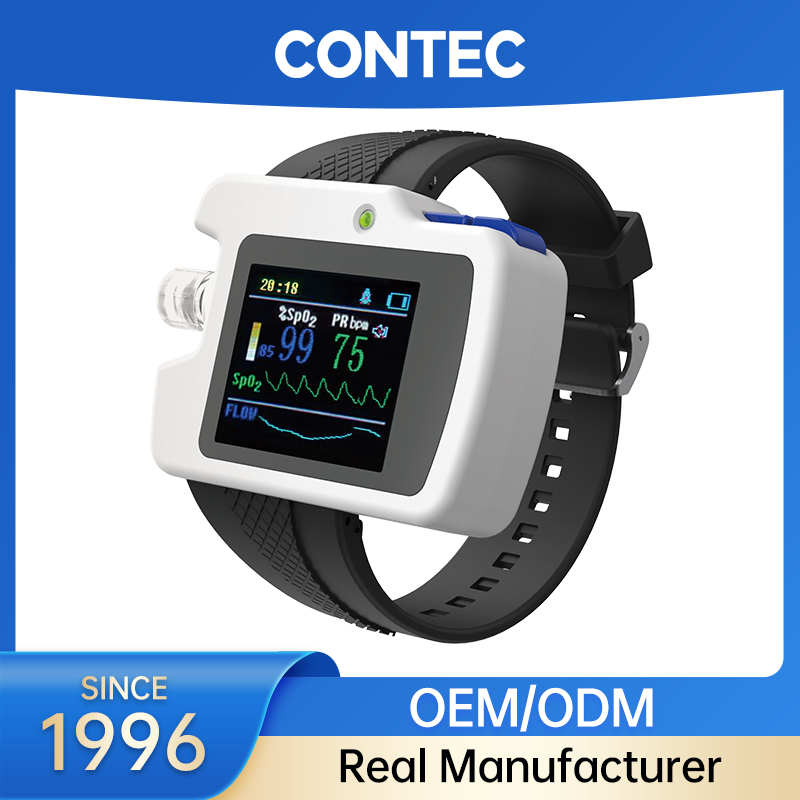

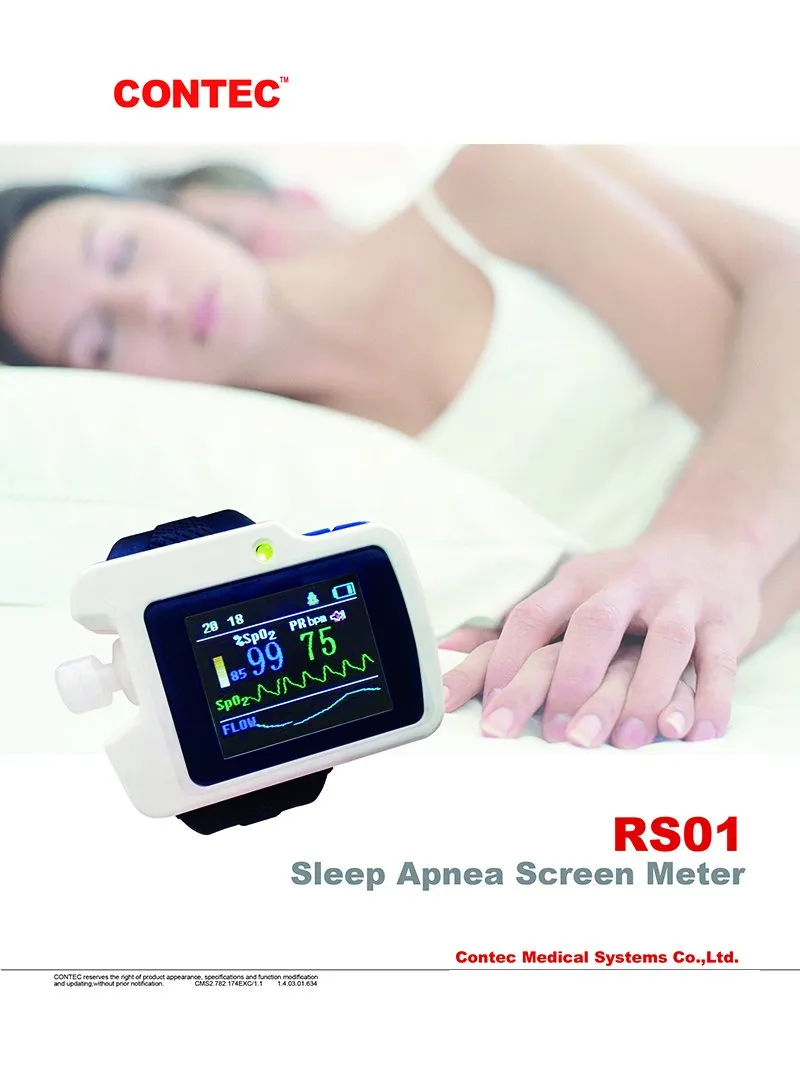

RS01 Electric Homecare Sleep Monitor

Model: RS01 | Interface: USB Rechargeable Lithium Battery

Product Introduction

The RS01 Sleep Apnea Screen Meter is designed for professional sleep breathing and SpO2 monitoring. It is an ideal solution for family use, community medical institutions, and hospitals requiring accurate, non-invasive sleep analysis.

Key Features & Functionality

SpO2 and PR value display with pulse sound

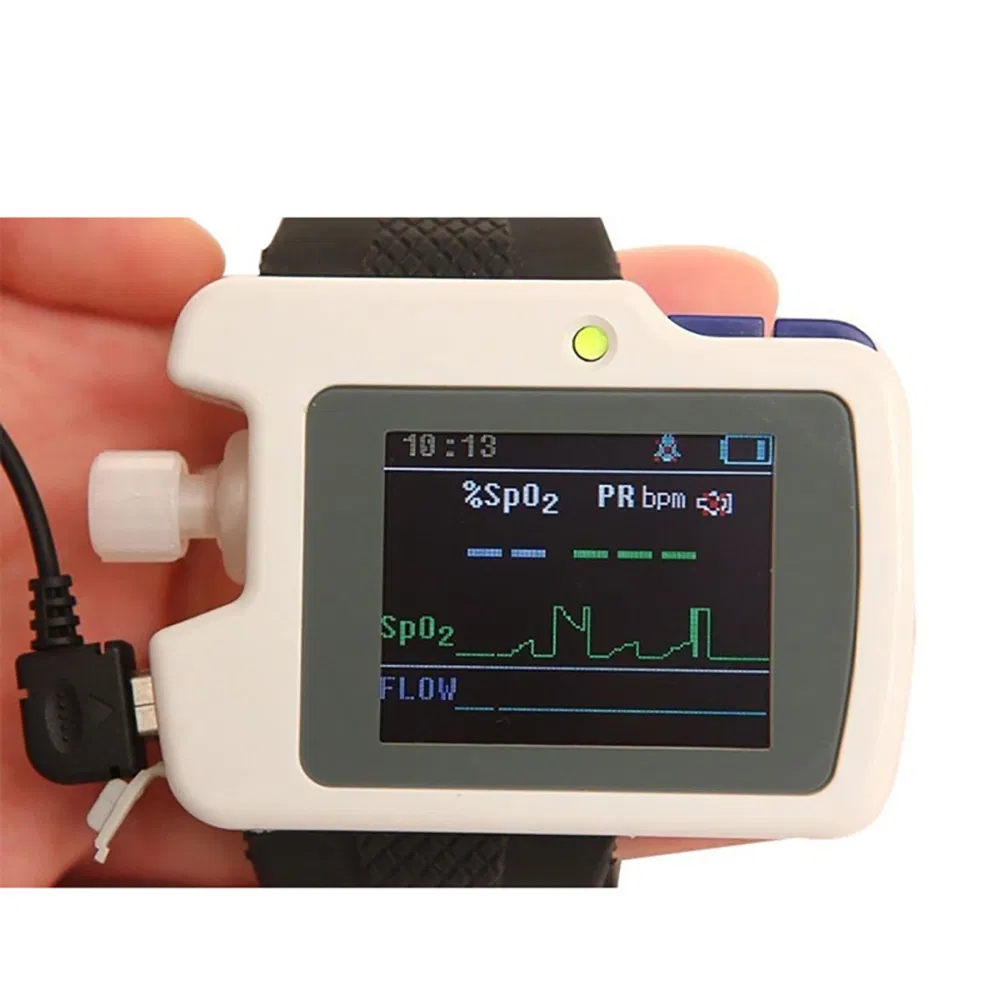

Pulse and nose flow waveform visualization

Smart alarms for low power and limit exceedance

Real-time battery status and clock

Timing power on/off for convenience

Storage capacity for multiple cases

Continuous 12-hour data recording

USB data uploading for clinical analysis

Professional PC analysis software included

Compact bar graph indication

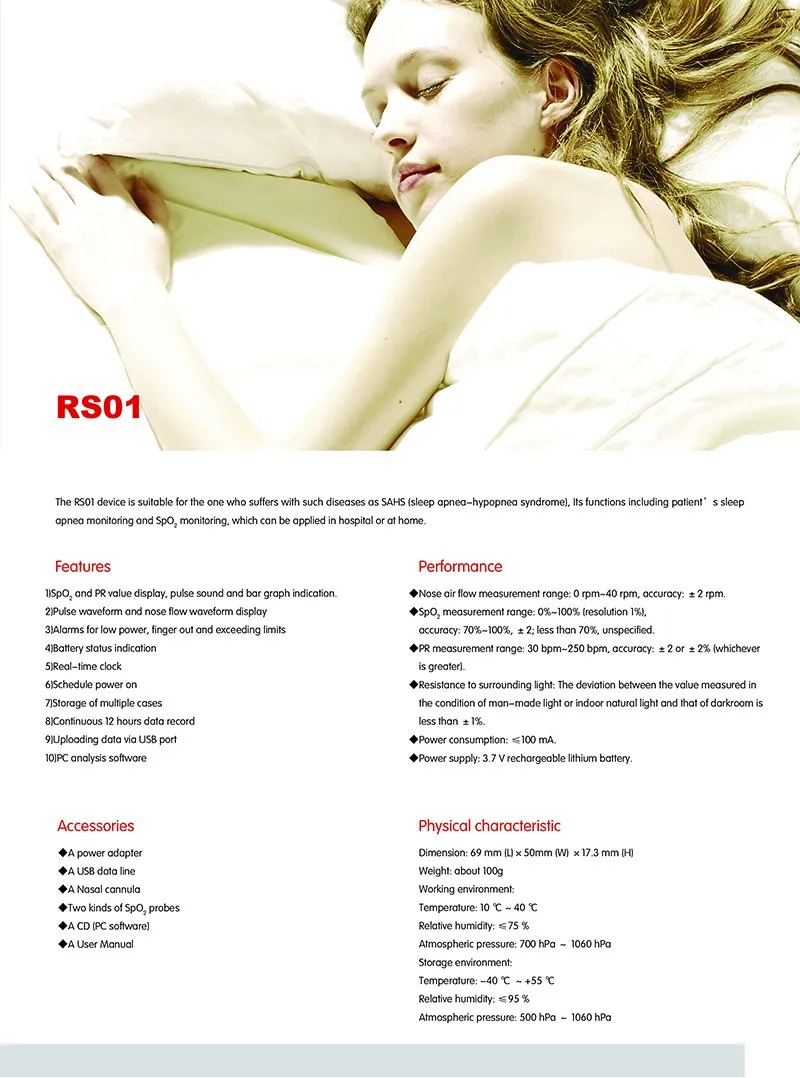

Technical Performance

Nose air flow range	0 rpm ~ 40 rpm, accuracy: ±2 rpm
SpO2 measurement range	0% ~ 100%, accuracy: 70%-100% (±2)
PR measurement range	30 bpm ~ 250 bpm, accuracy: ±2 or ±2%
Ambient light resistance	Deviation less than ±1% between light/dark conditions
Low perfusion accuracy	SpO2 accuracy: ± 4% at 0.4% perfusion
Power consumption	≤100 mA
Power supply	3.7 V rechargeable lithium battery
Safety Classification	Internally powered equipment, type BF applied part

Accessories & Physical Specs

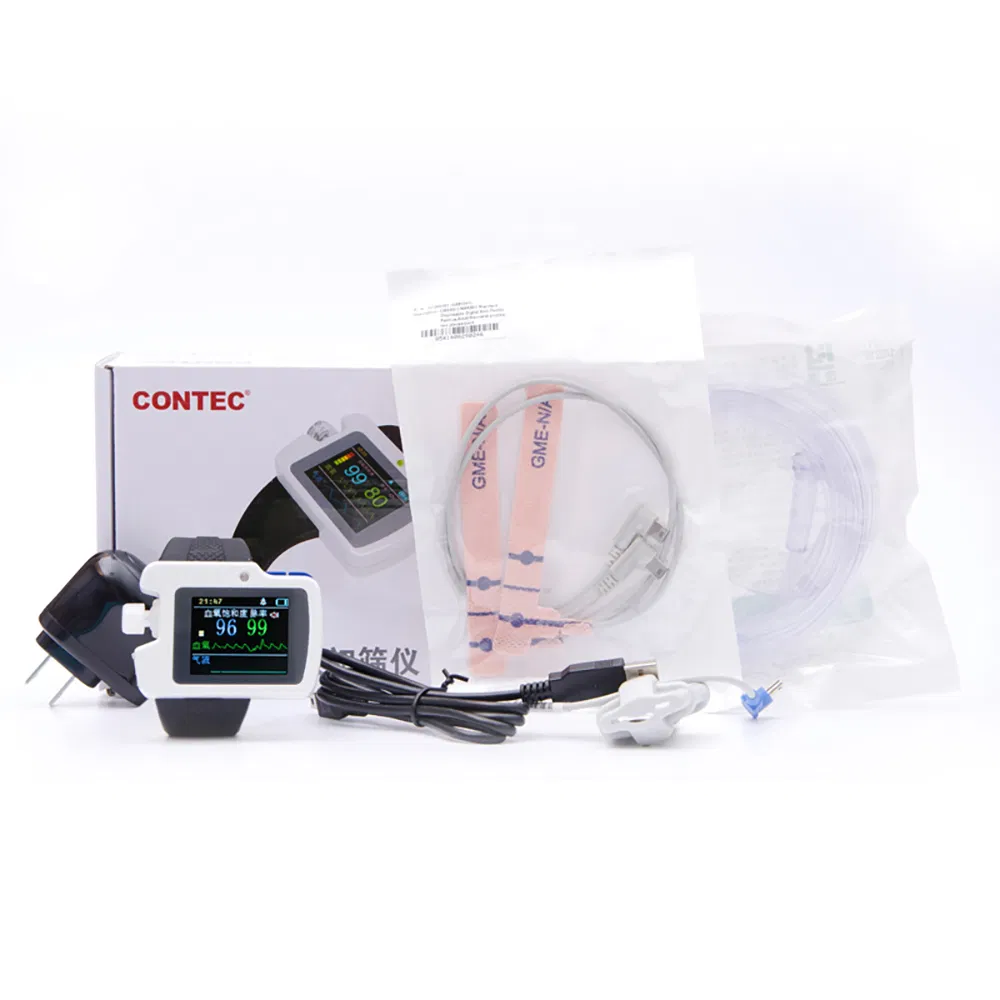

Standard Accessories:

USB data line & Power adapter (optional)
Nasal cannula & Luer male tapers
Two types of SpO2 probes
Comprehensive User Manual

Physical Characteristics:

Dimensions: 69mm (L) × 50mm (W) × 17.3mm (H)
Weight: Approx. 100g (portable and lightweight)

Detailed Views & Manufacturing

Frequently Asked Questions

Are you a manufacturer or a reseller?

We are a dedicated manufacturer specializing in the development, production, and distribution of professional medical devices.

Can I visit your production facility?

Yes, we warmly welcome visitors to our factory. We are located in a convenient area accessible by high-speed train from major hubs like Beijing.

Do you support OEM/ODM customization?

Absolutely. We support full customization including logo printing on devices, custom gift box designs, and even structural modifications to meet specific market needs.

How can I place an order for the RS01?

You can place an order directly through our platform or contact us for a formal invoice. We support various payment methods including TT, PayPal, and Western Union.

What is the typical shipping timeframe?

Sample orders are generally dispatched within 2 days. Bulk orders typically take between 3 to 20 days depending on the quantity and customization requirements.

Is the software compatible with modern PCs?

Yes, the included PC analysis software is designed to work via the USB interface for seamless data transfer and sleep apnea screening analysis.
