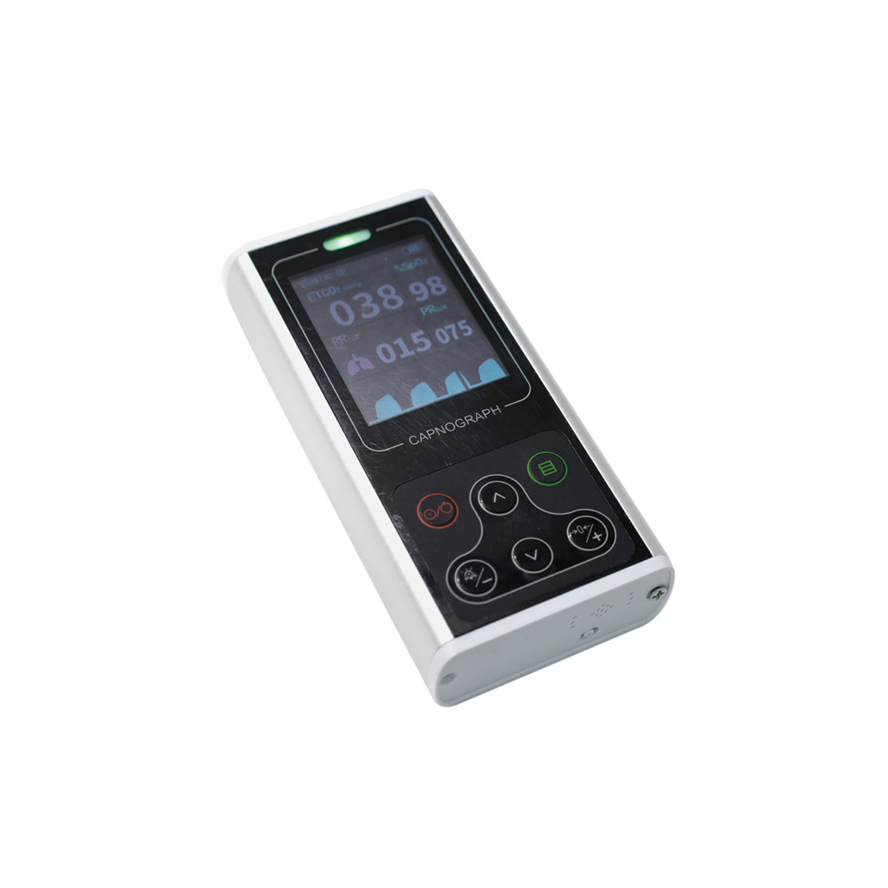

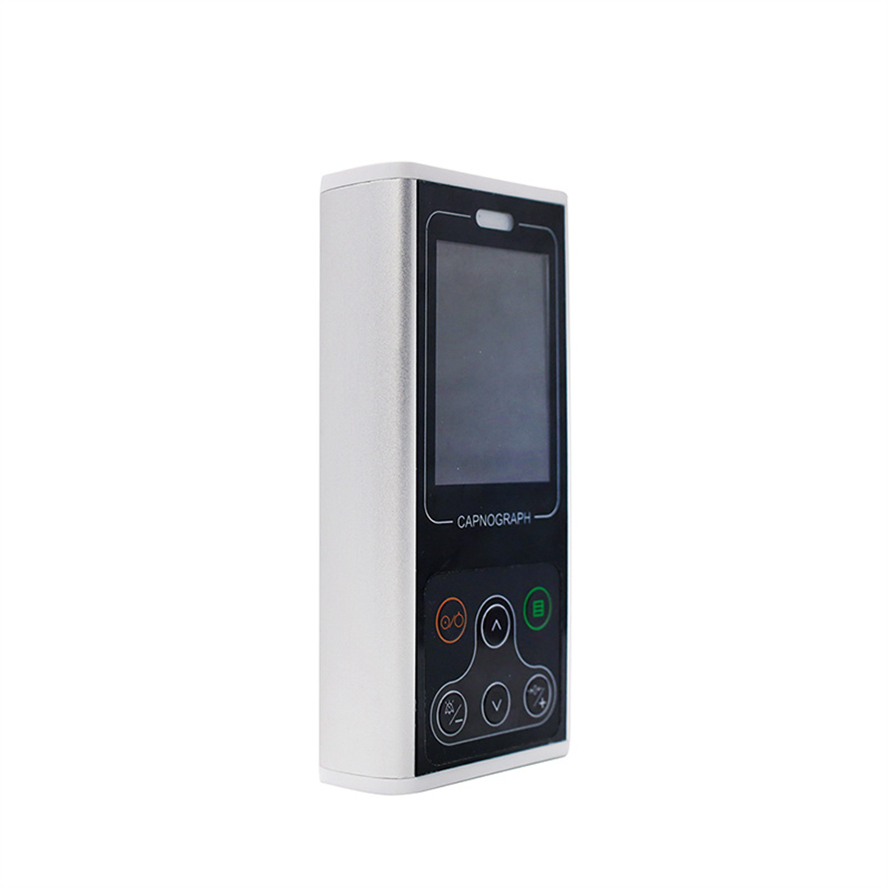

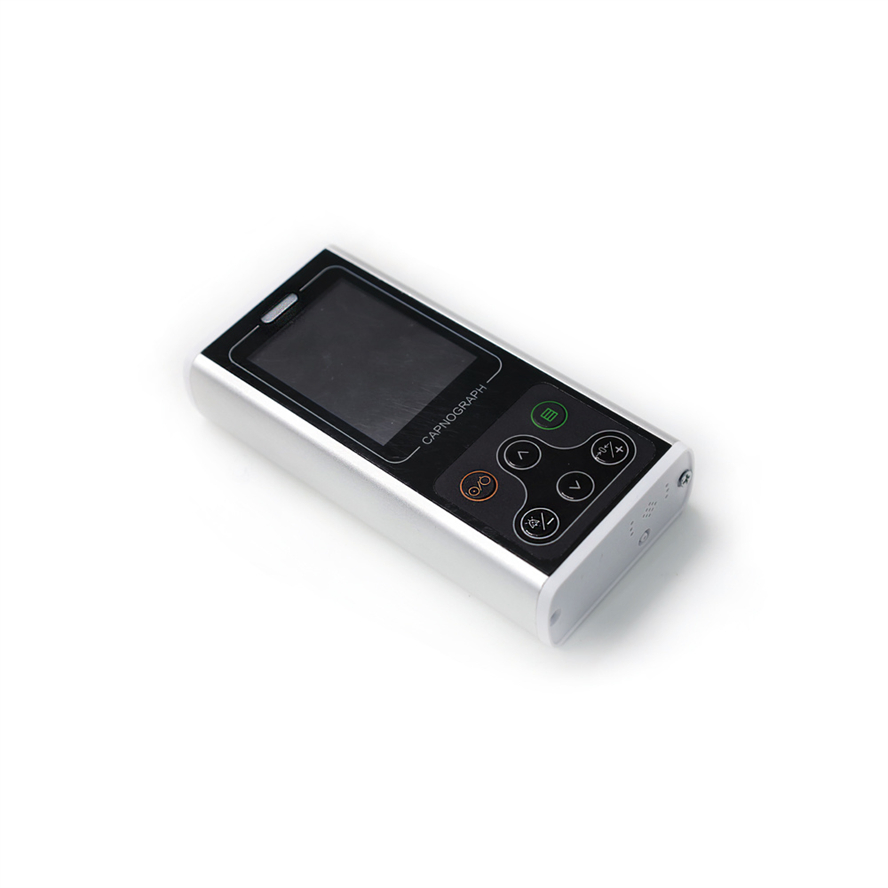

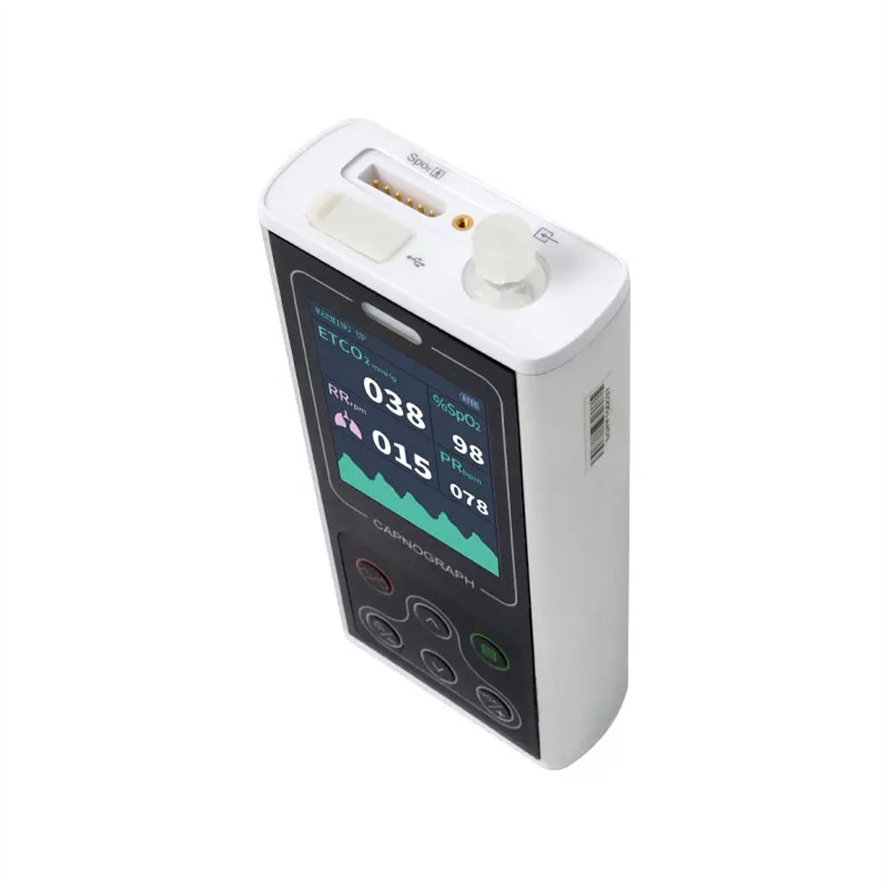

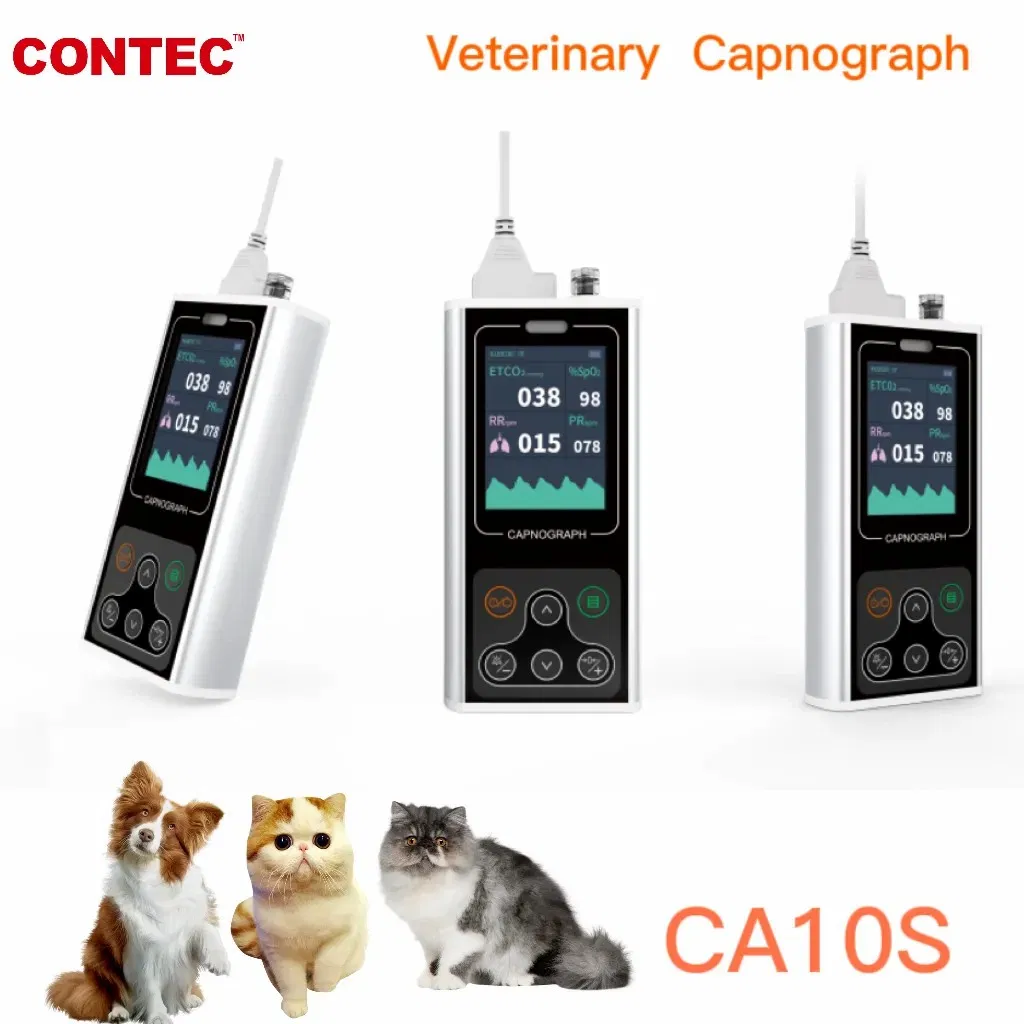

CA10S-VET Veterinary Vital Sign Monitor Capnograph Portable Etco2 Monitor
Introduction

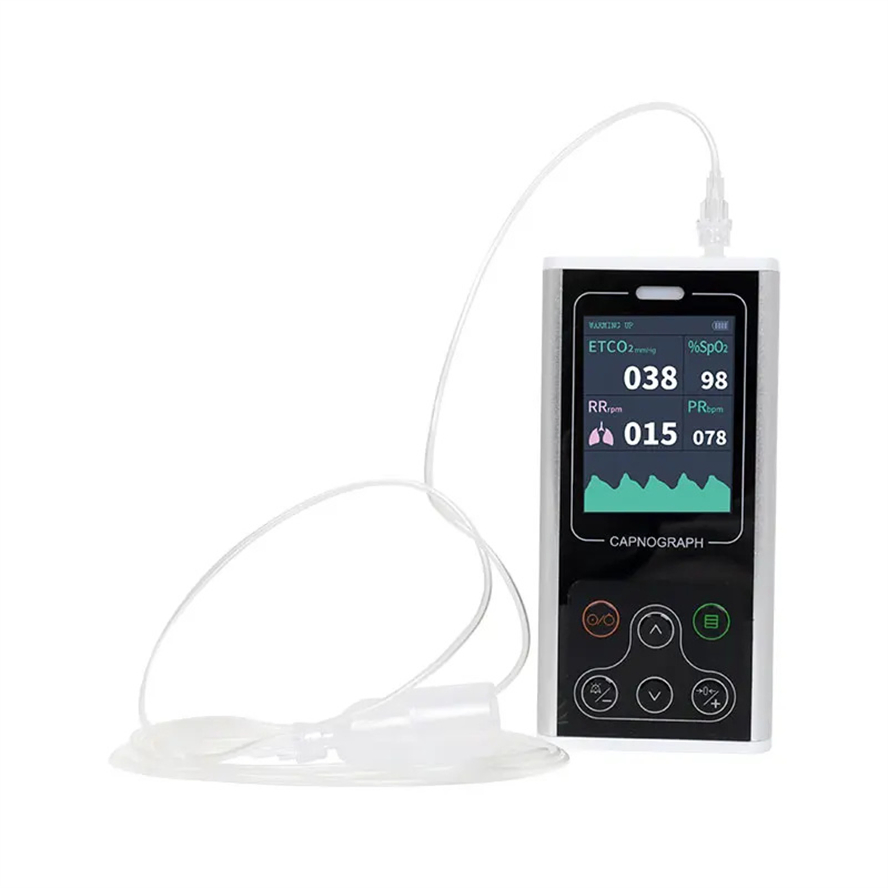

The device adopts the sidestream method to measure animal parameters related to EtCO2 and AwRR. It can detect pulmonary ventilation function, reflect circulation and pulmonary blood flow, and indirectly reflect alveolar ventilation. It can also be paired with a blood oxygen probe to detect animal blood oxygen and pulse. It is applicable for use in pre-hospital emergency, emergency departments, ICUs, and operating rooms of pet hospitals.
Key Features
✔End-tidal CO2 and Respiration rate measurement
✔SpO2 and Pulse rate measurement functions
✔Audible and visual alarms with adjustable limits
✔Low battery and "Checking Filterline" prompts
✔Self-calibration (Zero calibration) supported
✔Atmospheric pressure and temperature compensation
✔Rechargeable lithium battery (up to 8-hour use)
Performance Specifications
| EtCO2 Range |
0 ~ 150 mmHg (Resolution: 1mmHg) |
| EtCO2 Accuracy |
0~40 mmHg: ±2 mmHg; 41~70 mmHg: ±5%; 71~100 mmHg: ±8%; 101~150 mmHg: ±10% |
| Respiration Rate |
2 rpm ~ 120 rpm (Accuracy: ±1 rpm) |
| SpO2 Range |
30% ~ 100% (Accuracy: 70%~100%: ±2%) |
| Pulse Rate |
25 bpm ~ 250 bpm (Accuracy: ±2 bpm or ±2%) |
| Response Time |
< 3 seconds |
| Battery Life |
Up to 8 hours |
| Gas Sampling Rate |
60 ml/min ~ 100 ml/min |
Physical Characteristics
Dimension: 159 * 72 * 31 mm
Weight: Approximately 270g
Safety: Internally powered equipment, Type BF applied part, IPX1 protection.

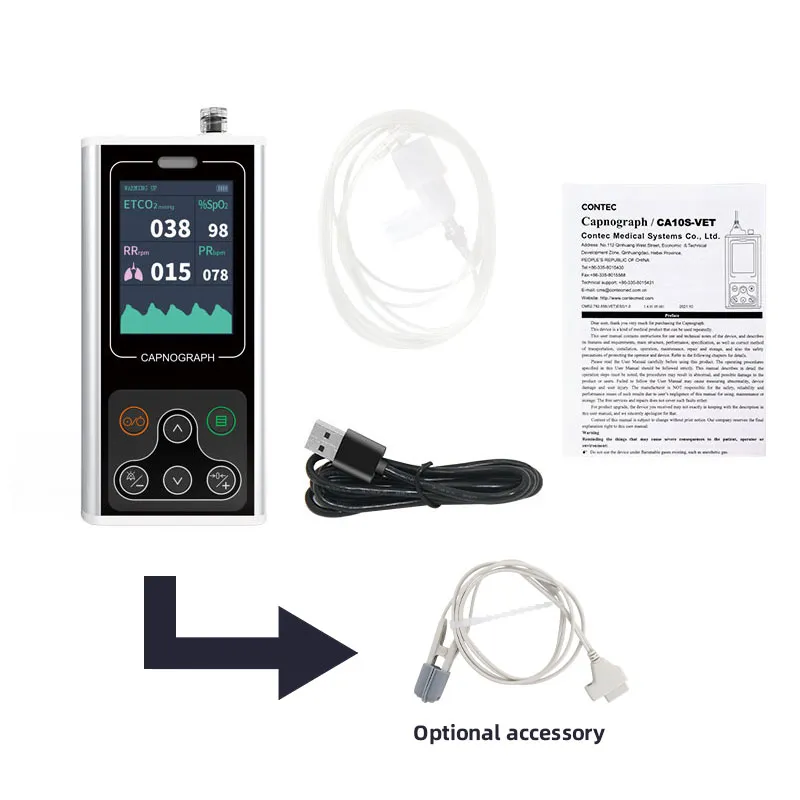

Standard Accessories
• User Manual
• CO2 Sampling tube
• USB cable
Frequently Asked Questions
What animals can this monitor be used for?
The CA10S-VET is designed for veterinary use in pet hospitals, including applications in emergency departments, ICUs, and operating rooms.
How long does the battery last on a single charge?
The rechargeable lithium battery provides up to 8 hours of continuous usage time.
What is the measurement method for CO2?
This device uses the sidestream method to measure End-tidal CO2 (EtCO2) and Airway Respiration Rate (AwRR).
Does the monitor feature any alarm systems?
Yes, it includes both audible and visual alarms for EtCO2, respiration rate, and low battery. The alarm limits are fully adjustable.
Is the device difficult to calibrate?
No, the user can perform zero calibration by themselves, and the device includes atmospheric pressure and temperature compensation for accuracy.
How portable is the CA10S-VET?
It is highly portable, weighing only about 270g with dimensions of 159*72*31 mm, making it ideal for mobile veterinary clinics.
