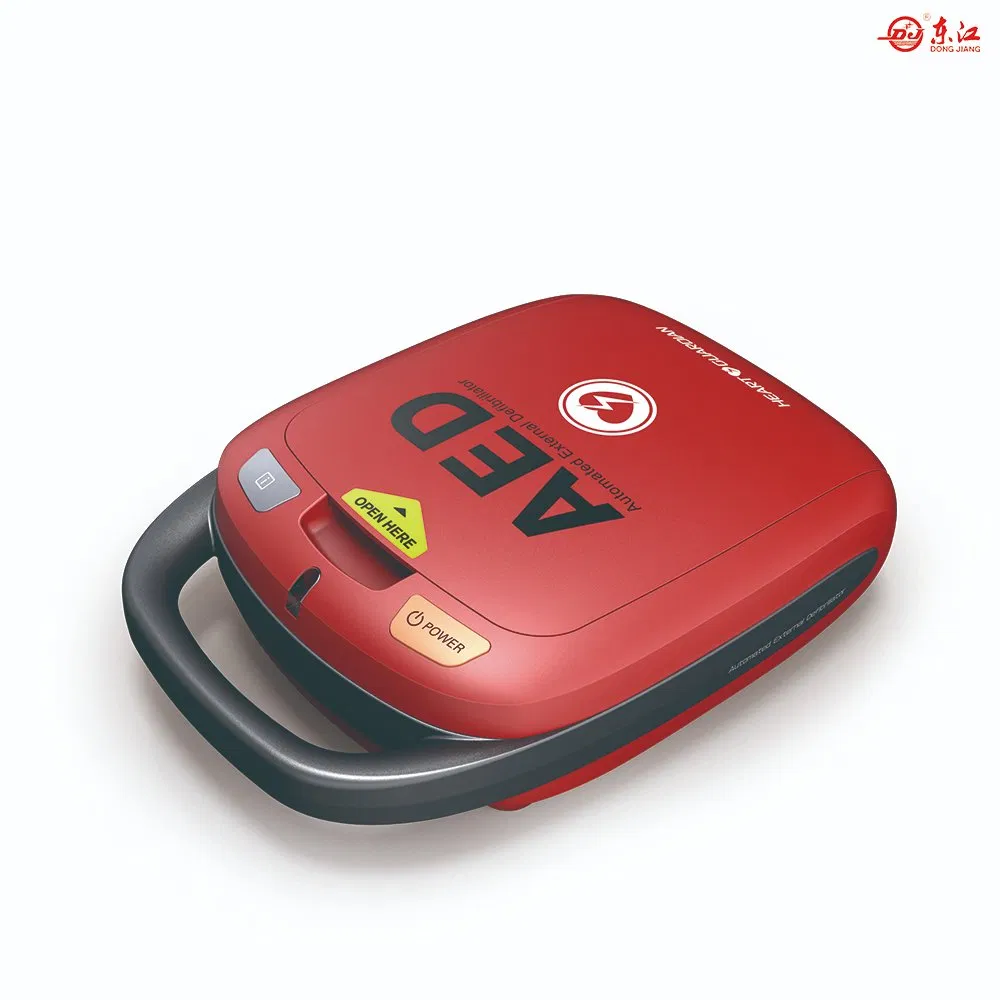

Cmics Aed-201 Portable Automated External Defibrillator for Medical First Aid Reliable Emergency Response Device for Global B2B Buyers

Overview

Model NO.

AED-201

Electrode Pads

Adult/Child Compatible

Storage

90 Minutes Each for ECG Data and Around Sounds

Transport Package

Carton

Specification

320*230*85 mm

HS Code

9018199000

Production Capacity

50, 000 Sets/Year

Product Description

AED (Automatic External Defibrillator) is a portable medical device that can save lives facing risk of sudden heart death in different environments. Based on precise & rapid analyzing, it recognizes ECG rhythm that needs defibrillation. Operation of charging, visual and audible operation guide, shock and/or terminating shock are automatically done throughout the complete process of life rescue.

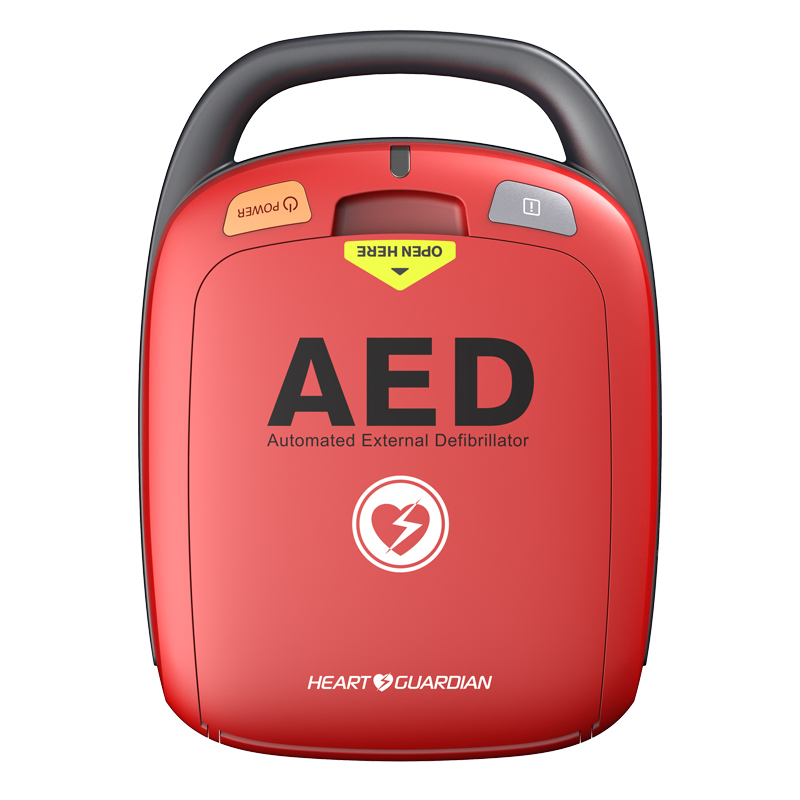

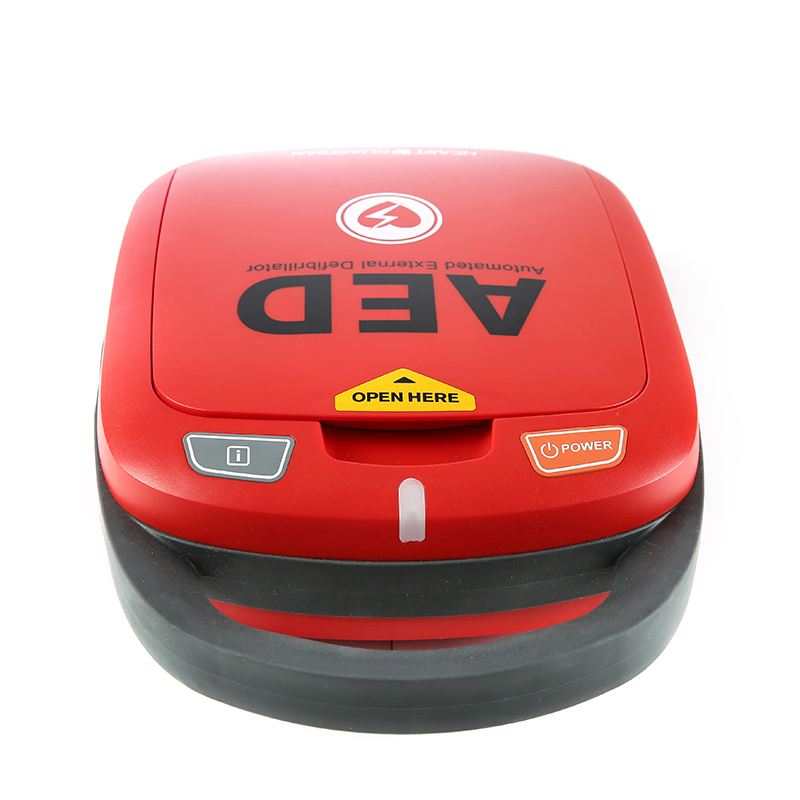

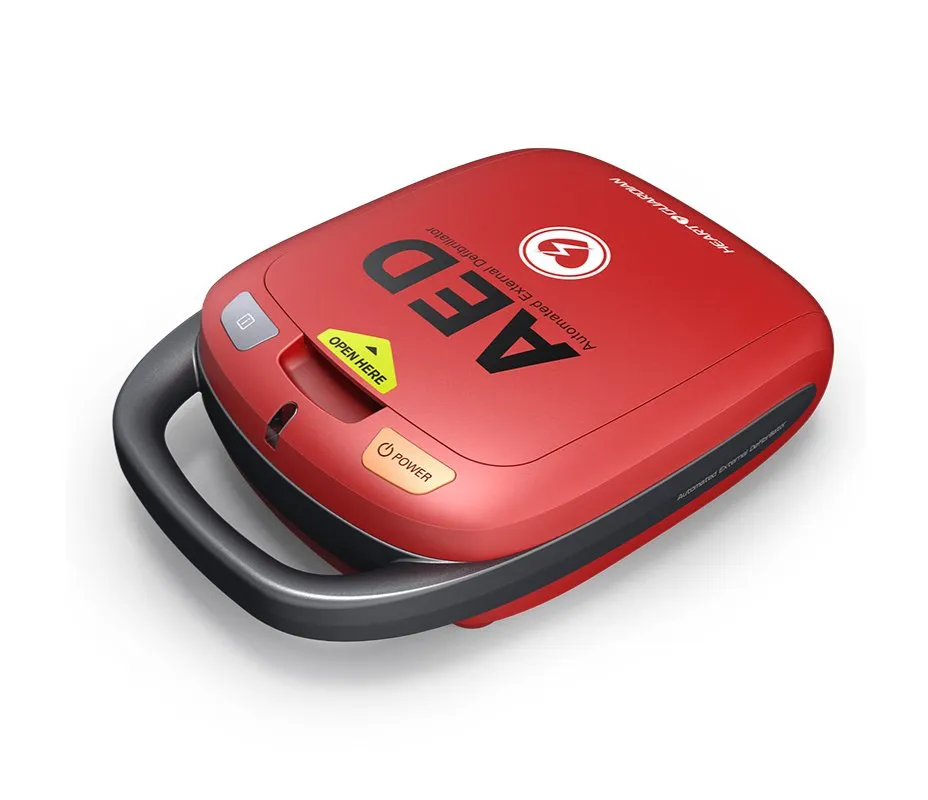

Automated External Defibrillator Appearance

Key Features

Biphasic Truncated Exponential with low energy to minimize myocardial injury
Not rechargeable Li-MnO2 battery with high capacity supporting up to 400 shocks
Automatic recording of ECG data & around sounds throughout the complete operating
Electrode pads with compatibility to adult and child
Daily selftest and automatic selftest upon power on
Available with adult mode and child mode
Automatic voice guide throughout the complete operation
Automatic indication of unit status
Alarm of low battery capacity and change of new one
Optional PC software for data retrieve and download

Specification

ECG Analysis	8.5 Sec.
Hi- Cap Charging	8 Sec.
Shock Output	150J(Adults), 50J(Children)
Data Storage	90 Min. (embedded memory)
Battery Type	Li-Mn(12V DC 6A)
Shock Frequency	400, at least
Pad Type	Electrode Pad, disposable and adhesive
Dimension	230(W) x 320(L) x 85(H)mm
Weight	1.9kg
Warranty	2 Yrs.(3 Yrs. for Pads/4 Yrs. for Batteries)

Handle

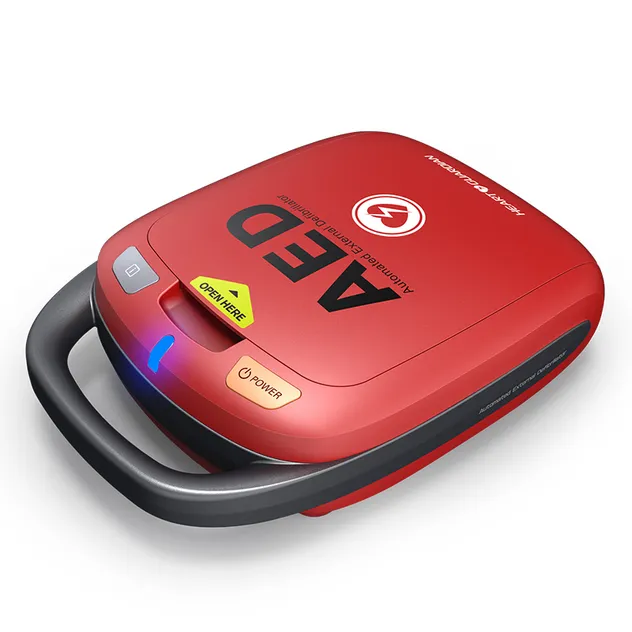

Alarm Indicator Light

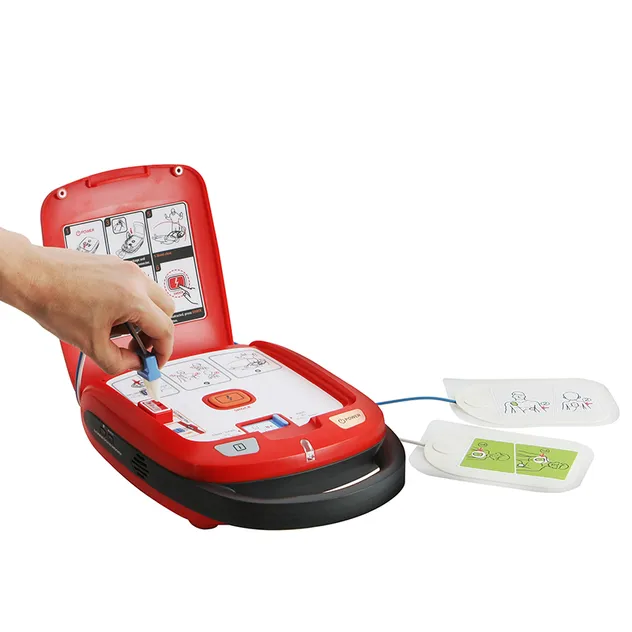

Electrode Pad Connector

Packaging & Shipping

Standard Configuration

Battery

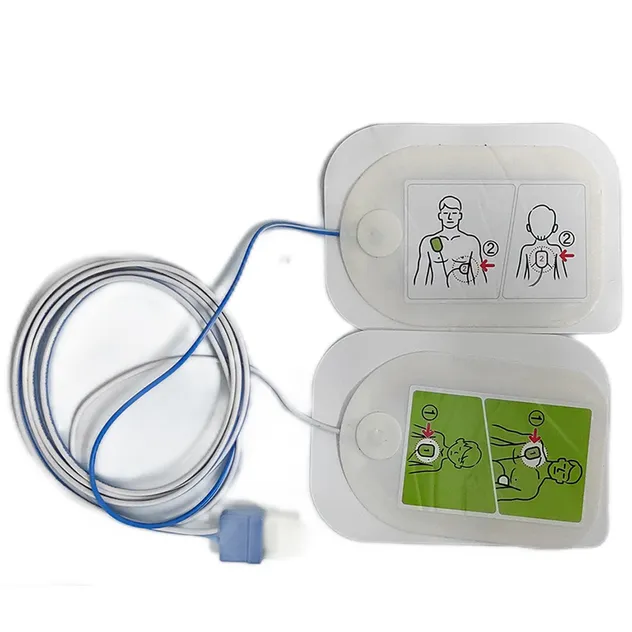

Electrode Pad

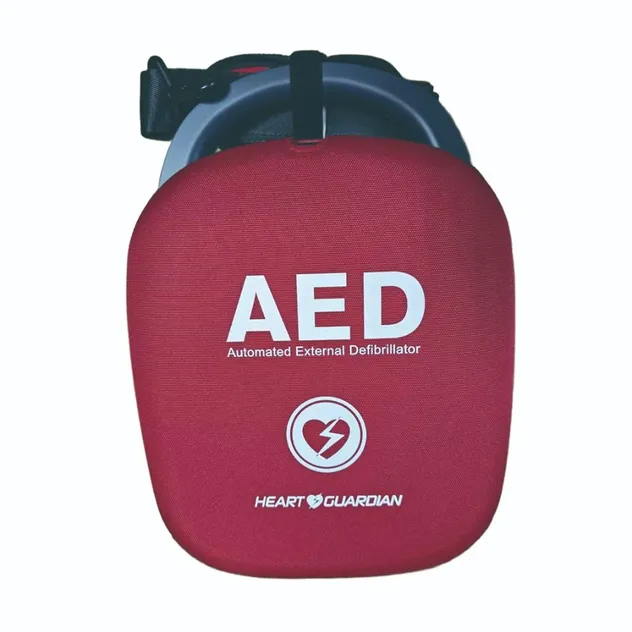

Carrying Bag

Optional Configuration

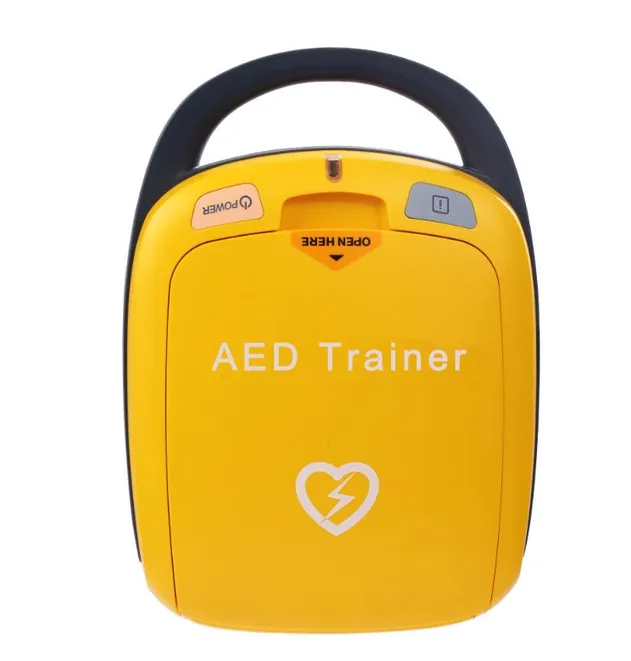

AED Trainer

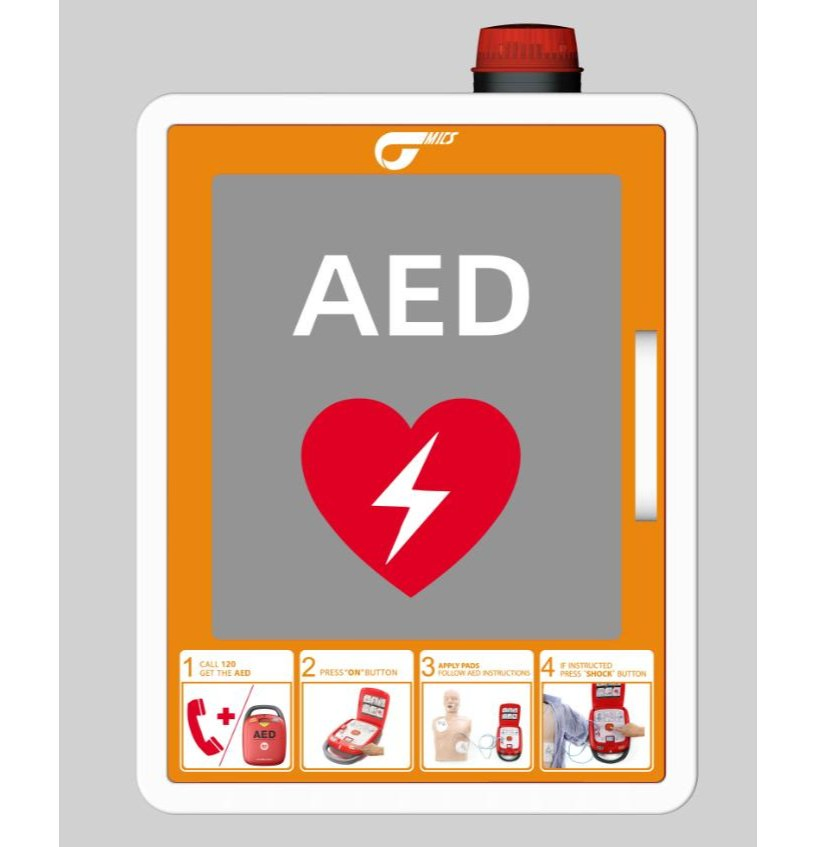

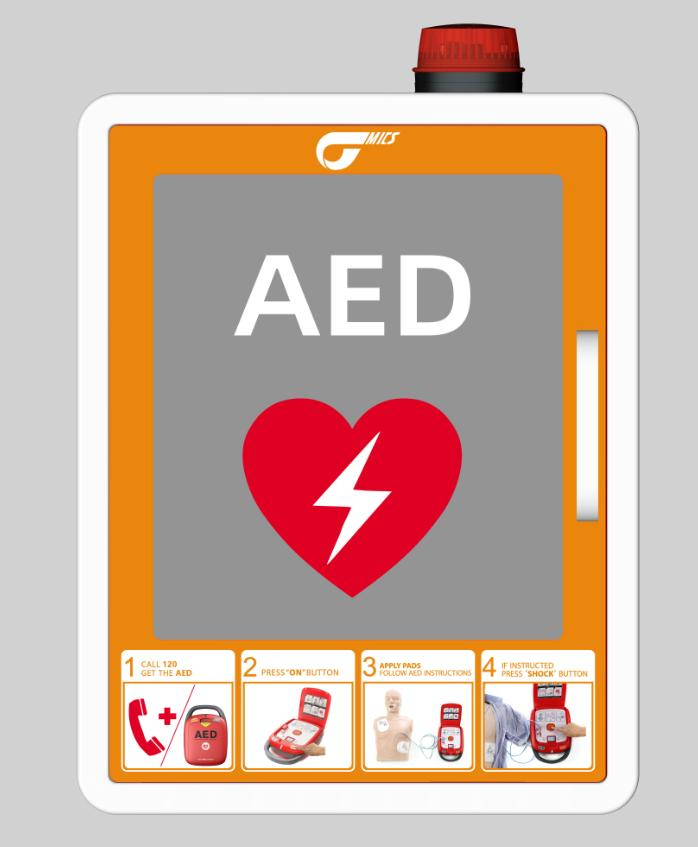

Wall Mount Cabinet

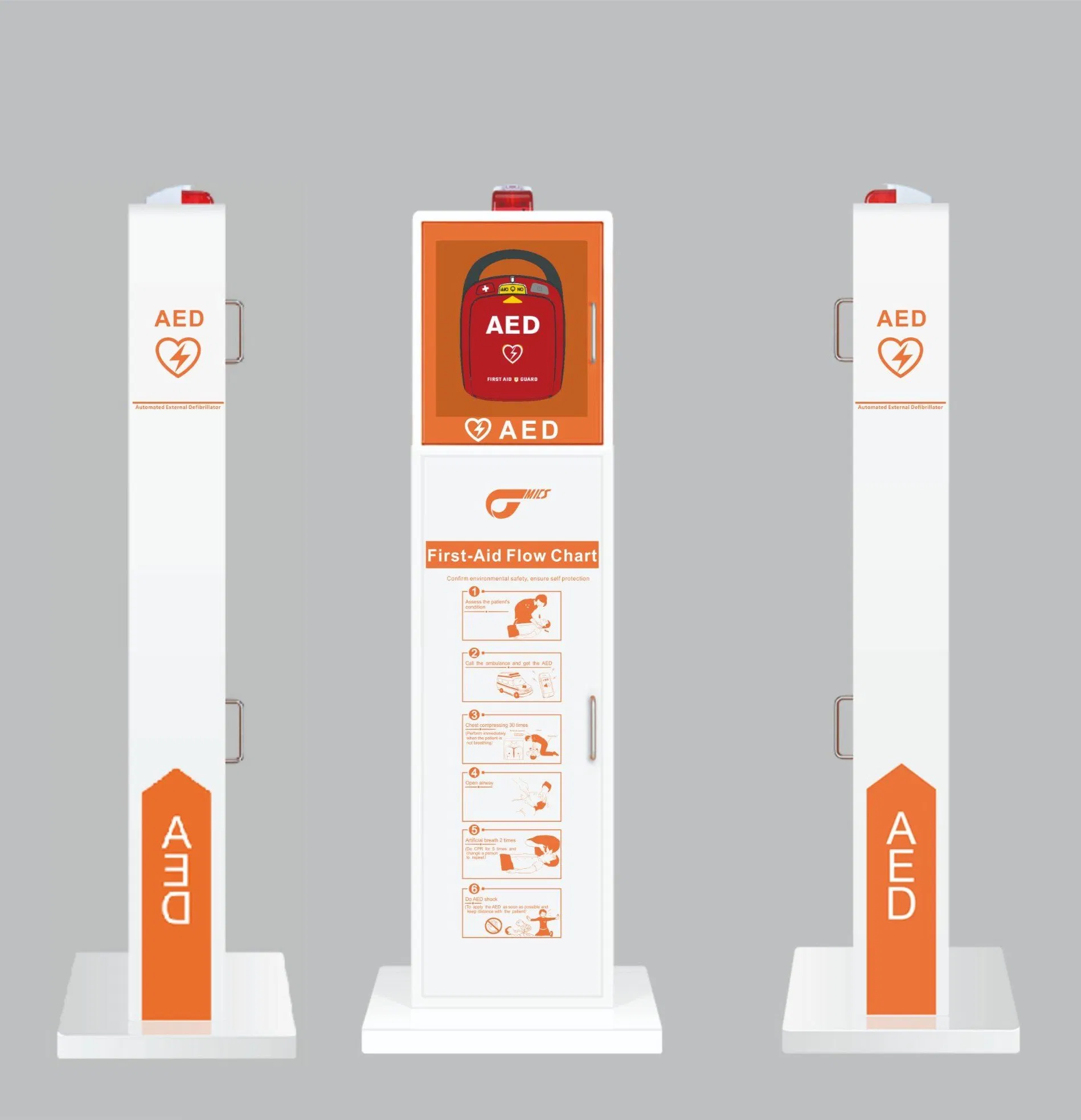

Standing Cabinet

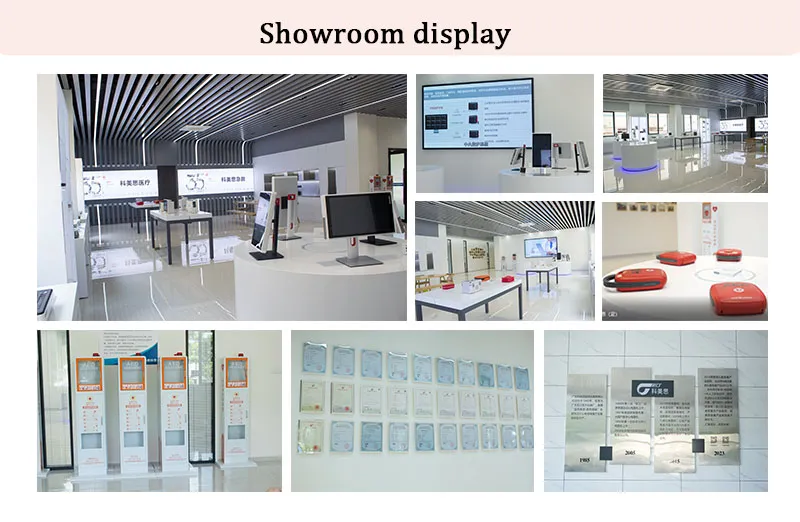

Facility Showcase

Frequently Asked Questions

What type of shock waveform does the AED-201 utilize?

The AED-201 utilizes a Biphasic Truncated Exponential waveform layout optimized with low energy configuration parameters to effectively minimize potential myocardial injury during operation.

Are the electrode pads compatible with children?

Yes, the disposable and adhesive electrode pads configured for the AED-201 are fully compatible for both adult and child modes. The device features integrated toggle selections for adult and child applications.

What is the precise ECG analysis and charging time frame?

The automated system completes precise ECG analysis in approximately 8.5 seconds, while high-capacity circuit charging requires only 8 seconds.

How much internal storage capacity does the unit contain?

The built-in embedded memory module securely captures up to 90 minutes of total internal storage data, recording both internal ECG readings along with surrounding ambient audio.

What are the complete capacity specifications of the battery?

The system utilizes a non-rechargeable High-Capacity Li-MnO2 battery module (12V DC 6A) specifically manufactured to seamlessly support a minimum delivery frequency of 400 complete operational shocks.

How does the AED-201 manage system diagnostic checks?

The unit is programmed to execute an automated daily self-test system cycle, coupled with an automatic diagnosis sequence directly triggered upon power onset. System status is signaled via an automated visual indicator light and full vocal prompt updates.
