Suitable for sleep hypopnea syndrome monitoring
The Sleep Apnea Screening Monitor holds 510K, CE0123, ISO13485, FCC, and RoHS certifications. It meets most standard requirements for measuring blood oxygen and pulse rate, accurately capturing pulse signals as validated in numerous clinical trials.

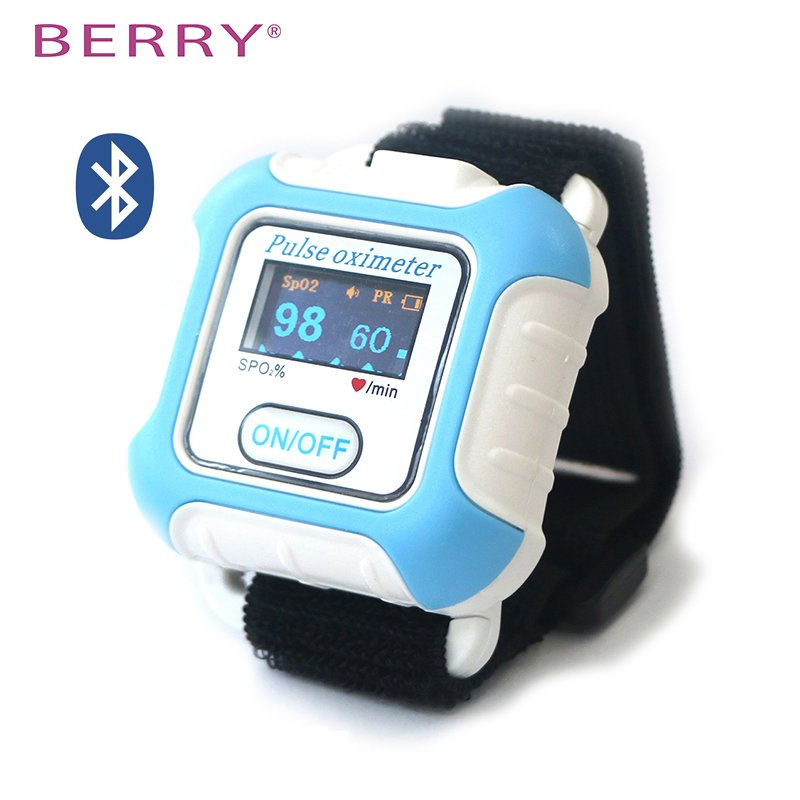

BM2000A is highly applicable for Aviation users, Snorers, Children, and patients suffering from Asthma or COPD.

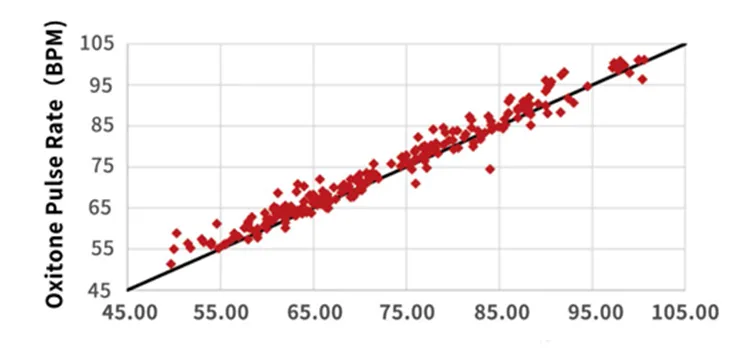

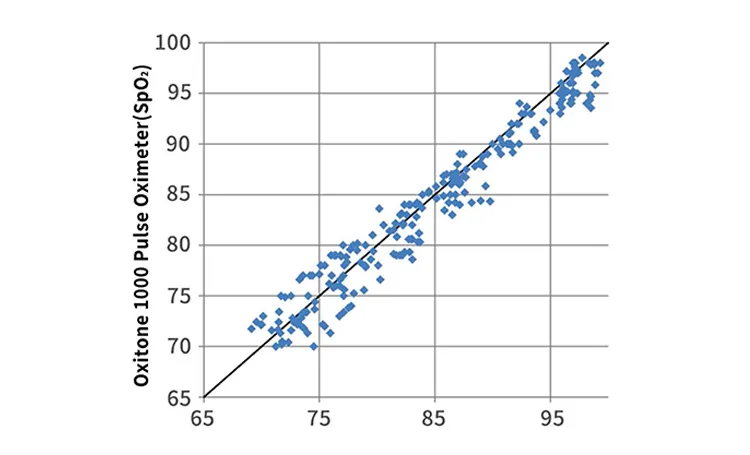

Pulse Rate Test vs Reference Heart Rate ECG (Correlation = 0.98, P-value < 0.0001)
| Comparison: Reference Pulse Oximeter | |||||
|---|---|---|---|---|---|
| Pulse Oximeter Range | 70 ~ 100 | 90 ~ 100 | 80 - < 90 | 67 - < 80 | RESE ≤ 3% (Within range of 70%-100%) |
| # pts | 240 | 79 | 81 | 81 | |
| Error | -0.6 | -1.1 | -0.9 | 0.1 | PASS |
| Root Mean Square Error | 1.9 | 1.7 | 2.0 | 2.1 | |
* The clinical results prove that products have successfully passed strict accuracy testing. Blood oxygen concentration accuracy is <2%, far exceeding the 510K regulatory benchmark of <3%.
Apnea Trend Chart
Hypopnea Trend Chart
Blood Oxygen & Mean Results Display
Hypoxemia & OSAHS Diagnosis Panel
Comparison studies show standard clinical alignment. Polysomnography (PSG) validation verifies high diagnostic sensitivity and specificity margins for domestic and clinical sleep hypopnea evaluations.
| Clinical Trial Metric Evaluation | ||
|---|---|---|
| Mean Blood Oxygen Parameters | ||
| Average blood oxygen calculation accuracy: 98.51% | ||
| Diagnosis of Hypoxemia | ||
| Sensitivity: 89.29% | Specificity: 77.78% | Accuracy: 92.59% |
| OSAHS Judgment Results | ||
| Sensitivity: 94.17% | Specificity: 61.21% | Accuracy: 89.62% |

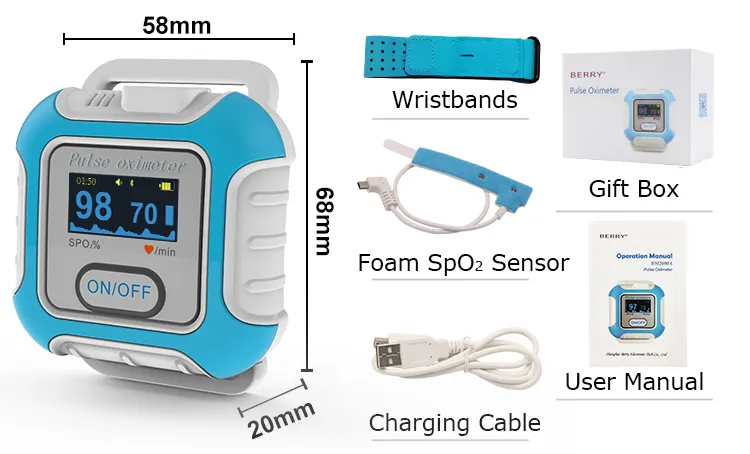

Dimensions: 68(H) × 58(W) × 20(D) mm
Weight: Approximately 50g (including batteries)
✓ Easy to read, generate and share reports.
It is specifically designed for sleep apnea and hypopnea respiratory monitoring. It records blood oxygen levels and pulse rates during sleep, making it an excellent screening tool for sleep hypopnea syndrome.
Yes. The system supports various types of sensors, making it fully applicable for infants, children, and adults of different ages and skin colors.
The device features ultra-low power consumption. The integrated 3.7V rechargeable lithium battery lasts for more than 20 hours of continuous monitoring.

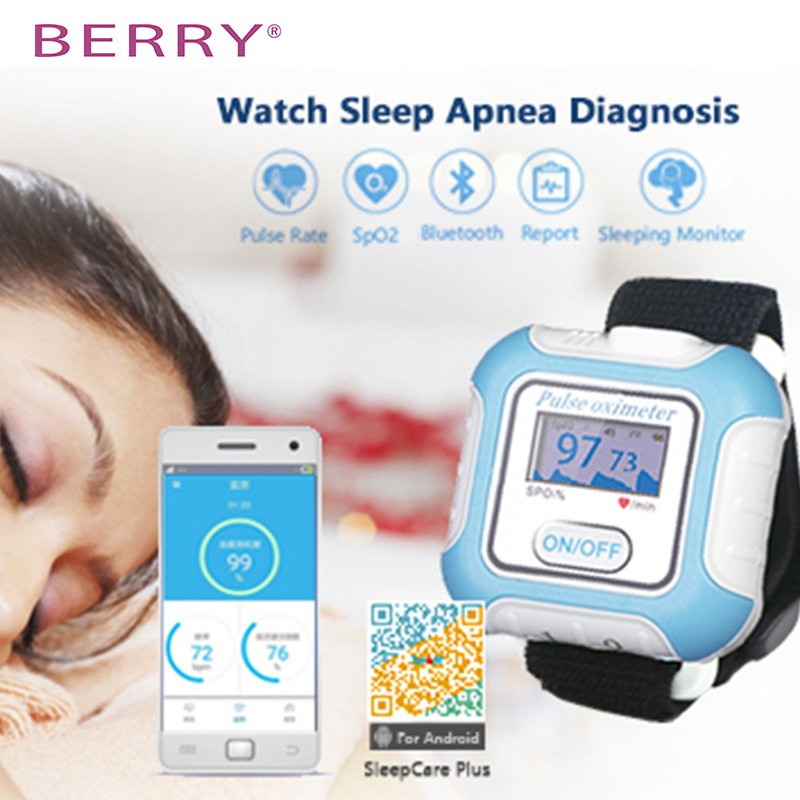

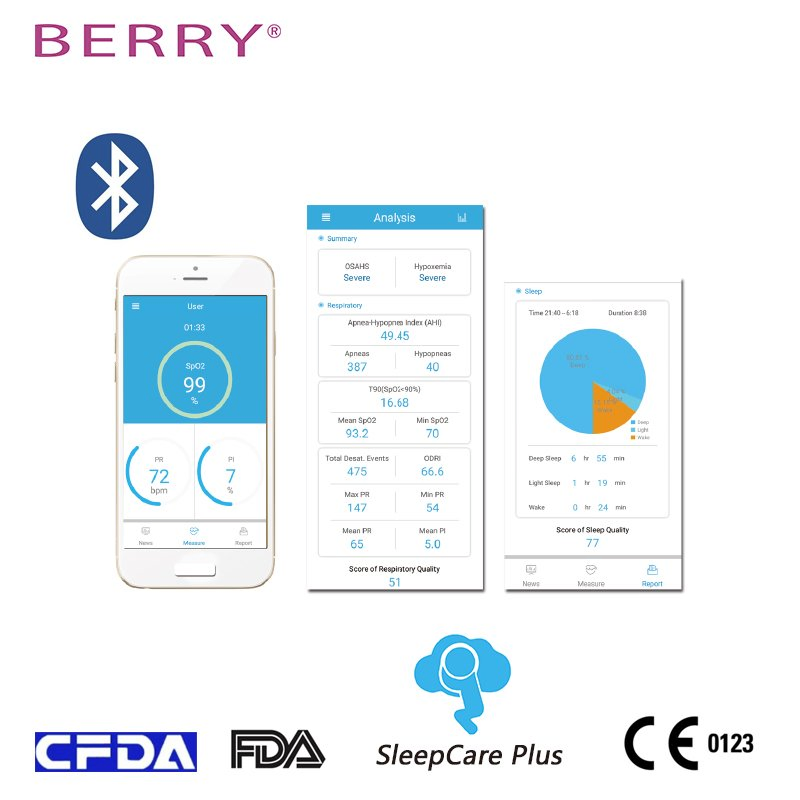

You can easily connect the device to your phone using the free mobile application via Bluetooth. The app records real-time data every second and generates detailed overnight sleep reports that can be saved and shared.
The BM2000A has demonstrated high clinical accuracy, with a blood oxygen calculation accuracy of 98.51% (error margin <2%), easily surpassing standard regulatory requirements of <3%.
The device complies with international standards and has passed CE, 510K, ISO13485, FCC, and RoHS certifications.
