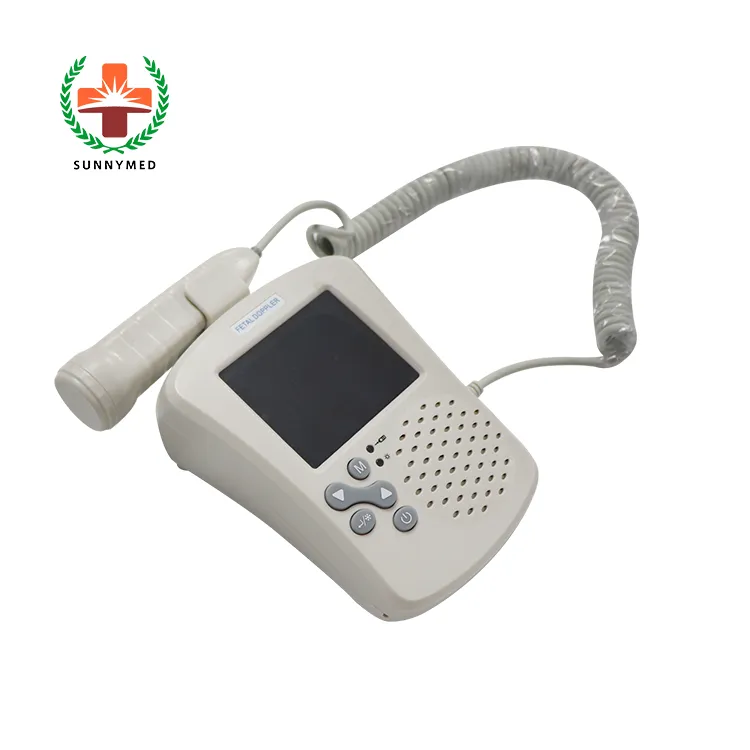

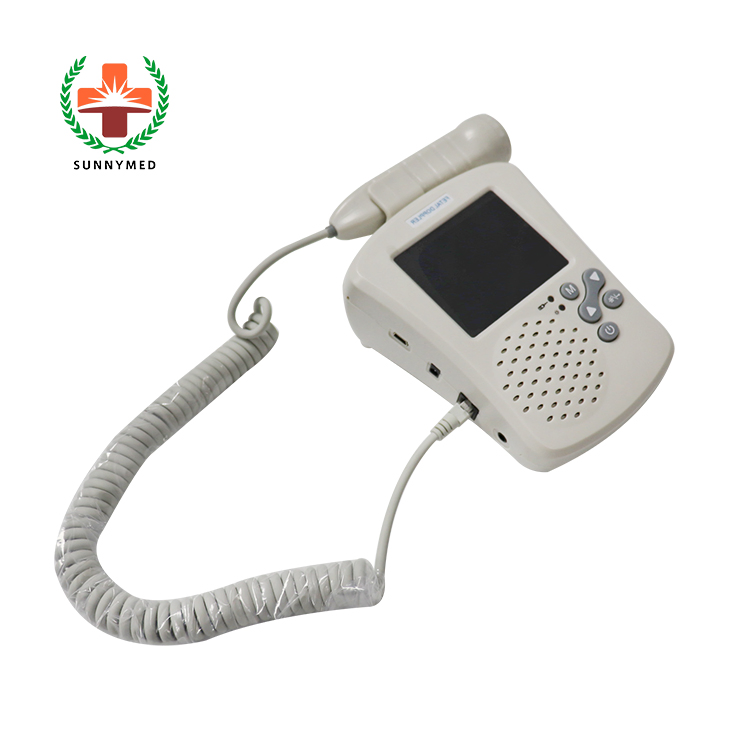

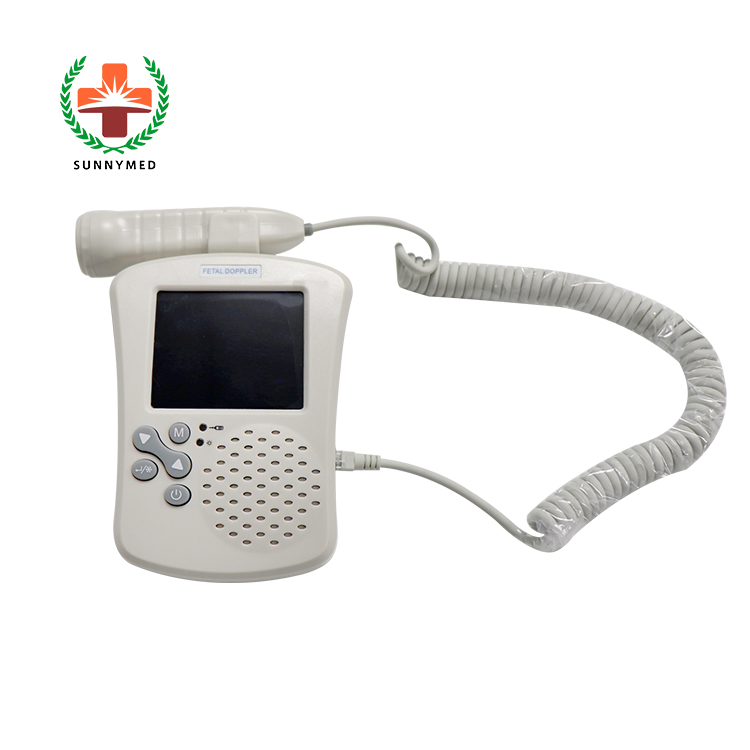

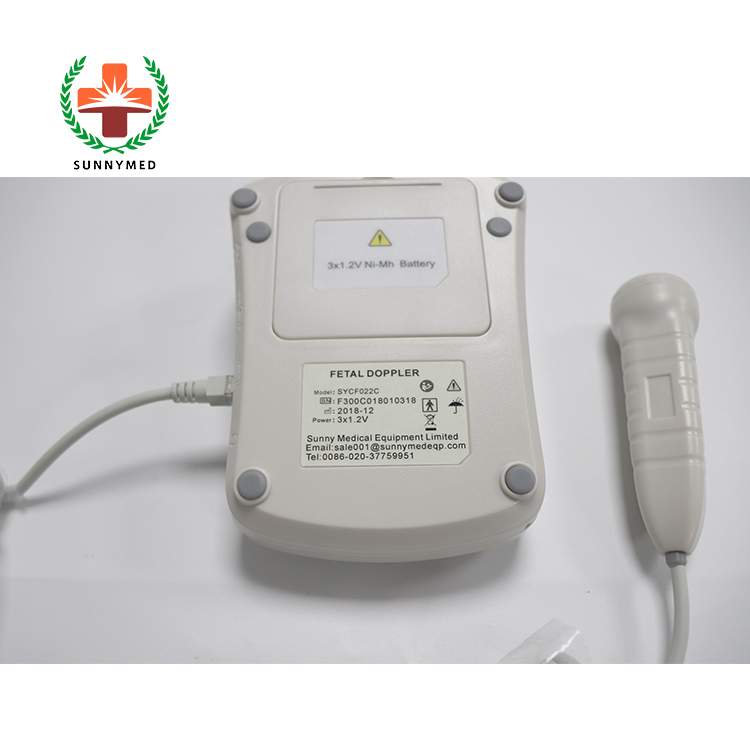

SY-C021 Water-proof Ultrasonic Medical Equipment Digital Fetal Doppler
Main Features
- Easy and convenient operation
- High-fidelity, crystal clear sound
- Earphone and speaker are feasible
- High sensitivity water-proof probe
- Low ultrasound dosage
- Display with color and touch LCD
- Unique ergonomic design
- USB functions to transmit data
- Multiple work & display modes
- Auto storage & FHR curve playback
Technical Specifications
| Display |
65mm × 50mm LCD |
| FHR Resolution |
1bpm |
| FHR Accuracy |
±1bpm |
| Power Consumption |
<2W |
| FHR Measuring Range |
50~240bpm |
| Weight |
650g |
| Ultrasound Frequency |
2MHz |
| Ultrasound Intensity |
<10mW/cm² |
| Power Supply |
DC Ni-Mh rechargeable battery / AC 220/110V, 50/60Hz |
| Dimension |
135mm × 100mm × 55mm |
Product Gallery
Our Services
- Detailed inquiry response within 24 hours.
- Professional team with expert attitudes for product recommendations.
- Various types and functions available to meet specific requirements.
- OEM services offered, including custom logo printing on the device.
- Experienced engineers to assist with optimal equipment usage.
Our Advantages
- Top Quality: Strict quality control system with a high market reputation.
- Excellent Service: Long-term business relationship focus.
- OEM Accepted: Personalized branding on products.
- Unbeatable Price: High price-performance ratio benefit for customers.
- Timely Delivery: Rapid shipping once orders are processed.

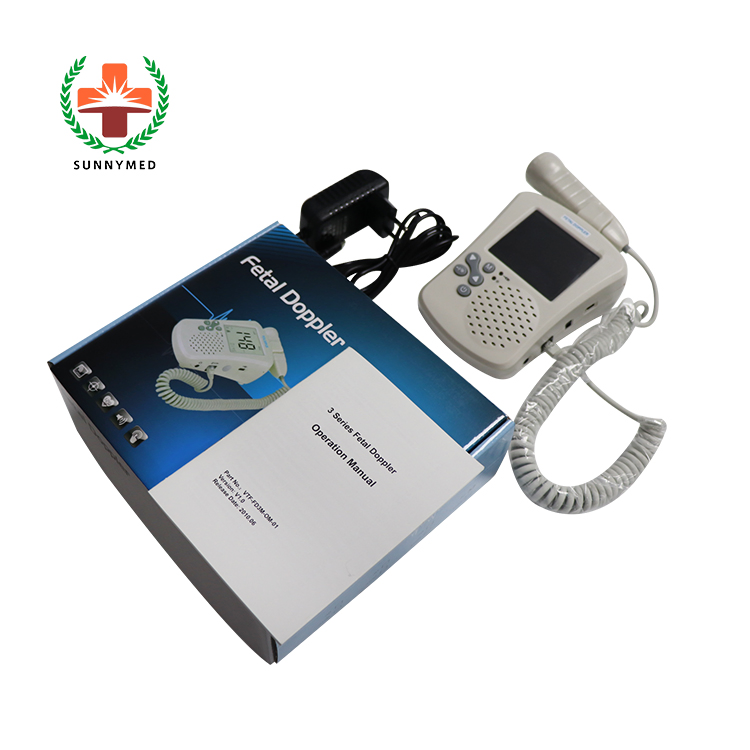

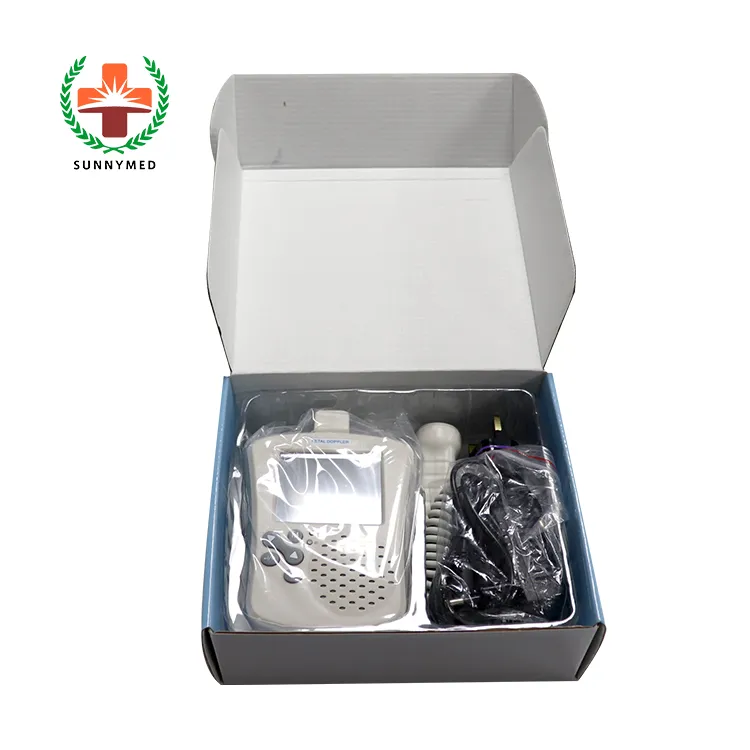

Packaging & Shipping
- Flexible shipping via air or sea based on your needs.
- Standard export packaging ensuring safety during transit.
- Delivery customized to your actual requirements.
Frequently Asked Questions
1. Is the SY-C021 Fetal Doppler probe waterproof?
Yes, the device features a high-sensitivity water-proof probe, making it durable and easy to clean during clinical or home use.
2. What type of display does this device use?
It is equipped with a 65mm × 50mm color and touch LCD screen for clear visualization of FHR data and curves.
3. Can I listen to the heartbeat through headphones?
Yes, the device supports both a built-in speaker and earphone connections for crystal clear, high-fidelity sound.
4. How is the device powered?
The SY-C021 uses a DC Ni-Mh rechargeable battery and is also compatible with AC 110V/220V power supplies.
5. Can the FHR data be stored?
Yes, it features automatic storage and playback of the FHR (Fetal Heart Rate) curve, along with USB functions for data transmission.
6. What is the ultrasound frequency of this doppler?
The device operates at a standard 2MHz ultrasound frequency with an intensity of less than 10mW/cm² for safety.
