New Portable Pocket Ultrasound Fetal Doppler for Baby Heartbeat

1 / 5

New Portable Pocket Ultrasound Fetal Doppler for Baby Heartbeat

Customization:	Available
Classification:	Imaging Diagnostic Equipment
Type:	Patient Monitor

Send Inquiry

Product Description

🔹 Basic Information

Model NO.

FD-200

Certification

CE, FDA, ISO13485

Group

Infants and Young Children

Power Supply

Built-in 9.6V Nickel-Hydrogen Battery

Sensitivity

12 Weeks Above

Ultrasonic Freq.

2/2.5/3+-0.25MHz

Display

Large LCD with Blue Back Light

Working Time

>6 Hours

Loudspeaker

Built-in & Clearly

Portable

Light Weight, Handset

HS Code

90189090

Origin

China

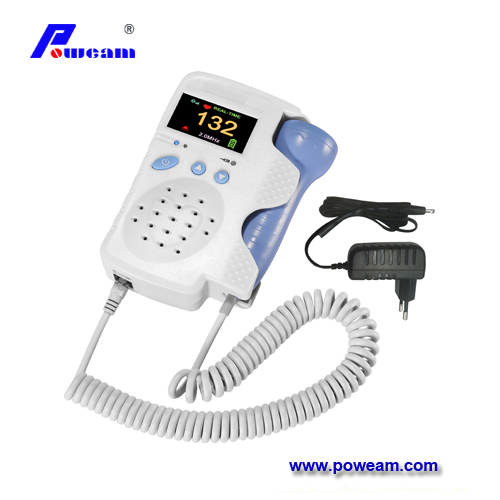

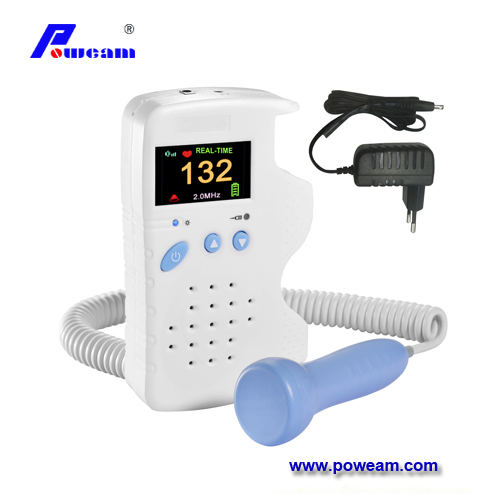

New Portable Pocket Ultrasound Fetal Doppler

✅
Continuous Doppler: High-precision continuous wave type.
✅
Color Display: Intuitive interface with backlight for easy reading.
✅
Smart Functions: Auto power off, battery indicator, and FHR curve display.
✅
Audio Output: Build-in speaker with volume adjustment and earphone support.
✅
Versatile Power: Compatible with Alkalinity or Ni-Mh batteries with in-device charging.
✅
Multiple Modes: Various work and display modes to suit clinical needs.

📊 Technical Specifications

LCD Display	Large display with blue back light
Safety Standard	Ultrasound dosage is under 50% of the standard
Portability	Light weight, handset, portable design
Loudspeaker	Built-in loudspeaker & crystal clear sound
Sensitivity	Monitor 12 weeks above unborn baby's blood wall pulsate
Ultrasonic Frequency	2/2.5/3+-0.25MHz
Ultrasonic Intensity	<10mW/cm2
Power Supply	Built-in 9.6V nickel-hydrogen rechargeable battery
Continuous Working Time	>6 hours
Working Temperature	10~40 ℃

Frequently Asked Questions

🔹 At what stage of pregnancy can the FD-200 be used?

The device is highly sensitive and can monitor the unborn baby's heartbeat from 12 weeks of pregnancy onwards.

🔹 Is the ultrasonic dosage safe for my baby?

Yes, the ultrasound dosage of this device is designed to be under 50% of the international safety standards, ensuring safe monitoring.

🔹 How long does the battery last on a full charge?

The built-in 9.6V nickel-hydrogen rechargeable battery provides more than 6 hours of continuous working time.

🔹 Can I listen to the heartbeat through headphones?

Yes, the device features an earphone jack in addition to the high-quality built-in loudspeaker.

🔹 What information is shown on the LCD screen?

The large blue backlit LCD displays the Fetal Heart Rate (FHR), battery status, volume levels, and FHR curves depending on the mode selected.

🔹 Is the device easy to carry for home visits?

Absolutely. The FD-200 is designed as a lightweight, handset-style portable device, making it ideal for both clinical and home use.
