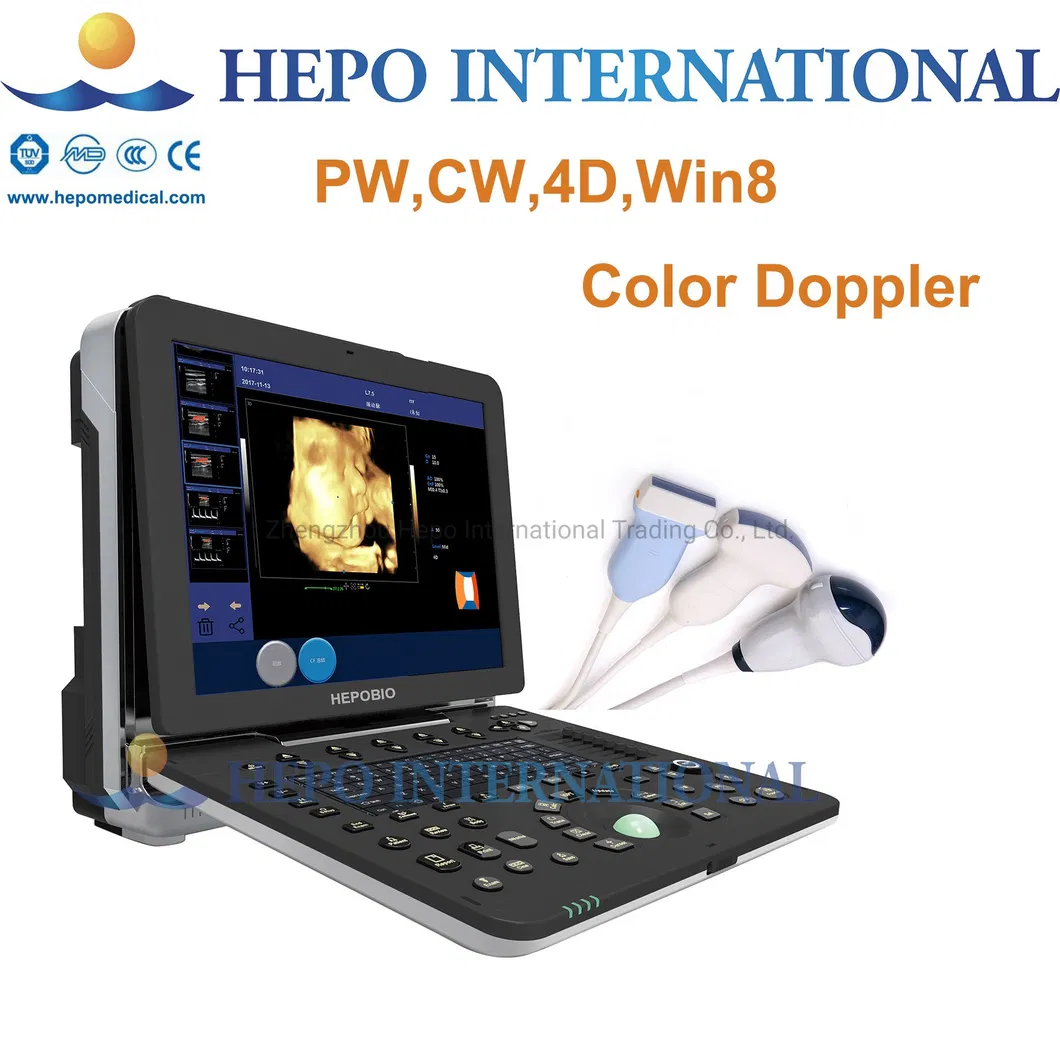

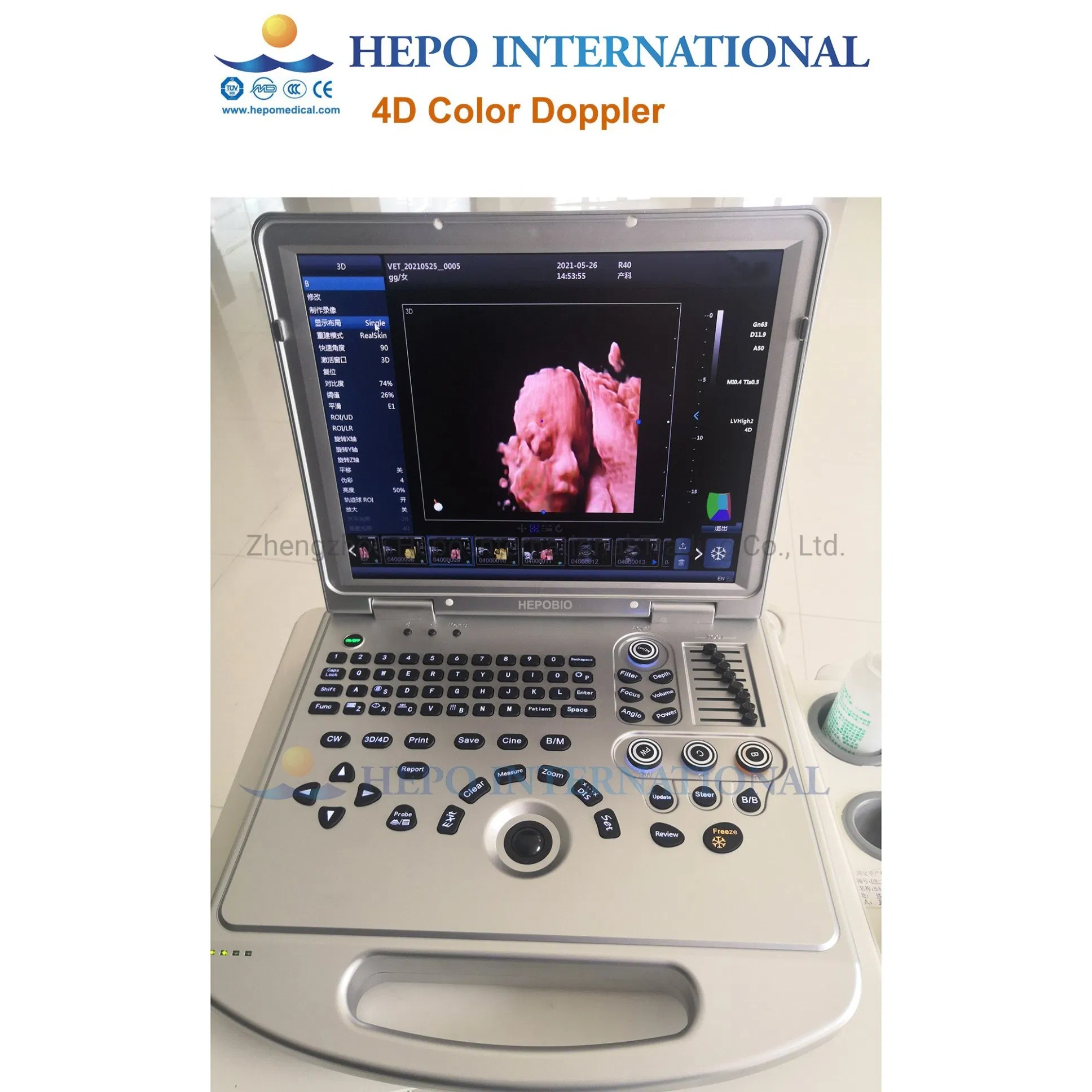

The HP-UC650 Laptop HD 4D Color Doppler is an updated 128-elements laptop ultrasound system. The enhanced PW/CW functions and 4D real-skin technology make this machine significantly better for cardiac examinations. Utilizing high-precision digital beam forming and Doppler ultrasonic imaging technology, it incorporates the latest image processing such as THI, speckle reduction, and multi-beam parallel processing. The integrated ergonomical design and special measurement software packages increase clinical diagnosis accuracy and analysis efficiency.
| Probe Options |
• Convex probe: 2.5MHz - 5.0MHz (Depth: 20-317MM) • Linear probe: 6.0MHz - 10.0MHz (Depth: 20-110MM) • Transvaginal probe: 4.5MHz - 9.0MHz (Depth: 30-111MM) • Phased array probe: 2.5MHz - 4.0MHz (Depth: 30-371MM) • Volume probe: 2.0MHz - 6.0MHz (Depth: 30-237MM) |
| B Mode | Gain: 0-100; TGC: 8 segment; Dynamic range: 20-280dB; Pseudo color: 12 levels; Maximum focus number: ≥6. |

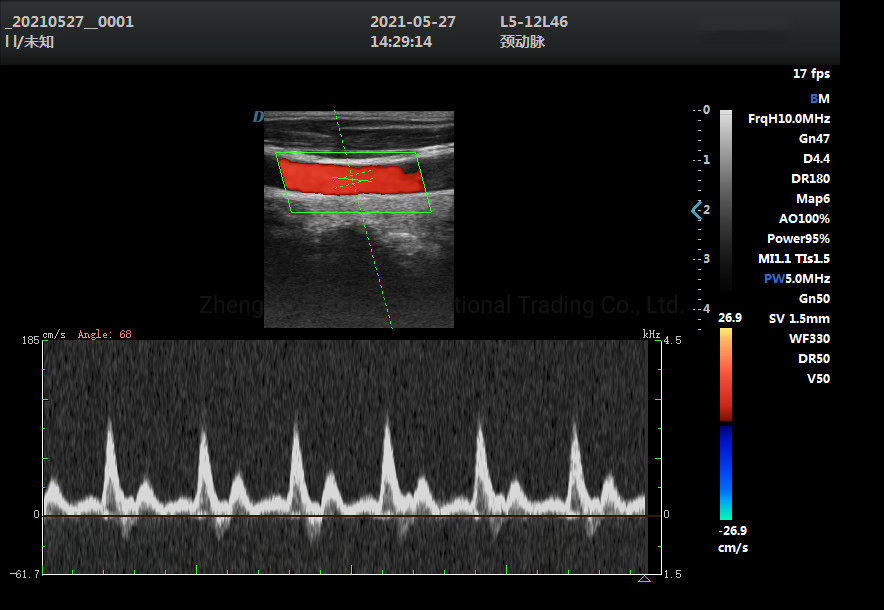

| Color Doppler | Colour deflection; Color frame correlation: 12 levels; Color map: 8; B/C split screen synchronous display. |

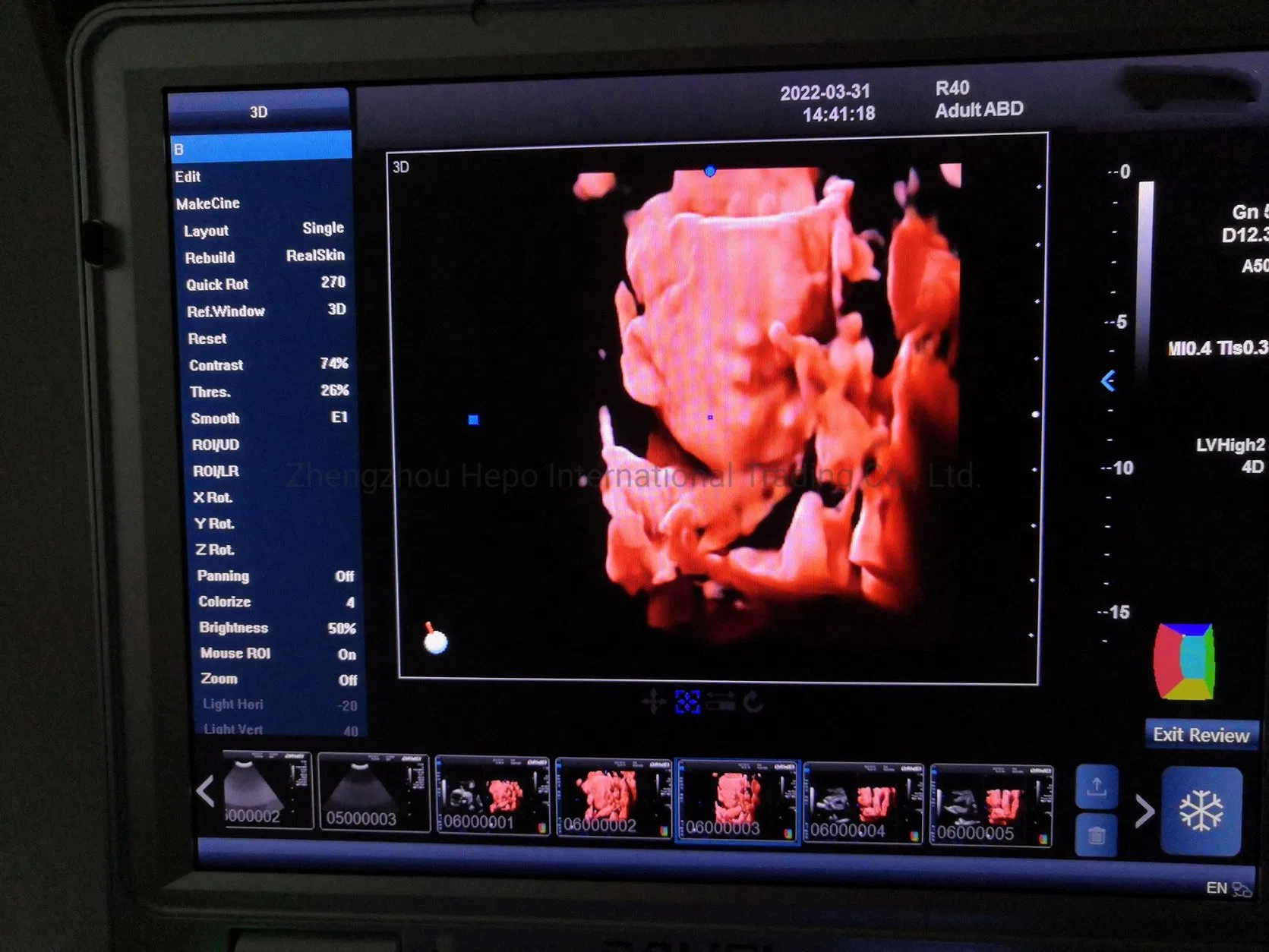

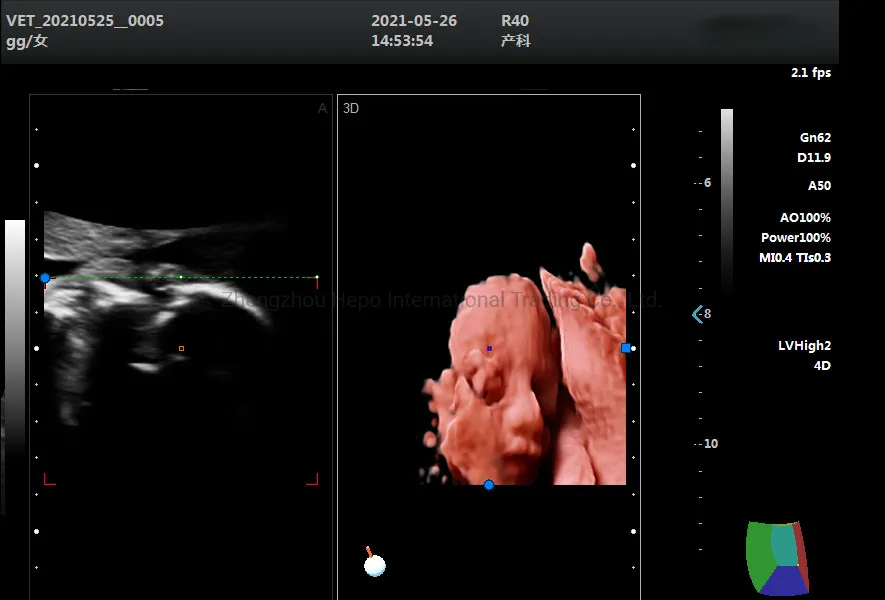

| 3D/4D Mode | Reconstruction mode: RealSkin, Surface, Max, Min, XRax; Fast angle rotation (0°, 90°, 180°, 270°); Image zoom: 5 levels. |
| Management | Internal 128G SSD; Movie playback: ≥ 600 frames; Image format: BMP, DICOM, JPEG; 18+ types of reports. |
| Interface | USB port: 2; Audio port: 1; LAN port: 2; HDMI port: 1. |
