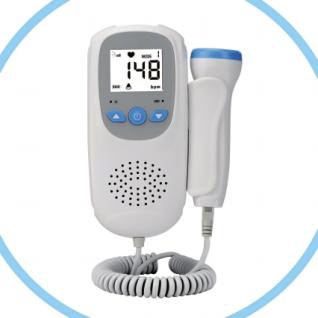

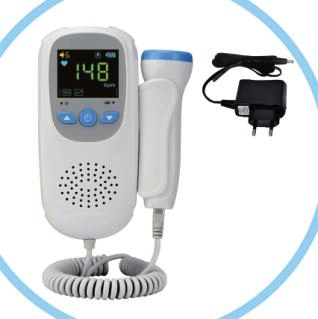

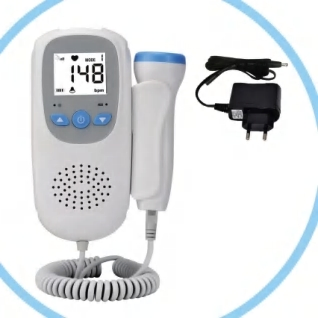

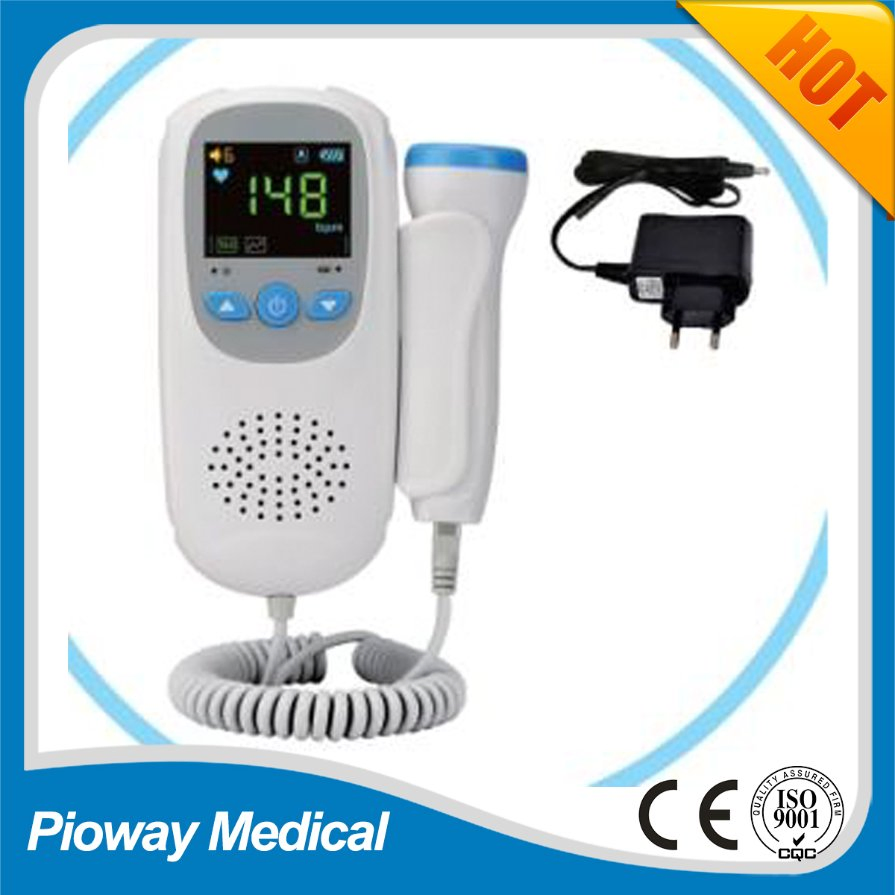

Portable Heartbeat Fetal Doppler Baby Heart Monitor for Pregnancy FD-610
Basic Information
Certification
CE, ISO13485
Product Name
Fetal Doppler
Probe Options
2.5MHz, 3MHz
Power Supply
Alkalinity Battery

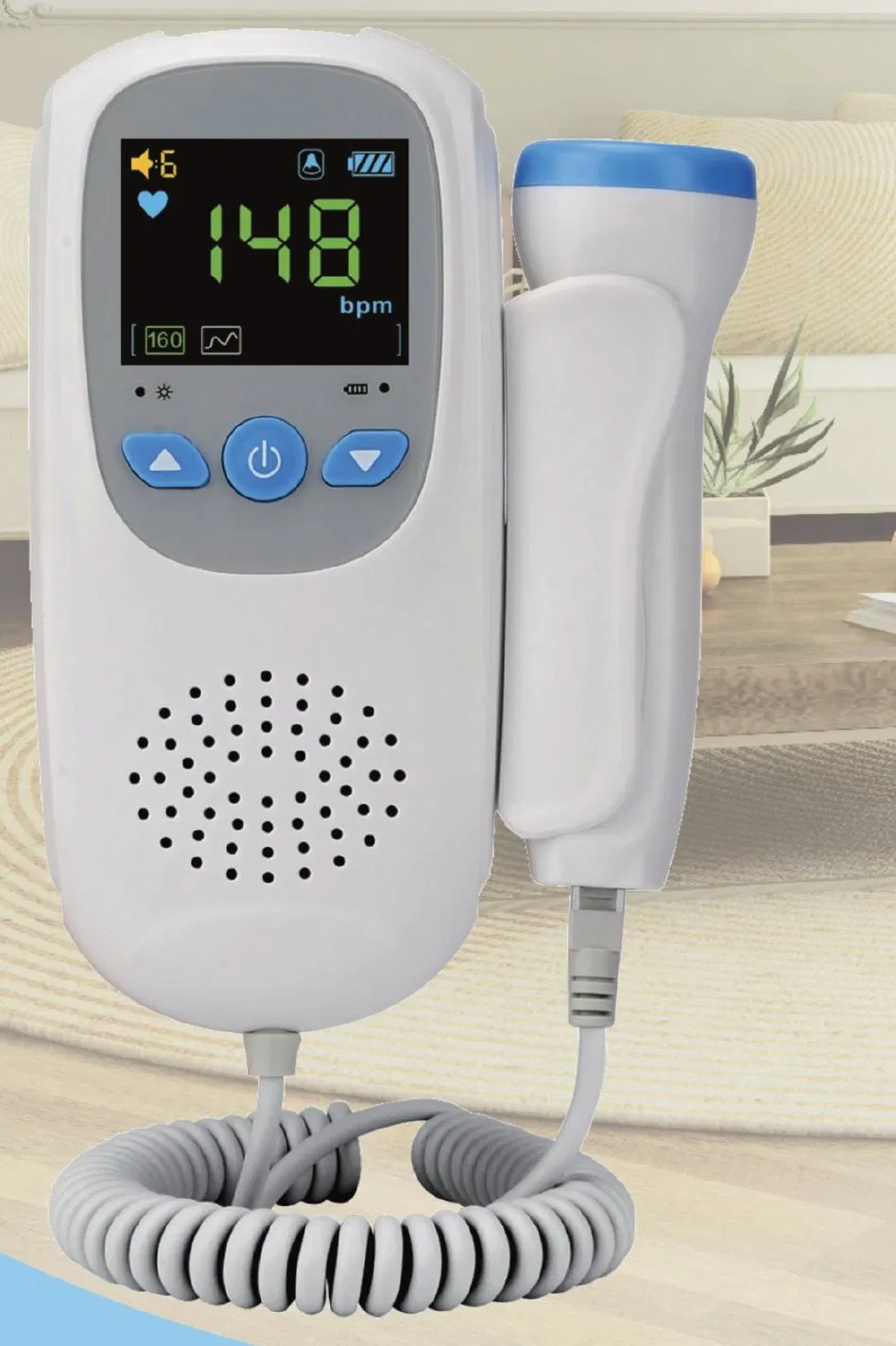

Product Usage
FD-610 ultrasonic fetal doppler meets the fetus daily check and routine examination at home, clinic, community and hospital. The probe can be configured as 2MHz, 2.5MHz or 3MHz to suit different clinical needs.
Key Features
- Easy and convenient operation for home or clinical use
- High-fidelity, crystal clear sound output
- Compatible with both earphone and built-in speaker
- High sensitivity Doppler probe for accurate detection
- Safety-first design with low ultrasound dosage
- Visual display with high-resolution color LCD
- Unique ergonomic design for comfortable handling
Technical Specifications
| Ultrasound Frequency | 2MHz |
| Ultrasound Intensity | <10mW/cm2 |
| Power Supply | Alkalinity battery |
| Display Area | 45mm × 25mm LCD |
| FHR Measuring Range | 50 ~ 240bpm |
| FHR Resolution | 1bpm |
| FHR Accuracy | ±1bpm |
| Power Consumption | <1W |
| Dimensions | 135mm × 95mm × 35mm |
| Weight | 500g |
Configuration & Options
Standard Configuration:
- Main Body
- Alkalinity Battery
- 2MHz Probe
Optional Accessories:
- Earphone
- 2.5MHz or 3MHz Probe
- Carry Bag

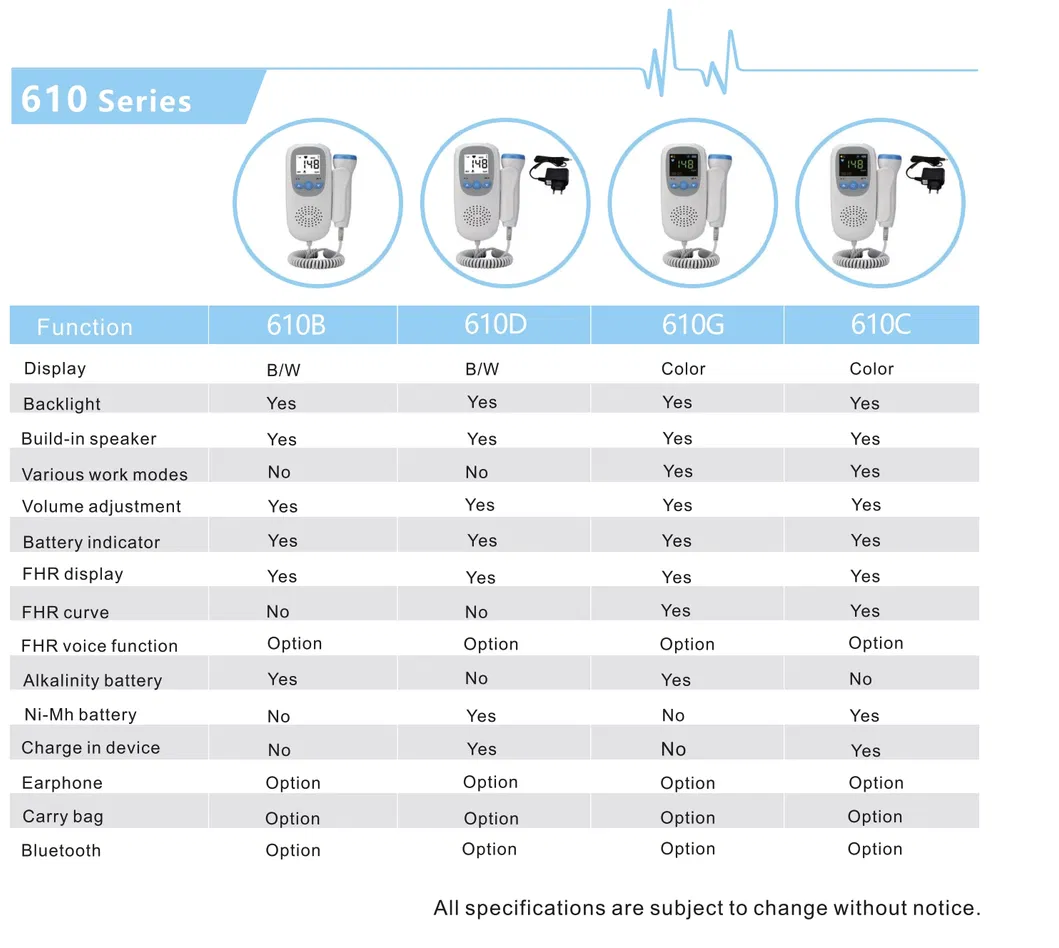

Series Comparison Table
Frequently Asked Questions
When can I start using the FD-610 Fetal Doppler at home?
Most users can begin to hear the baby's heartbeat from the 12th week of pregnancy, though it may vary depending on the fetus's position and the user's body type.
Is the ultrasound intensity safe for daily checks?
Yes, the device is designed with an ultrasound intensity of less than 10mW/cm2, which follows safety standards for routine fetal examination.
Can I use different probes with this model?
The FD-610 supports interchangeable probes. While the 2MHz probe is standard, 2.5MHz and 3MHz probes are available as options for different diagnostic needs.
How do I read the Fetal Heart Rate (FHR)?
The real-time Fetal Heart Rate is clearly displayed on the 45mm x 25mm LCD screen in beats per minute (bpm), with an accuracy of ±1bpm.
Does the device require a professional to operate?
No, the FD-610 features a unique ergonomic design and simple interface, making it easy for expectant parents to operate at home after reading the instructions.
What kind of batteries does it use?
The device is powered by standard alkalinity batteries, ensuring it is portable and easy to maintain without searching for specialized chargers.
