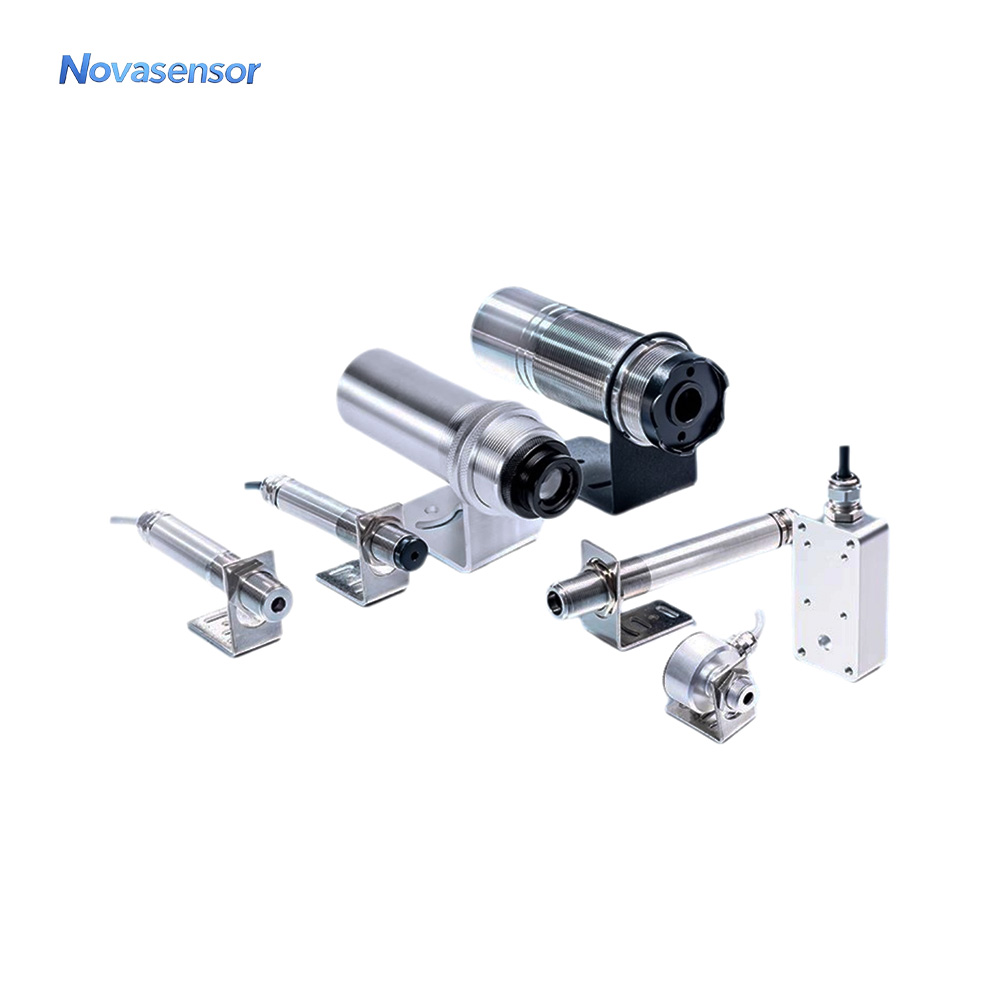

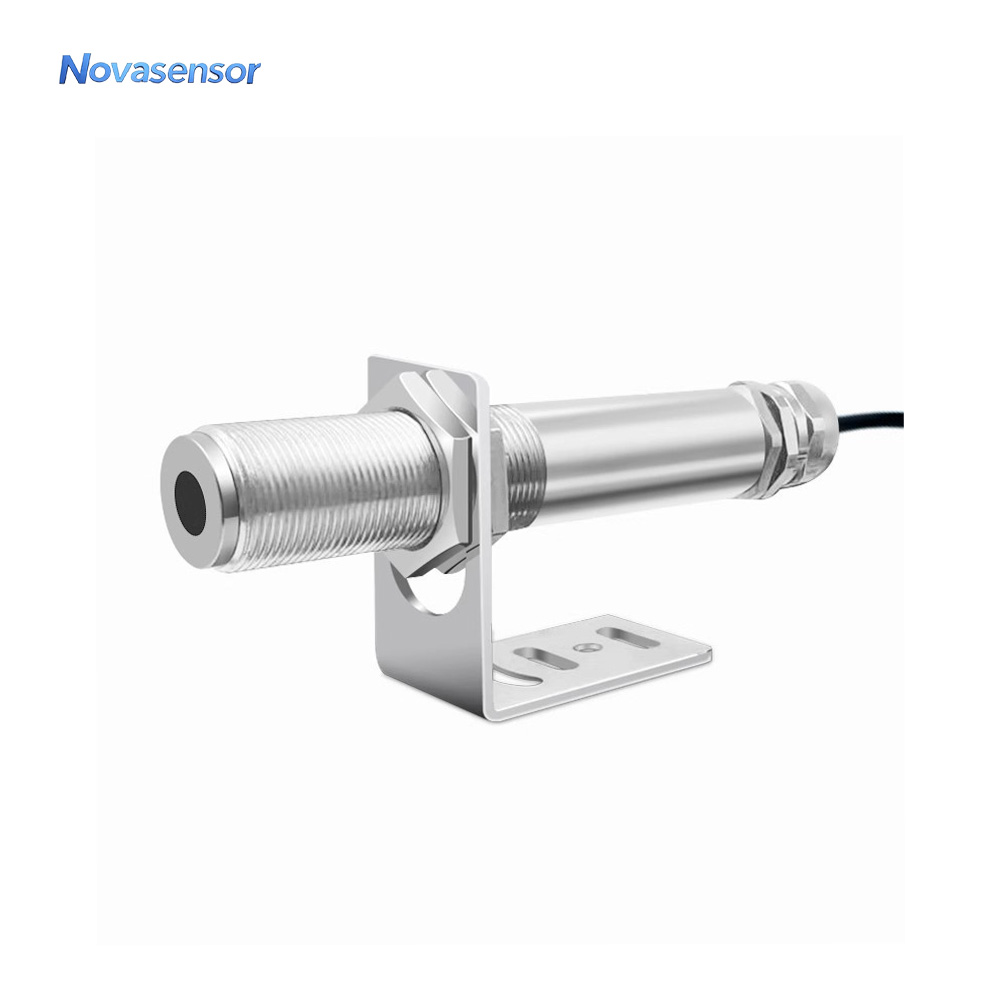

Non-contact Infrared Temperature High Range Temperature Non Contact Type IR Sensor Temperature Infrared

Product Description

Feature Highlights

The infrared temperature sensor delivers high precision measurement with ±1% accuracy and a temperature range of 0-200℃, ideal for industrial monitoring. Its durable stainless steel sheathing ensures reliable performance in harsh environments, while the compact 18*117MM design enhances portability. Supporting both OEM and ODM customization, it offers flexible sourcing options with low MOQ and fast sample service, meeting diverse operational needs efficiently.

Supplier Capabilities

This supplier offers full customization, design customization, and sample customization services. All products come with established certifications, maintaining a positive review rate of 100.0%. Specializing in international exports to key markets including Australia, Brazil, and Mexico.

Technical Specifications
Spectral range8-14 μm
Temperature range-30~1300℃ (Sections can be selected within the temperature range)
Optical resolution20:1
Response timeDefault 200 ms (95%)
AccuracyMeasured value ± 1.5% or ± 2 ℃, take the maximum value.
Repetitive accuracyMeasured value ± 0.5% or ± 1 ℃
Emissivity0.95
Protection levelIP65 (NEMA-4)
Environmental temperature0-60°C
Relative humidity10 -95%
MaterialStainless steel
Cable length2.0m (standard) or customized
Product Gallery

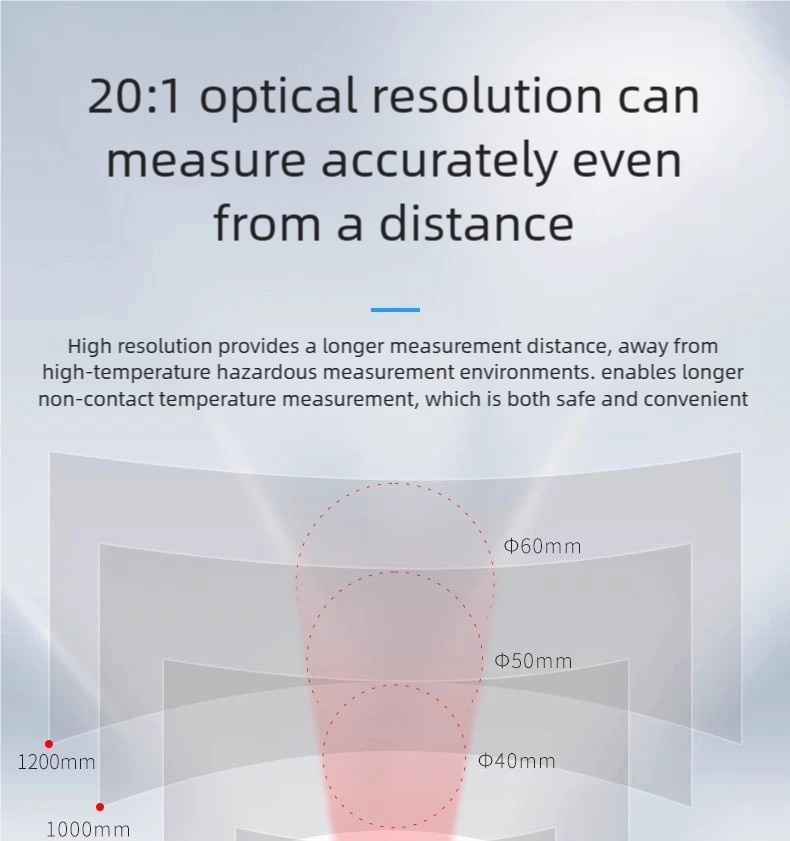

Infrared sensor detail 1

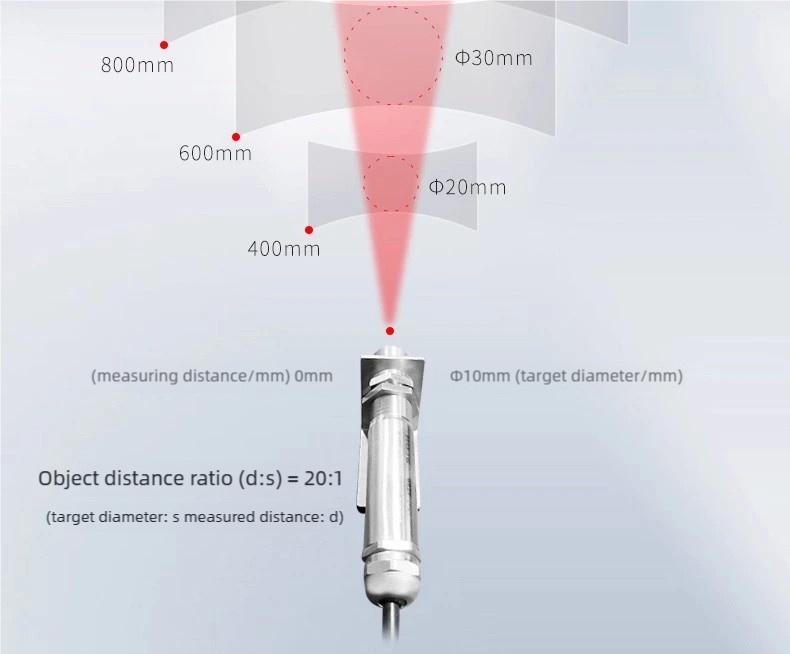

Infrared sensor detail 2

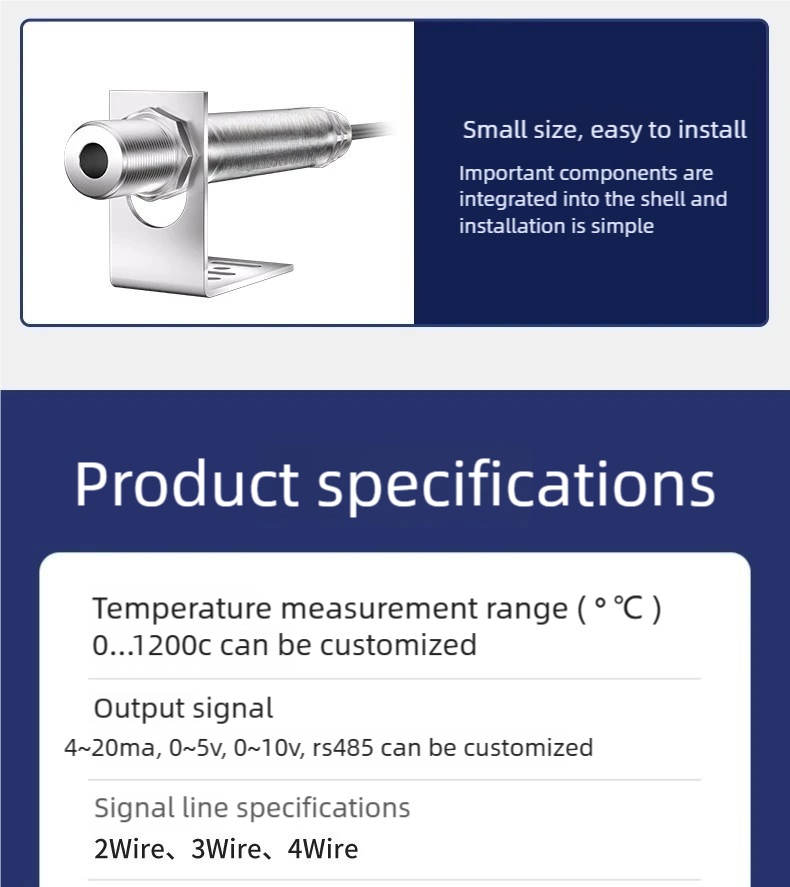

Infrared sensor detail 3

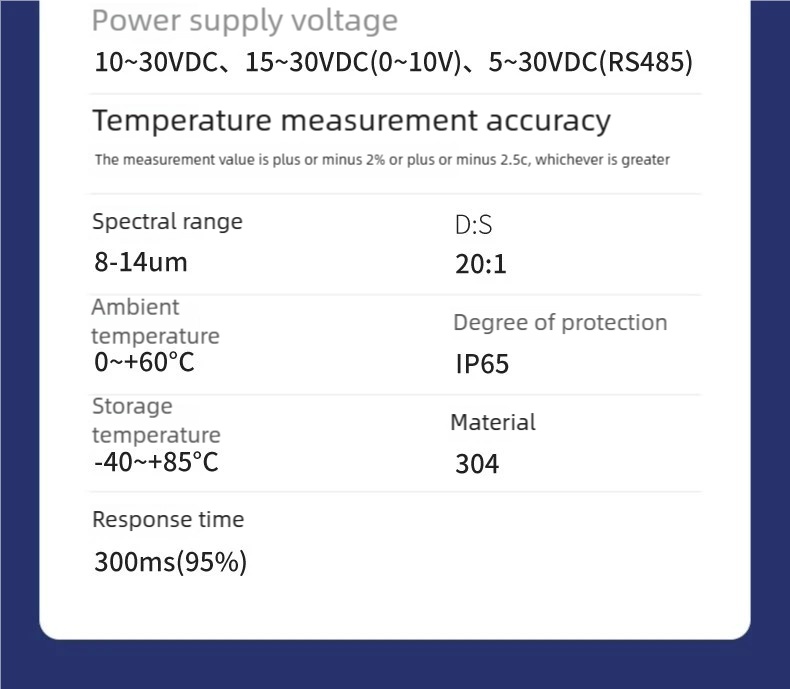

Infrared sensor detail 4

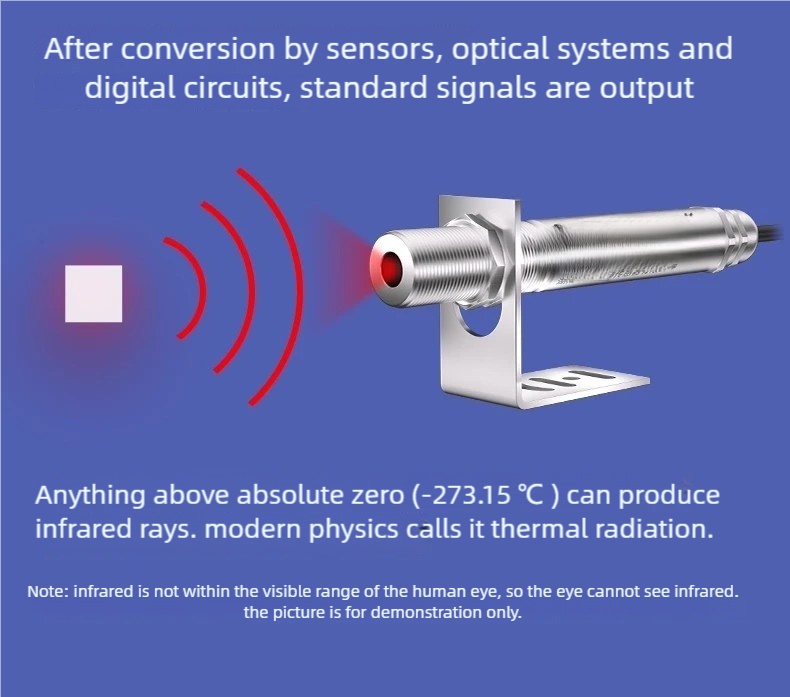

Infrared sensor detail 5

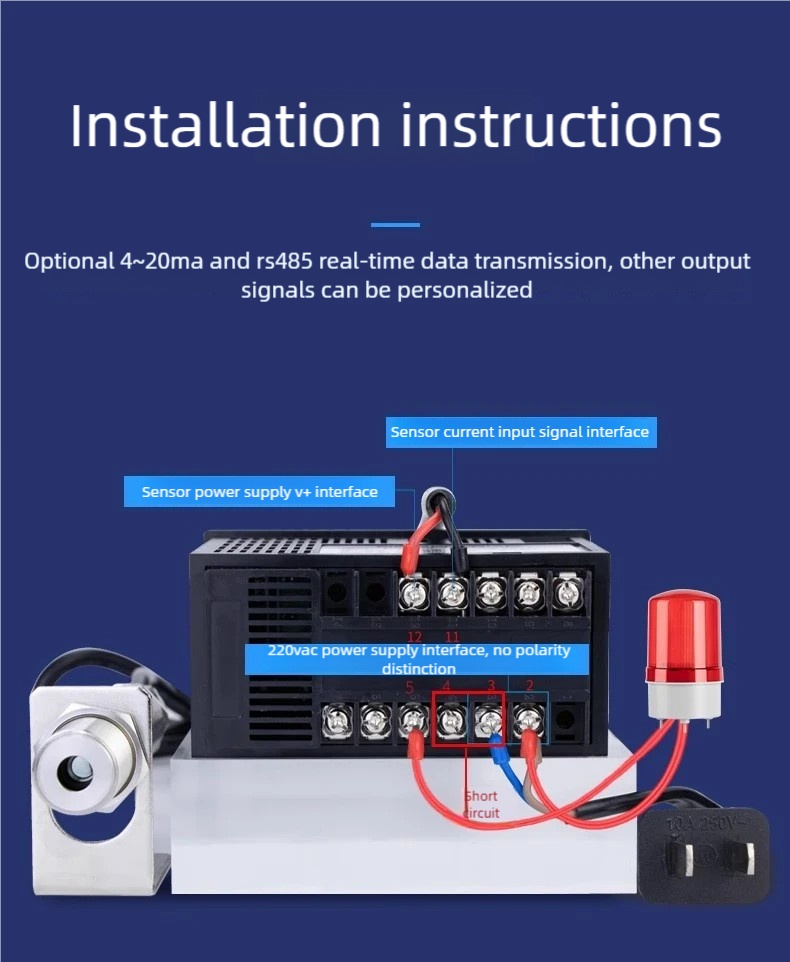

Infrared sensor detail 6

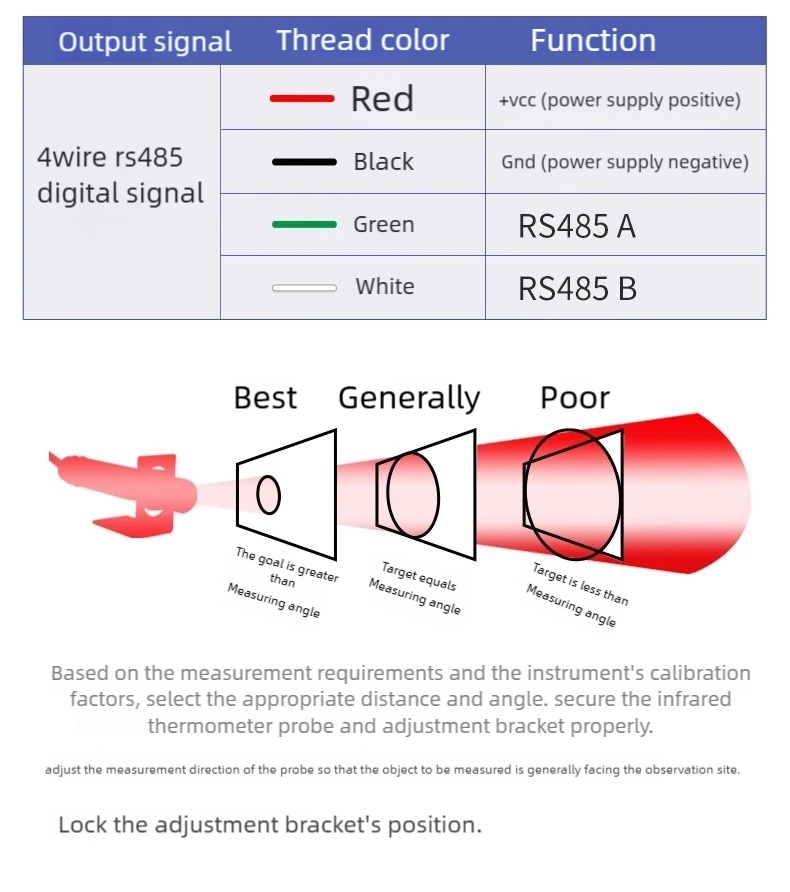

Infrared sensor detail 7

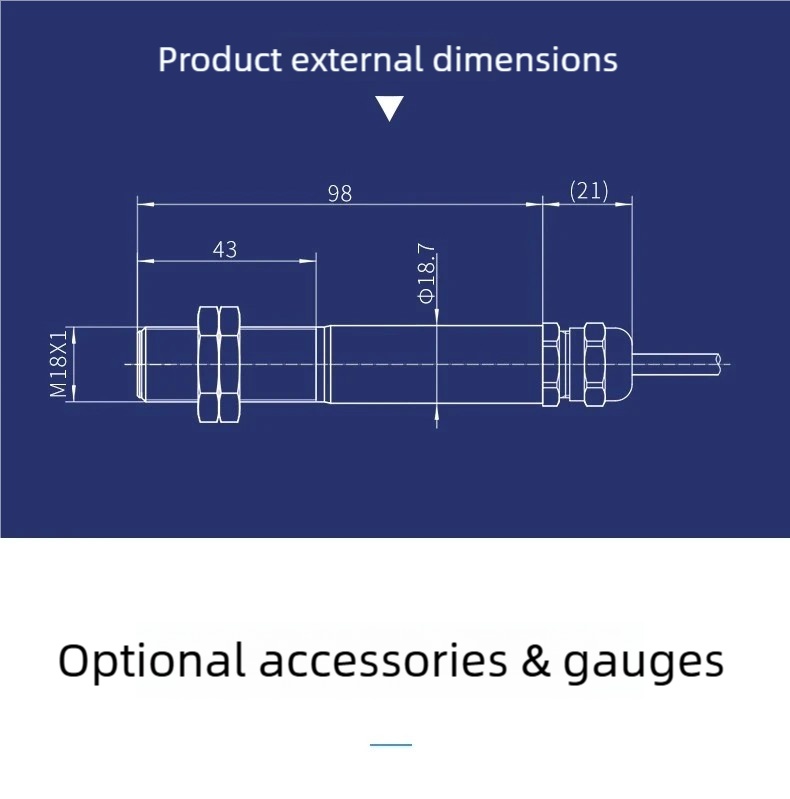

Infrared sensor detail 8

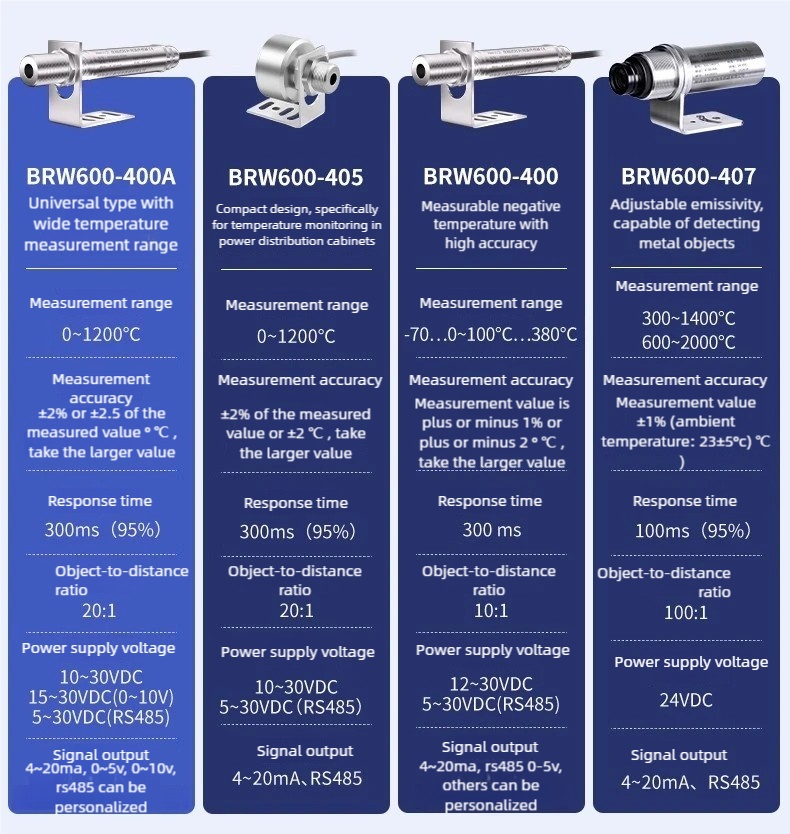

Infrared sensor detail 9

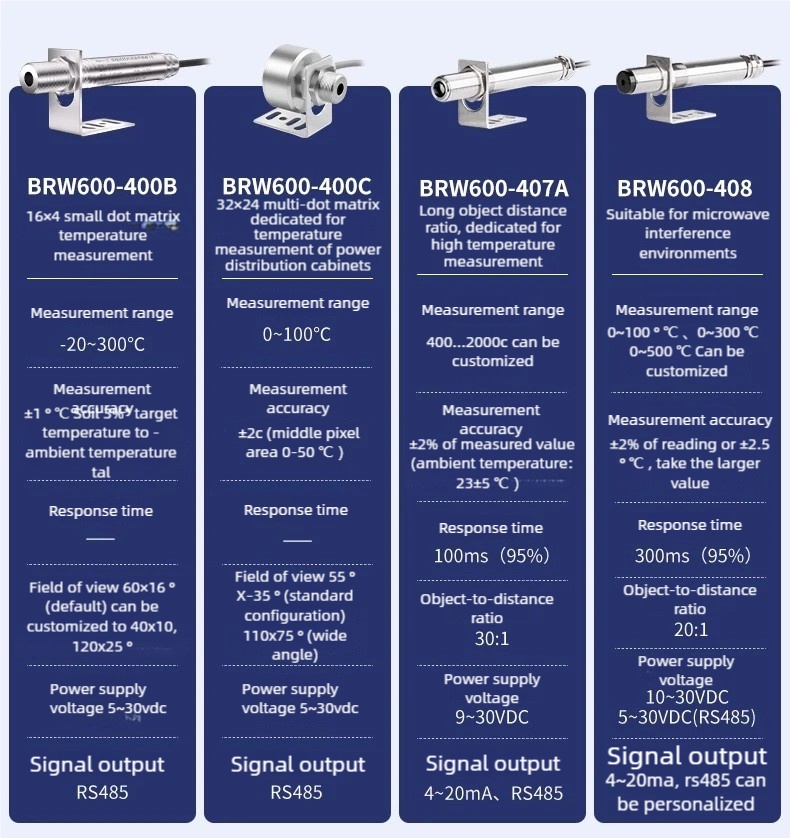

Infrared sensor detail 10

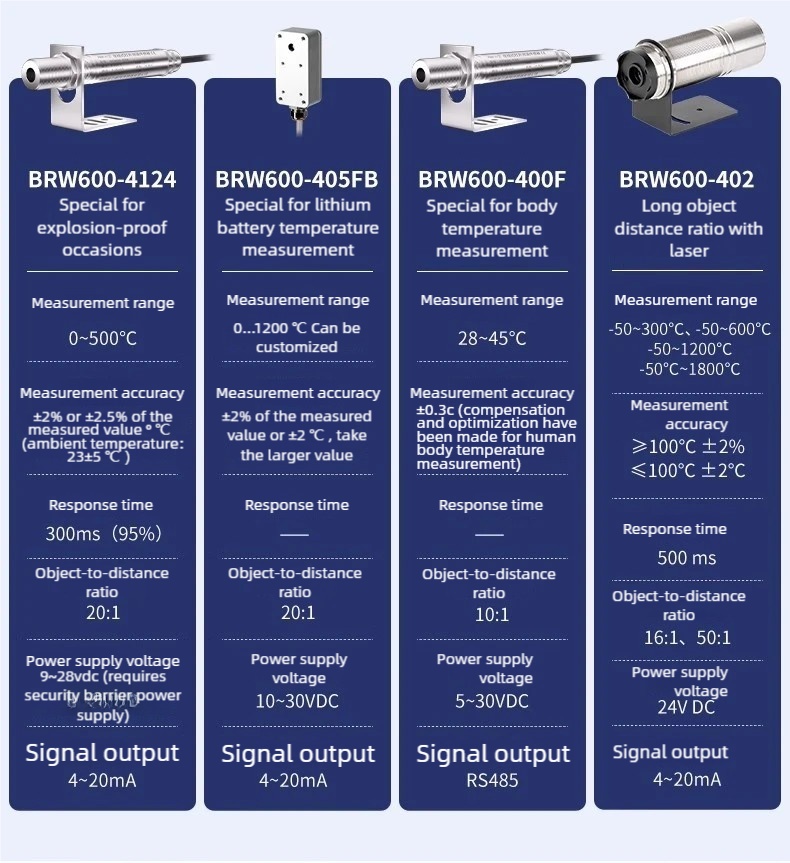

Product Application

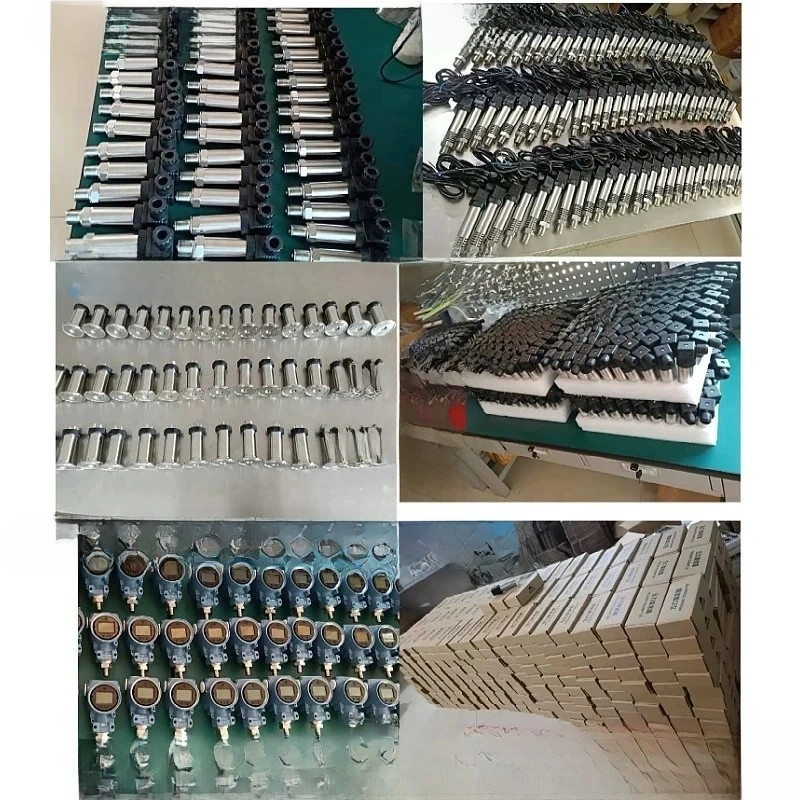

Feature Graphic 1
Feature Graphic 2
Feature Graphic 3
Dimension Drawing
Installation Guide
Frequently Asked Questions
1. What is the temperature measurement accuracy of this sensor?
The sensor provides a measurement accuracy of ±1.5% or ±2℃ (whichever is greater) and a repetitive accuracy of ±0.5% or ±1℃.
2. Is the sensor suitable for outdoor or harsh environments?
Yes, the sensor features a durable stainless steel housing and has an IP65 (NEMA-4) protection rating, making it dust-tight and water-resistant.
3. Does this product support customization?
We offer full OEM and ODM support, including design customization, sample customization, and adjustable cable lengths to meet your specific requirements.
4. What is the response time of the infrared sensor?
The default response time is 200 ms at 95%, allowing for fast and efficient temperature monitoring in industrial processes.
5. What materials are used in the sensor construction?
The sensor is primarily constructed from high-quality stainless steel for enhanced durability and corrosion resistance.
6. What is the optical resolution and measurement range?
The optical resolution is 20:1, and while the standard operating range is 0-200℃, the sensor can support ranges between -30 and 1300℃ based on specific selection.
