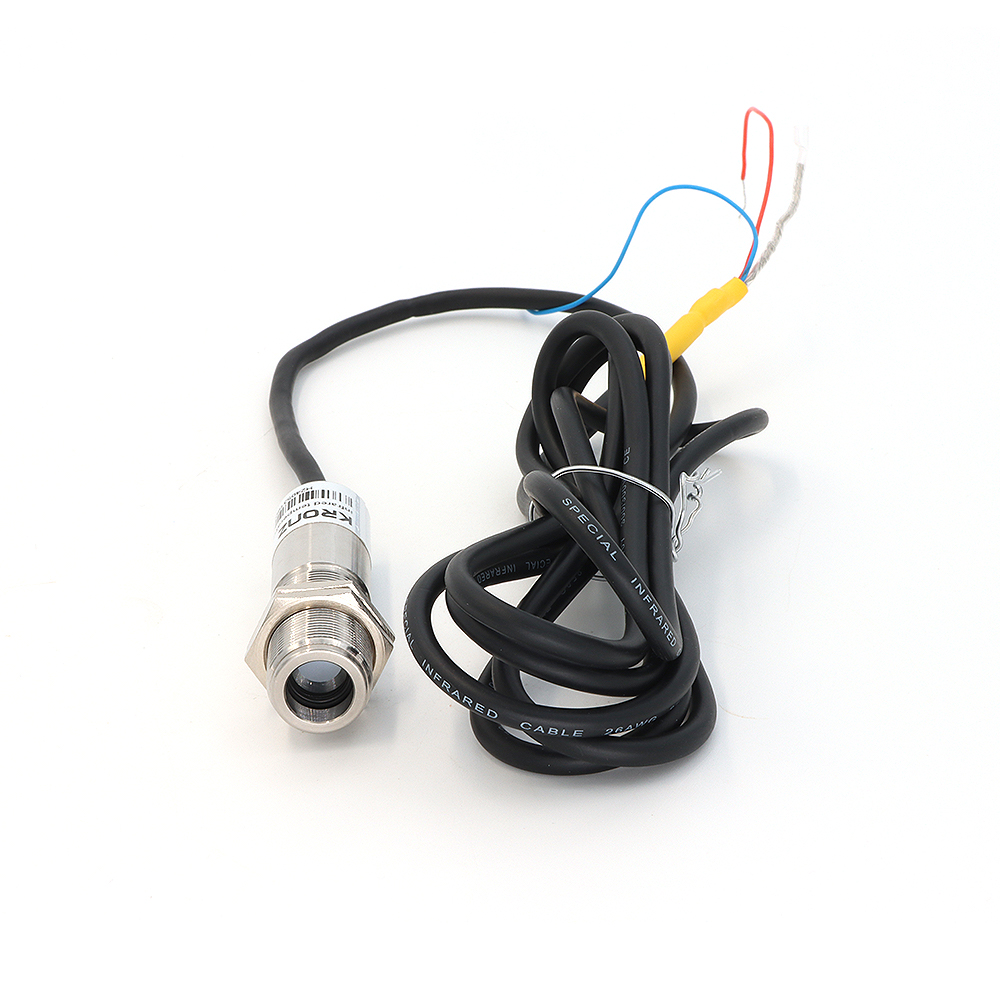

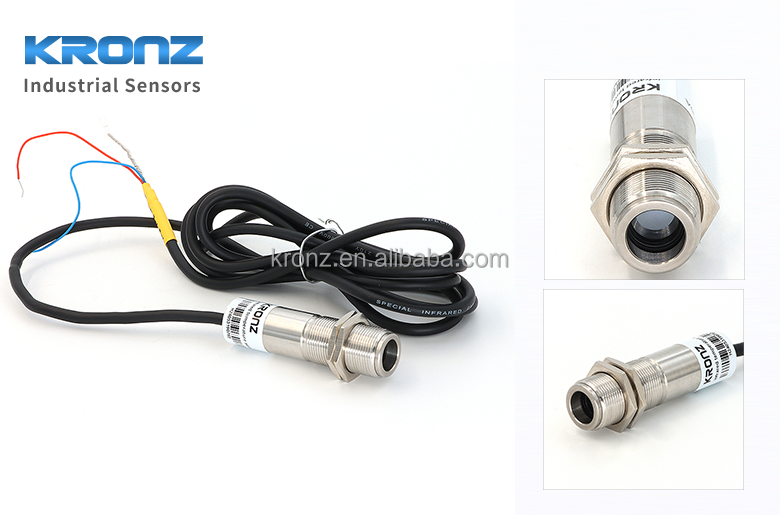

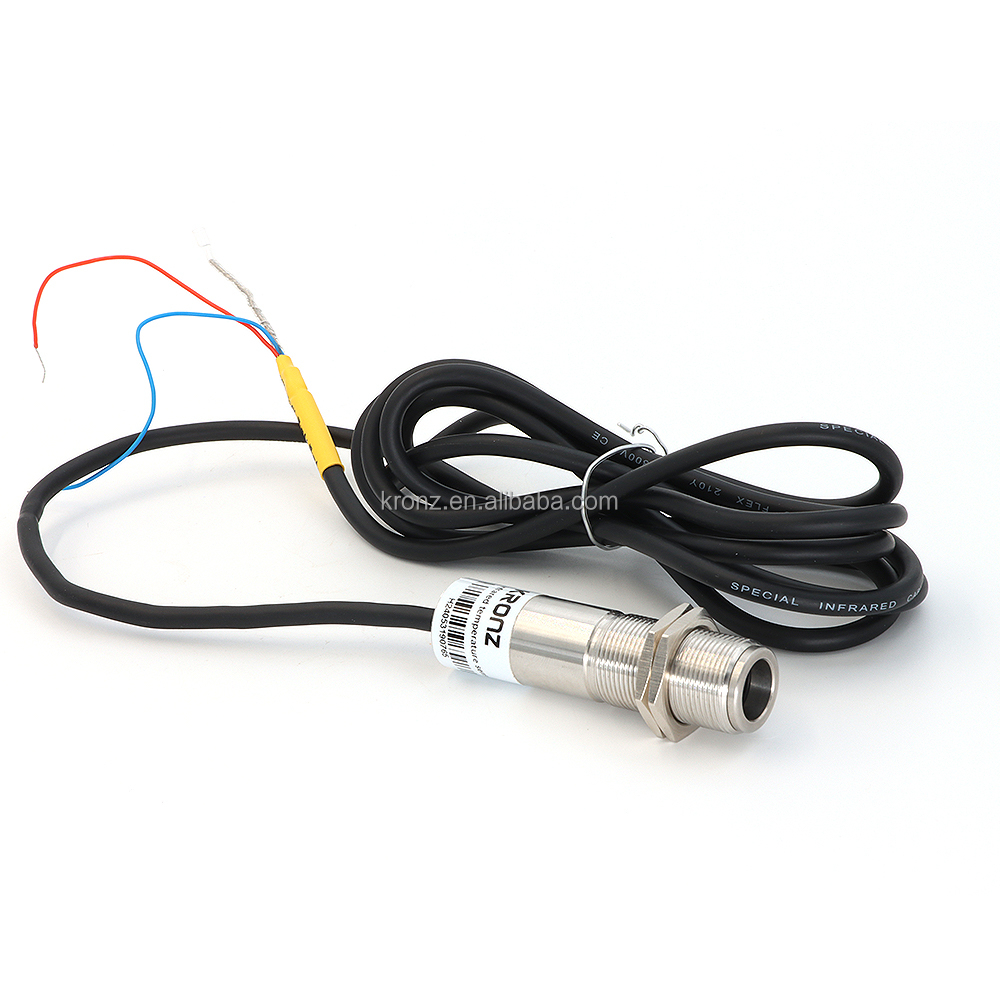

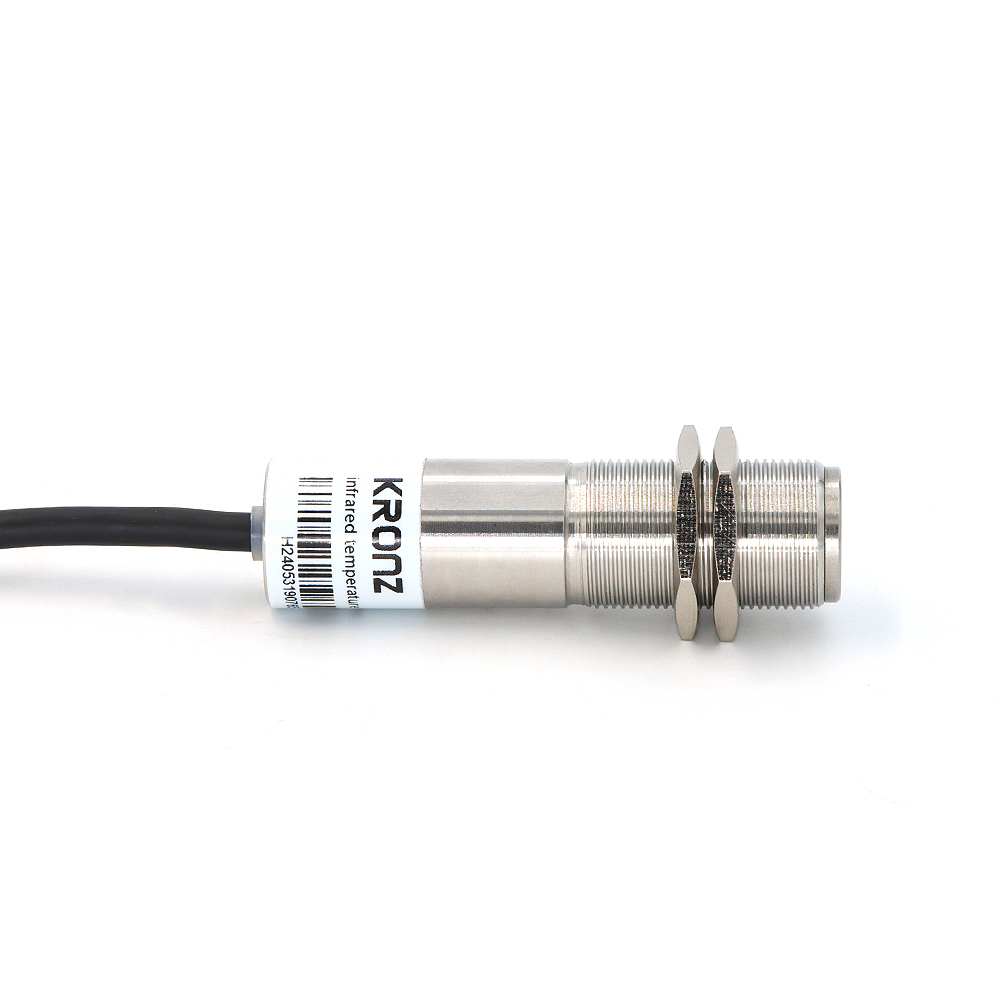

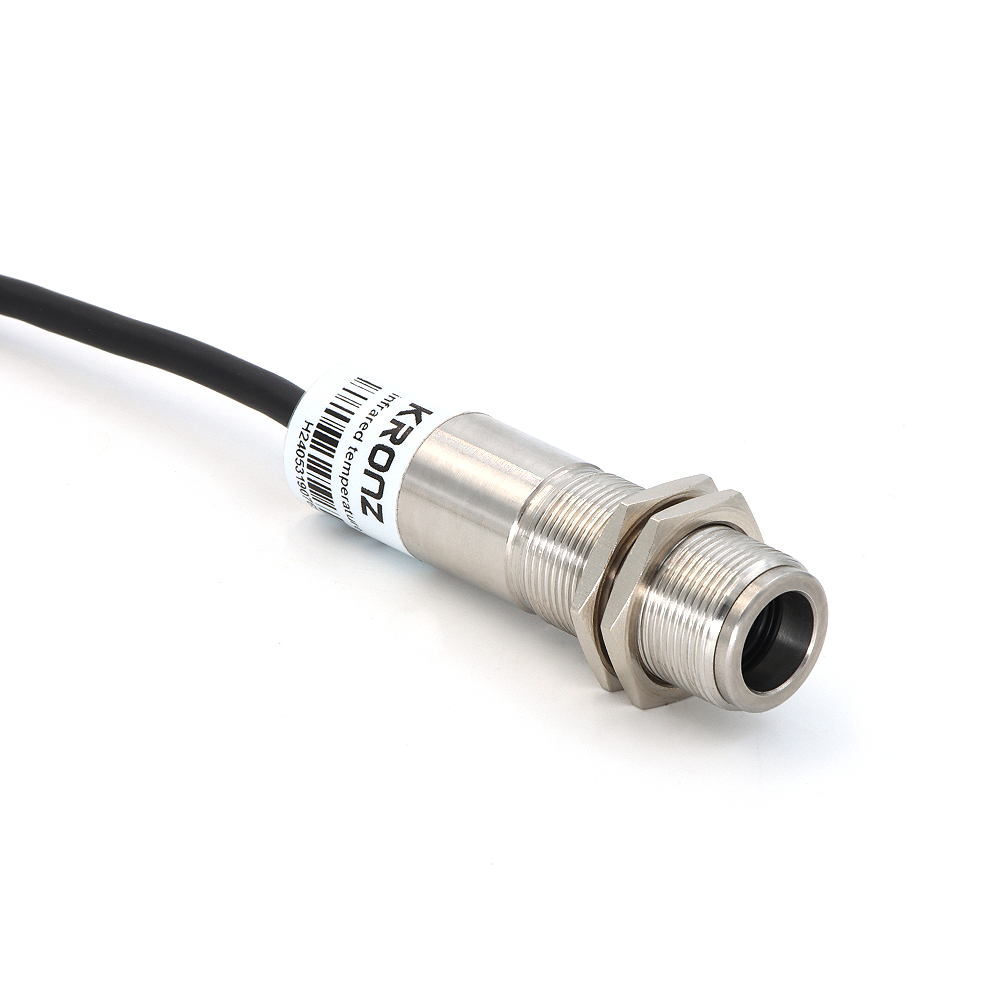

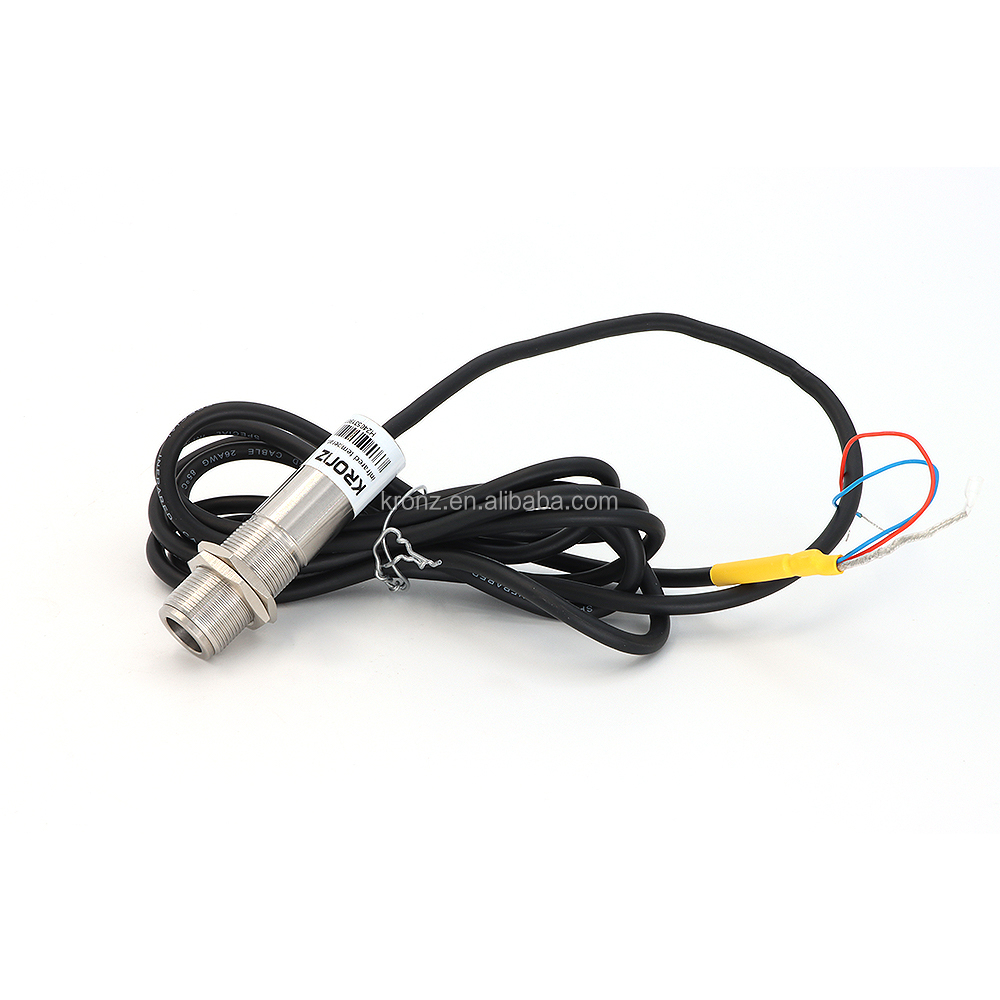

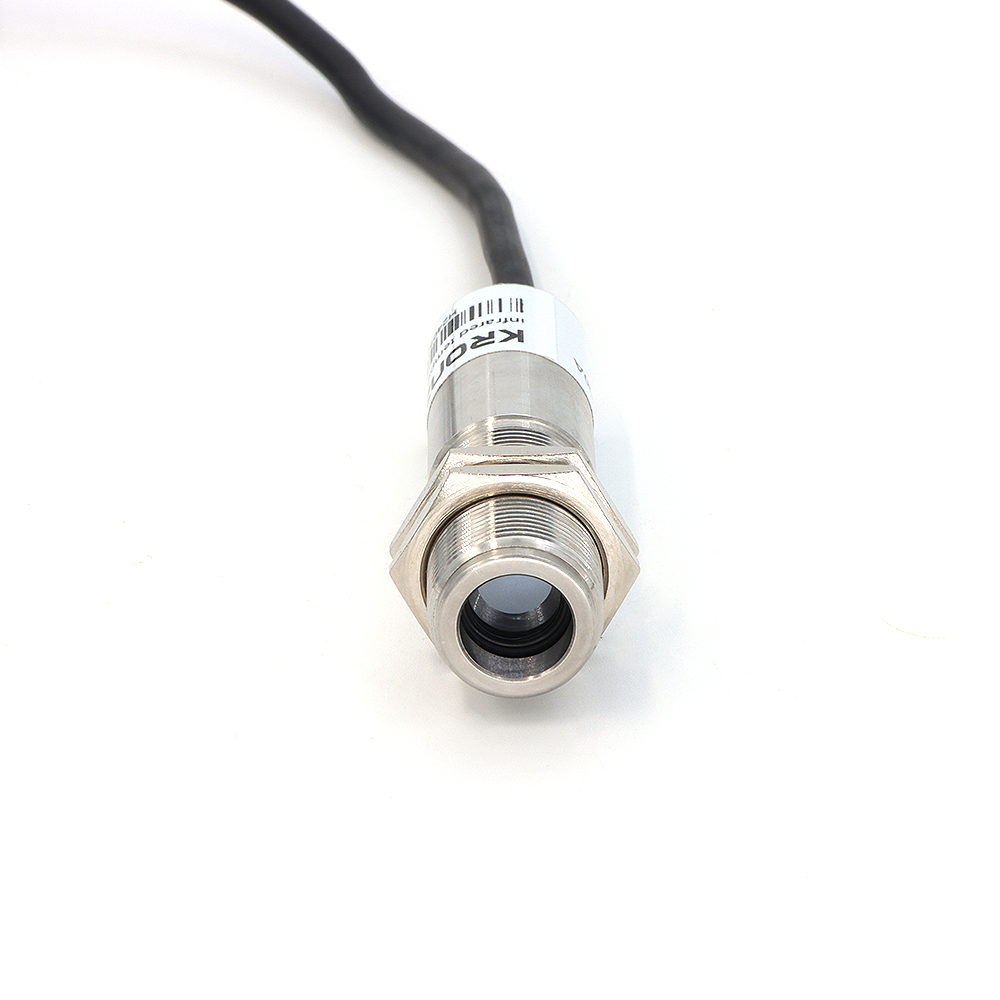

Highly cost-effective, versatile, compact, and easy to install. Adaptable to a variety of work environments, providing outstanding temperature measurement results. It is an ideal choice for OEMs (system integrators) and end users.
Specifically designed for equipment with a temperature range of -20 to 1200°C (segmentable). Encased in a standard 304 stainless steel protective shell for extreme durability. It withstands ambient temperatures up to 60°C without additional cooling.
Features a special integrated design compatible with four-wire, three-wire, and two-wire systems. Users can switch systems easily without tools, facilitating seamless integration with various supporting equipment. Enhanced anti-interference technology ensures stable operation in complex electromagnetic environments.
| Product Features | |
| Probe length | Only 68mm |
| Wide measuring range | -20-1200°C (Segmentable) |
| Shell | Standard 304 stainless steel |
| Optical resolution | 20:1 (at 90% energy) |
| Response time | 75 milliseconds (95% response) |
| Voltage | 12-24V DC ultra wide voltage |
| Thermometer Parameters | |
| Environmental level | IP64 |
| Ambient temperature | 0-60°C |
| Storage temperature | -20-80°C |
| Relative humidity | 10-95%, no condensation |
| Dimensions | M18*1 |
| Total length | 68mm |
| Weight | 128g |
| Measurement Parameters | |
| Temperature range | 0-500°C (can be segmented) |
| D:S | 20:1 |
| Response wavelength | 8-14μm |
| Measurement accuracy | ±1.5% of value or ±2.5°C |
| Repeatability | ±1°C of measured value |
| Emissivity | Fixed 0.95 or 1.0 (default 1.0) |
| Resolution | 1°C |
| Electronic Parameters | |
| Output | 4-20mA |
| Cable length | 2 meters standard (customizable) |
| Output impedance | 50 ohms (@24V DC) |
| Power supply | 12-24V DC, 20mA |
| Wire system | 4/3/2 wire systems switchable |

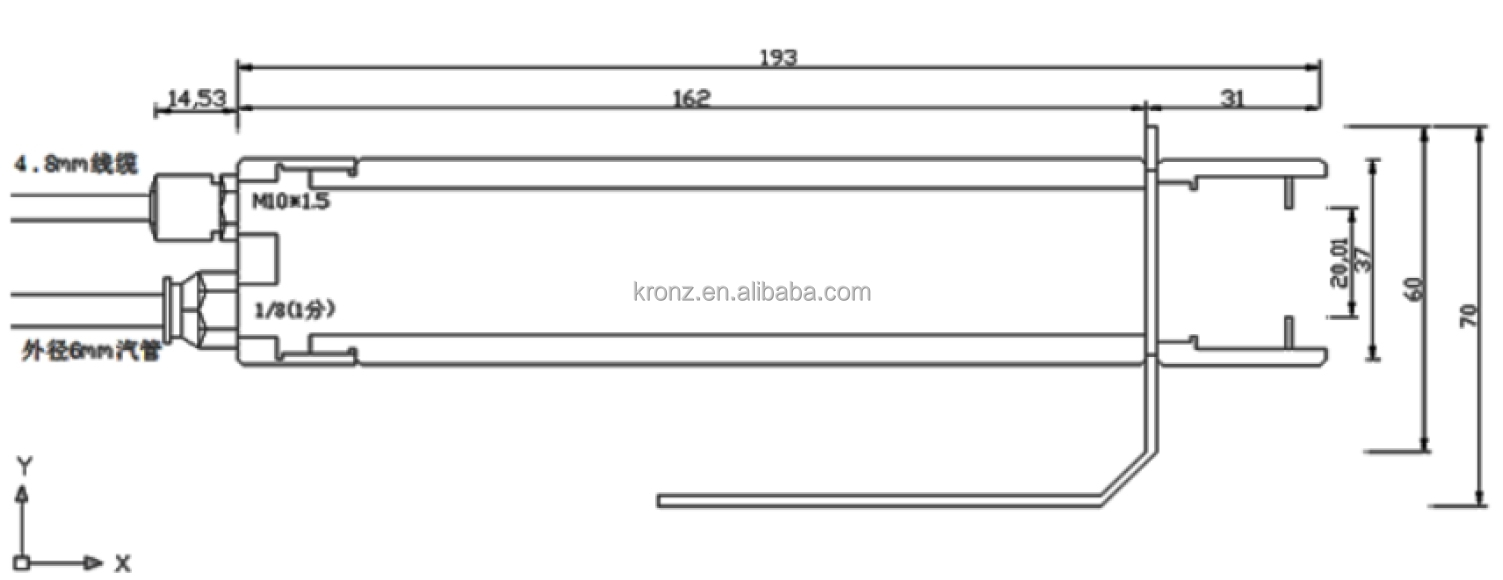

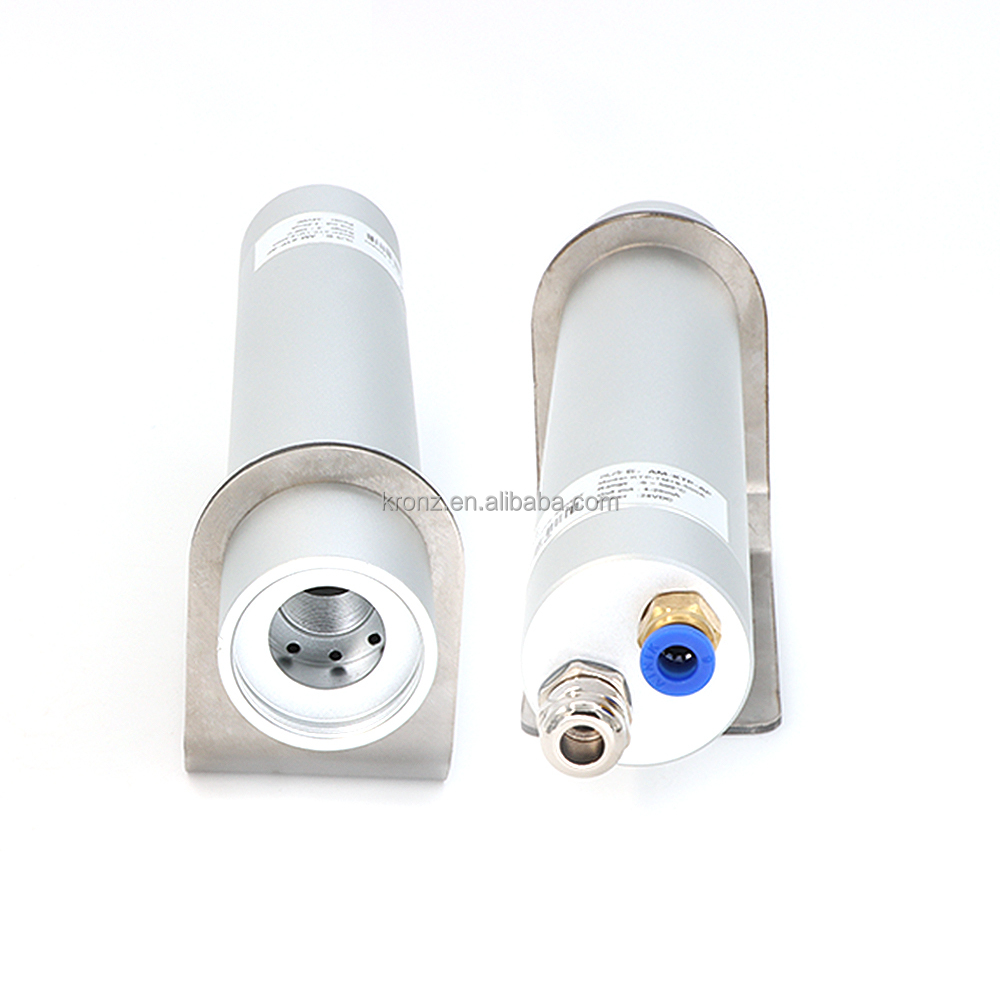

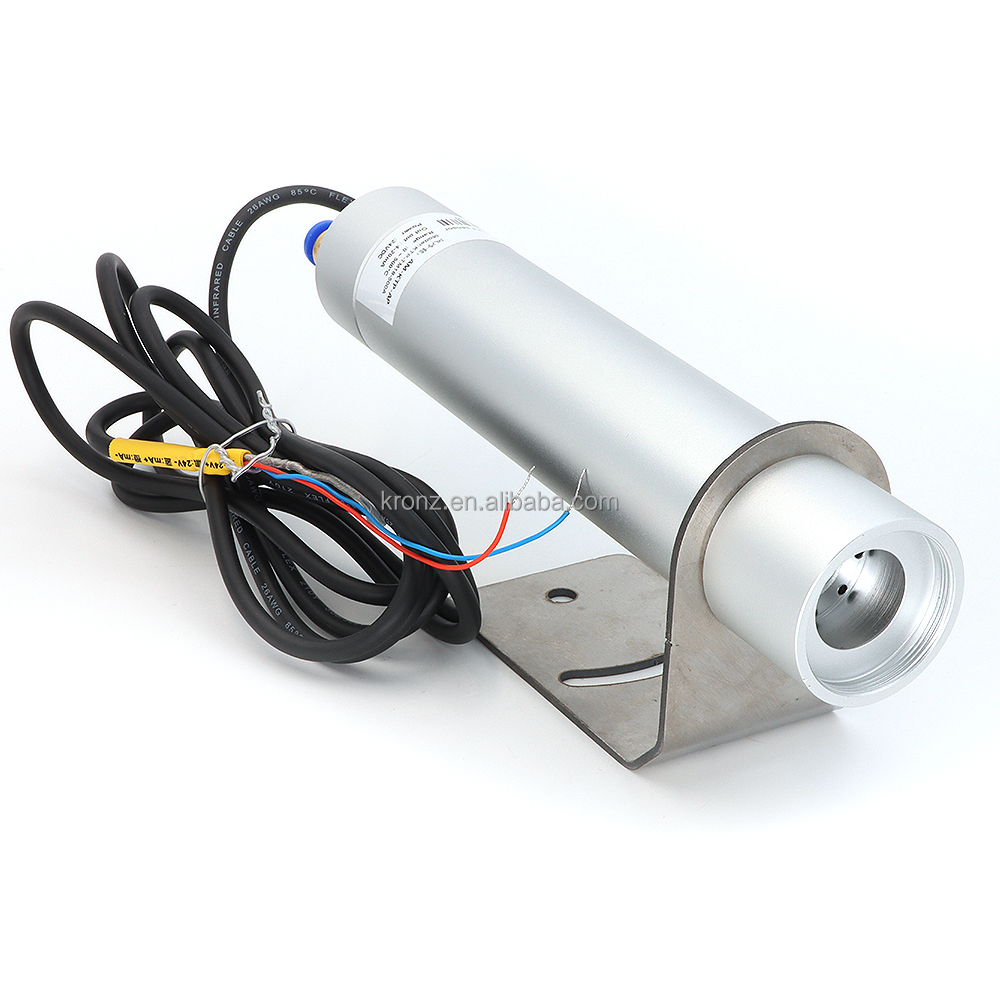

Model: AM-KTP-AP
Working temperature: 0-120°C
Purge pressure: 0.1MPa
Flow: 4L/min
Note: The price does not include the Air cooling casing.
