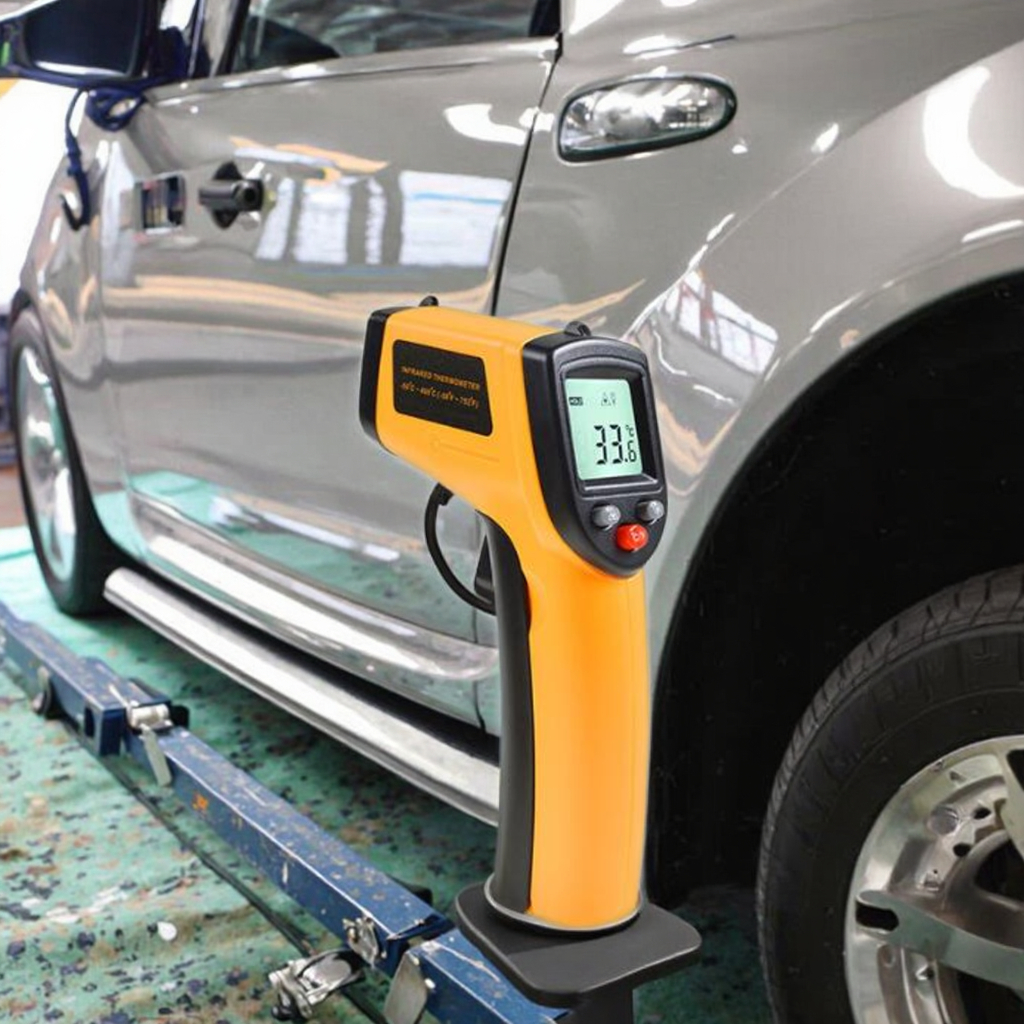

Non-contact Long Distance Testing, Suitable for heating in various industries, Refrigeration Temperature Test, Fast and efficient.
Product Description

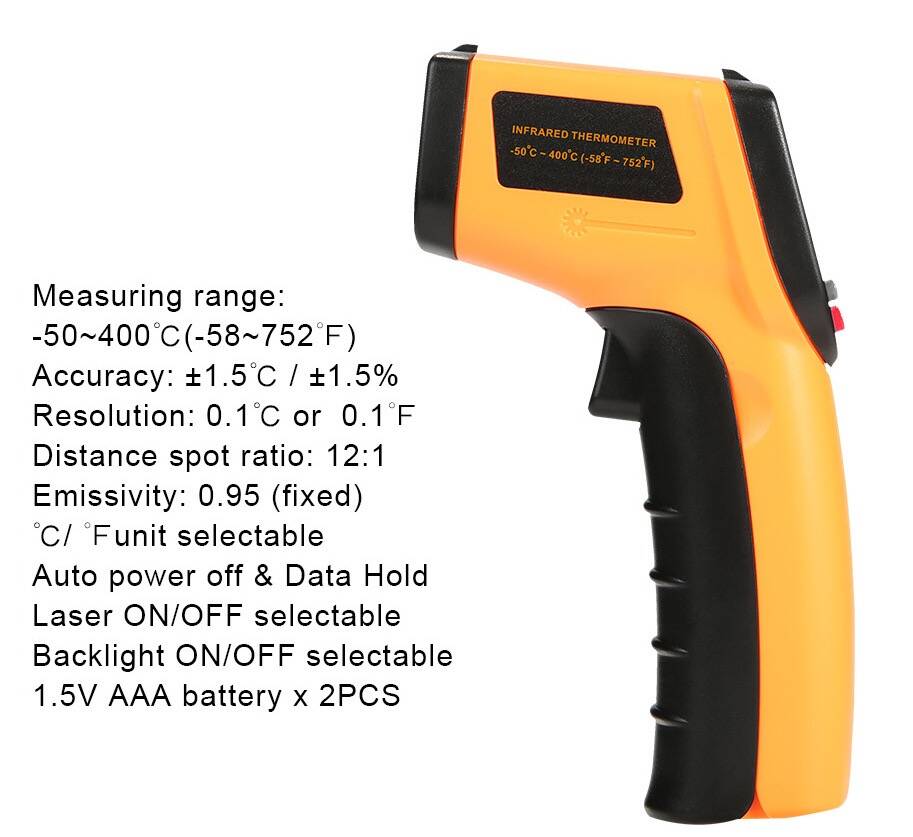

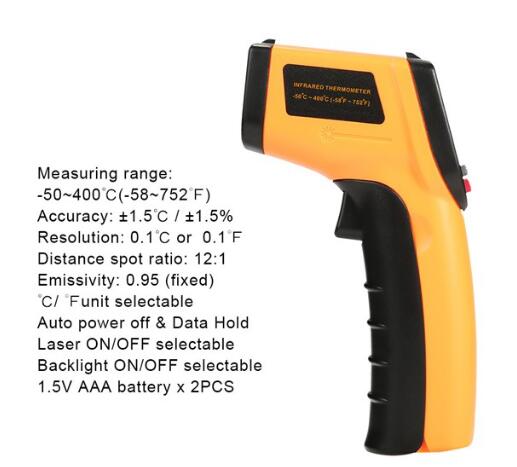

Measurement range: -50~400 (-58~752)
Accurate: ±1.5% or ±1.5℃
Repeatability: ±1% or ±1℃
Distance Ratio: 12:1
Emissivity: 0.95 Preset
Resolution: 0.1℃/℉
Response Time: 500 Millisecond
Response wavelength: 8-14μm
Temperature Unit Conversion
Data Retention Display
Positioning Laser Cutting/Select

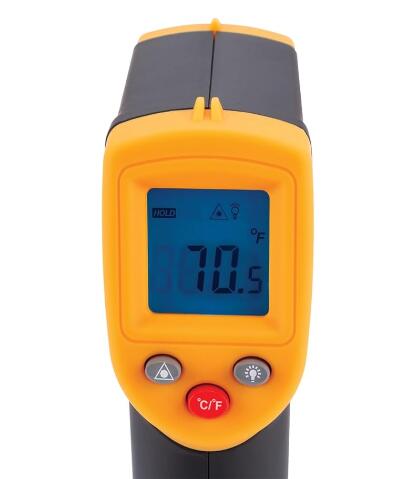

LCD Backlight on/Select
Automatic Shutdown
Low Battery Indicator

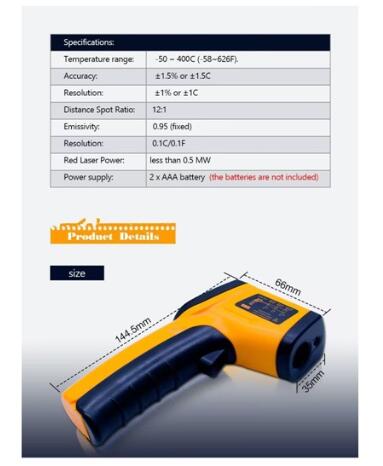

Power Supply: Two sections 1.5V Battery Product Dimensions: 66x35x144.5mm Standard configuration: Bare Watch (Does not include battery), Instruction Manual
Technical Overview
Principle: All objects whose temperature is higher than absolute zero emits infrared radiation energy proportionally. The optics collected the infrared energy emitted by object and focus onto the sensor. Then the sensor translates the energy into an electricity signal. This signal will be turned out to be digital shown on the LCD after the signal amplifier and processing circuit.
Key Features:
1) Use a HEIMANN infrared temperature probe, with high precision and stable performance.
2) High measurement temperature (settable), sound prompt function.
3) Backlight (LED) display.
4) °C/°F selection.
5) Laser target pointer.
6) Auto power shut off (Battery saving).
Specification Data
Item
Value
Type
Temperature sensor
Power Source
Battery
For Vehicle Brand
Universal
Voltage
5v
Screen Size
1.3 inch
Display Type
Digital display
Measurement range
GM320: -50°C ~380°C (-58°F ~716°F)
Response Time
500ms
Distance Spot Ratio
12:1
Auto Power Off
6s
Product Gallery
Frequently Asked Questions
What is the measurement range of the GM320 Infrared Thermometer?
The measurement range for the GM320 model is -50°C to 380°C (-58°F to 716°F), making it suitable for a wide variety of industrial and home applications.
How does the Distance Spot Ratio (12:1) affect measurement?
The 12:1 ratio means that at a distance of 12 inches, the device measures a 1-inch diameter spot. This allows for safe temperature testing from a distance.
Does this thermometer support both Celsius and Fahrenheit?
Yes, the device features a temperature unit conversion function, allowing you to easily switch between °C and °F.
What is the response time for a reading?
The GM320 is highly efficient with a response time of approximately 500 milliseconds, providing nearly instantaneous temperature readings.
Is the battery included in the standard package?
The standard configuration includes the infrared thermometer and an instruction manual. Due to shipping policies, the 1.5V AAA batteries are typically not included.
Can I use this for non-contact measurements?
Absolutely. The device uses infrared technology to measure surface temperatures safely without any physical contact, aided by a laser pointer for accurate aiming.
