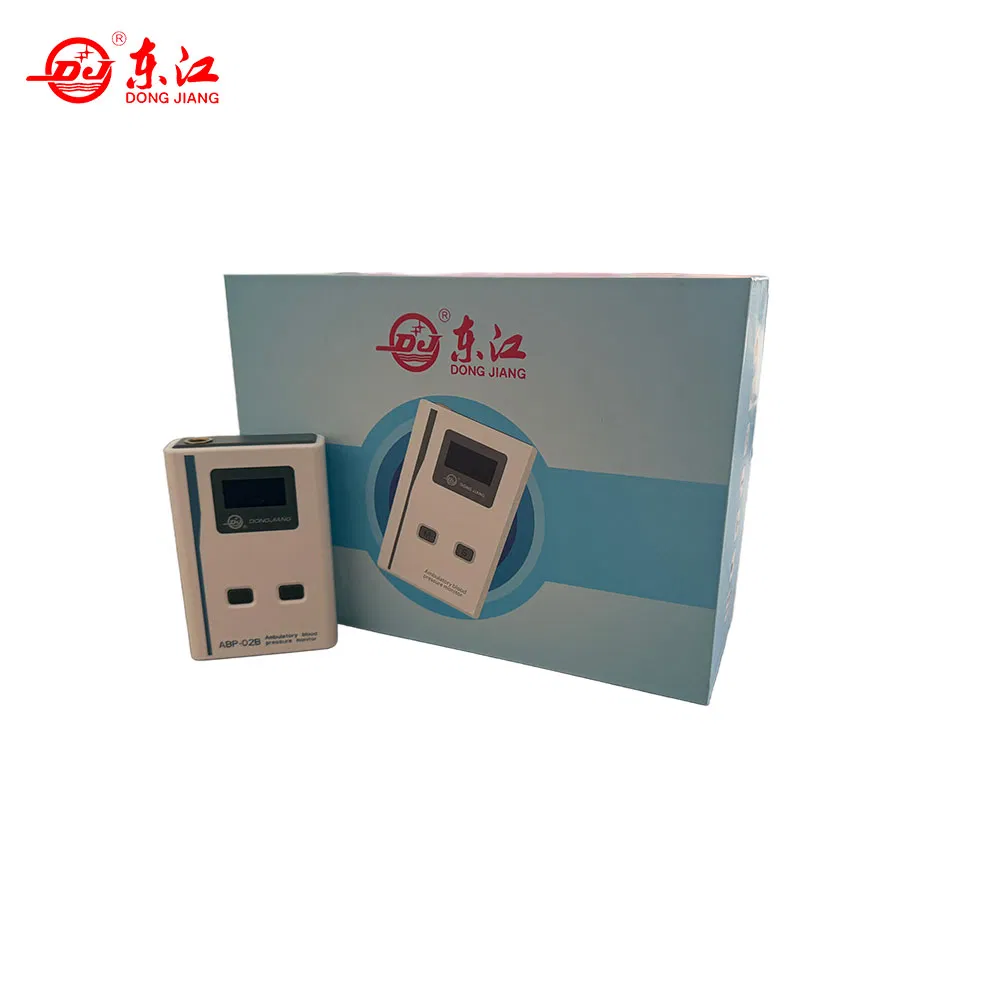

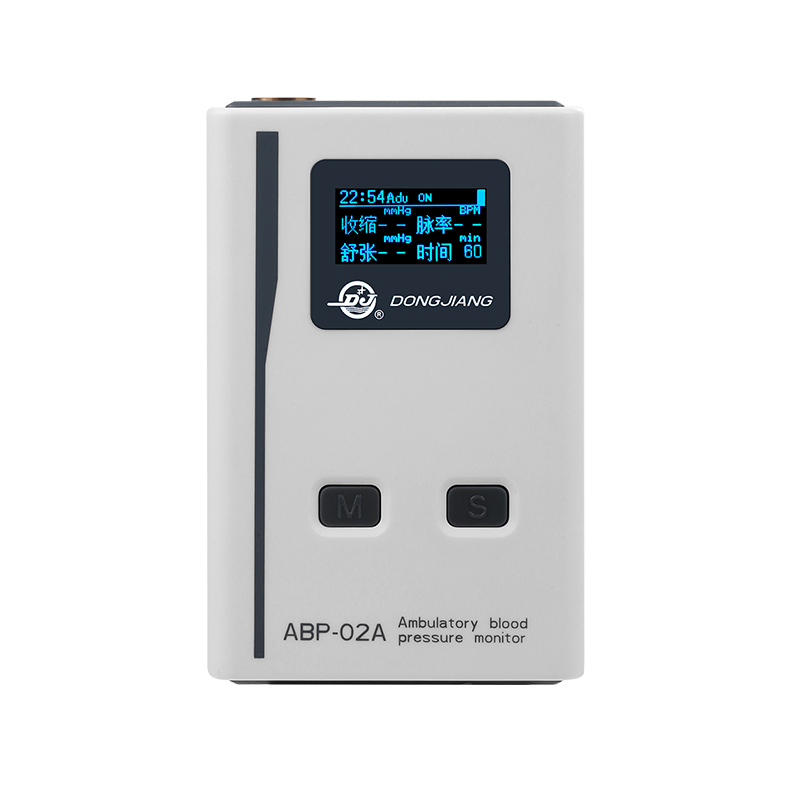

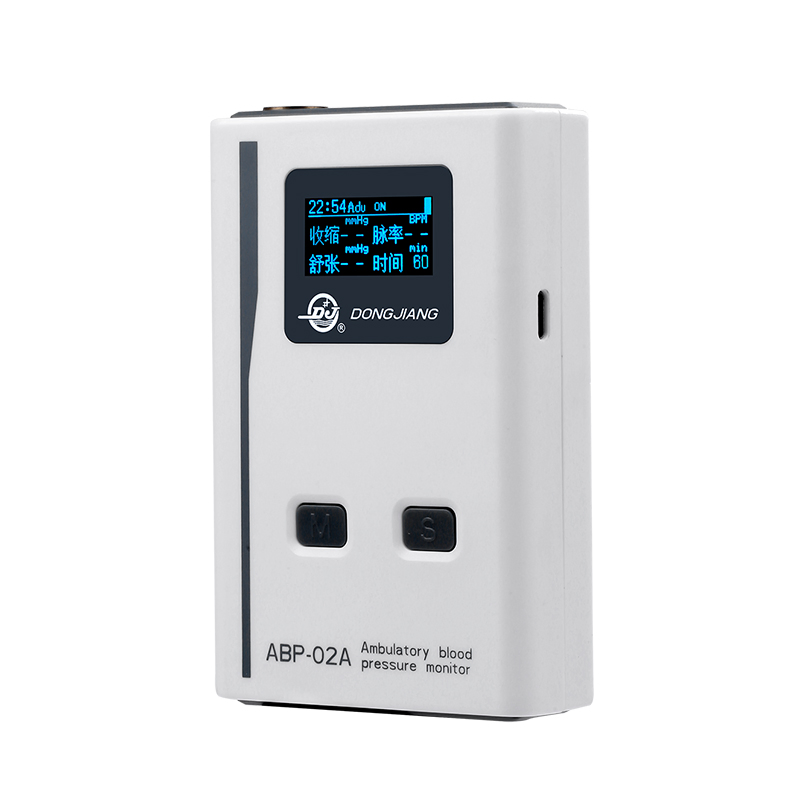

Family and Hospital-Specific Arm Type Abpm Holter Ambulatory Blood Pressure Monitor
Family and Hospital-Specific Arm Type Abpm Holter Ambulatory Blood Pressure Monitor
Family and Hospital-Specific Arm Type Abpm Holter Ambulatory Blood Pressure Monitor
Family and Hospital-Specific Arm Type Abpm Holter Ambulatory Blood Pressure Monitor
Family and Hospital-Specific Arm Type Abpm Holter Ambulatory Blood Pressure Monitor
1 / 5
Family and Hospital-Specific Arm Type Abpm Holter Ambulatory Blood Pressure Monitor
Family and Hospital-Specific Arm Type Abpm Holter Ambulatory Blood Pressure Monitor
Family and Hospital-Specific Arm Type Abpm Holter Ambulatory Blood Pressure Monitor
Family and Hospital-Specific Arm Type Abpm Holter Ambulatory Blood Pressure Monitor
Family and Hospital-Specific Arm Type Abpm Holter Ambulatory Blood Pressure Monitor

Family and Hospital-Specific Arm Type Abpm Holter Ambulatory Blood Pressure Monitor

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
ABP-02B
Certification
ISO13485
Group
All
Product
Holter Blood Pressure Monitor
Color
White
Weight
105g
Package
Carton
Specification
70X97X26mm
Product Description

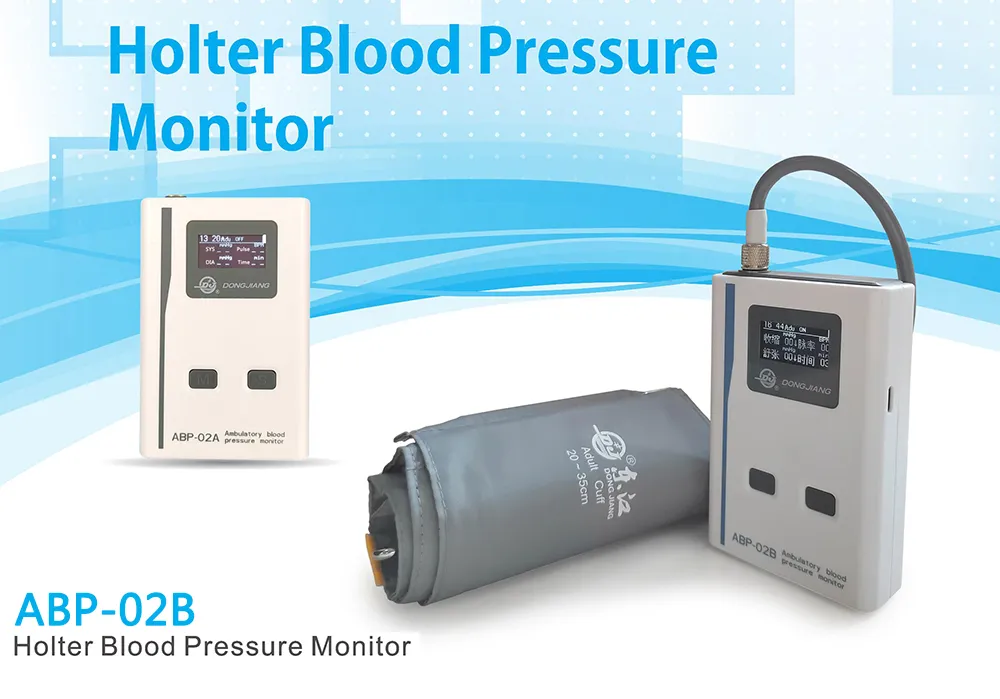

Ambulatory Blood Pressure Monitor

Family and Hospital-Specific Arm Type Bp Holter Ambulatory Blood Pressure Monitor

✔Intelligent simulated inflation with auto adjustment
✔Fan shaped cuff(20~35cm) for easy cover change
✔Measurement method: Auto (with 3 setting) / Manual
✔Operation mode: Man/Auto, manual intervention allowed
✔2 inch TFT color LCD to display real time clock, operating status, etc.
✔USB port & bluetooth for data transmission to PC
✔Over pressure protection system for immediate deflation & emergency stop
✔Sophisticated analysis featuring patient info management, report edition, data statistics, etc.
✔Optional 4G module for data communication

Standard configuration: One software + One recorder

Product Parameters
ParameterSpecification
Blood Pressure Range60-280mm Hg (systolic) 40-160mm Hg(diastolic)
Precision±2mm Hg for BP, ±5% for PR
Battery2XAA battery
Size70×97×26mm
Patient Leak Current<10µA
Weight105g (without battery)
Measurement ModeManual interval; Automatic tabulated; Automatic interval with manual intervention

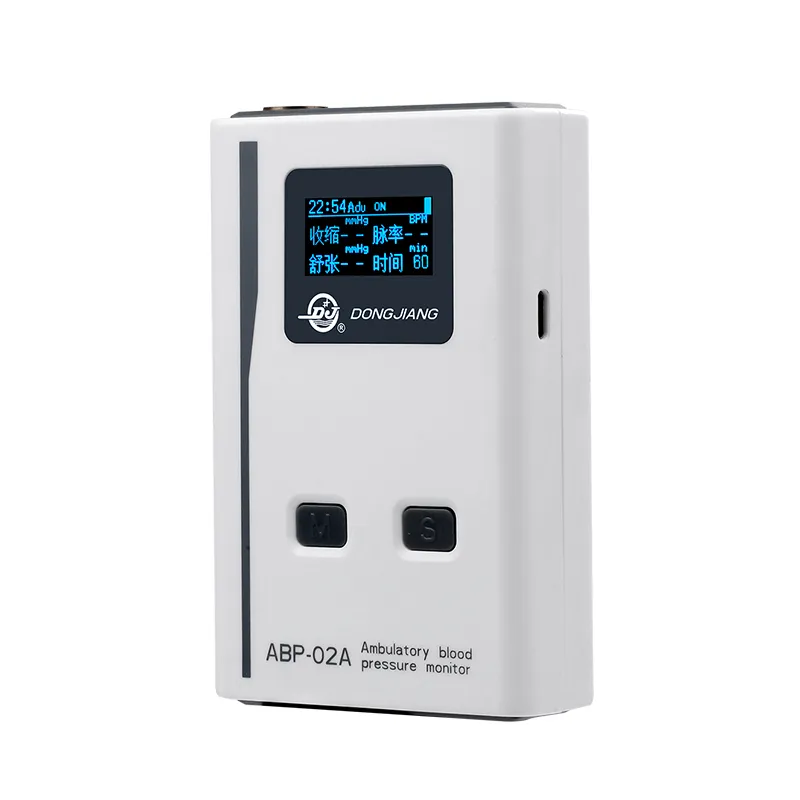

ABP-02B Detail 1

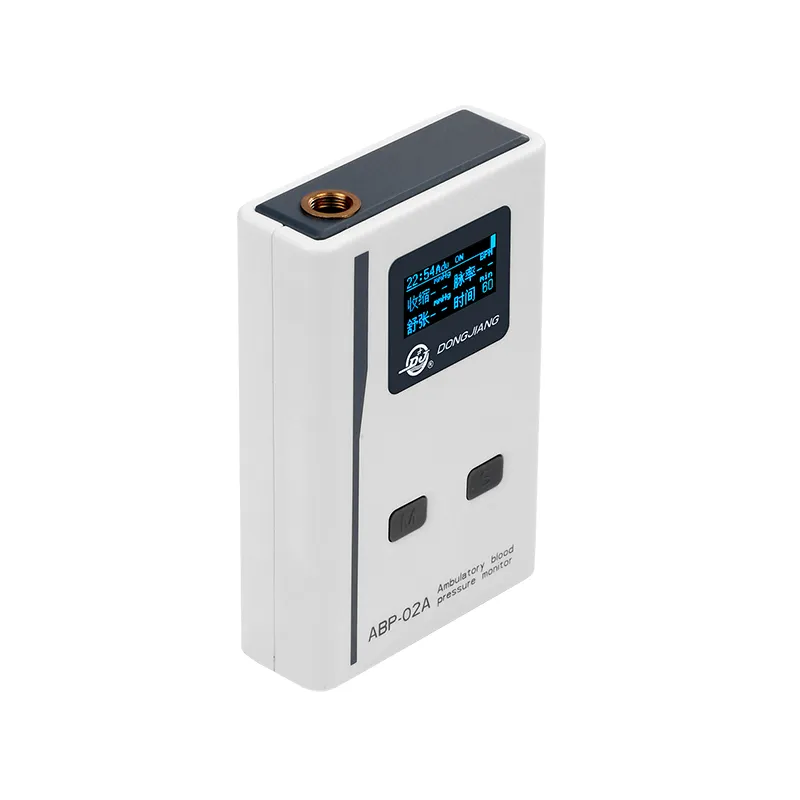

ABP-02B Detail 2
ABP-02B Detail 3
Packaging & Accessories
Accessories IncludedQTY
Waist strap1
Shoulder strap1
Install package (U disk)1
USB Cable1
Air hose1
NIBP cuff1
Battery1

Packing Size: 268×194×101mm, 3kg (per set)

Production Showcase
Facility 1
Facility 2
Facility 3

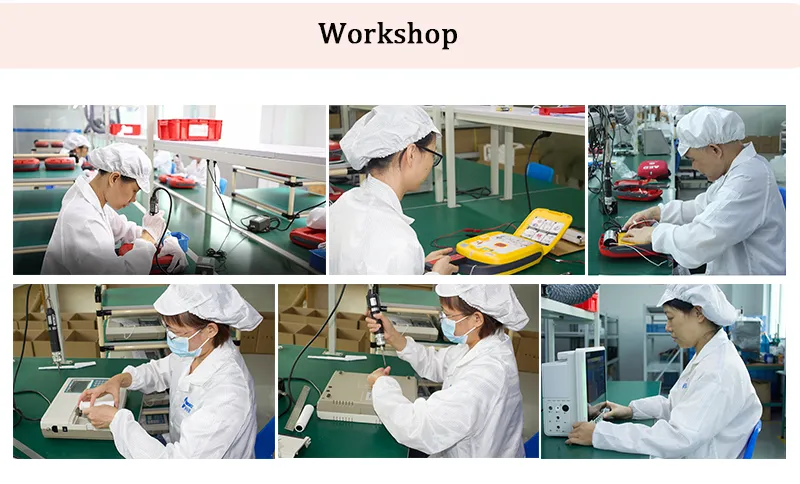

Facility 4
Facility 5
Facility 6
Frequently Asked Questions
How does the intelligent inflation system work?
The ABP-02B uses intelligent simulated inflation which automatically adjusts the pressure level based on the individual's blood pressure, ensuring a comfortable and accurate measurement process.
Can the measurement data be transferred to a computer for analysis?
Yes, the device is equipped with a USB port and Bluetooth capabilities, allowing seamless data transmission to a PC where the included software can perform sophisticated analysis.
What type of batteries does the recorder use?
The recorder operates on 2 standard AA batteries, making it easy to power and maintain for long-term ambulatory monitoring.
Is there a safety feature for emergency situations?
Yes, the device includes an over-pressure protection system that allows for immediate deflation and emergency stop to ensure patient safety at all times.
What is included in the sophisticated analysis software?
The software features comprehensive patient information management, report editing, data statistics, data recall, and sorting functions to help medical professionals interpret ambulatory blood pressure trends.
What is the weight and portability of the device?
The recorder is highly portable, weighing only 105g (without batteries) and measuring 70x97x26mm, designed for comfortable 24-hour wear by the patient.
