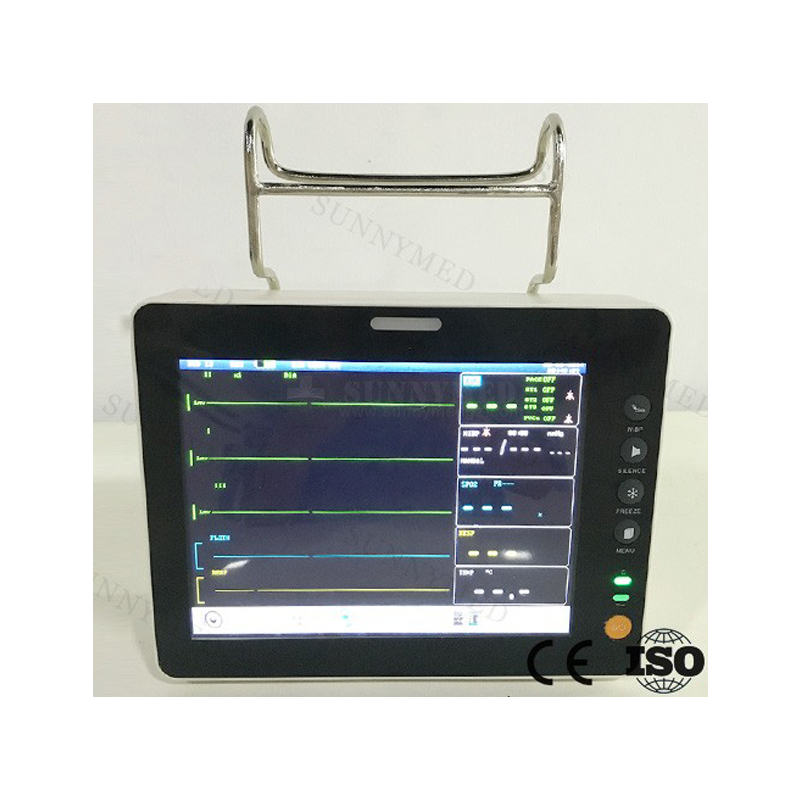

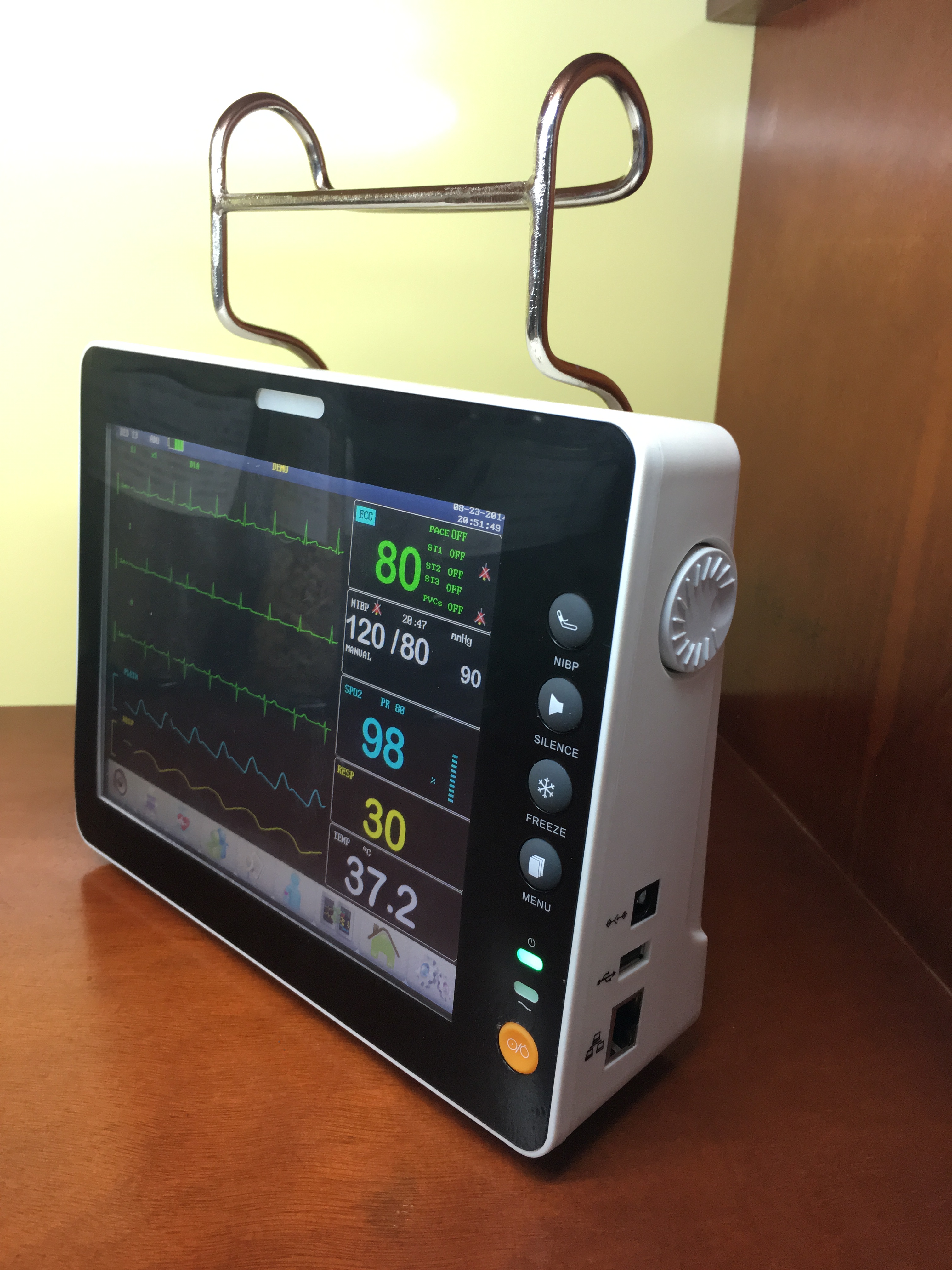

SY-C004-1 Hospital Device 8 Inch Multi-Parameter Veterinary Patient Monitor for Sale

Product Description

Patient Monitor Banner
SY-C004-1 Hospital Device 8 inch Multi-Parameter Veterinary Patient Monitor

Reliable Quality Affordable Price

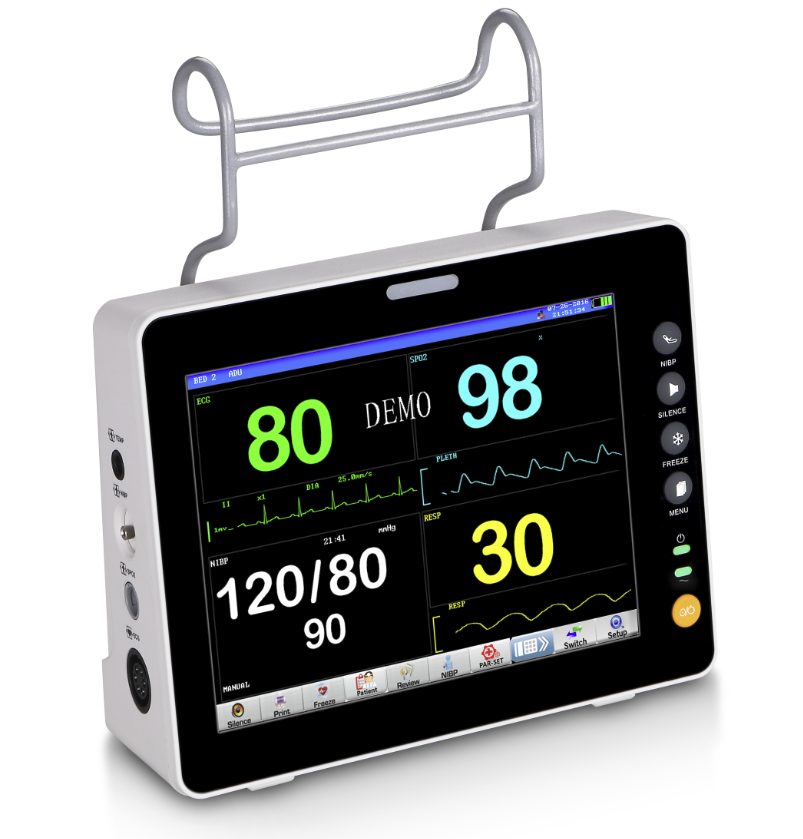

Monitor Features
Technical Specifications
  • 8" color TFT LCD screen, resolution 800*600
  • Waterproof design, resistance to dropping (1 meter)
  • External 13-20V DC power, 5.5+ hours battery backup
  • Display modes: Big font, trends review, 7 leads ECG waveform
  • 15 kinds of arrhythmia & drug concentration analysis
  • Anti-electro surgical unit (300W) & anti-defibrillation (360J)
  • Digital SpO2 technology, low perfusion (0.1%) performance
ECG Monitoring
Lead ModeStandard 3/5 lead (I, II, III, avR, avL, avF, V)
HR RangeAdult: 15 ~ 300 bpm | Ped/Neo: 15 ~ 350 bpm
Accuracy±1% or ±1bpm
BandwidthSurgery: 1~20Hz | Monitor: 0.5~40Hz | Diagnostic: 0.05~130Hz
ST SegmentMeasurement Range: -2.0 ~ +2.0 mV
SPO2 & NIBP
SPO2 Range0-100%, Resolution: 1%, Accuracy: ±2% (70-100%)
Pulse Rate20-300 BPM (Accuracy: ±3BPM)
NIBP MethodOscillometric (Manual, Automatic, STAT)
NIBP RangeAdult SYS: 40~270 mmHg | Ped SYS: 40~200 mmHg
Overpressure ProtectionAdult: 300 mmHg | Ped: 240 mmHg | Neo: 150 mmHg
RESP & TEMP
RESP MethodImpedance Between RA-LL or RA-LA
RESP RangeAdult: 2 ~ 120 BrPM | Neo/Ped: 2 ~ 150 BrPM
TEMP Channel1 Channel, YSI/CYF Sensor compatible
TEMP Range0-50ºC (Accuracy: ±0.1ºC)
Product Detail Display

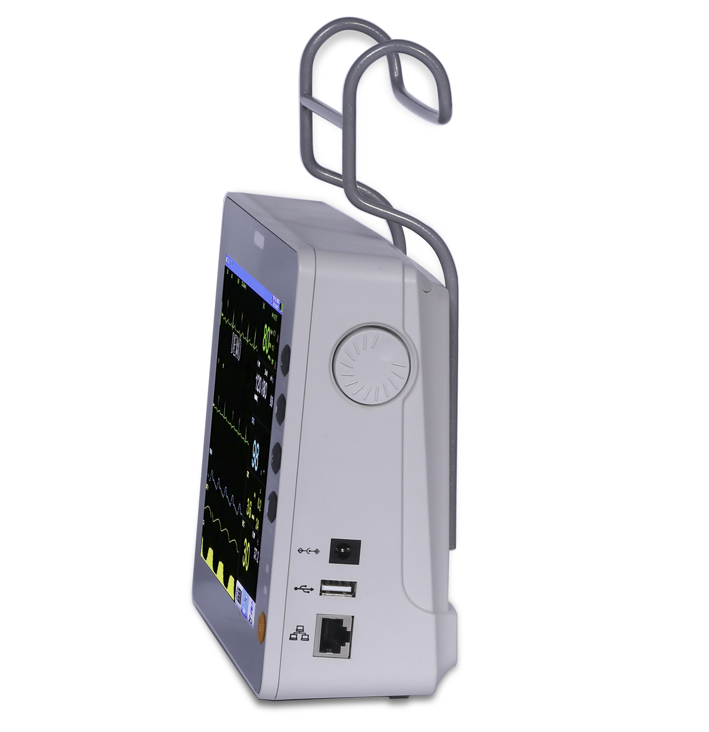

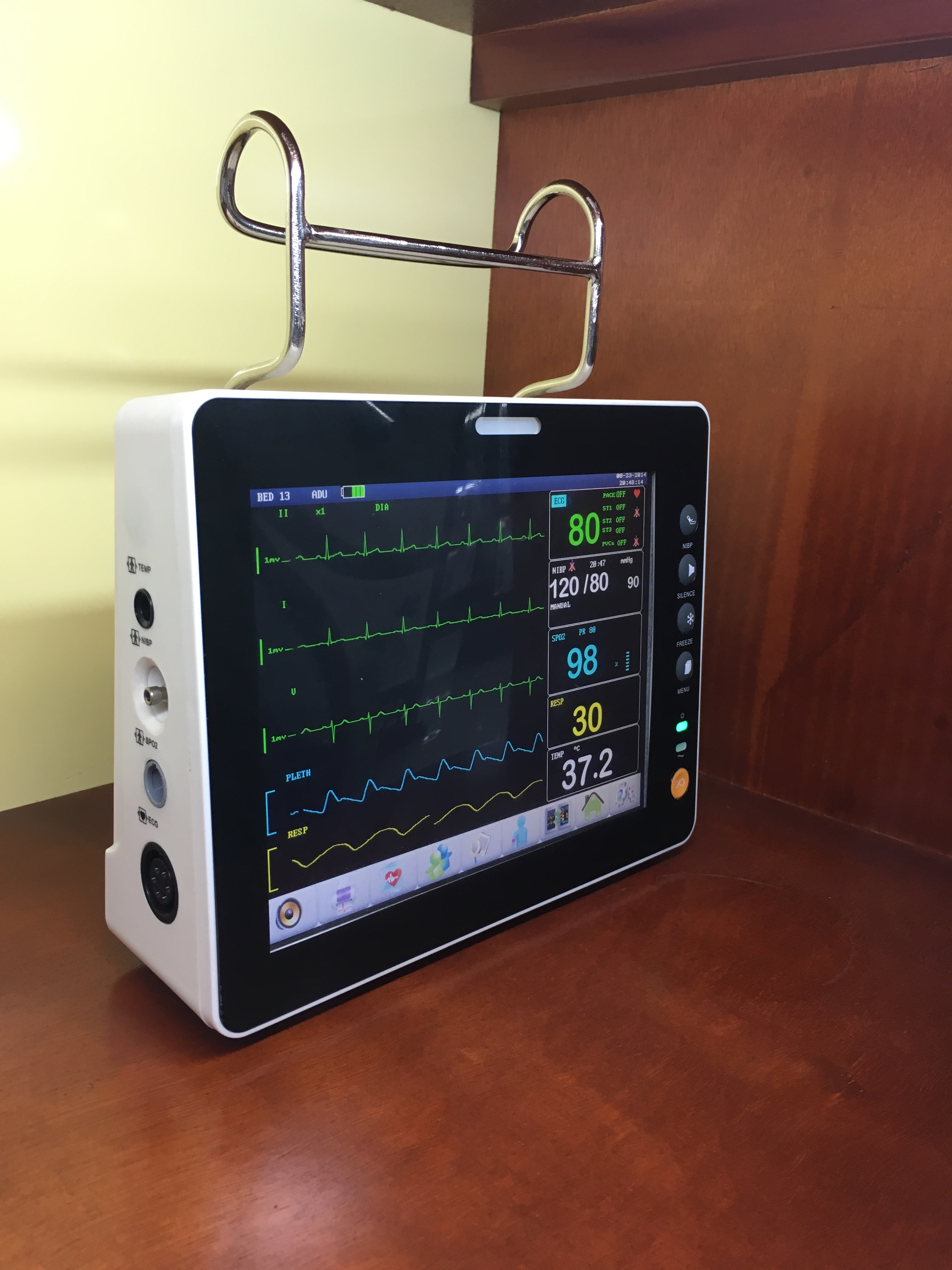

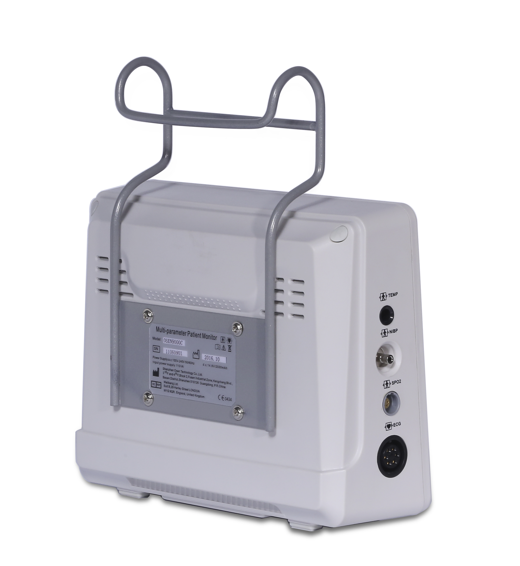

Monitor view 1 Monitor view 2 Monitor view 3

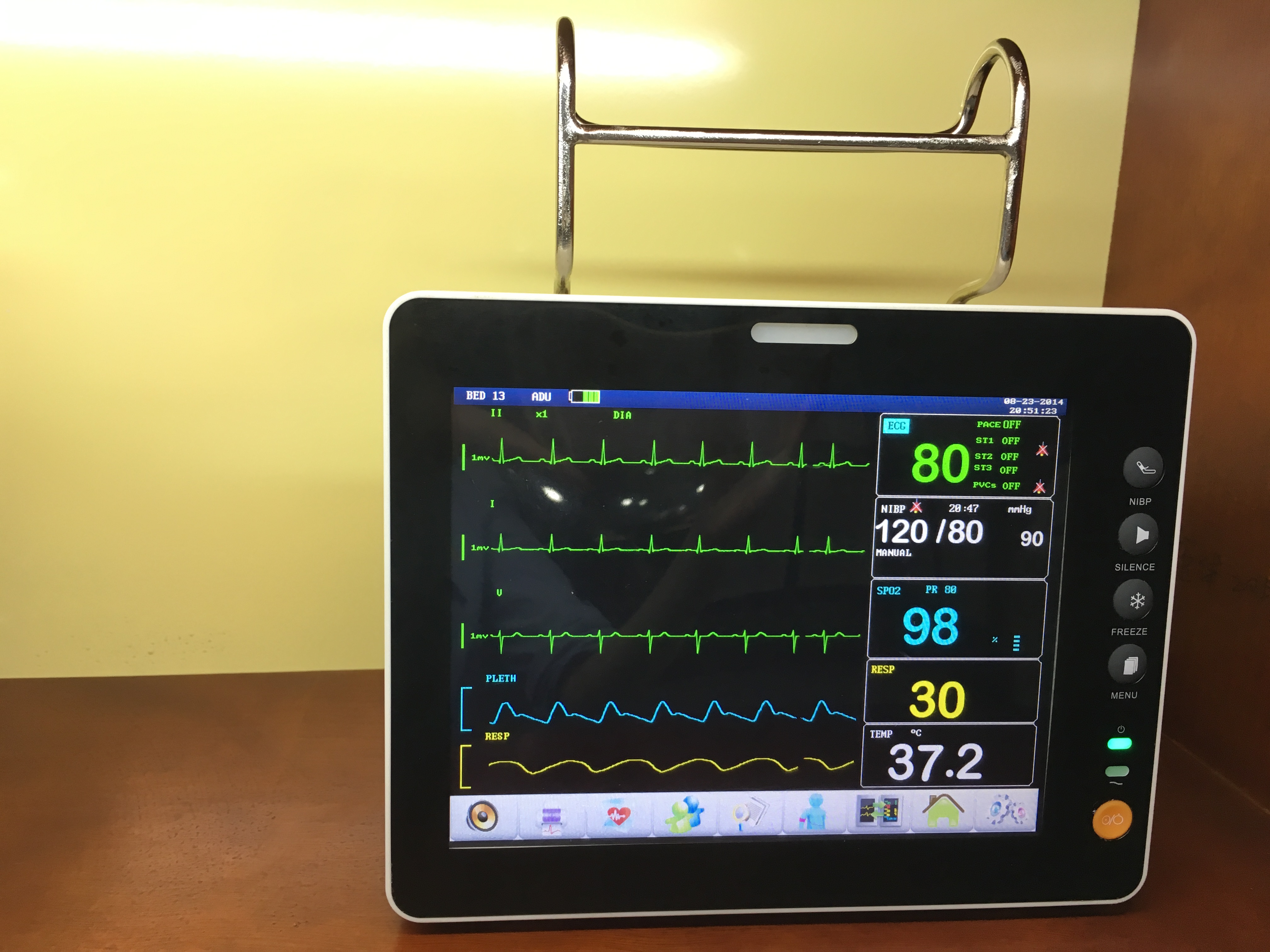

Accessories and Interface
Packing & Delivery

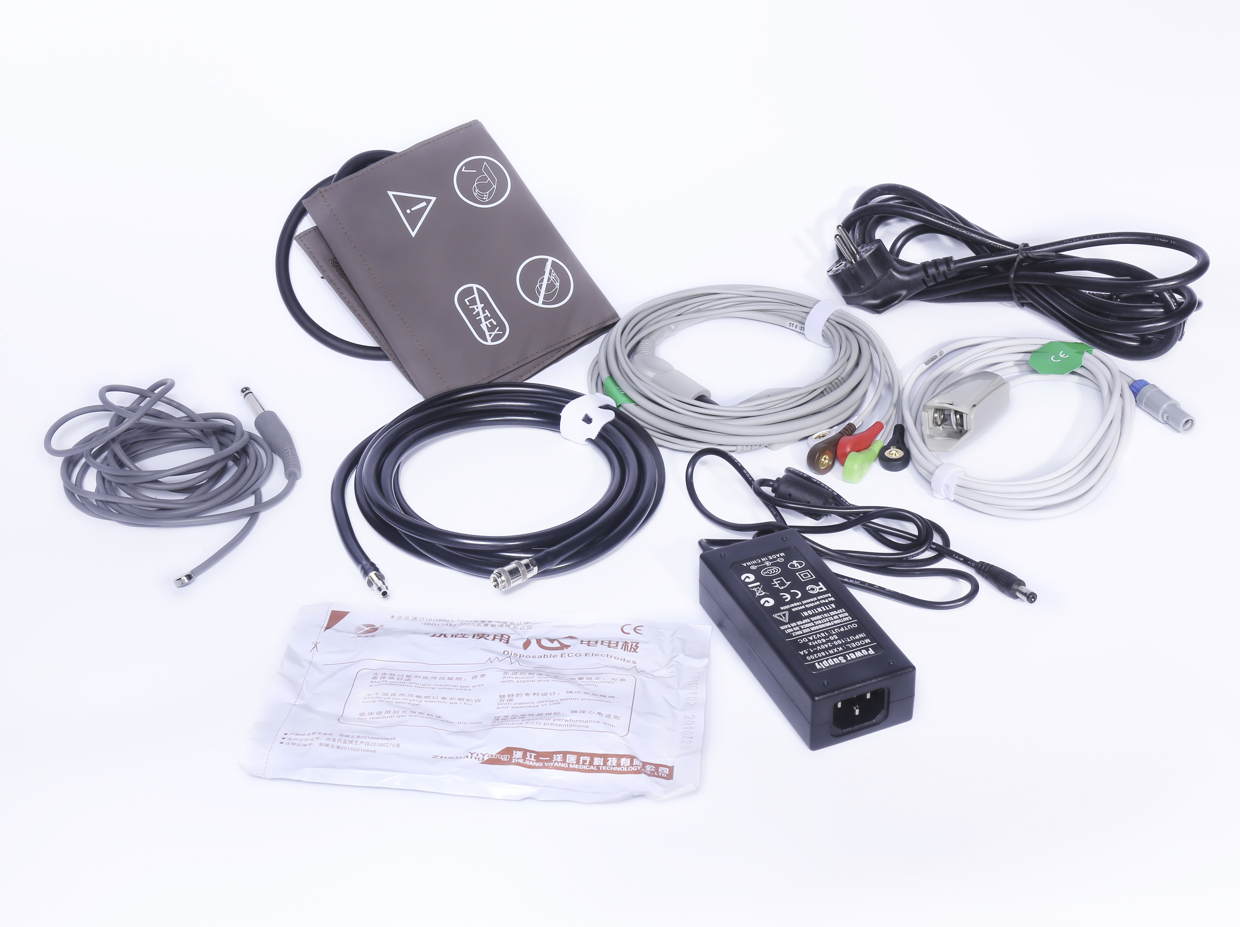

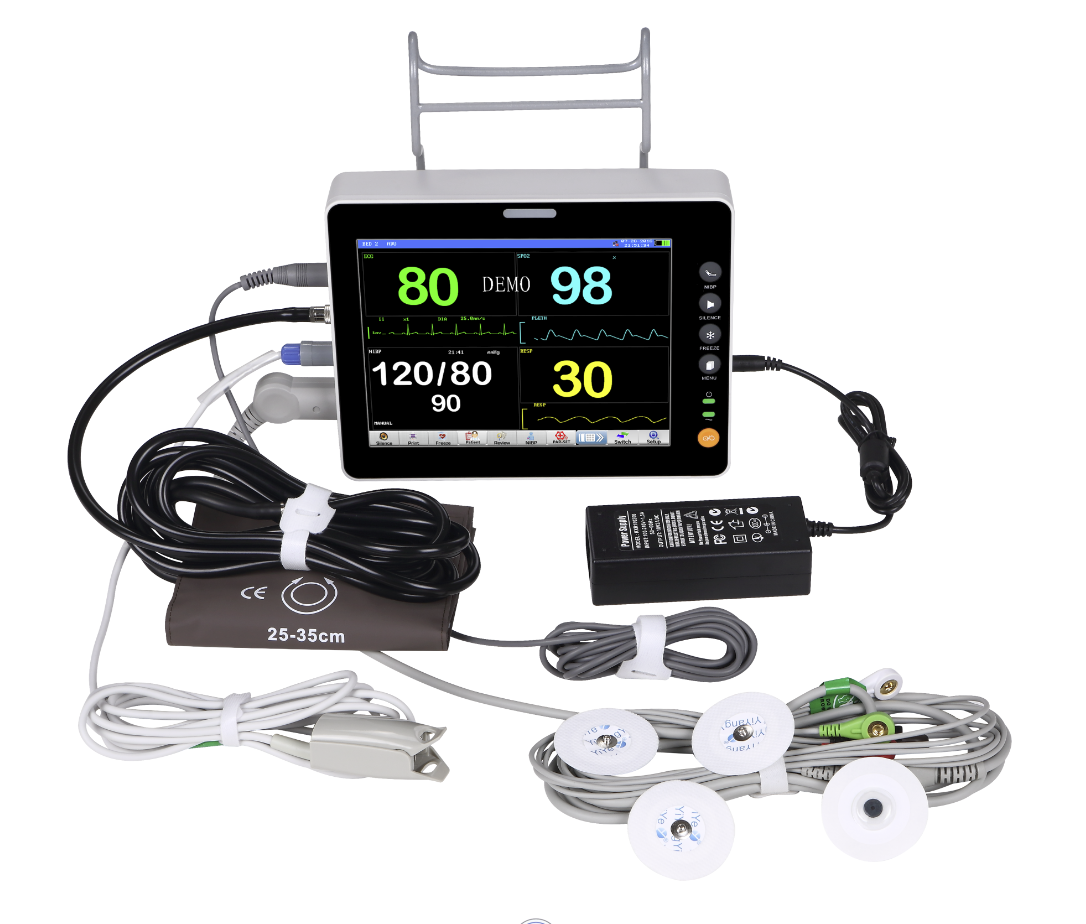

Package 1 Package 2

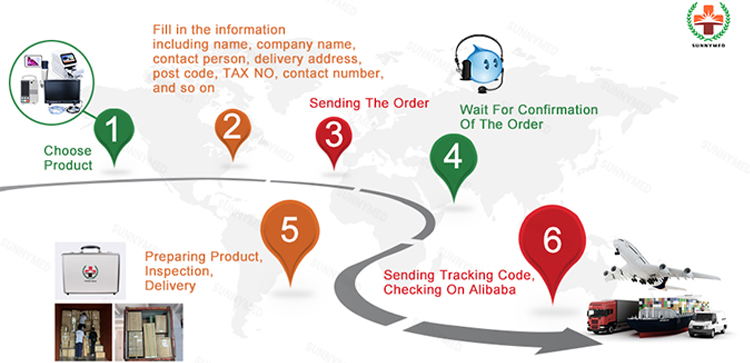

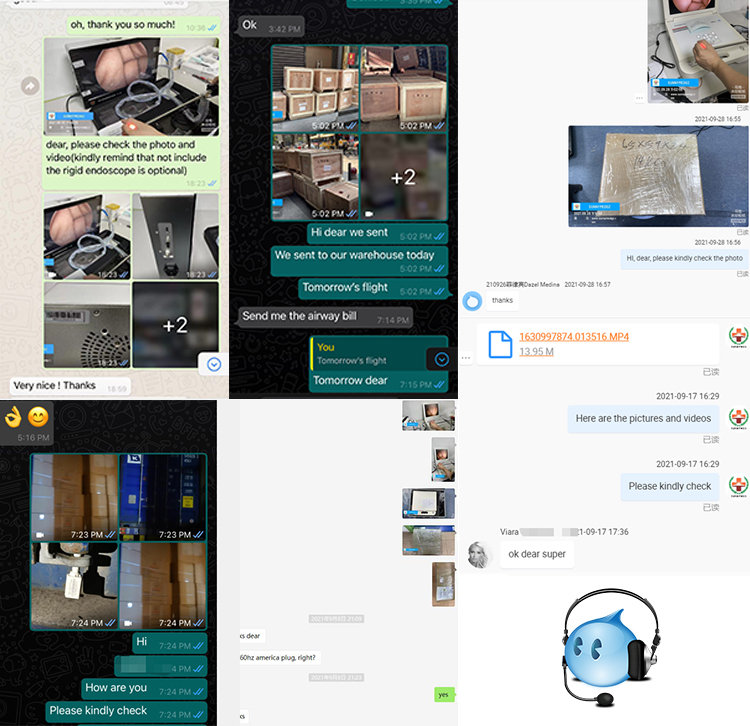

Ordering Process Shipping Safety
Frequently Asked Questions
How can I purchase this veterinary patient monitor?
You can order directly through our sales representatives or place an order online through our secure commerce platform.
What payment methods do you support?
We accept a wide range of payment methods including T/T (Bank Transfer), Credit Card, PayPal, Trade Assurance, Western Union, and L/C.
How long is the delivery time for my order?
Ready stock items are shipped within 24 hours. For OEM or customized orders, the typical lead time is 2-7 working days.
Do you provide technical support or training?
Yes, we offer comprehensive video tutorials for installation, operation, and maintenance. We also provide real-time online video call support for pre-sales and after-sales training.
What is the warranty period and after-sales service?
We provide a warranty ranging from 12 to 60 months depending on the configuration. Our team guarantees a response to after-sales inquiries within 8 hours.
Is the equipment inspected before delivery?
Every unit undergoes a strict one-to-one safety and quality inspection service before shipping to ensure it meets all performance standards.
